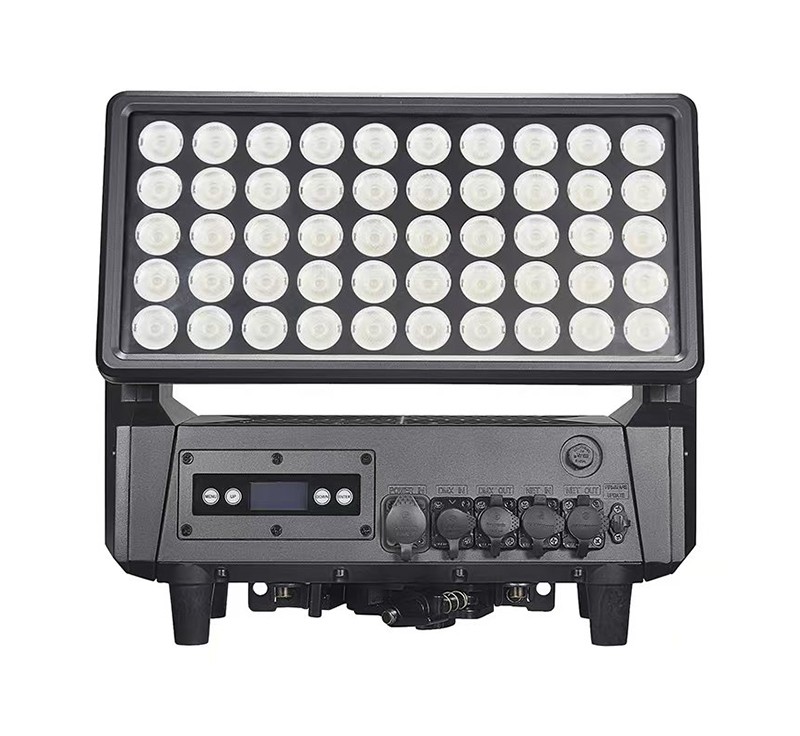

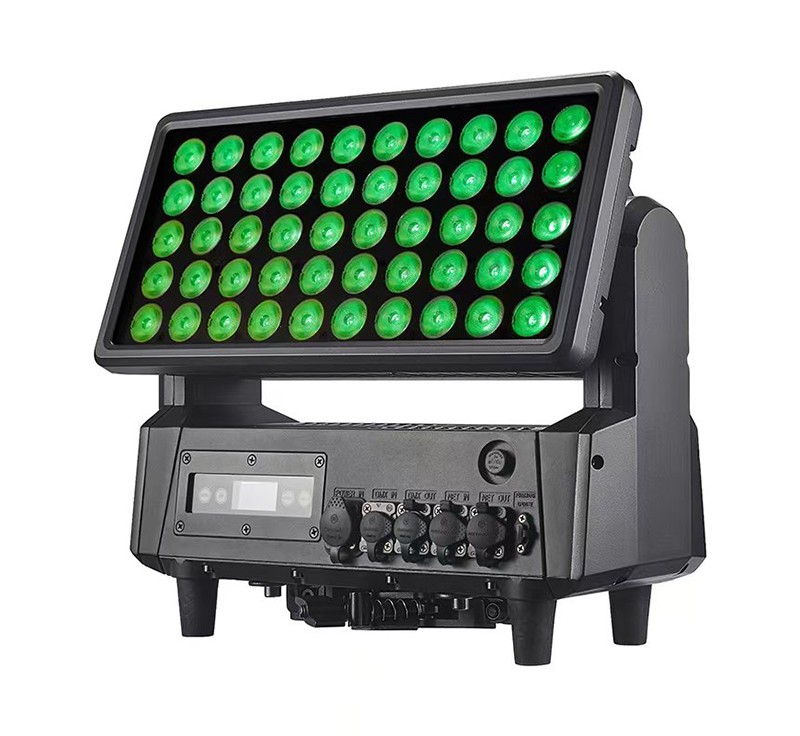

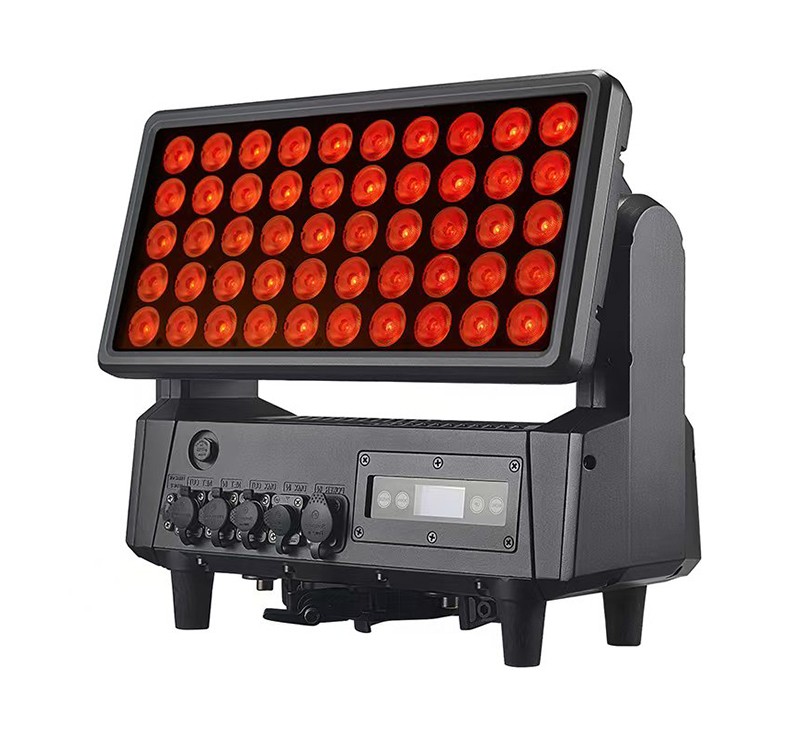

DMON YPF5020 IP65 Outdoor Moving Head Wash Light 1000W
The Dmon YPF5020 is an IP65-rated outdoor moving head wash light delivering 1000W of RGBW output across 50 ultra-bright LEDs. With 220° tilt, photoelectric magnetic encoder positioning, and DMX512/RDM/Art-Net control, the YPF5020 is built for high-output wash lighting in outdoor concert and festival environments.
- 1000W RGBW output — high-intensity wash coverage for large outdoor productions
- Art-Net support alongside DMX512/RDM — integrates with media servers and advanced lighting networks
- Photoelectric magnetic encoder positioning — accurate, repeatable movement outdoors
- IP65 waterproof — reliable operation in outdoor concert and festival conditions
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Standard positioning motors can drift after repeated outdoor use, especially with temperature swings. The YPF5020 uses a photoelectric magnetic encoder for positioning, keeping the 220° tilt movement accurate even after long-term exposure to the elements.
Complex pixel-mapped shows often outgrow standard DMX bandwidth. The YPF5020 supports Art-Net alongside DMX512, giving productions with media servers or large pixel-mapping setups a network protocol built for higher data throughput.
Application Scenarios
Specification
| LED Configuration | 50 × 20W RGBW ultra-bright LEDs | LED Lifetime | ≥50,000 hours |
| Input Voltage | AC 90–240V, 50/60Hz | Total Power Consumption | 1000W |
| Color Mixing | RGBW full color mixing | LED Control | RGBW overall control |
| Tilt Range | 220° with 16-bit resolution | Y-axis Motor | High-speed silent 3-phase motor with auto-reset, reversible direction |
| Positioning | Photoelectric magnetic encoder for high-precision positioning | Strobe | Electronic strobe 0.3–25 flashes/sec |
| Dimming | 0–100% linear electronic dimming with gamma curve, 1.2k–25kHz adjustable, flicker-free | Control Protocols | DMX512, RDM, Art-Net |
| DMX Channel Mode | 11CH (standard) | Power Connection | Power in/out, max link 2 units @230V, 1 unit @120V |
| Signal Connection | DMX512 in/out, Art-Net supported | Display | Touch LCD display, CN/EN menu, sensor fault & temperature display |
| Cooling System | Intelligent fan cooling with thermal protection and noise balance | IP Rating | IP65 |
| Packaging | Carton or waterproof flight case |
Details & Features
Frequently Asked Questions
Is the YPF5020 truly rated for outdoor use?
Yes. The YPF5020 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the YPF5020 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 11 channels, and supports bi-directional RDM as well as Art-Net, compatible with a wide range of consoles and media servers.
How many units can be linked together?
Power linking supports up to 2 units at 230V or 1 unit at 120V.
Does the LED source need to be replaced like a traditional lamp?
No. The YPF5020 uses RGBW LEDs rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's的warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
