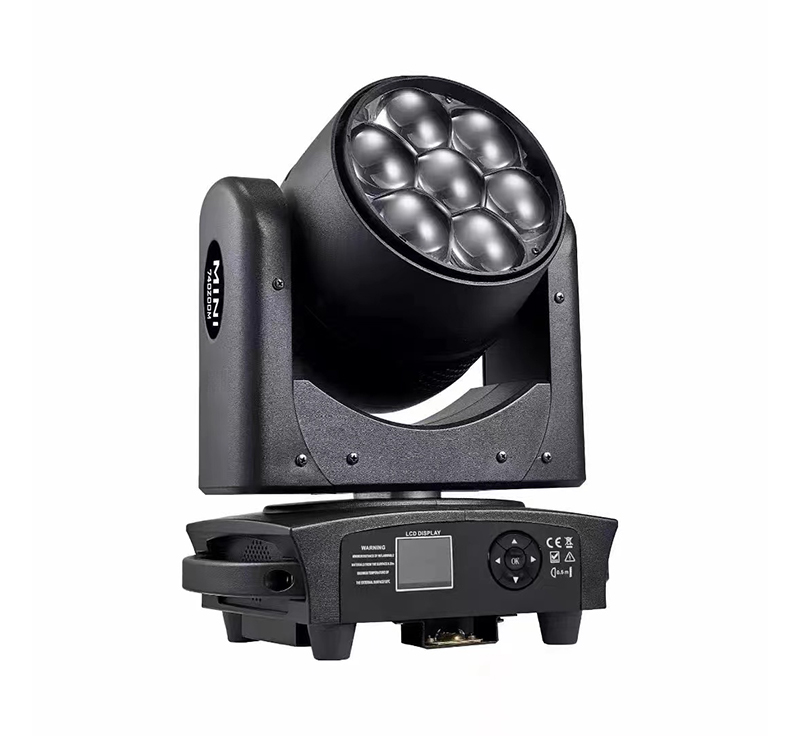

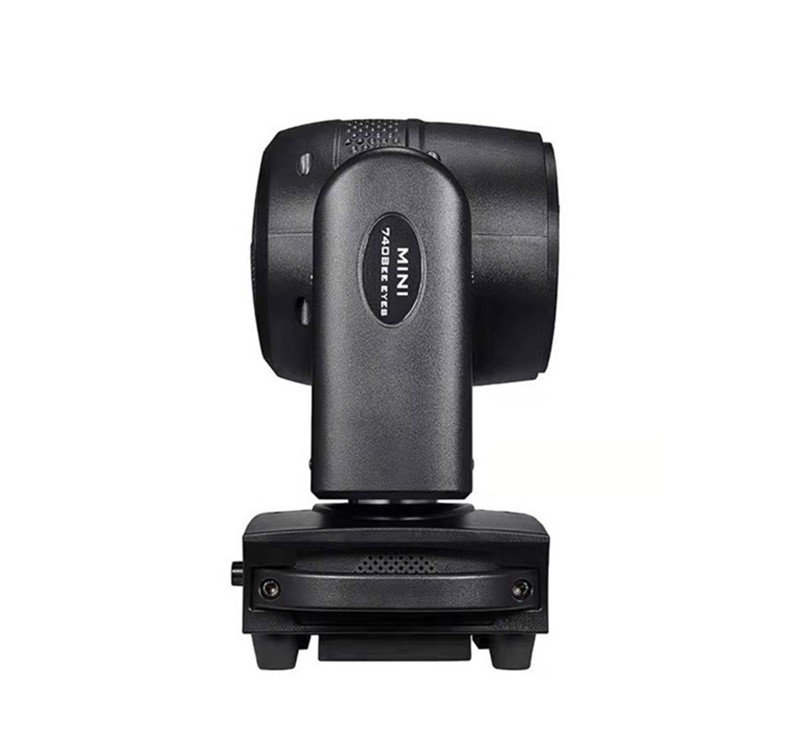

DMON LM740W 7×40W RGBW Mini Beam & Wash Moving Head Light
The Dmon LM740W is a compact 7×40W RGBW mini beam & wash moving head light with individual pixel control, 4.5°–45° zoom with auto-focus, and built-in effects including vortex, kaleidoscope, and pixel chase. At just 8 kg with flicker-free dimming and DMX512/RDM control, the LM740W delivers pixel-mapped visual effects in a lightweight, easy-to-rig fixture.
- Individual RGBW pixel control — built-in vortex, kaleidoscope, and pixel chase effects without external programming
- 4.5°–45° zoom with auto-focus — adjusts from tight beam to wide wash in one fixture
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
- Lightweight at 8 kg — easy to rig and transport compared to full-size beam/wash fixtures
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Pixel-mapped effects usually require external control software and extra setup time. The LM740W's 7 individually controlled RGBW pixels come with built-in vortex, kaleidoscope, and pixel chase programs, so operators can trigger complex visual effects directly from the console without additional programming.
Filming under LED fixtures often means dealing with visible flicker on camera. The LM740W's dimming runs at 1.2–25 kHz, keeping output flicker-free across a wide dimming range — so the fixture stays camera-ready without needing to match frame rates manually.
Application Scenarios
Specification
| Light Source | 7 × 40W RGBW LED (4-in-1) | LED Lifetime | Approx. 30,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 300W |
| Color System | RGBW color mixing with linear CTO control | Zoom / Focus | 4.5°–45° DMX linear zoom with auto-focus |
| Dimming | 0–100% electronic dimming, gamma adjustable (1.2kHz–25kHz), flicker-free | Strobe | 0.3–25 Hz, sync / async / random |
| Pan / Tilt | 540° / 270° (16-bit resolution) | Motor System | Silent three-phase motors with Hall sensor positioning |
| DMX Channel Modes | 23 CH (Basic) / 35 CH / 51 CH (Extended) | Control Protocol | DMX512, RDM |

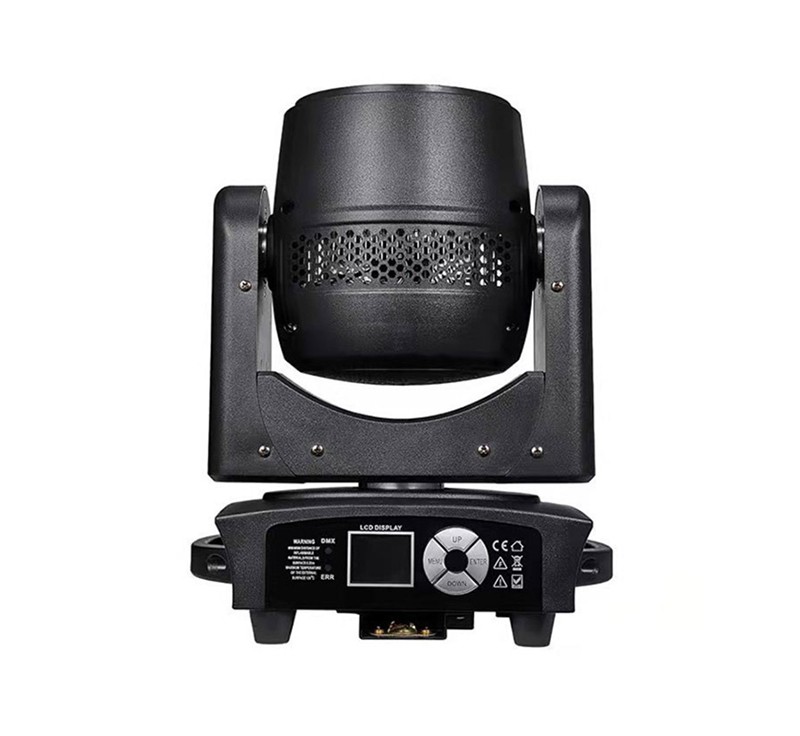

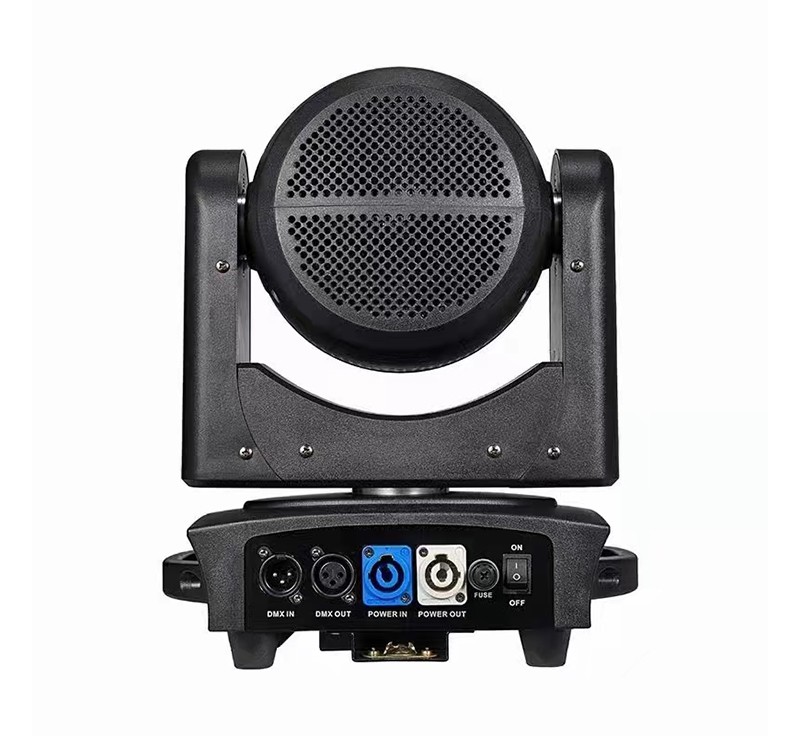

| Control Interfaces | 3-pin DMX (optional 5-pin), power in/out | Display | 1.77-inch LCD display, bilingual menu, auto-rotate |
| Sleep Mode | Auto standby when DMX signal is lost | Cooling System | High-efficiency aluminum heatsink with intelligent fan control |
| Protection | Overheat protection and smart noise-temperature balance | IP Rating | IP20 (optional rain cover up to IP44) |
| Fixture Dimensions | 340 × 230 × 410 mm | Net Weight | 8.0 kg |
| Gross Weight | 9.5 kg | Packing Size | 500 × 410 × 305 mm (1 pc) |
| Effects | Vortex, kaleidoscope, pixel chase, strobe effects | Optical Design | Seamless front lens array with continuous rotation |
| Pixel Control | Individual LED pixel control with built-in programs | Special Features | Auto screen rotation, integrated mainboard, RDM remote addressing & upgrade |
Details & Features
What's in the Box
- • DMON LM740W Moving Head (7 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM740W be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 23 CH, 35 CH, or 51 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM740W uses 7×40W RGBW LEDs rated for approximately 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What can the built-in pixel effects do?
Each of the 7 RGBW pixels can be individually controlled, with built-in vortex, kaleidoscope, and pixel chase programs available directly from the console — no external pixel-mapping software required.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
