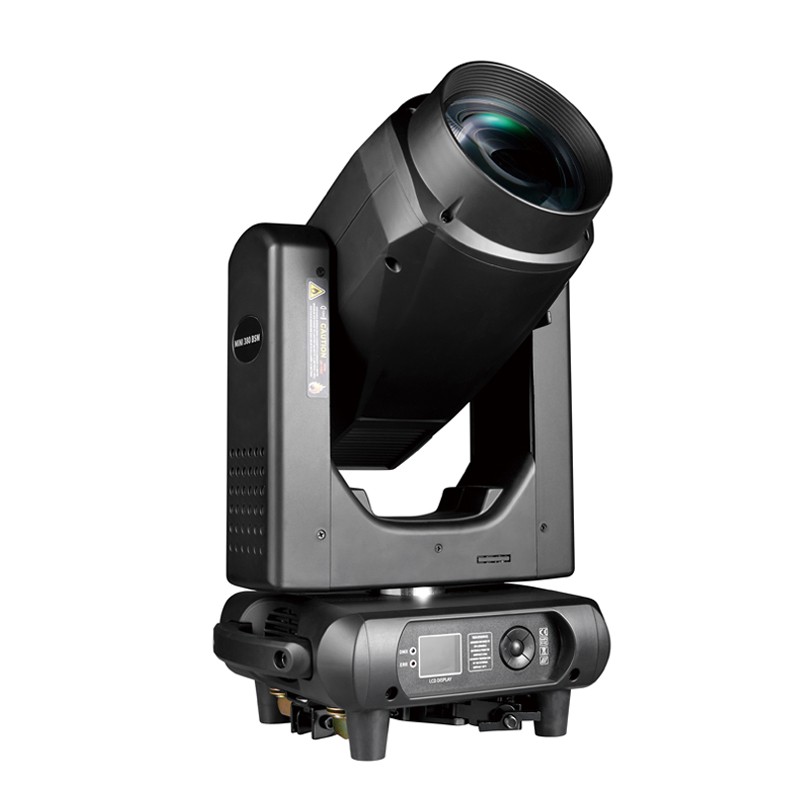

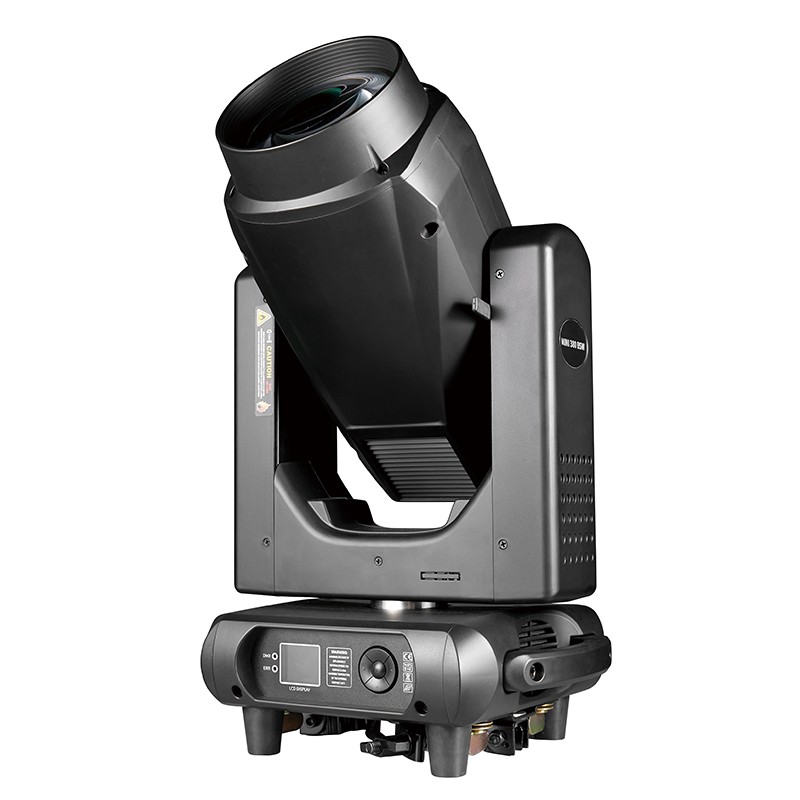

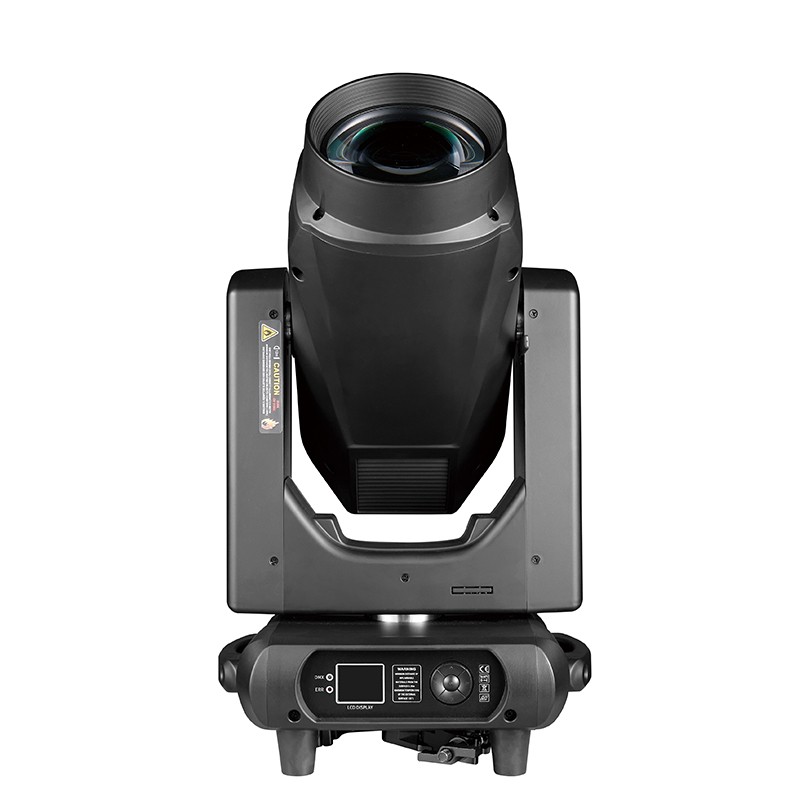

DMON M380BSW 380W Beam Spot Wash Moving Head Light with OSRAM Lamp

The M380BSW 380W Beam Spot Wash Moving Head Light uses a 371W OSRAM Platinum long-life lamp with a wide 3°–45° zoom range, providing flexibility for narrow beam effects, gobo projection and wider stage coverage. With 784,000 lux at 6 m / 3°, replaceable rotating gobos, dual prism systems and linear frost, the M380BSW gives lighting designers more effect options from a single moving head.

371W OSRAM Platinum lamp — 4,000-hour rated lamp life
3°–45° zoom — from concentrated beam effects to wider stage coverage
784,000 lux @ 6 m / 3° — specified output at the narrowest zoom angle
Dual prism system — prism effects can be layered, including a 16-facet + 80-facet combination for a denser 96-facet effect

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

A BSW fixture is more useful when its zoom range can actually cover different jobs on the same rig. The M380BSW combines a 371W OSRAM Platinum lamp with a 3°–45° zoom range, giving operators room to move from tight aerial beam effects to focused gobo projection and wider stage coverage without changing fixtures.

For effect programming, the M380BSW adds fixed and replaceable rotating gobos, an effect wheel and two prism systems that can be layered for denser aerial looks. Motorized focus, 0–100% linear frost, gobo indexing and 16-bit pan/tilt provide finer control over projection, movement and beam character during a show.

Application Scenarios

Theatrical & Stage Productions

Crisp gobo projection and precise framing for productions where shape and focus matter as much as color.

Houses of Worship

Quiet, steady operation for services and events where consistent, distraction-free lighting is the priority.

TV & Broadcast Studios

Controlled beam shaping keeps light exactly where it's needed on set, without spill onto cameras or talent.

Architectural Gobo Projection

Custom gobo patterns and logo projection for branded events, building displays, and retail installations.

Specification

Model	M380BSW	Lamp	OSRAM Platinum Long-Life Discharge Lamp
Lamp Power	371W	Lamp Life	4,000 Hours
Color Temperature	7000K ±500K	Input Voltage	AC 100–240V, 50/60Hz
Rated Power	600W	Illuminance	784,000 lux @ 6 m, 3°
Zoom Range	3°–45°	Focus	Motorized Electronic Focus
Frost	0–100% Linear Frost	Dimmer	0–100% Linear Dimming
Strobe	1–25Hz, Random + Pulse Effects	Color Wheel	14 Fixed Colors + Open, Split-Color Effect, Bi-Directional Rainbow
Fixed Gobo Wheel	13 Gobos + Open	Rotating Gobo Wheel	8 Replaceable Rotating Gobos + Open, with Gobo Shake and Indexing
Effect Wheel	1 Effect Wheel	Prism 1	Accepts 2 Different Prism Inserts, Bi-Directional Rotation
Prism 2	Accepts 1 Prism Insert + 1 Frost Filter, Bi-Directional Rotation	Prism Overlay	16-Facet + 80-Facet Prisms Create a Combined 96-Facet Effect
Pan	540°, 16-Bit Resolution	Tilt	270°, 16-Bit Resolution
Control Protocol	DMX512	Operating Modes	DMX / Master-Slave
DMX Channels	17CH / 24CH	Cooling System	Forced-Air Cooling
Housing Material	Plastic + Metal	Housing Color	Black
IP Rating	IP20	Operating Temperature	-25°C to 40°C
Dimensions	350 × 270 × 600 mm	Net Weight	18 kg

Details & Features

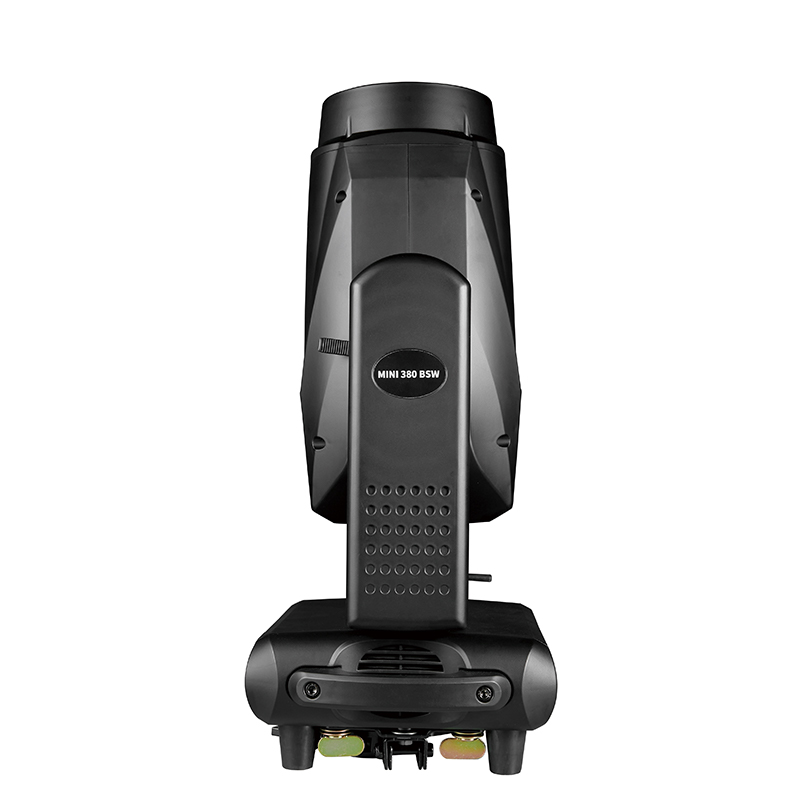

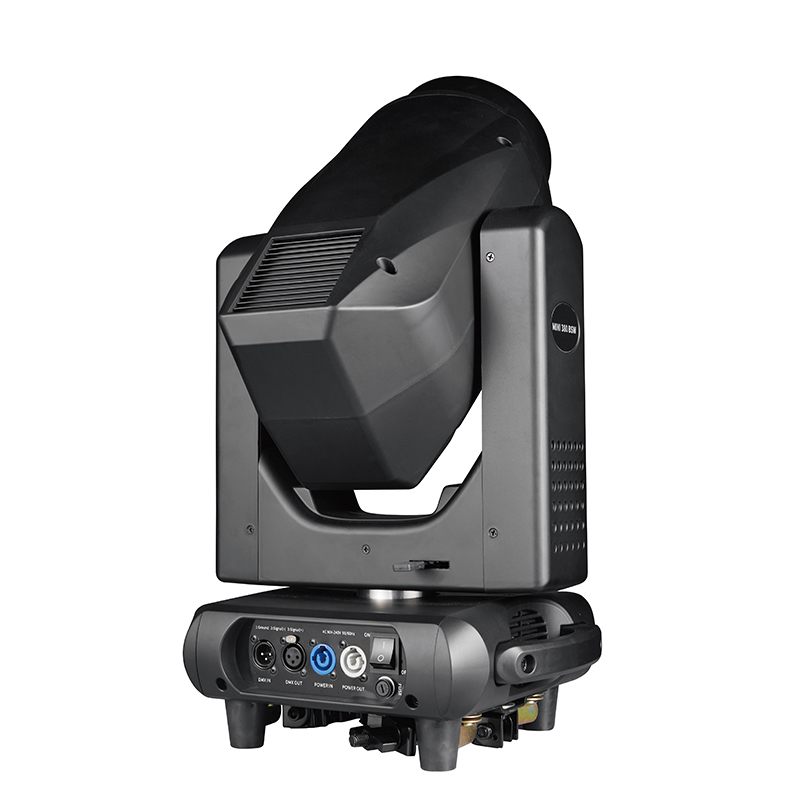

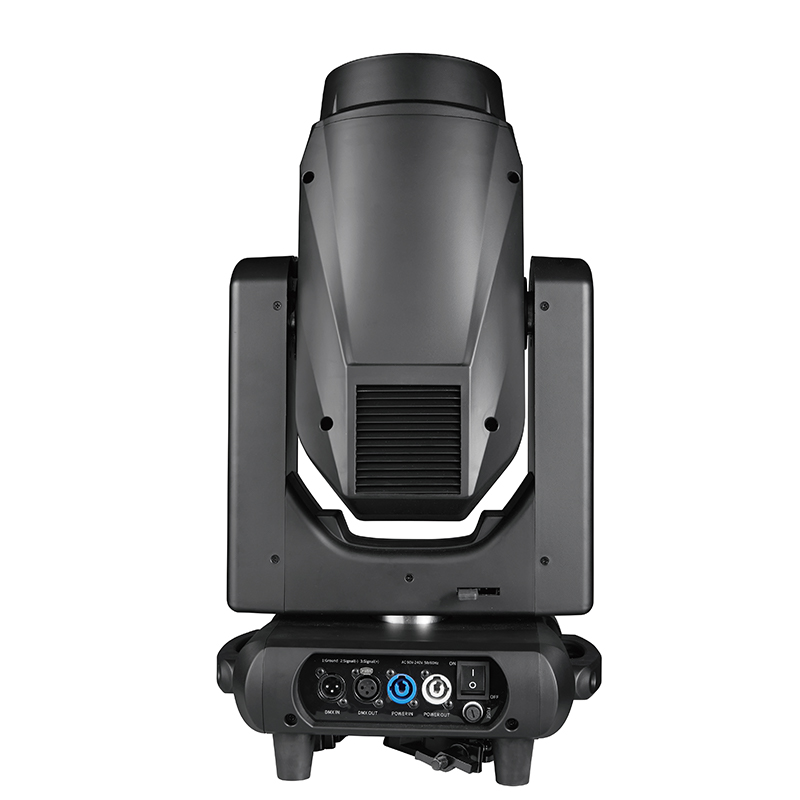

M380BSW 380W Beam Spot Wash Moving Head Light

What's in the Box

• 1× DMON M380BSW Moving Head
• 1× User Manual
• 1× Foldable Integrated Clamp
• 1× Safety Cable
• 1× Power Cable
• 1× Signal Cable

Frequently Asked Questions

What can the M380BSW's 3°–45° zoom range be used for?

The wide zoom range allows operators to move from narrow aerial beam effects to focused gobo projection and wider stage coverage, giving the fixture more flexibility across different show requirements.

What lamp does the M380BSW use?

The M380BSW uses a 371W OSRAM Platinum long-life discharge lamp with a rated lifetime of 4,000 hours and a color temperature of 7000K ±500K.

Can the prism effects be layered?

Yes. The two prism systems can be overlaid. A 16-facet prism and an 80-facet prism can be combined to create a denser 96-facet effect.

Are the rotating gobos replaceable?

Yes. The rotating gobo wheel includes 8 replaceable gobos plus open, with gobo shake and indexing for more flexible projection effects.

What DMX channel modes does the M380BSW support?

The M380BSW supports 17CH and 24CH modes over standard DMX512, allowing operators to choose between two channel configurations for different programming requirements.
