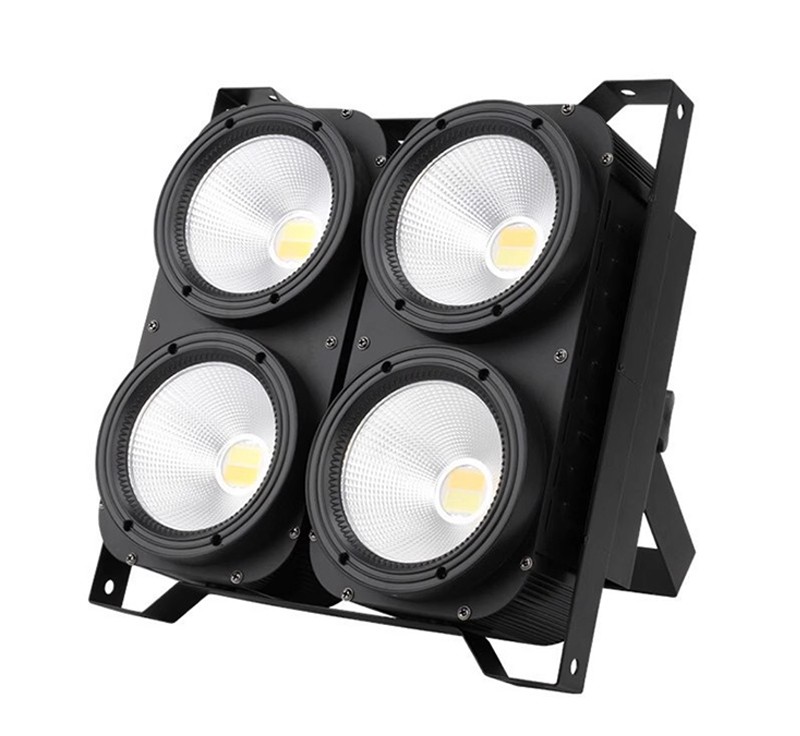

DMON CT4 Quad-Eye Audience Blinder Light
The Dmon CT4 is a quad-eye audience blinder light powered by 4×100W COB LEDs, available in multiple color configurations from white and warm white to full RGB 3-in-1. Delivering 8624 lm across an optimal projection distance of 15–30m, the CT4 creates high-impact bursts of light aimed directly at the crowd — a signature effect for concert and event productions.
- Four independently visible eyes — a wider, more dynamic blinder effect than single or dual-eye fixtures
- Multiple color configuration options — from white/warm white to full RGB 3-in-1
- 8624 lm output over 15–30m — sized for mid-to-large venue crowd coverage
- Natural convection cooling — no fan, silent operation
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A single or dual-eye blinder covers a limited field of view across a large crowd. The CT4's four independently visible eyes spread the blinder effect wider, giving designers more coverage from one fixture without lining up multiple units.
Fan-cooled fixtures can introduce audible noise, which matters in quieter moments of a show. The CT4 uses natural convection cooling with no fan, keeping operation silent even during sustained high-output use.
Application Scenarios
Specification
| Light Source | 4 × 100W COB LEDs | LED Lifetime | Approx. 50,000 hours |
| Input Voltage | AC 100–240V | Power Consumption | 450W |
| Color Temperature | 3200K | Color Options | White / Warm White / White + Warm White / Red / Green / Blue / UV / RGB 3-in-1 |
| Luminous Flux | 8624 lm | Illuminance | 960 lux @ 5m |
| Optimal Projection Distance | 15–30m | Dimming | 0–100% linear dimming |
| Strobe | 0–25 flashes/sec | DMX Channels | 6 CH |
| Control Modes | DMX512, Master-Slave, Auto | Cooling System | Natural convection cooling |
| Operating Temperature | -25°C to +40°C | IP Rating | IP20 (indoor use) |
| Fixture Dimensions | 393 × 723 × 230 mm | Fixture Gross Weight | 7.8 kg |
| Packing Dimensions (Carton) | 454 × 330 × 230 mm | Packing Gross Weight (Carton) | 11 kg |
| Flight Case Dimensions | 495 × 500 × 650 mm | Flight Case Gross Weight | 37 kg |
Details & Features
Frequently Asked Questions
Can this fixture be used outdoors?
The CT4 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.
Can the CT4 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 6 channels, compatible with any DMX-compliant console on the market.
Which color configuration should I choose?
White or warm white configurations give a classic, high-intensity blinder look, while the RGB 3-in-1 option adds color flexibility for shows that want the blinder effect to match a broader color palette. Confirm your preferred configuration at the time of order.
Does the LED source need to be replaced like a traditional lamp?
No. The CT4 uses COB LEDs rated for approximately 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
