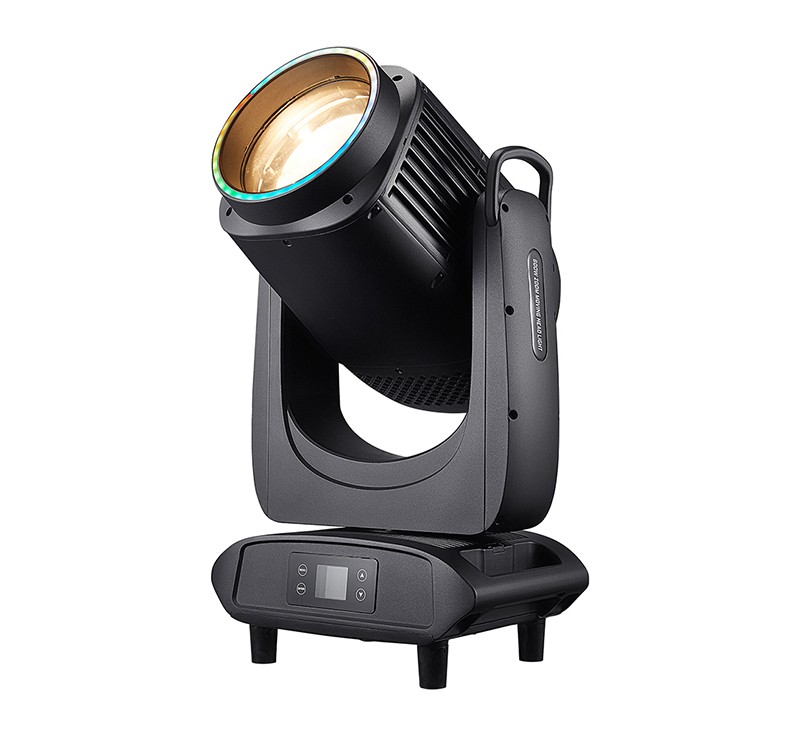

DMON LM600F 600W Outdoor Waterproof LED Moving Head Fresnel Light – IP65
The Dmon LM600F is an IP65-rated outdoor waterproof LED moving head Fresnel light, delivering smooth, even light output with CRI≥90 and adjustable color temperature from 2800K to 6800K. Built with full die-cast aluminum housing and true IP65 protection, the LM600F holds up in direct outdoor exposure without a rain cover — ideal for permanent installations and touring productions that move between
- IP65 rated — true outdoor waterproof protection, no rain cover required
- CRI≥90 — accurate color rendering for color-critical outdoor productions
- 8°–50° linear zoom — adjusts from tight spot to wide flood in one fixture
- Magnetic encoder positioning with auto-correction — accurate, repeatable movement outdoors
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most fresnel-style fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The LM600F is IP65 from the factory, with a full die-cast aluminum housing and waterproof power and signal connectors — built to sit in an exposed outdoor rig through wind and rain without extra weatherproofing.
Standard positioning motors can drift after repeated outdoor use, especially with temperature swings. The LM600F uses magnetic encoder positioning with auto-correction, keeping pan/tilt movement accurate even after long-term exposure to the elements.
Application Scenarios
Specification
| Light Source Options | 1 × 500W LED or 1 × 600W LED | LED Lifetime | ≥50,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 600W / 800W |
| Color Temperature Range | 2800K–6800K | CRI | ≥90 |
| Color System | RGB color wheel + linear CTO 2800K–6800K | Zoom Angle | 8°–50° linear zoom |
| Dimming | 0–100% linear dimming | Strobe | 1–25 Hz |
| Pan / Tilt | 540° / 270° (16-bit) | Positioning | Magnetic encoder with auto-correction |
| Control Modes | DMX512 / Master-Slave / Auto / Fade / RDM | DMX Channels | 13 CH |

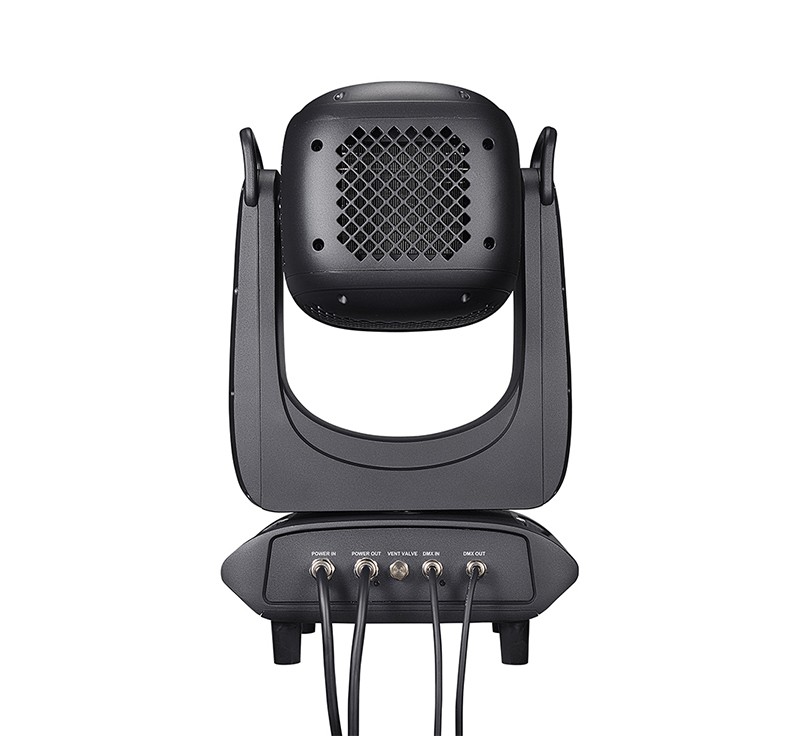

| Power Connector | Waterproof power input / in-out | Signal Connector | Waterproof 3-pin XLR |
| Cooling | Heat pipe + fan, intelligent temperature control | Housing | Full die-cast aluminum |
| IP Rating | IP65 | Fixture Size | 329 × 228 × 603 mm |
| Net Weight | 17.5 kg | Gross Weight | 21.5 kg |
| Packing Size | 645 × 490 × 420 mm |
Details & Features
Frequently Asked Questions
Is the LM600F truly rated for outdoor use?
Yes. The LM600F is IP65-rated with a full die-cast aluminum housing and waterproof power and signal connectors, built for direct exposure to rain and outdoor conditions without a rain cover.
Can the LM600F be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 13 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the CRI≥90 rating mean for outdoor use?
CRI≥90 means the LM600F renders colors accurately even in demanding outdoor conditions, making it suitable for productions where color fidelity matters, such as broadcast or architectural lighting work.
Does the LED source need to be replaced like a traditional lamp?
No. The LM600F uses an LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
