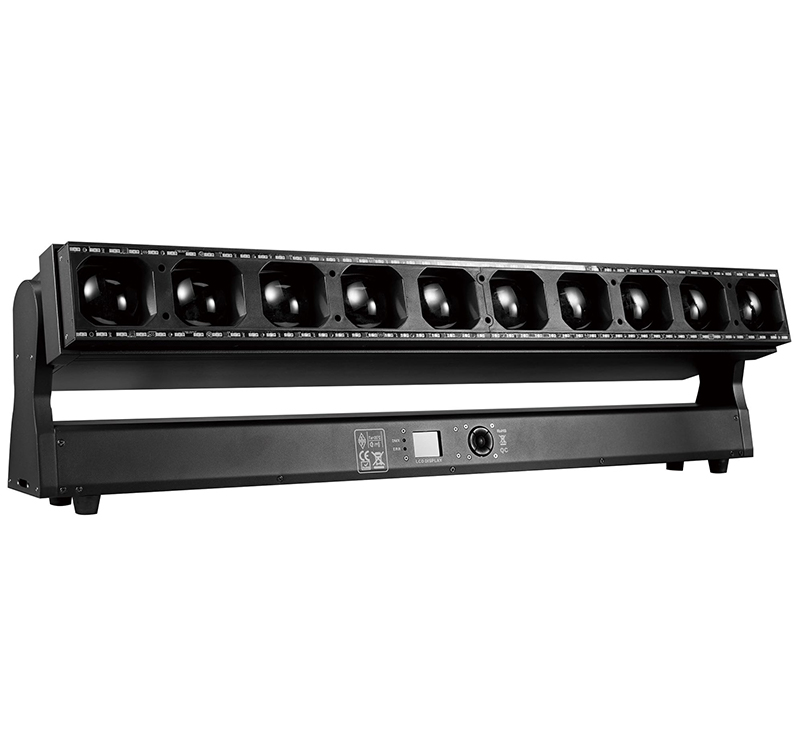

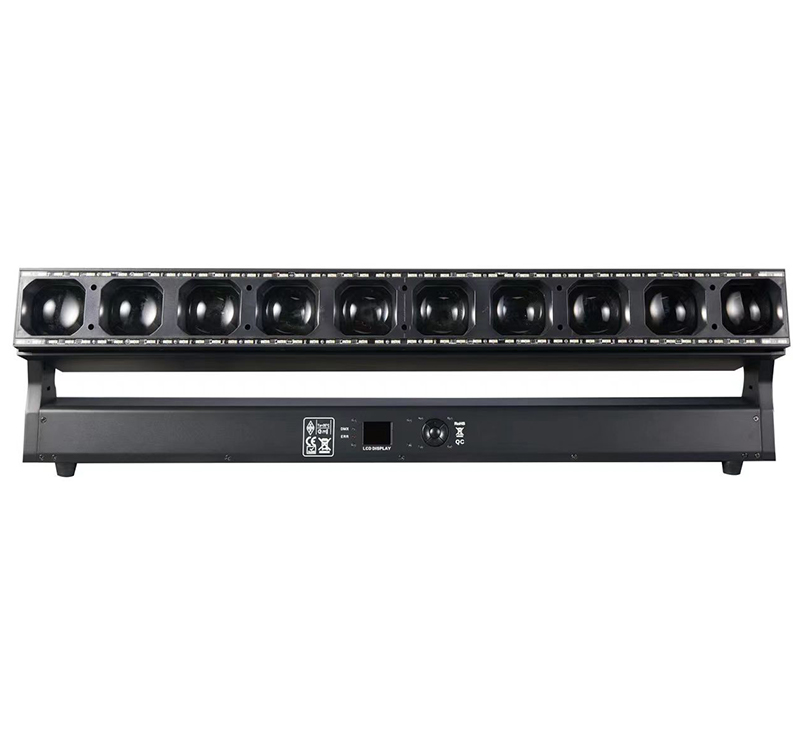

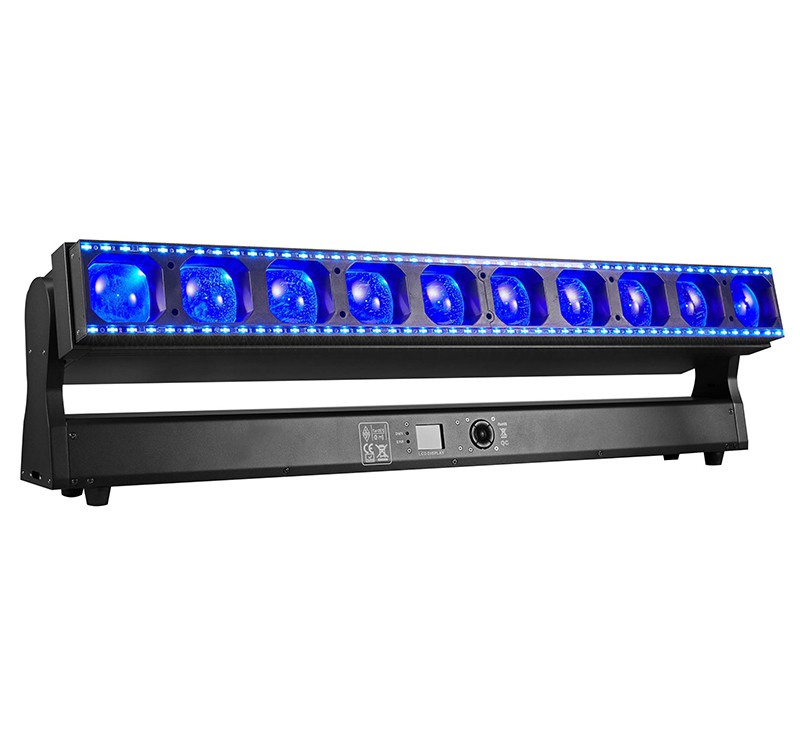

DMON LP1060 Linear RGBW Snake Moving Bar Light (10×60W)
The Dmon LP1060 is a linear RGBW snake moving bar light combining a 10×60W beam side with a dual color-temperature strobe side (cool white, warm white, and RGB), delivering 22,400 lm of output. With 202° Y-axis tilt movement, the LP1060 produces dynamic snake-like motion effects that a fixed linear bar can't replicate.
- 202° Y-axis tilt — dynamic snake-like motion beyond a fixed linear bar
- Dual-function design — 10×60W RGBW beam side plus a separate strobe side with cool/warm white and RGB
- 22,400 lm output — high-intensity beam performance
- Multiple DMX channel modes (17 CH to 170 CH) — flexible integration with different console setups
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed linear bar produces the same straight-line look regardless of the show. The LP1060's 202° Y-axis tilt lets each bar move independently, creating snake-like wave motion across a row of fixtures — a visual effect a static bar simply can't produce.
Running separate beam and strobe fixtures means rigging, powering, and programming two different unit types. The LP1060 combines a 10×60W RGBW beam side with a dedicated cool white, warm white, and RGB strobe side in one bar, cutting down on the number of fixture types a rig needs.
Application Scenarios
Specification
| Light Source (Beam Side) | 10 × 60W RGBW LEDs | Strobe Side LEDs | 96 × 3W Cool White + 96 × 3W Warm White + 96 × 0.5W RGB LEDs |
| Input Voltage | AC 180–240V, 50/60Hz | Power Consumption | 800W |
| White Color Temperature | 6300K | Luminous Output | 22,400 lm |
| LED Lifetime | Approx. 20,000 hours | Beam Angle (Beam Side) | 2.8°–31° |
| Field Angle (Beam Side) | 5°–46° | Y-axis Movement | 202° tilt |
| Control Protocols | DMX512, RDM | DMX Channel Modes | 17 / 27 / 99 / 108 / 168 / 8+100 / 8+160 / 170 CH |

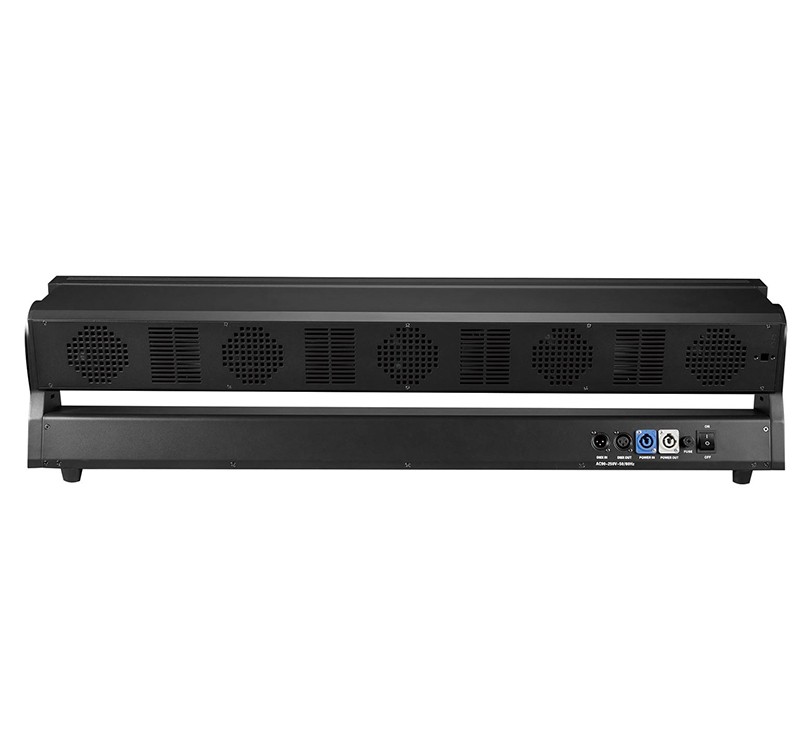

| Software Upgrade | Via DMX | Power & Signal | PowerCON In/Out, 3-pin & 5-pin XLR, RJ45 |
Details & Features
What's in the Box
- • DMON LP1060 Moving Bar Light (10 × 60W RGBW LED)
- • Signal Cable
- • Power Cable
- •Hanging Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
What does the 202° Y-axis tilt let me do?
Each bar can tilt independently up to 202°, so a row of LP1060 fixtures can create wave-like snake motion across the rig — an effect a fixed linear bar can't produce on its own.
Can the LP1060 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (17 CH up to 170 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between the beam side and the strobe side?
The beam side runs 10 individually controlled 60W RGBW LEDs for beam and color effects, while the strobe side uses a separate array of cool white, warm white, and RGB LEDs for strobe and wash-style output — giving the fixture two distinct visual functions.
Does the LED source need to be replaced like a traditional lamp?
No. The LP1060 uses LEDs rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
