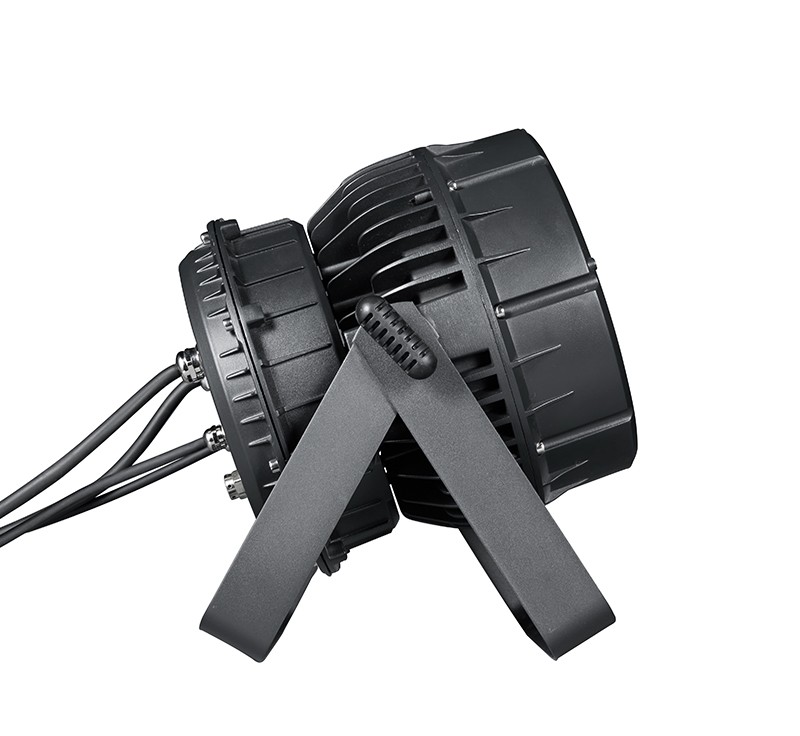

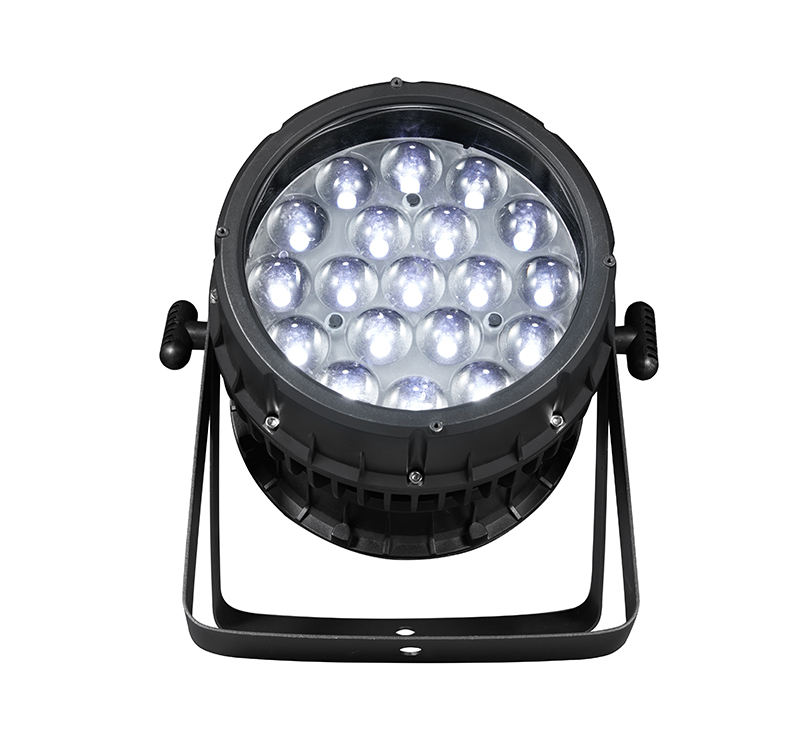

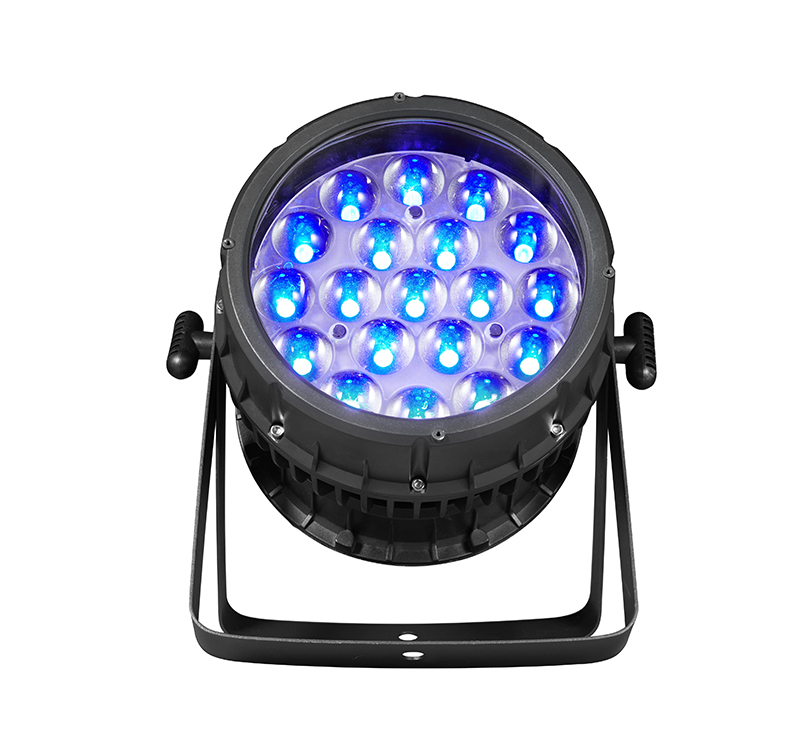

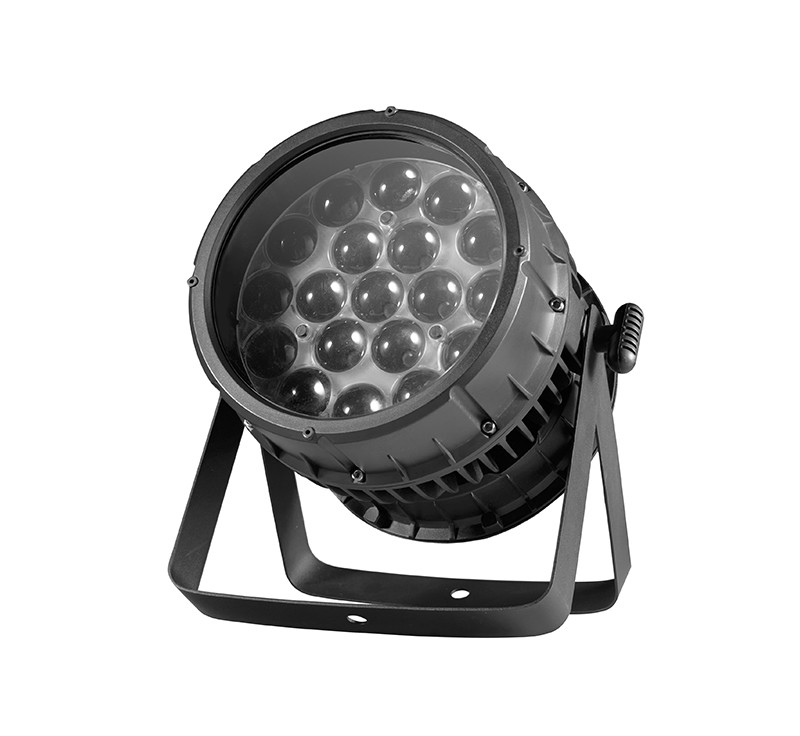

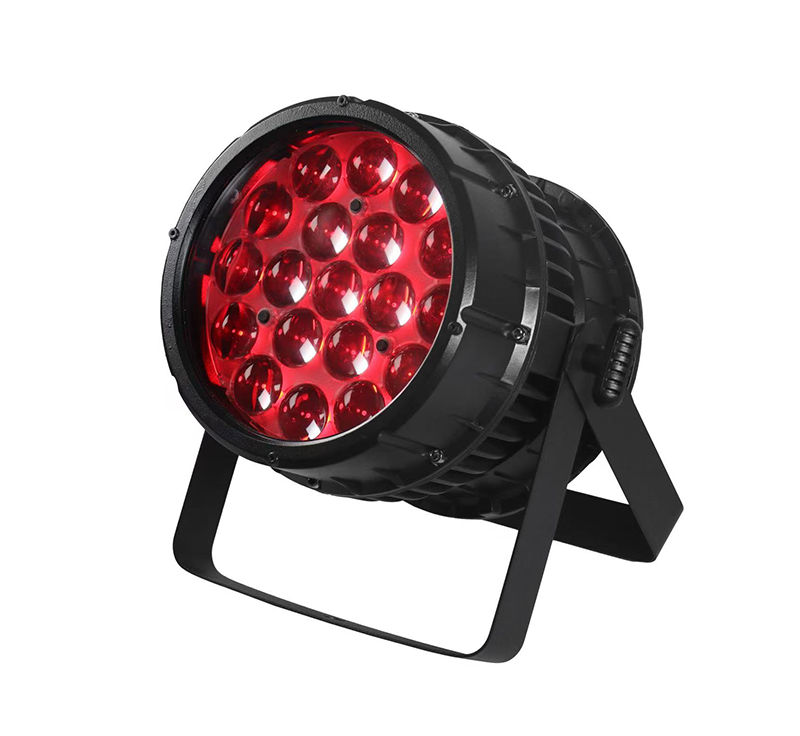

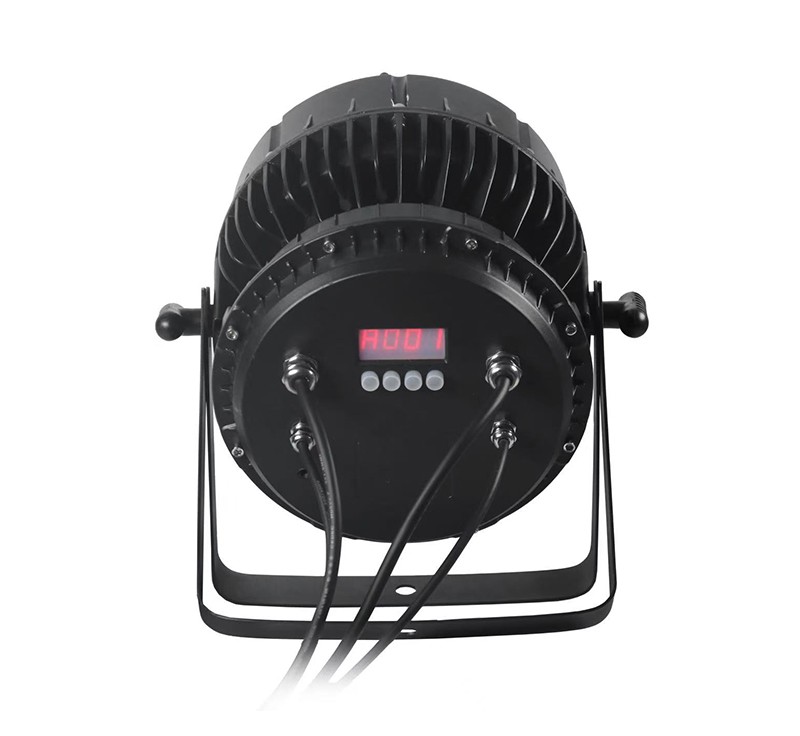

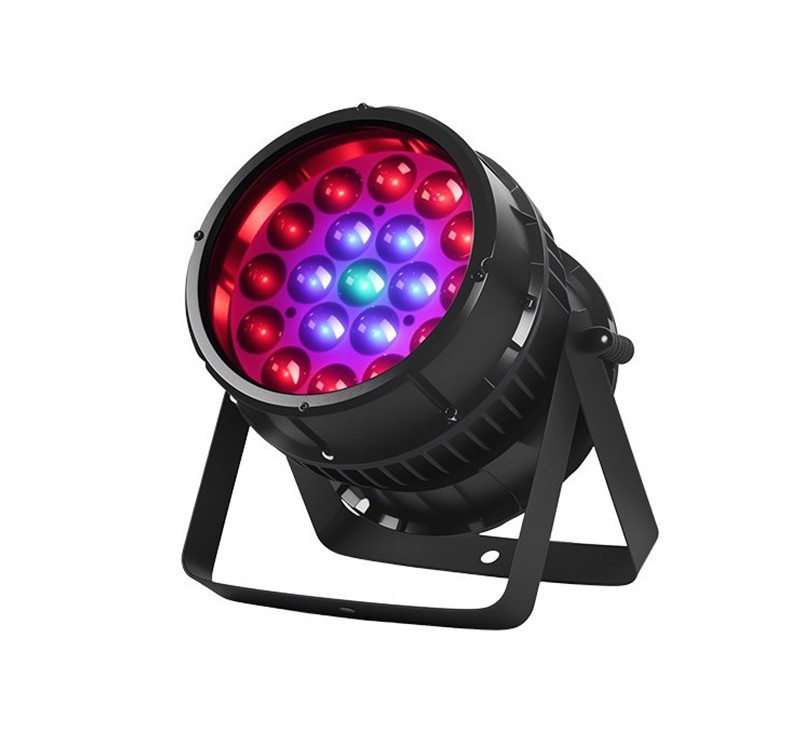

DMON PTF1915 IP68 19×15W RGBW Motorized Zoom Wash Light
The Dmon PTF1915 is an IP68-rated 19×15W RGBW motorized zoom wash light with 8°–60° linear zoom and built-in CTO function. With 16-bit dimming and DMX512/Master-Slave/Sound control, the PTF1915 delivers adjustable color washing built for the most demanding outdoor waterproof conditions.
- IP68 rated — the highest level of water and dust protection, suited for sustained submersion-level exposure
- 8°–60° motorized zoom — adjusts beam width without swapping lenses or fixtures
- Built-in CTO function — warm to cool color temperature adjustment without gels
- Selectable DMX channel modes (7/12/15/22 CH) — flexible integration with different console setups
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most outdoor fixtures top out at IP65 or IP66, protecting against rain but not standing water or submersion. The PTF1915's IP68 rating gives it a wider safety margin for installations near fountains, pools, or areas prone to flooding.
A fixed beam angle limits a fixture to one look. The PTF1915's 8°–60° motorized zoom lets operators adjust beam width on the fly, covering both tight and wide areas without rigging a different fixture.
Application Scenarios
Specification
| Light Source System | 19 × 15W RGBW 4-in-1 LEDs | LED Lifetime | 50,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power | 250W |
| Zoom Range | 8°–60° linear motorized zoom | Effects / Color System | 16.7 million color mixing effects, CTO function |
| Dimming | 0–100% linear dimming, 16-bit curve dimming mode | Strobe | 0–25Hz |
| DMX Channels | 7 / 12 / 15 / 22 CH | Control Modes | DMX512, Master-Slave, Sound Active, Auto |
| Menu Display | LED digital display menu | Signal Connection | 3-pin XLR input / output |
| Housing Structure | Aluminum alloy | Working Environment | -10°C to +45°C |
| IP Rating | IP68 | Dimensions | 330 × 340 × 240 mm |
| Net Weight | 7.5 kg |
Details & Features
What's in the Box
- • Hanging Clamp
- • Safety Cable
- • User Manual
Frequently Asked Questions
What does the IP68 rating mean compared to lower ratings?
IP68 offers protection against dust and prolonged or continuous submersion, going beyond the rain protection of IP65/IP66-rated fixtures — suited for installations near water features or areas prone to flooding.
Can the PTF1915 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 7 CH, 12 CH, 15 CH, or 22 CH modes, compatible with any DMX-compliant console on the market.
What does the motorized zoom let me do?
The 8°–60° zoom range lets operators adjust beam width on the fly — from a tighter spread to a wide, even wash — without changing lenses or repositioning the fixture.
Does the LED source need to be replaced like a traditional lamp?
No. The PTF1915 uses LEDs rated for 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
