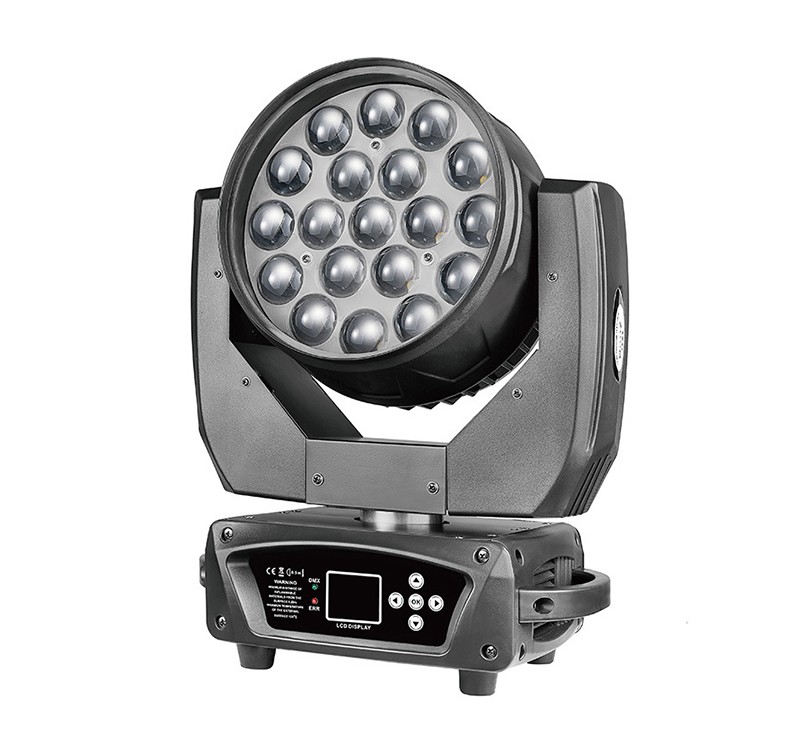

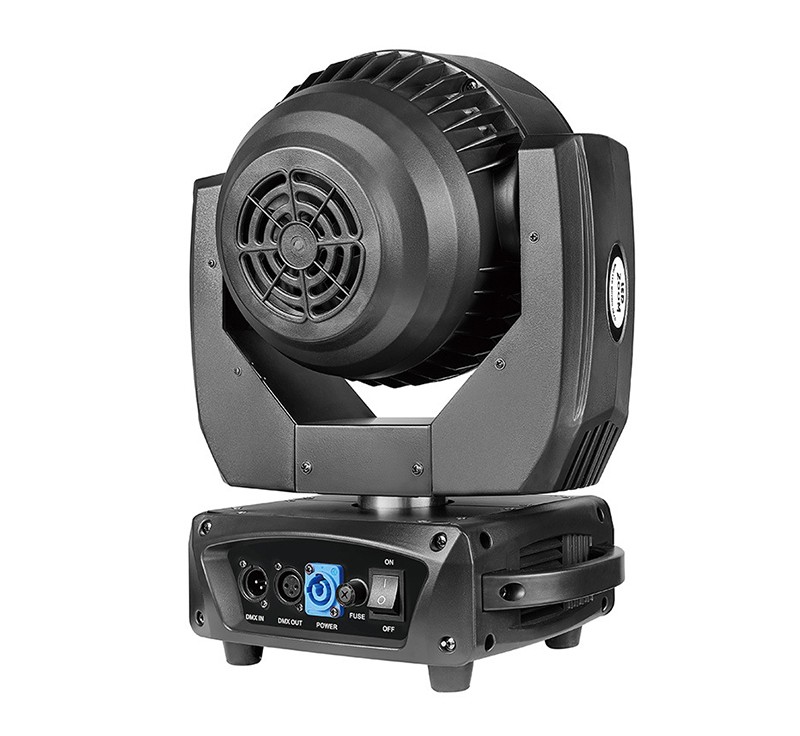

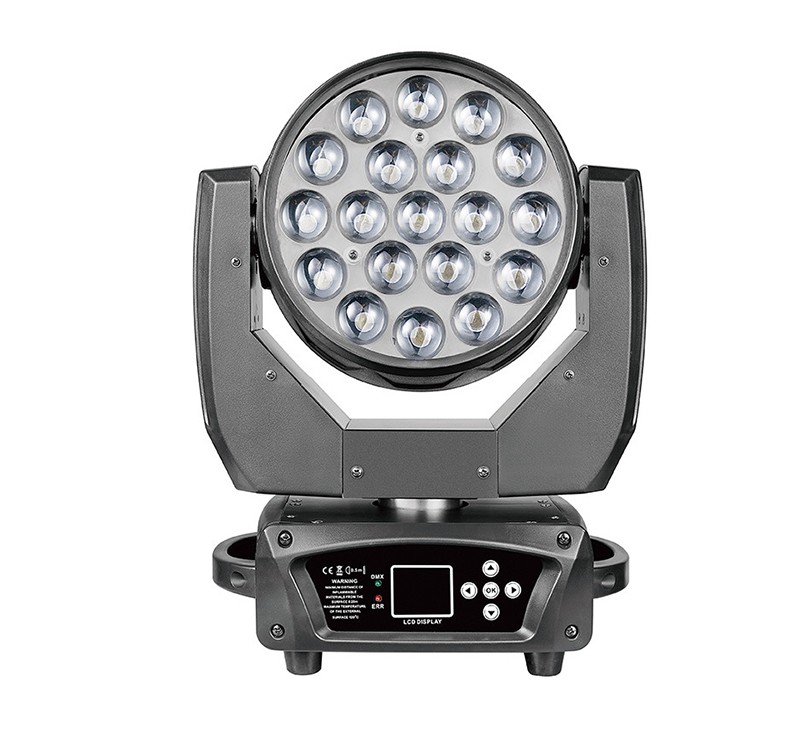

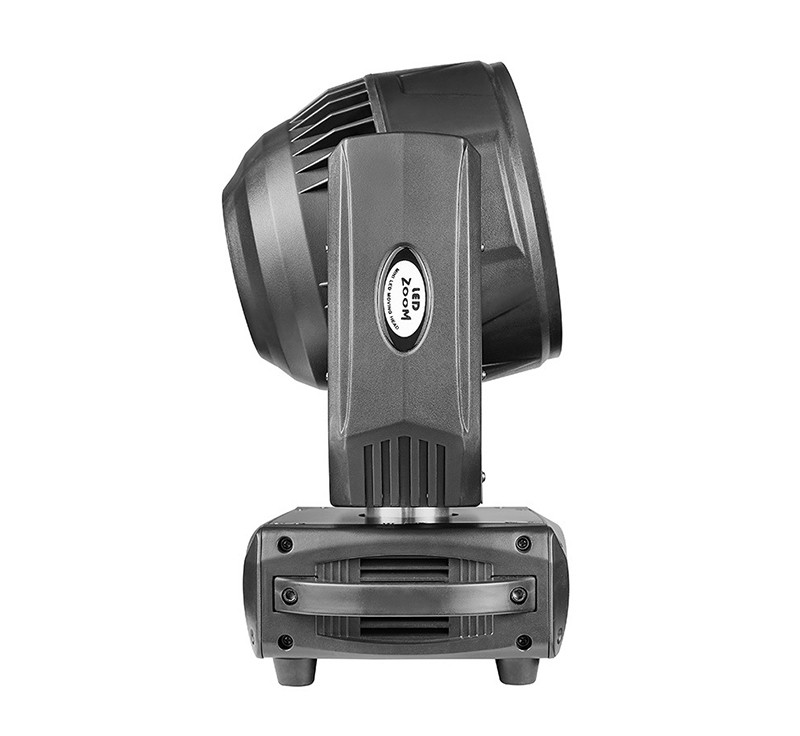

DMON LM1915W 19×15W RGBW Zoom Wash Moving Head Light
The Dmon LM1915W is a lightweight 19×15W RGBW zoom wash moving head light with 8°–60° motorized zoom and infinite RGBW+CTO color mixing. With flicker-free dimming and DMX512/RDM control, the LM1915W delivers smooth, camera-ready wash coverage at just 8 kg.
- 8°–60° motorized zoom — adjusts wash coverage from tight to wide without swapping fixtures
- Infinite RGBW + CTO color mixing — smooth color and temperature transitions beyond fixed presets
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
- Lightweight at 8 kg — easy to rig and transport compared to full-size wash fixtures
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed-angle wash fixture can't adapt when the coverage area changes from one show to the next. The LM1915W's 8°–60° motorized zoom lets operators adjust wash width on the fly, covering both tight and wide areas without rigging a different fixture.
Filming under LED fixtures often means dealing with visible flicker on camera. The LM1915W's dimming runs at 1.2–25 kHz, keeping output flicker-free across a wide dimming range — so the fixture stays camera-ready without needing to match frame rates manually.
Application Scenarios
Specification
| Light Source | 19 × 15W RGBW 4-in-1 LEDs (5060 package) | LED Lifetime | ≥30,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 300W |
| Zoom Range | 8°–60° DMX linear motorized zoom | Color Mixing | RGBW infinite mixing with built-in CTO linear adjustment |
| Dimming | 0–100% linear dimming with adjustable gamma (1.2K–25K), flicker-free for camera use | Strobe | 0.3–25 Hz electronic strobe; sync / async / random modes |
| Pan / Tilt | 540° / 270° (16-bit precision scanning) | Motors | High-speed silent motors with Hall sensor positioning and auto reset |
| Control Protocols | DMX512, RDM | DMX Channel Modes | 16CH (Basic) / 24CH (Standard) |
| Display | 1.77" LCD display, CN/EN menu, auto-rotating screen, temperature & error display | Cooling | Lightweight aluminum heatsink with intelligent fan speed control and overheat protection |
| IP Rating | IP20 (optional rain cover up to IP44) | Fixture Size | 450 × 300 × 360 mm |
| Net Weight | 8.0 kg | Gross Weight | 9.6 kg |
| Carton Packing | 470 × 380 × 295 mm | Flight Case (4-in-1) | 800 × 530 × 610 mm |
Details & Features
What's in the Box
- • DMON LM1915W Moving Head (19 × 15W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory (4-in-1 configuration).
Frequently Asked Questions
Can the LM1915W be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 16 CH or 24 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the motorized zoom let me do?
The 8°–60° zoom range lets operators adjust wash coverage on the fly — from a tighter spread to a wide, even wash — without changing lenses or repositioning the fixture.
Does the LED source need to be replaced like a traditional lamp?
No. The LM1915W uses 19×15W RGBW LEDs rated for ≥30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
