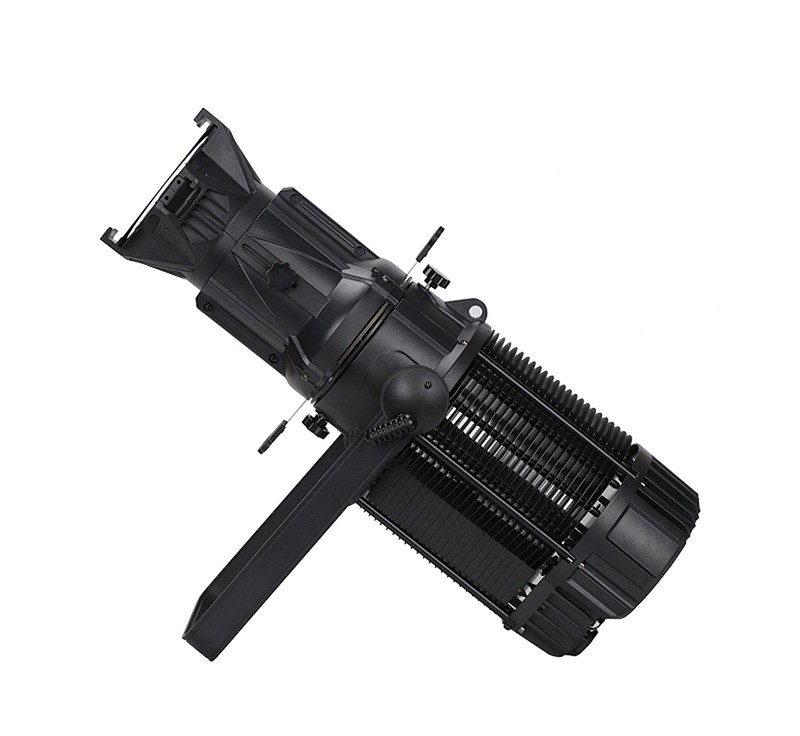

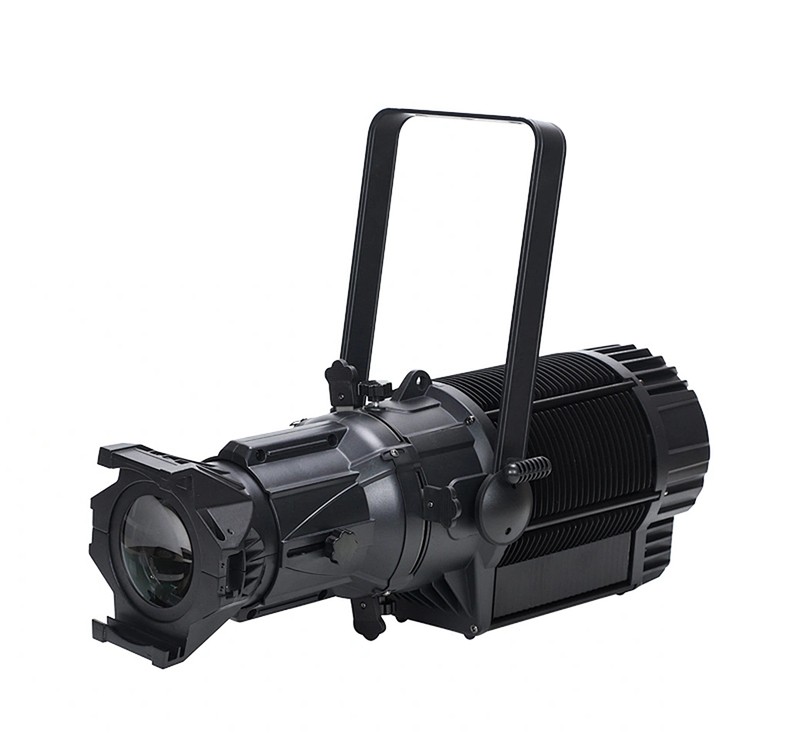

DMON CXF300 IP65 Waterproof Fixed-Focus LED Profile Light
The Dmon CXF300 is an IP65-rated waterproof fixed-focus LED profile light with a 200W/300W COB LED source delivering CRI≥95 color accuracy. With fanless copper heat pipe cooling and selectable flood, spot, and soft light optical effects, the CXF300 delivers precise, high-quality illumination built for outdoor conditions.
- IP65 waterproof — reliable operation in outdoor conditions without a rain cover
- CRI≥95 — exceptional color accuracy for productions where color fidelity matters
- Fanless copper heat pipe cooling — silent operation with no moving parts to fail
- Selectable optical effects (Flood/Spot/Soft light) — adjustable beam character for different applications
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Fan-cooled fixtures can introduce audible noise in quiet venues, and moving parts eventually wear out. The CXF300 uses copper heat pipe cooling with no fan, keeping operation silent and reducing one more component that could fail over time.
Standard LED output is fine for most work, but color-critical productions need output that renders skin tones and fabric colors accurately. The CXF300's CRI≥95 rating gives designers that color fidelity even in an outdoor-rated fixture.
Application Scenarios
Specification
| Light Source | COB LED 200W / 300W | Rated Power Options | 200W / 300W |
| LED Lifetime | ≥50,000 hours | Input Voltage | AC 110–240V, 50/60Hz |
| Color Temperature Options | 3200K / 5600K / RGBW / RGBAL | CRI | Ra ≥95 |
| Beam Angles | 19° / 26° / 36° | Control Modes | DMX512 / Manual |
| DMX Channel Modes | Single Color 2CH / Tunable White 4CH | Dimming | 0–100% smooth linear dimming |
| Strobe | Electronic strobe 1–20 flashes/sec | Optical Effects | Flood / Spot / Soft light |

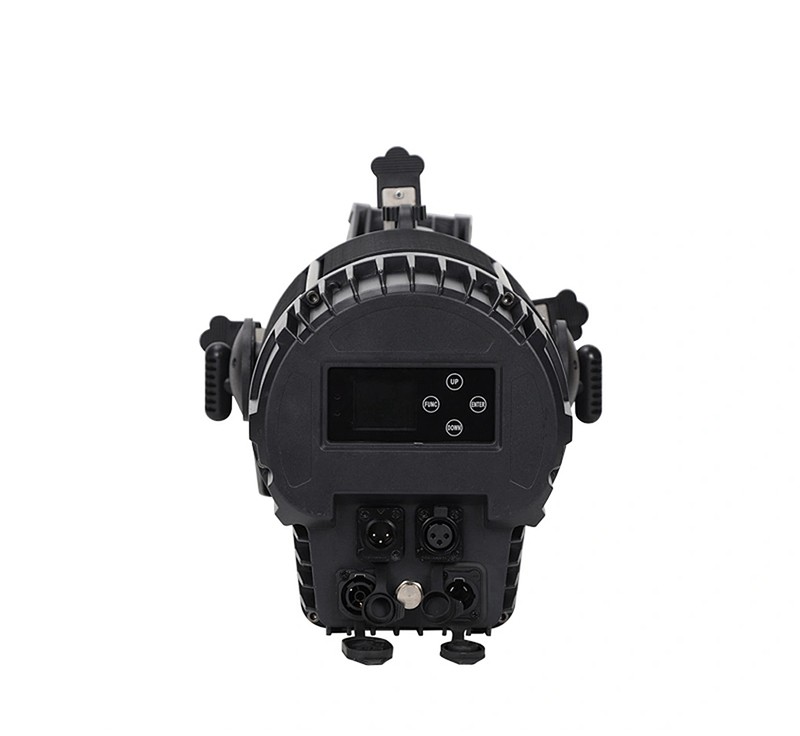

| Control Panel | LCD display | Cooling System | Copper heat pipe cooling (fanless) |
| Housing Material | Die-cast aluminum | Operating Temperature | -30°C to +50°C |
| IP Rating | IP65 waterproof | Fixture Size | 700 × 320 × 300 mm |
| Net Weight / Gross Weight | 12 kg / 13.5 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Is the CXF300 truly rated for outdoor use?
Yes. The CXF300 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the CXF300 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 2 CH (single color) or 4 CH (tunable white) modes, compatible with any DMX-compliant console on the market.
What's the difference between the Flood, Spot, and Soft light optical effects?
Flood produces a wide, even wash, Spot delivers a tighter, more focused beam, and Soft light diffuses the output for a gentler look — allowing the same fixture to suit different lighting needs.
Does the LED source need to be replaced like a traditional lamp?
No. The CXF300 uses a COB LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
