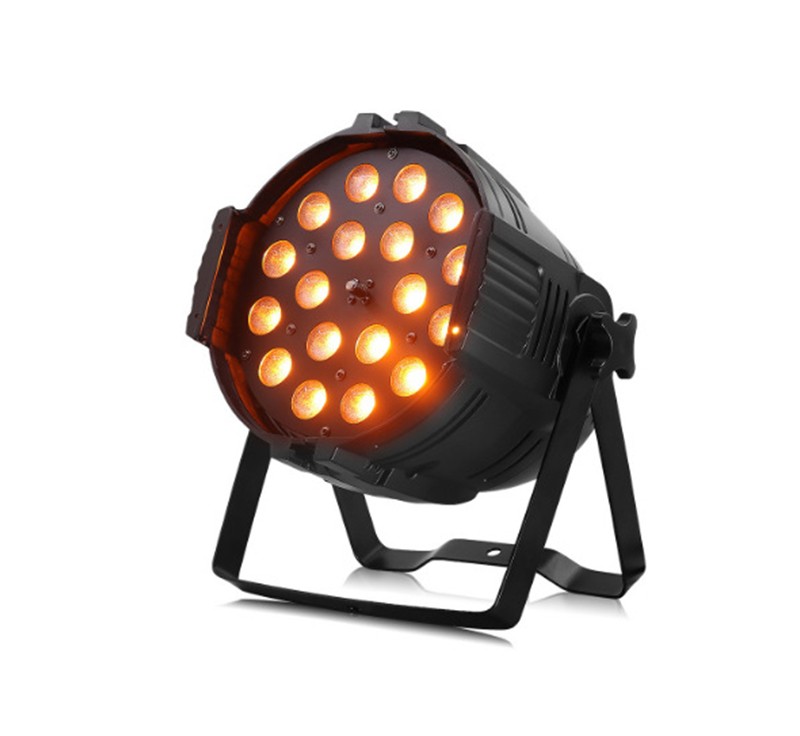

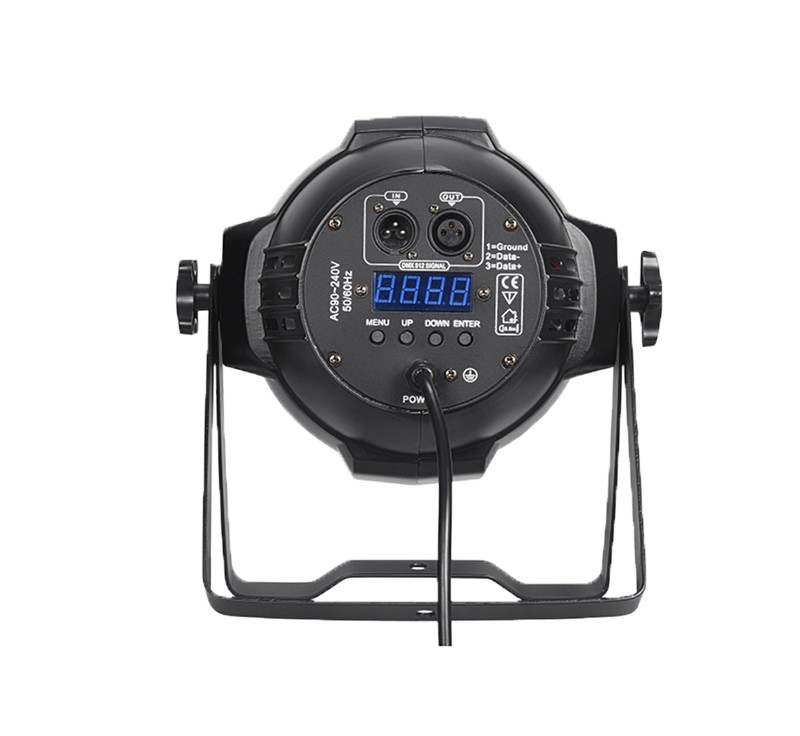

DMON PT1810 18×18W RGBWA+UV Zoom PAR Light
The Dmon PT1810 is an 18×18W RGBWA+UV zoom PAR light with 15°–45° optical zoom and 16-bit linear dimming. With RGBWA+UV 6-in-1 color mixing and DMX512/Master-Slave/Sound control, the PT1810 adjusts beam width on the fly for both tight and wide coverage from a single fixture.
- 15°–45° optical zoom — adjusts beam width without swapping lenses or fixtures
- RGBWA+UV 6-in-1 LEDs — extended color mixing including amber and UV output
- 16-bit linear dimming — smooth brightness control without visible stepping
- Sound-active mode — runs standalone without a DMX console when needed
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed beam angle limits a fixture to one look. The PT1810's 15°–45° optical zoom lets operators adjust beam width on the fly, covering both tight and wide areas without rigging a different fixture.
A basic RGB fixture can't produce true amber or UV tones. The PT1810's RGBWA+UV 6-in-1 LEDs add those extra channels, giving designers more color range than a standard 3-in-1 or 4-in-1 par light.
Application Scenarios
Specification
| LED Source | 18 × 18W RGBWA+UV 6-in-1 LEDs | Color System | Red, Green, Blue, White, Amber, UV and mixed colors |
| Input Voltage | AC 90–275V, 50/60Hz | Power Consumption | 324W |
| Optical Zoom Angle | 15°–45° | DMX Channels | 12 CH |
| Control Protocols | DMX512, Master-Slave, Auto, Sound Active | Dimming | 0–100% linear dimming, 16-bit resolution |
| Housing Material | Die-cast aluminum, black finish | IP Rating | IP20 (Indoor use) |
| Fixture Size | 340 × 280 × 230 mm | Net Weight | 3.85 kg |
| Packing Size | 300 × 260 × 250 mm | Gross Weight | 4.85 kg |
Details & Features
What's in the Box
- • Hanging Clamp
- • Safety Cable
- • User Manual
Frequently Asked Questions
Can the PT1810 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 12 channels, compatible with any DMX-compliant console on the market.
What does the optical zoom let me do?
The 15°–45° zoom range lets operators adjust beam width on the fly — from a tighter spot to a wider wash — without changing lenses or switching fixtures.
What does the UV channel add to the color mixing?
The 6-in-1 RGBWA+UV LEDs include a dedicated UV channel alongside standard color mixing, allowing effects that a 3-in-1 or 4-in-1 fixture can't produce.
Can this fixture be used outdoors?
The PT1810 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
