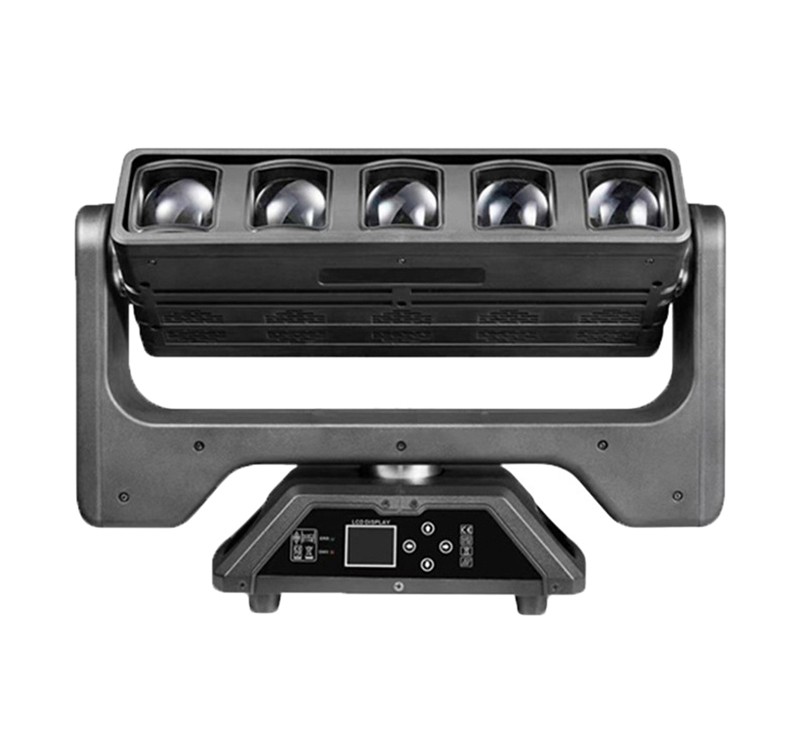

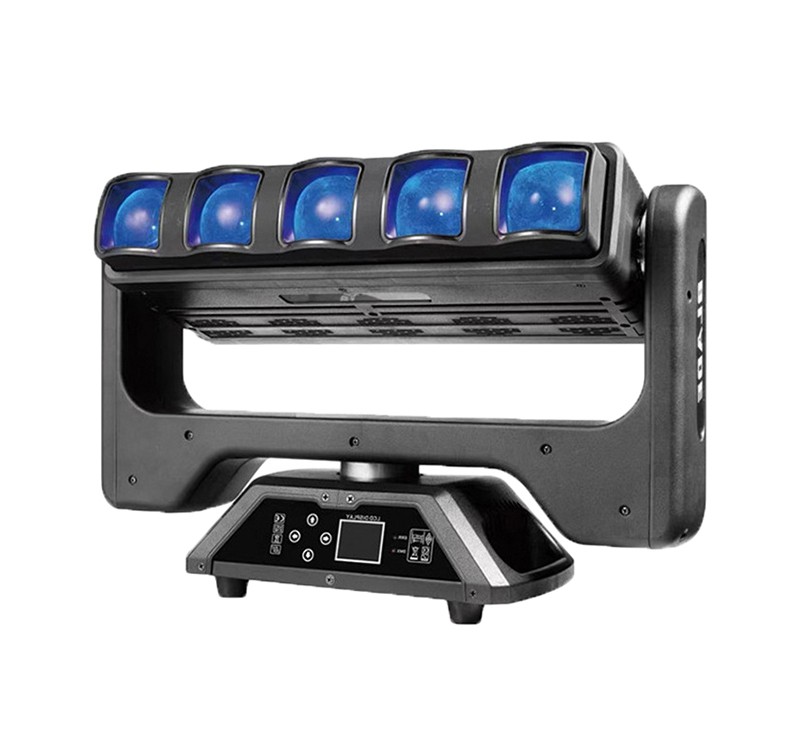

DMON LP560 Dual-Sided Zoom Blade Moving Head Light (5×60W)
The Dmon LP560 is a dual-sided zoom blade moving head light combining 5×60W high-power LEDs with 96 segmented LEDs and 72 auxiliary LEDs. With motorized pan/tilt and infinite rotation, the LP560 produces dynamic dual-face effects that a single-sided fixture can't replicate.
- Dual-sided design — two distinct visual faces from one fixture
- Motorized pan/tilt with infinite rotation — continuous spinning effects without a mechanical stop point
- 96 segmented LEDs — precise chase and pattern effects across 12 controllable segments
- Compact at 11.5 kg — lightweight and easy to rig compared to larger multi-head fixtures
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description

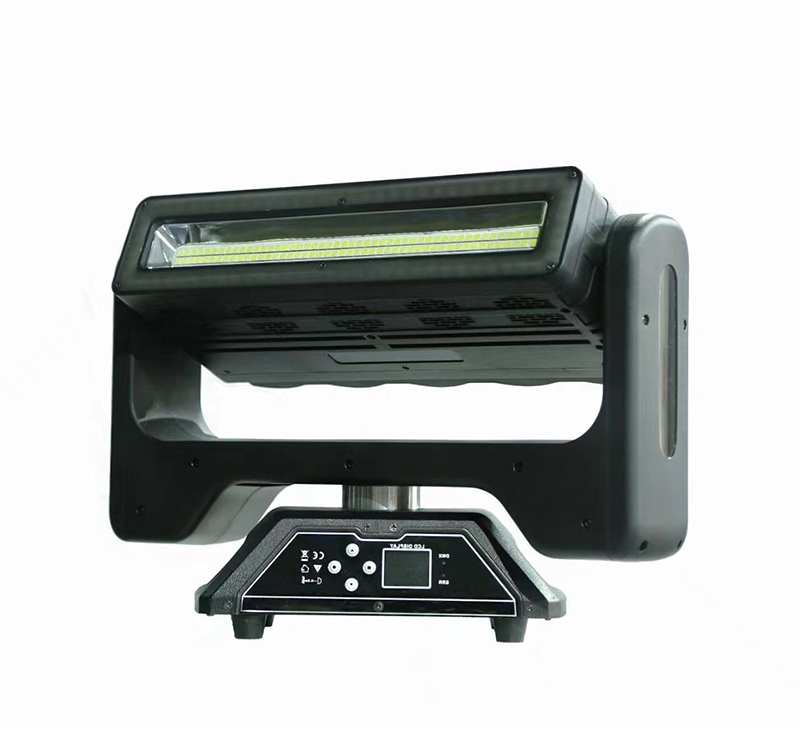

A single-sided fixture only shows one face to the audience at a time. The LP560's dual-sided design gives designers two distinct visual surfaces from one unit, useful for rigs where the audience views the fixture from multiple angles.
Most moving fixtures stop at a mechanical tilt limit and need to reset mid-show. The LP560's motorized pan/tilt with infinite rotation removes that limit, letting the fixture spin continuously without breaking the effect.
Application Scenarios
Specification
| Light Source | 5 × 60W high-power LEDs (6070 package); 96 × 7070 LEDs (12 segments); 72 × 5050 LEDs (auxiliary) | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 500W | Control Modes | DMX512 / Auto / Master-Slave / Sound / RDM |
| DMX Channels | 33 / 53 / 69 / 105 CH | Dimming | 32-bit ultra-smooth linear dimming 0–100% |
| Strobe Frequency | 1–30Hz | Movement | Motorized Pan/Tilt with infinite rotation |
| Working Temperature | -30°C to 50°C | Housing | Metal, black finish |
| IP Rating | IP20 | Connections | DMX512 In/Out, Power In/Out |
| Fixture Size | 530 × 180 × 350 mm | Net Weight | 11.5 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • User Manual
- • Hanging Bracket Set
Frequently Asked Questions
What does the dual-sided design offer?
The LP560 has two distinct visual faces, giving designers a fixture that reads well from multiple viewing angles without needing to reposition it.
Can the LP560 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (33 CH up to 105 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does infinite rotation mean?
Unlike fixtures with a mechanical tilt limit, the LP560's pan/tilt rotates continuously without needing to reset mid-effect, allowing uninterrupted spinning throughout a show.
Does the LED source need to be replaced like a traditional lamp?
No. The LP560 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
