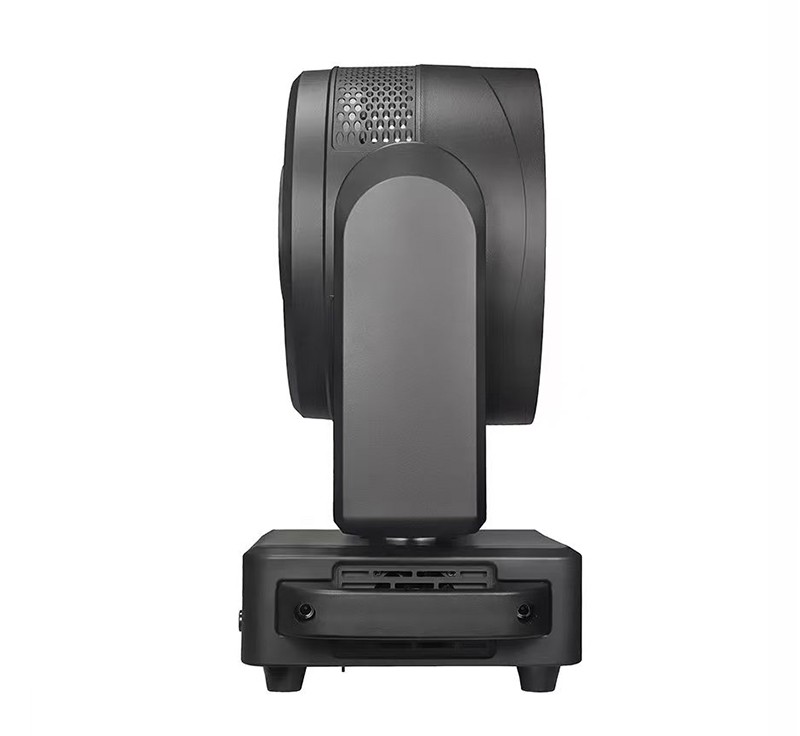

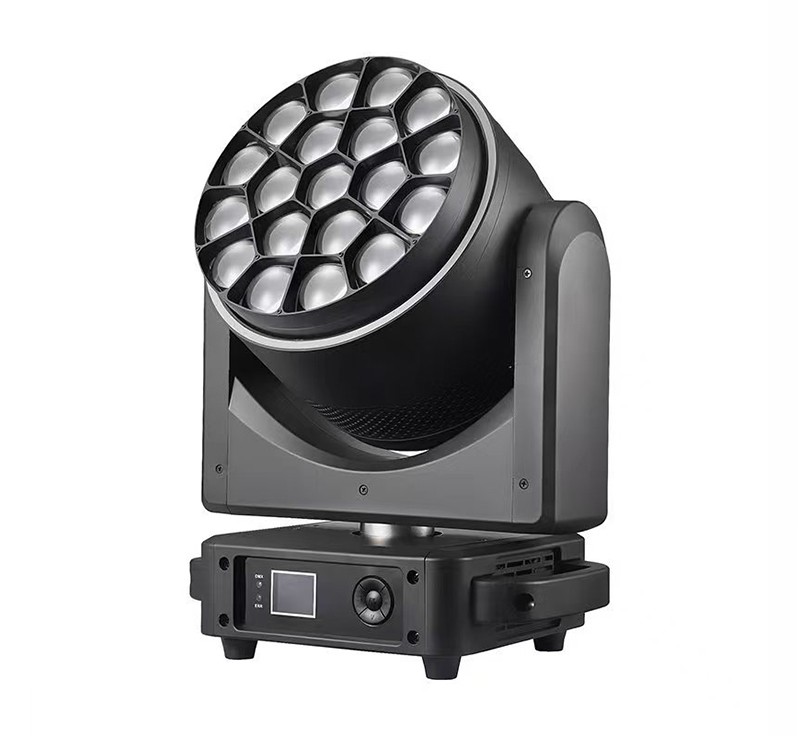

DMON LM1940P 19×40W RGBW Bee-Eye Moving Head Light with LED Ring
The Dmon LM1940P is a 19×40W RGBW bee-eye moving head light with an integrated 74-LED ring, individual pixel control, and a seamless rotating front lens array. Built-in effects including vortex, kaleidoscope, beam, and wash modes give the LM1940P a distinct outer-ring visual layer beyond its main pixel array, with DMX512/RDM control for remote monitoring.

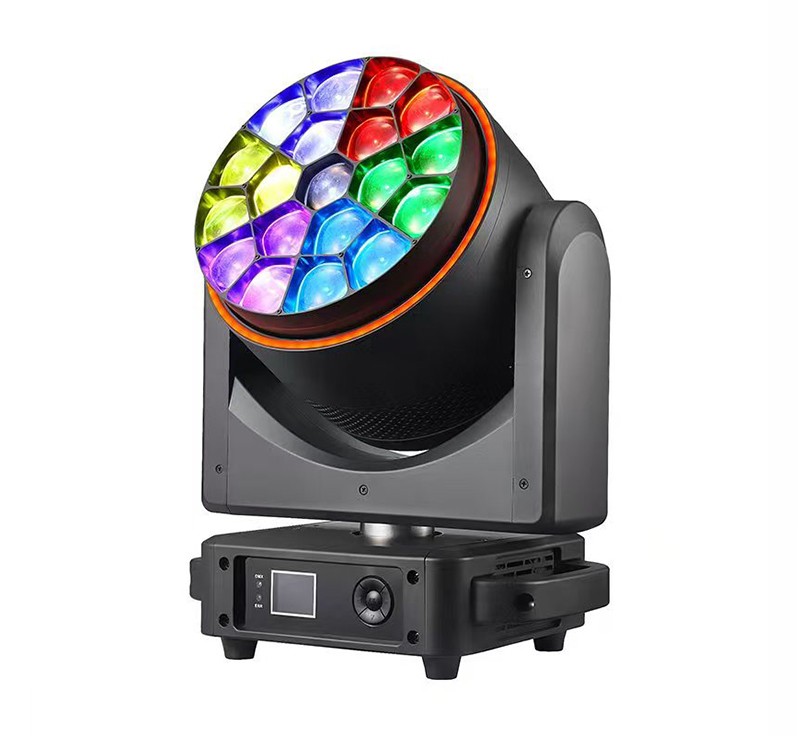

- 74-LED ring — adds an outer chase effect layer on top of the main 19-pixel array
- Rotating front lens array — spinning visual texture for vortex and kaleidoscope effects
- Individual pixel control on both main array and ring — independently programmable chase effects
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most pixel fixtures rely on a single array for all their chase and color effects. The LM1940P adds a 74-LED ring around its main 19-pixel array, giving designers a second, independently controllable layer for chase effects — without needing a separate fixture.
A static front lens limits pixel effects to a flat visual plane. The LM1940P's rotating front lens array adds a spinning layer on top of its built-in vortex and kaleidoscope programs, producing texture that a fixed-lens fixture can't replicate.

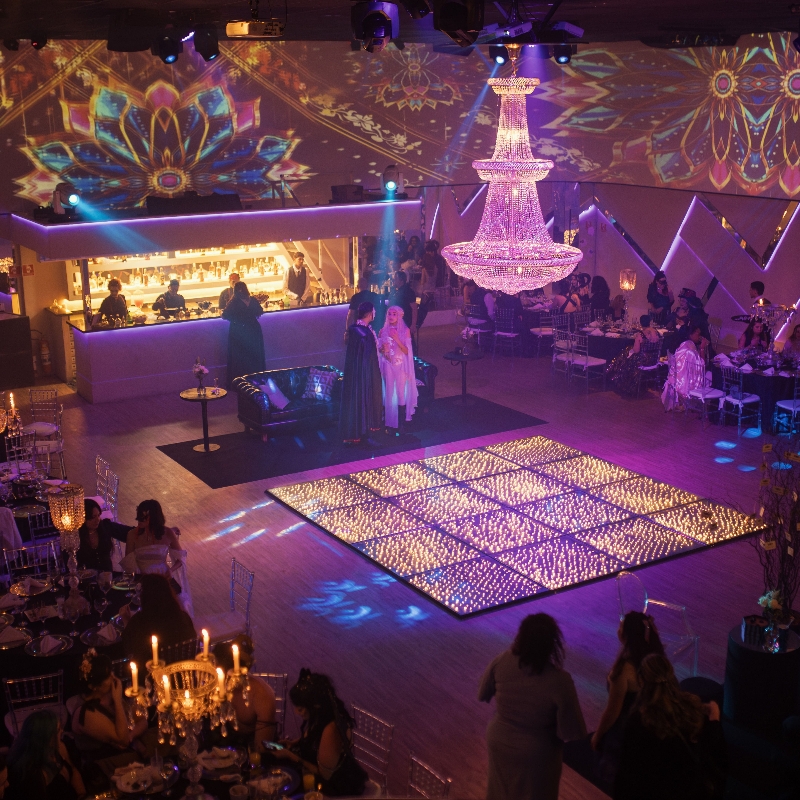

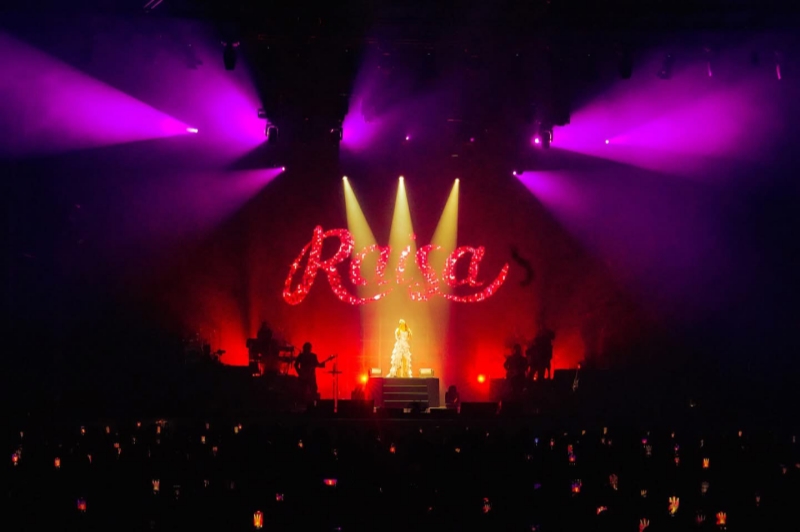

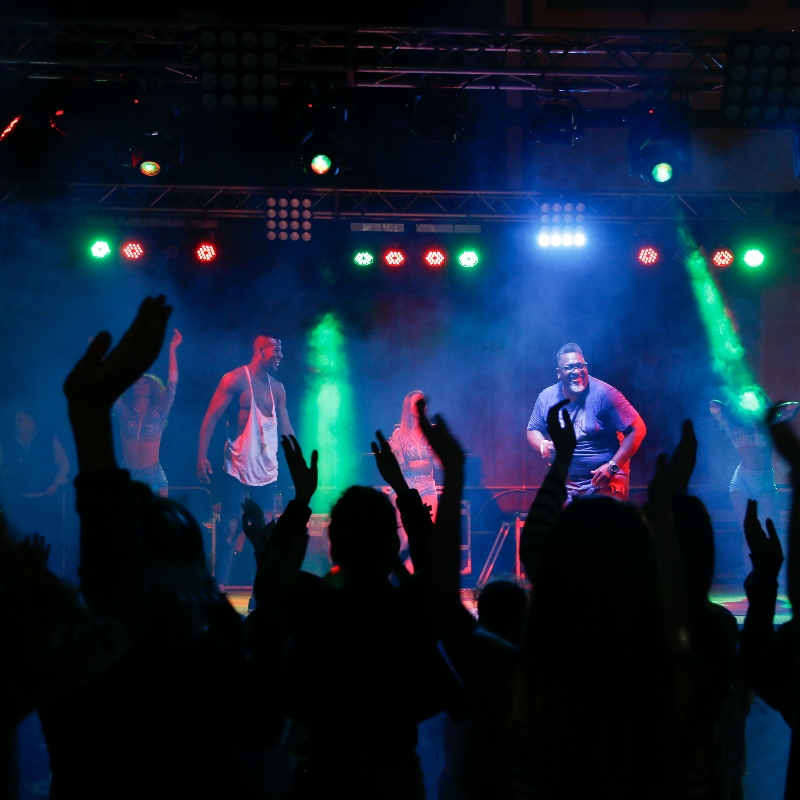

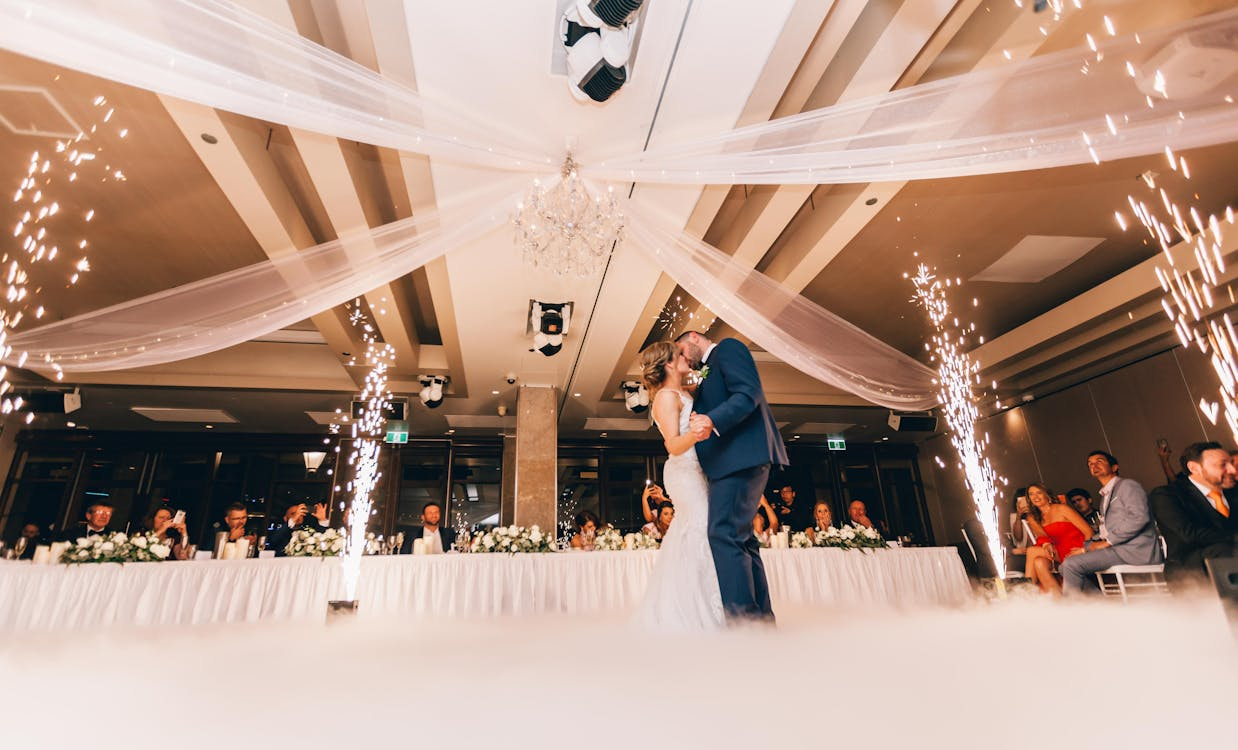

Application Scenarios
Specification
| Main Light Source | 19 × 40W RGBW LED (5060 package) | Auxiliary Light Source | 74 × 0.5W LED ring |
| LED Lifetime | Approx. 30,000 hours | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 850W | Color System | RGBW color mixing with linear CTO control |
| Zoom | 4°–60° DMX linear zoom | Dimming | 0–100% electronic dimming, gamma adjustable (1.2kHz–25kHz), flicker-free |
| Strobe | 0.3–25 Hz, sync / async / random | Pan / Tilt | 540° / 270° (16-bit resolution) |
| Motor System | Silent three-phase motors with Hall sensor positioning and auto-reset | DMX Channel Modes | 32 CH (Basic), 34 CH, 46 CH, 78 CH, 92 CH, 97 CH, 99 CH |

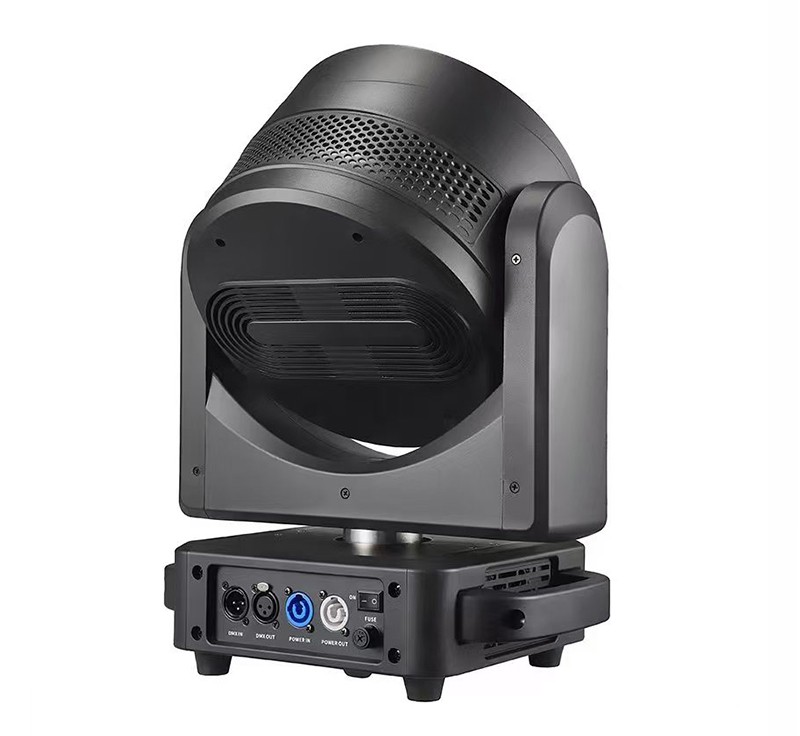

| Control Protocol | DMX512, RDM | Control Interfaces | 3-pin DMX (optional 5-pin), power in/out |
| Display | 1.77-inch LCD display, bilingual menu, auto-rotate | Sleep Mode | Auto standby when DMX signal is lost |
| Cooling System | Lightweight aluminum heatsink with intelligent fan control | Protection | Overheat protection and smart noise-temperature balance |
| IP Rating | IP20 (optional rain cover up to IP44) | Fixture Dimensions | 340 × 230 × 410 mm |
| Net Weight | 12.8 kg | Gross Weight | 14.85 kg |
| Packing Size | 470 × 410 × 340 mm | Effects | Vortex, kaleidoscope, beam, wash |
| Front Optics | Seamless rotating bee-eye lens array, aspherical lens design | Pixel Control | Individual LED pixel control with LED ring chase effects |
| Special Features | Auto screen rotation, integrated mainboard, RDM remote addressing & firmware upgrade |
Details & Features
What's in the Box
- • DMON LM1940P Moving Head (19 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM1940P be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (32 CH to 99 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the LED ring add to the fixture?
The 74-LED ring runs independently of the main 19-pixel array, allowing chase effects around the fixture's outer edge while the main array runs a separate effect.
Does the LED source need to be replaced like a traditional lamp?
No. The LM1940P uses 19×40W RGBW LEDs rated for approximately 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's的warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
