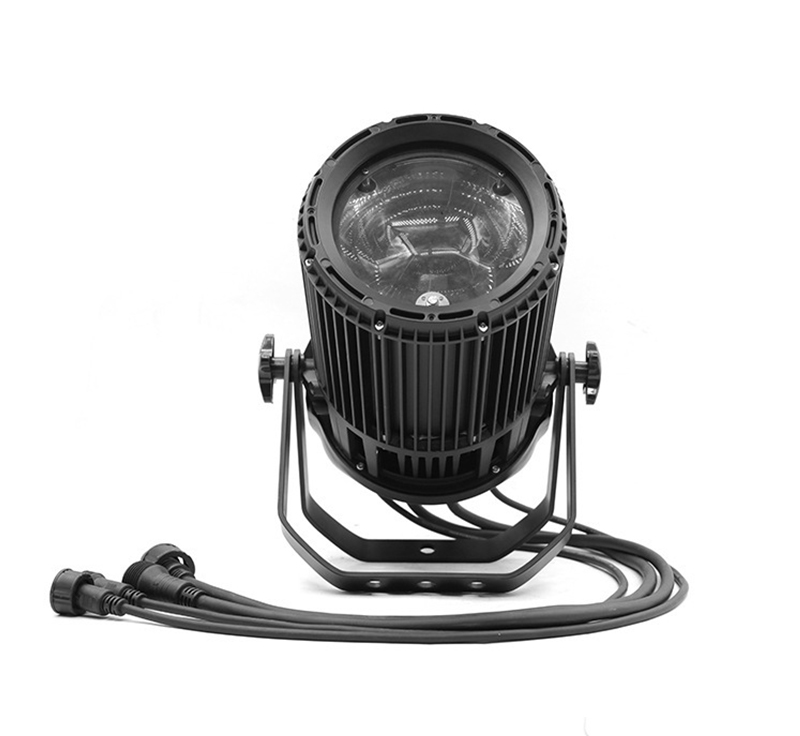

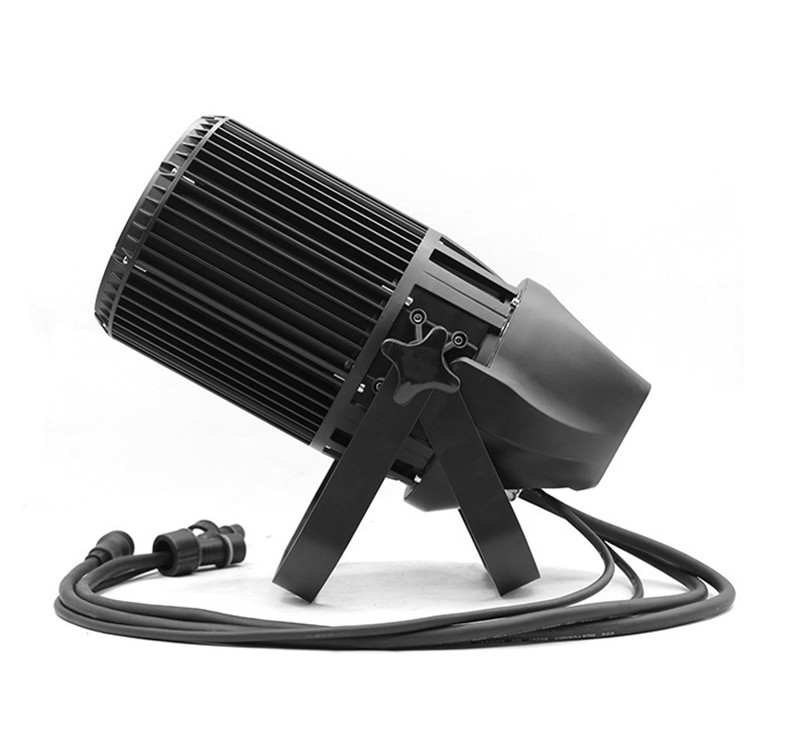

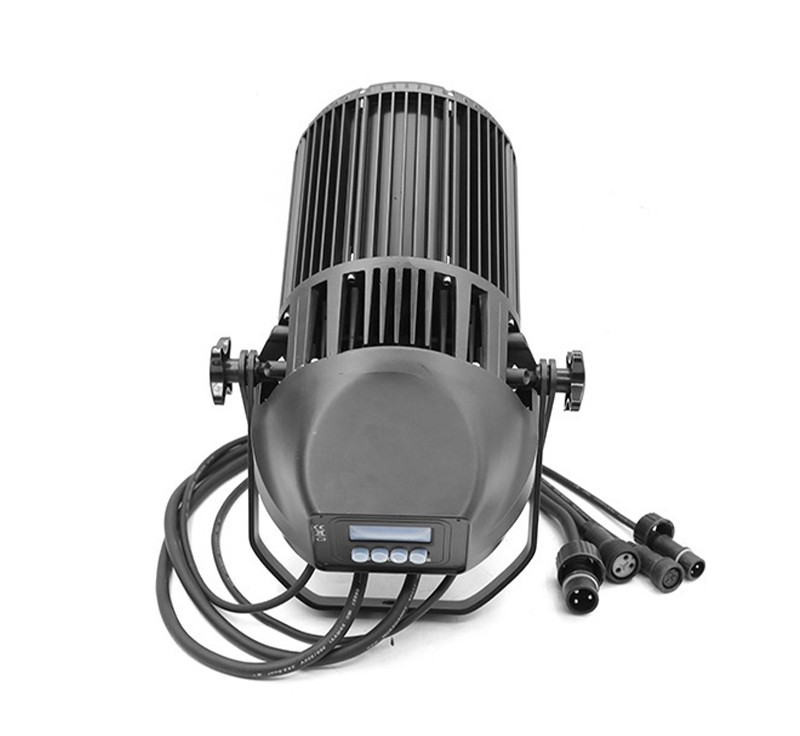

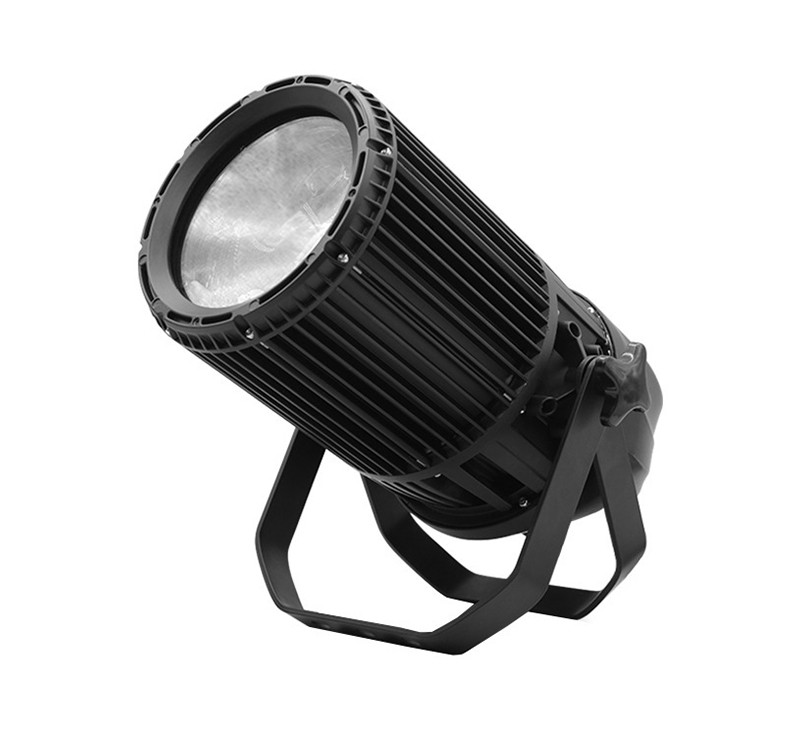

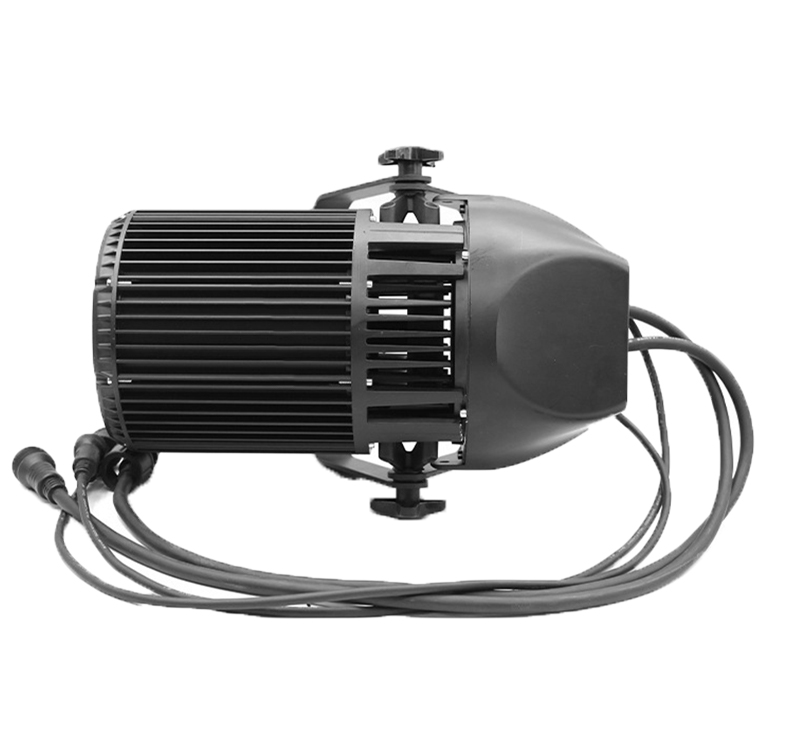

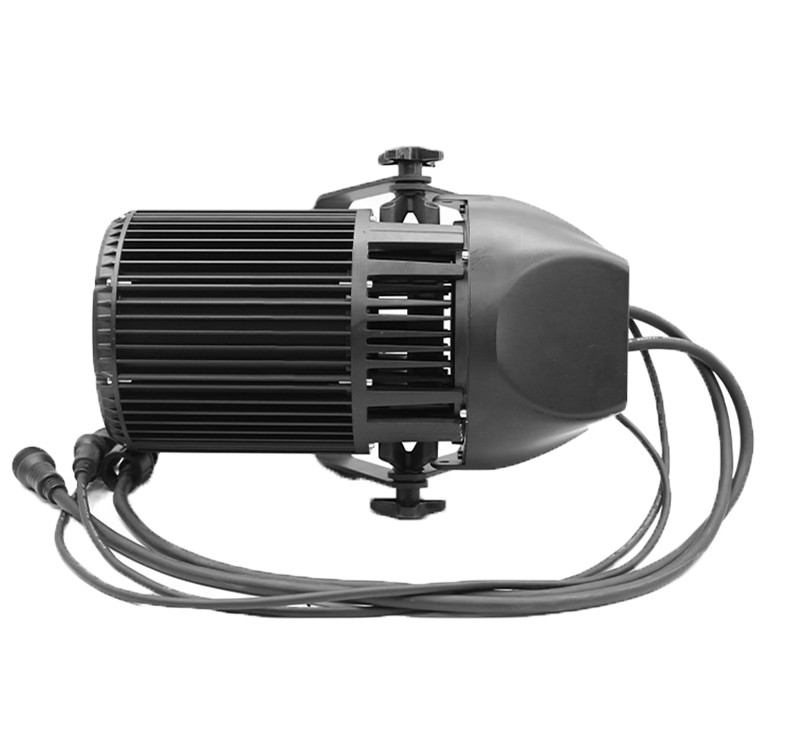

DMON PCF300 Outdoor 300W COB LED Zoom Fresnel Light
The Dmon PCF300 is an IP65-rated outdoor 300W COB LED zoom fresnel light with tunable cool/warm white output and CRI>95 color accuracy. With 8°–60° motorized zoom and DMX512/Sound Active/Master-Slave control, the PCF300 delivers accurate, adjustable front lighting for productions where color fidelity matters.
- CRI>95 — accurate color rendering for productions where color fidelity matters
- 8°–60° motorized zoom — adjusts beam width without swapping lenses or fixtures
- Tunable white (cool/warm) — matches different lighting needs without gels
- IP65 waterproof — reliable operation in outdoor conditions
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Standard LED output is fine for most work, but color-critical productions — broadcast, product launches, fashion shows — need output that renders skin tones and fabric colors accurately. The PCF300's CRI>95 rating gives designers that color fidelity without switching to a different fixture.
A fixed beam angle limits a fixture to one look. The PCF300's 8°–60° motorized zoom lets operators adjust beam width on the fly, covering both tight and wide areas without rigging a different fixture.
Application Scenarios
Specification
| Light Source | 260W High-Power COB LED | Color Temperature | Tunable White (Cool White / Warm White) |
| CRI | >95 | LED Lifetime | Approx. 50,000 hours |
| Power Supply | AC 90–240V, 50/60Hz | Power Consumption | 300W |
| Zoom Angle | 8°–60° linear motorized zoom | Dimming | 0–100% electronic dimming, single color / mixed output |
| Strobe | 1–25 flashes/sec, single color / mixed color | Control Modes | DMX512, Auto, Sound active, Master-Slave |
| DMX Channels | 5 CH | IP Rating | IP65 (outdoor waterproof) |
| Fixture Dimensions | 390 × 250 × 170 mm | Packing Dimensions | 500 × 305 × 245 mm |
| Net Weight | 7.5 kg | Gross Weight | 8.0 kg |
Details & Features
Frequently Asked Questions
Is the PCF300 truly rated for outdoor use?
Yes. The PCF300 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the PCF300 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 5 channels, compatible with any DMX-compliant console on the market.
What does the CRI>95 rating mean for color accuracy?
CRI>95 means the PCF300 renders colors very close to how they appear under natural light, making it suitable for productions where accurate skin tones and fabric colors matter, such as broadcast or fashion shows.
Does the LED source need to be replaced like a traditional lamp?
No. The PCF300 uses a COB LED source rated for approximately 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
