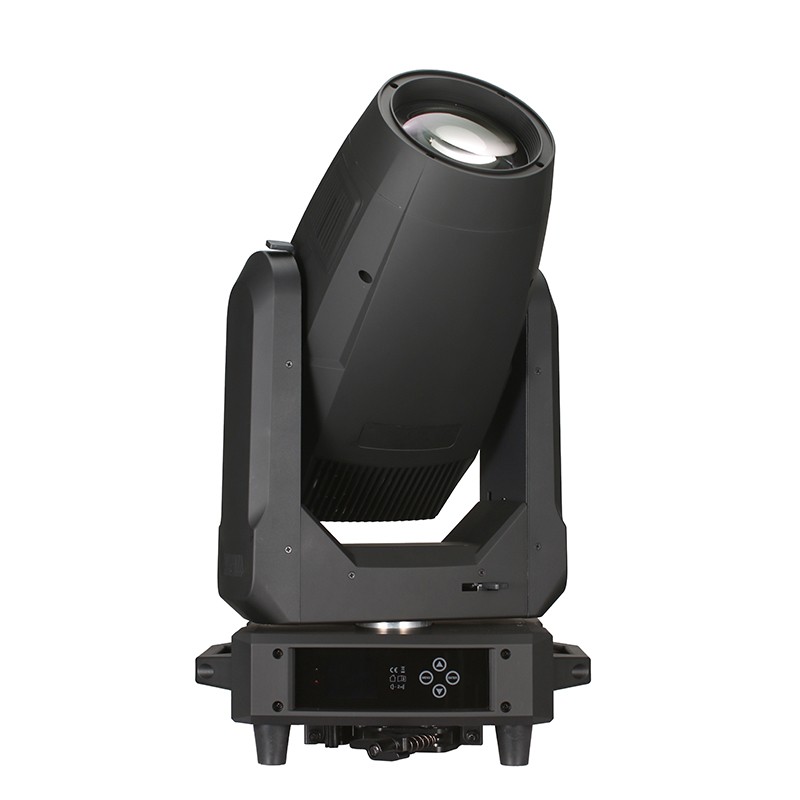

DMON LM600X 600W LED Framing Moving Head Light
The Dmon LM600X is a professional 600W LED framing moving head light featuring a 4-blade framing system and motorized iris for precise edge control, alongside linear CMY+CTO color mixing and a high CRI mode (Ra≥90). Built with a 20,000-hour LED engine, the LM600X delivers the shape control theatrical and architectural lighting designers need without the maintenance cycle of a traditional lamp.
- 4-blade framing system + motorized iris — precise edge shaping and beam masking on demand
- 20,000-hour LED engine — no lamp replacement cycle to manage
- High CRI mode (Ra≥90) — accurate color rendering for productions where color fidelity matters
- Linear CMY + CTO color mixing — continuous color and temperature control beyond fixed wheels
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Lighting a stage set or a building facade often means keeping light off certain edges — a doorway, a sign, a piece of scenery. The LM600X's 4-blade framing system rotates 120° and shapes the beam on the fly, so designers can mask exactly what needs to stay dark without gels or external shutters.
Standard LED output is fine for most work, but color-critical productions — broadcast, product launches, fashion shows — need output that renders skin tones and fabric colors accurately. The LM600X's high CRI mode (Ra≥90) is built in as a switchable option, so the same fixture covers both everyday use and color-critical work.
Application Scenarios
Specification
| Light Source | 600W LED | LED Lifetime | 20,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power | 800W @ 220V |
| Beam Angle | 3°–40° | CRI | Standard mode Ra≥70 / High CRI mode Ra≥90 |
| Pan / Tilt | 540° / 270° with auto-reset | Strobe | 0–25Hz |
| Dimming | 0–100% linear dimming | Color System | Color wheel: 5 colors + open; Linear CTO; Linear CMY |
| Static Gobo Wheel | 6 fixed gobos + open, flow effect | Rotating Gobo Wheel | 7 rotating glass gobos, bi-directional rotation |
| Prism System | 4-facet prism + single 4-row linear prism | Focus | DMX linear focus |
| Frost | Independent frost filter | Framing System | 4-blade framing system, 120° rotation |
| Iris | Motorized linear iris | Control Protocol | DMX512, RDM |
| Channel Mode | 37 CH | Macros | Reset, Auto, Master-Slave |
| IP Rating | IP20 | Housing Material | High-temperature flame-retardant nylon |

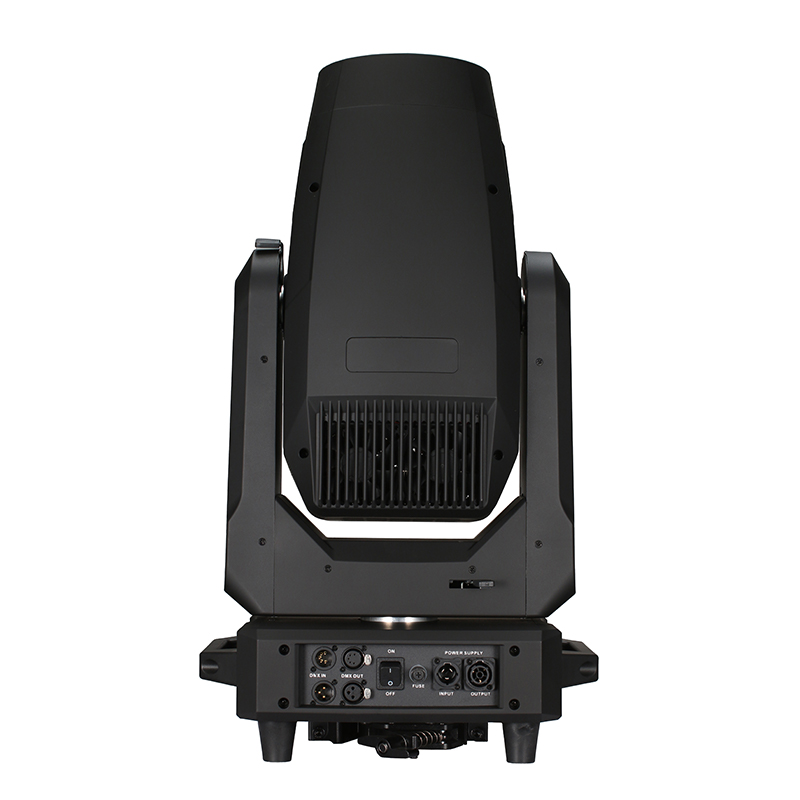

| Power Connection | powerCON input / output | Signal Connection | 3-pin & 5-pin DMX input / output |
| Working Temperature | -20°C to +40°C | Fixture Size | 387 × 272 × 678 mm |
| Net Weight | 25 kg |
Details & Features
What's in the Box
- • DMON LM600X Moving Head (600W LED)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
-
Frequently Asked Questions
How does the framing system work?
The LM600X uses a 4-blade framing system that rotates 120°, letting operators mask specific edges of the beam — useful for keeping light off a doorway, sign, or piece of scenery without gels or external shutters.
Does the LED source need to be replaced like a traditional lamp?
No. The LM600X uses a 600W LED engine rated for 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can the LM600X be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 37 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between standard and high CRI mode?
Standard mode runs at Ra≥70, suitable for general stage use. High CRI mode switches to Ra≥90 for productions where accurate color rendering matters, such as broadcast or product launches.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
