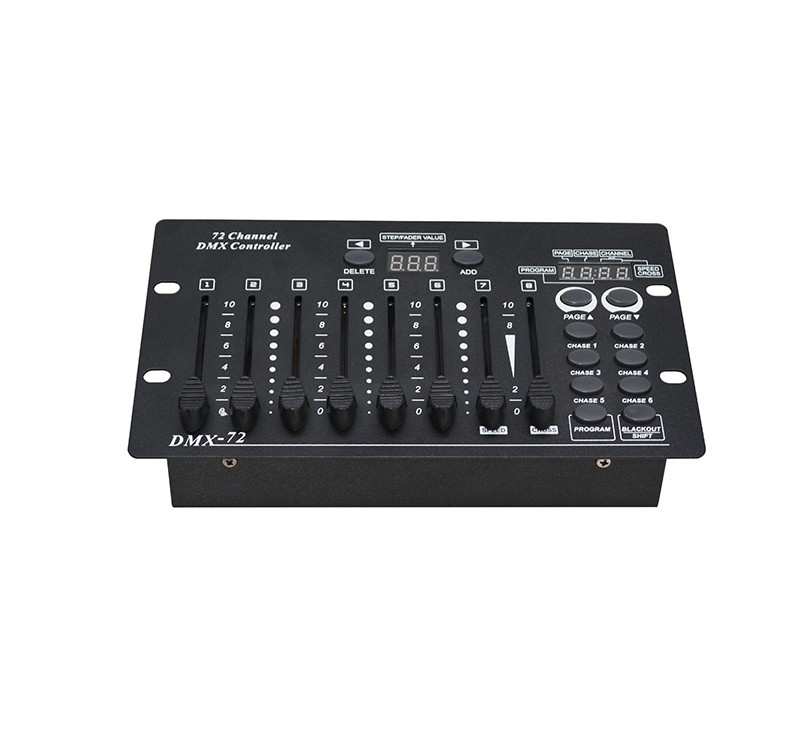

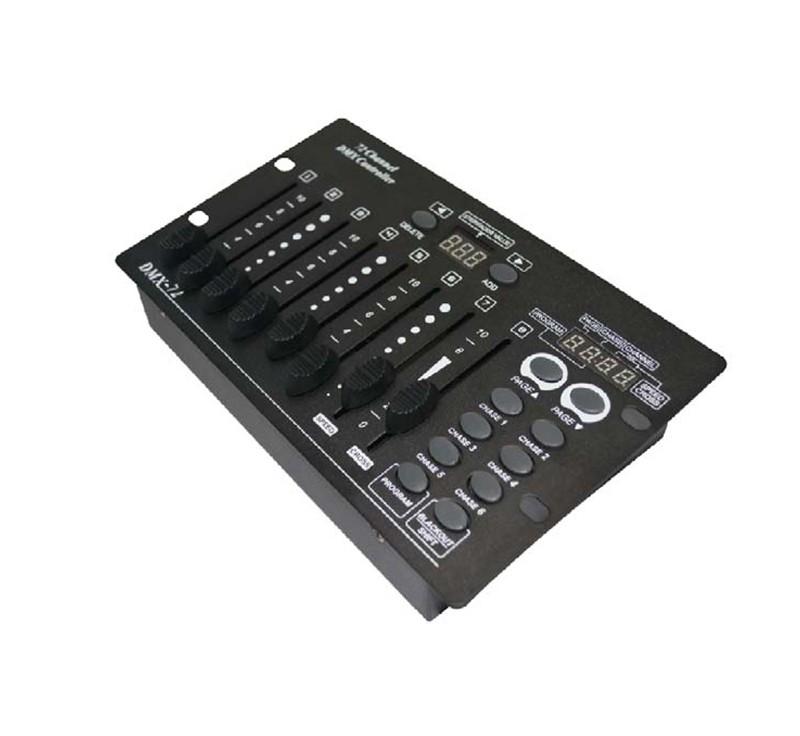

DMON DB72 Portable Battery 72CH DMX Controller
The Dmon DB72 is a portable 72-channel DMX controller with 6 programmable scenes of up to 40 steps each. With full-channel blackout and power failure memory, the DB72 gives operators a compact way to run pre-programmed lighting sequences without a full lighting console.
- 72-channel control — handles larger rigs than a basic 16-channel controller
- 6 programs with up to 40 steps each — build and store multiple lighting sequences in advance
- Full-channel blackout (1–72) — instant blackout across the entire rig with one control
- Power failure memory — retains settings after a power interruption
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Re-programming a lighting sequence live during a show isn't always practical. The DB72 stores 6 programs with up to 40 steps each, letting operators pre-build sequences in advance and simply trigger them during the event.
Cutting all lights quickly for a scene change often means fumbling with multiple faders. The DB72's full-channel blackout function cuts all 72 channels at once with a single control, simplifying quick transitions.
Specification
| Power Supply | DC 9V adapter | DMX Protocol | Standard DMX512 |

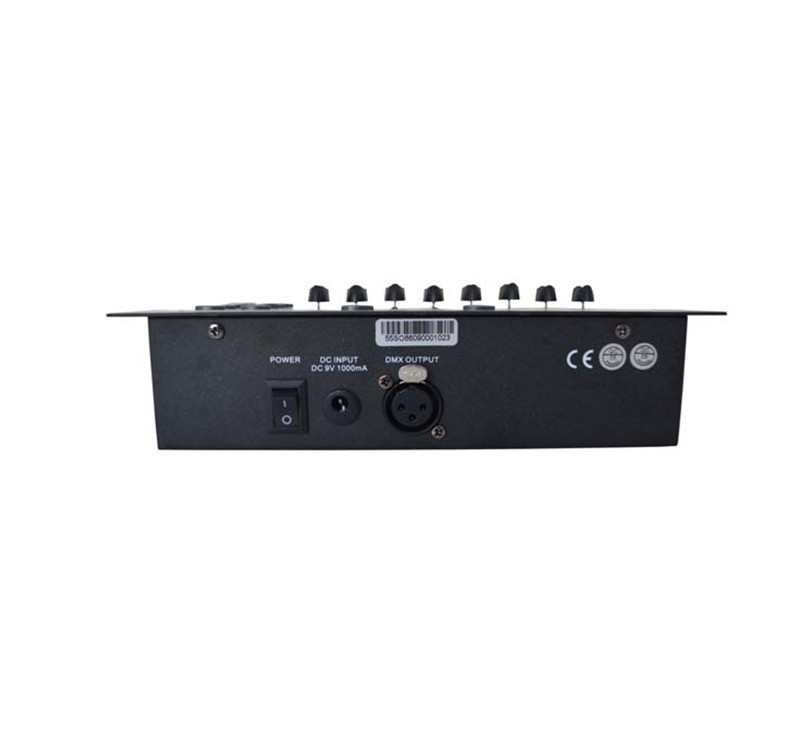

| DMX Connector | 3-pin female XLR | Control Channels | 72 channels |
| Programs | 6 programs, up to 40 steps each | Blackout Function | Yes (1–72 channels) |
| Memory Function | Power failure memory | Dimensions | 232 × 135 × 55 mm |
| Net Weight | 1.0 kg (excluding AC adaptor) |
Frequently Asked Questions
How many fixtures can the DB72 control?
The DB72 outputs standard DMX512 across 72 channels, so the number of fixtures depends on how many DMX channels each fixture uses.
How does the program/step function work?
Each of the 6 programs can store up to 40 individual steps, allowing operators to build multi-step lighting sequences in advance and trigger them as needed during a show.
What happens if the power is interrupted mid-show?
The DB72's power failure memory retains programmed settings, so operators don't need to reset everything after power is restored.
Does this controller run on battery power?
The DB72 is powered via a DC 9V adapter. Confirm with our team if a battery-powered version is needed for your application.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
