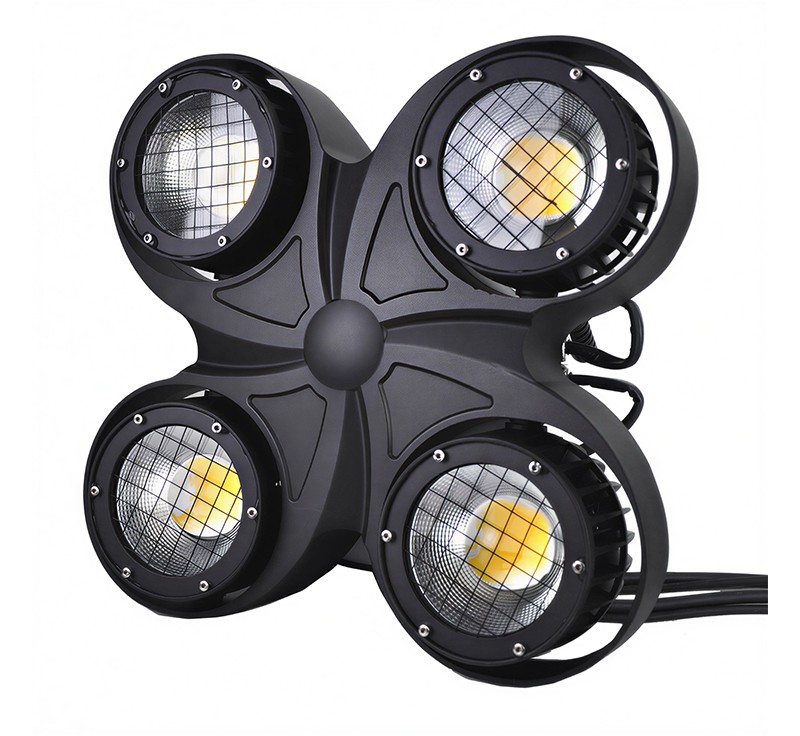

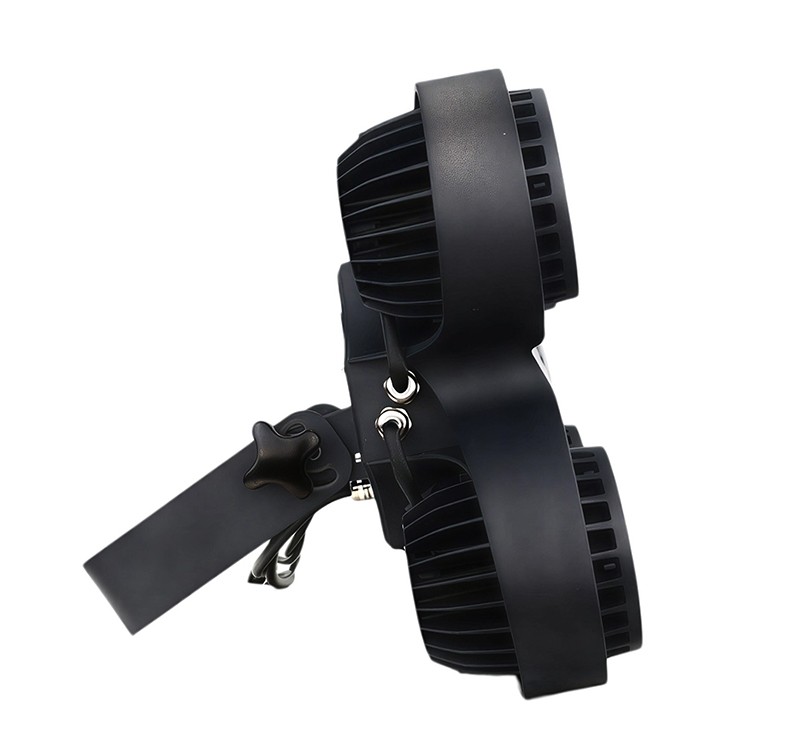

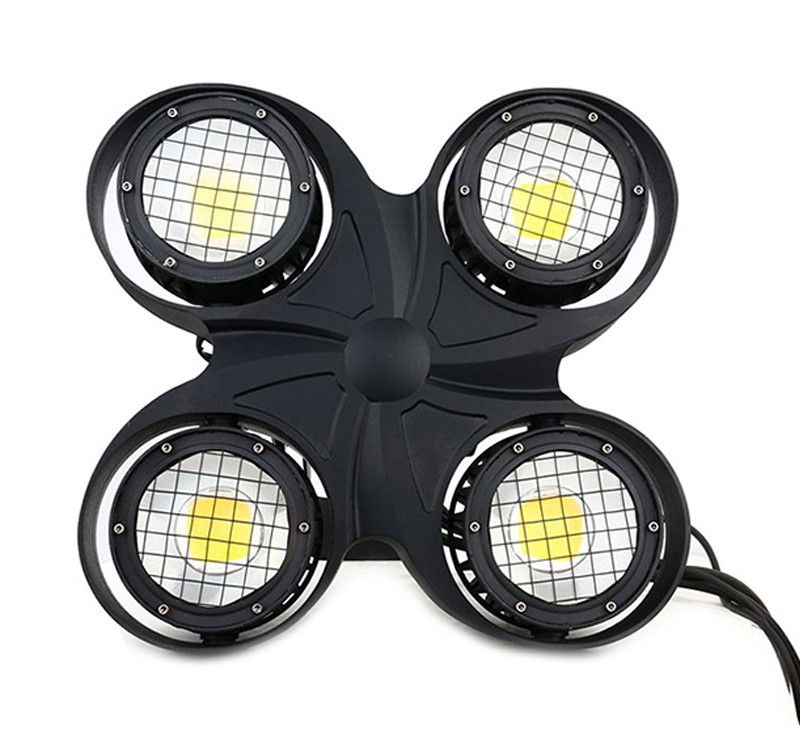

DMON CTF4 Outdoor Quad-Eye Waterproof Audience Blinder Light
The Dmon CTF4 is an IP65-rated outdoor quad-eye audience blinder light powered by 4×100W COB LEDs, available in multiple color configurations from warm/cool white to RGBW and RGBWA+UV. With waterproof ball-bearing cooling fans and DMX512/Sound Active/Master-Slave control, the CTF4 creates high-impact bursts of light aimed directly at the crowd — built to hold up in outdoor concert and festival con
- IP65 waterproof — reliable operation in outdoor concert and festival conditions
- Four independently visible eyes — a wider, more dynamic blinder effect than single or dual-eye fixtures
- Multiple color configuration options — from warm/cool white to RGBW and RGBWA+UV
- Waterproof ball-bearing cooling fans — active cooling built to handle sustained outdoor use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most blinder fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The CTF4 is IP65 from the factory, with waterproof cooling fans keeping the fixture running through wind and rain without extra weatherproofing.
A single or dual-eye blinder covers a limited field of view across a large crowd. The CTF4's four independently visible eyes spread the blinder effect wider, giving designers more coverage from one fixture without lining up multiple units.
Application Scenarios
Specification
| Light Source | 4 × 100W COB LEDs | Input Voltage | AC 90–260V |
| Frequency | 50/60Hz | Power Consumption | 450W |
| Color Options | 3200K Warm White / 6500K Cool White / 3200K+6500K Tunable White / RGBW 4-in-1 (optional) / RGBWA+UV 6-in-1 (optional, higher cost, non-pixel control) | DMX Channels | Varies by color configuration |
| Control Modes | DMX512, Sound Active, Auto, Manual, Master-Slave | Dimming | Electronic linear dimming 0–100% |
| Strobe | 1–20 flashes/sec | Cooling System | 4 × 6cm × 6cm waterproof ball-bearing cooling fans |
| IP Rating | IP65 (outdoor waterproof) | Packing Size (Carton) | 430 × 420 × 260 mm (1 pc/carton) |
| Net Weight | 11.0 kg | Gross Weight | 13.0 kg |
Frequently Asked Questions
Is the CTF4 truly rated for outdoor use?
Yes. The CTF4 is IP65-rated, with waterproof cooling fans built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the CTF4 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol, with channel count depending on the selected color configuration, compatible with any DMX-compliant console on the market.
Which color configuration should I choose?
Warm/cool white configurations give a classic, high-intensity blinder look at standard cost, while RGBW and RGBWA+UV options add color flexibility at a higher cost without pixel-level control. Confirm your preferred configuration at the time of order.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
