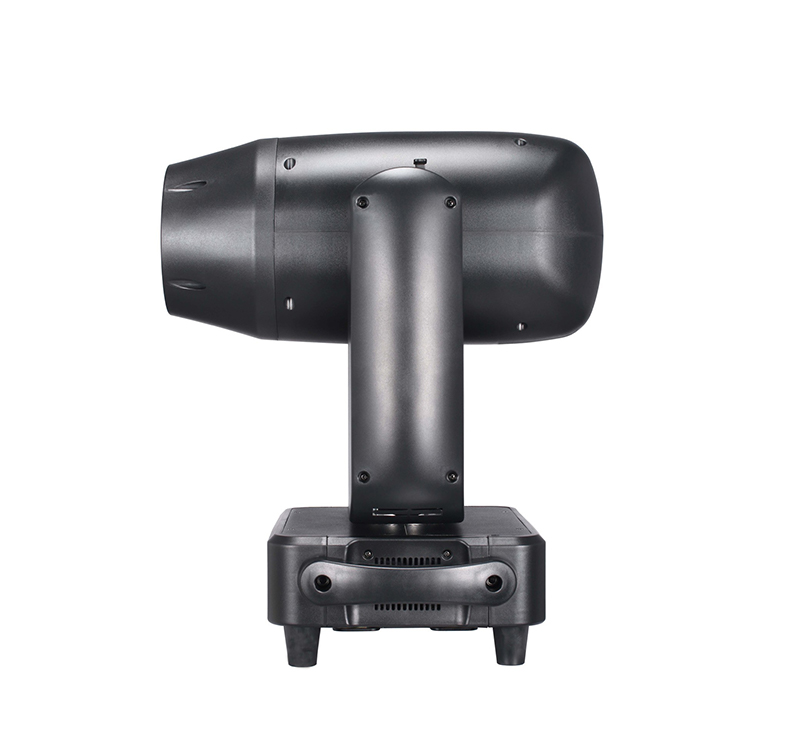

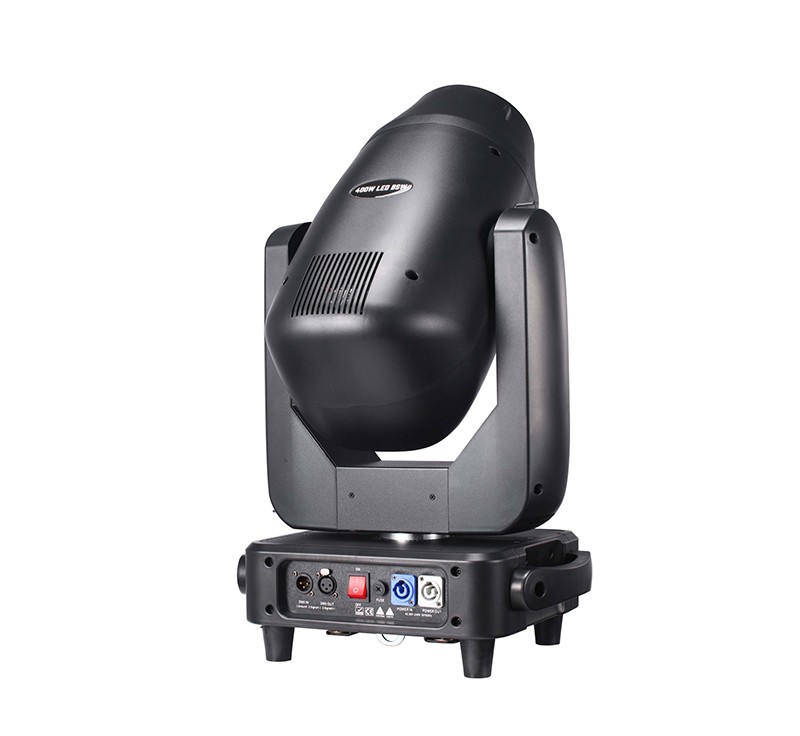

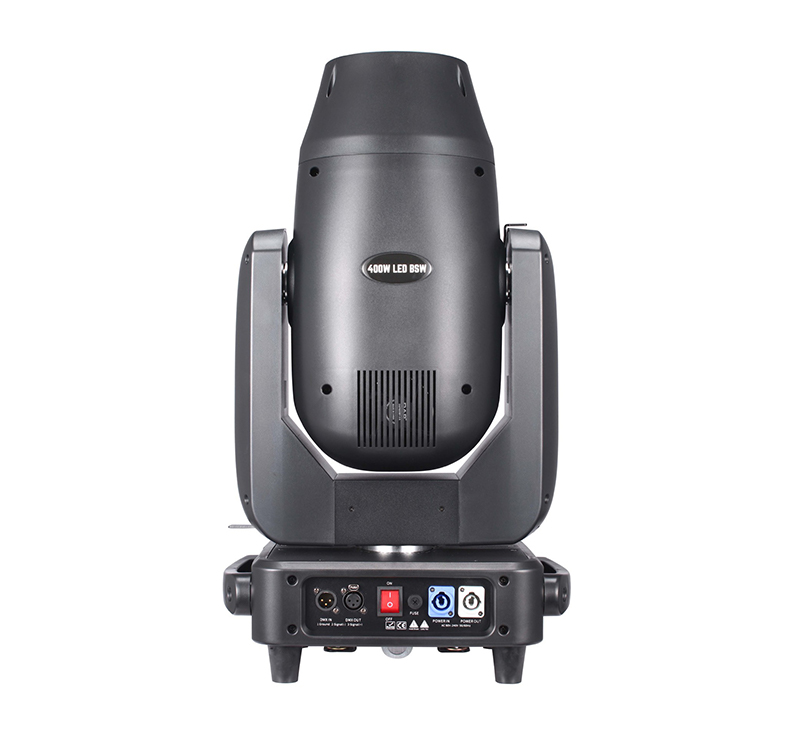

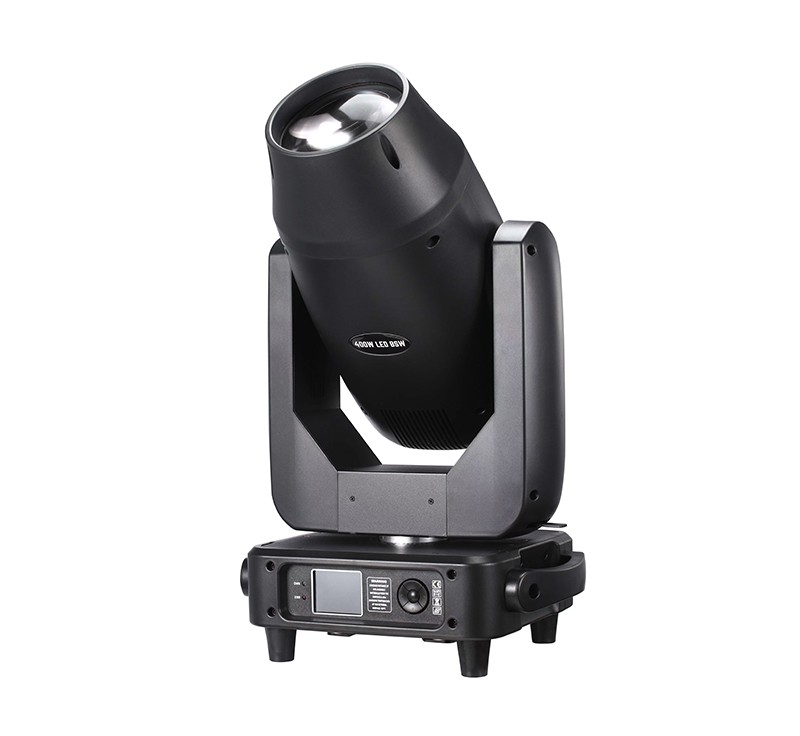

DMON LM400S 400W LED CMY Spot & Beam Hybrid Moving Head Light
The Dmon LM400S is a high-output 400W LED CMY spot & beam hybrid moving head light, delivering 100,000 lux at 5m with linear CMY+CTO color mixing and a 4m–50m focus range. With dual gobo wheels, a linear prism array, and DMX512/RDM control, the LM400S combines beam intensity with spot-level precision in a single fixture.
- 100,000 lux at 5m — high-output performance for larger venues and longer throws
- Linear CMY + CTO color mixing — continuous color and temperature control beyond fixed wheels
- 4m–50m linear focus range — sharp focus across a wide working distance
- Dual gobo wheels + linear prism array — extensive pattern and texture variation
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Fixtures with a narrow focus range only stay sharp within a limited distance. The LM400S's 4m–50m linear focus range keeps gobo projections crisp whether the fixture is close to the stage or set back at the far end of a large venue.
A fixed color wheel forces hard jumps between preset colors. The LM400S's linear CMY+CTO system handles continuous color mixing and adjustable color temperature in one pass, without needing separate CTO filters or gels.
Application Scenarios
Specification
| Light Source | 400W White LED Module | LED Lifetime | Approx. 20,000 hours |
| Input Voltage | AC 110–240V, 50/60Hz | Rated Power Consumption | 430W |
| Illuminance | 100,000 lux @ 5m | Zoom Angle | 4°–35° |
| Focus Range | Linear focus from 4m to 50m | Dimming | 0–100% linear dimming |
| Strobe | 0–30 Hz with variable speed and macro effects | Color System | Linear CMY color mixing + CTO |
| Color Wheel | 8 colors + open, half-color function | Static Gobo Wheel | 12 gobos + open |
| Rotating Gobo Wheel | 7 interchangeable glass gobos with bi-directional rotation | Prism System | Linear prism array + 8-facet prism, bi-directional rotation |
| Frost | Independent frost filter for smooth beam | Pan / Tilt | 540° / 270° (16-bit resolution with electronic correction) |
| DMX Channel Mode | 23 CH | Control Protocol | DMX512, RDM (software upgrade & address setting) |
| Display | LCD display with buttons + touch operation | Cooling System | Axial fans with enhanced airflow |
| Safety Protection | Electronic thermal protection with auto power-off | Operating Temperature | -20°C to 40°C |
| Housing Material | High-temperature resistant plastic | IP Rating | IP20 |
| Fixture Dimensions | 380 × 270 × 650 mm (L×W×H) | Net Weight | 22.5 kg |
Details & Features
What's in the Box
- • DMON LM400S Moving Head (400W LED Module)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM400S be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 23 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What can linear CMY+CTO do that fixed color wheels can't?
Linear CMY mixing produces continuous, stepless color transitions instead of jumping between fixed colors, and the built-in CTO adjusts color temperature without needing a separate filter or gel.
Does the LED source need to be replaced like a traditional lamp?
No. The LM400S uses a 400W LED module rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What happens if the fixture overheats?
The LM400S includes electronic thermal protection with automatic power-off, shutting down output if internal temperature exceeds safe operating limits.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
