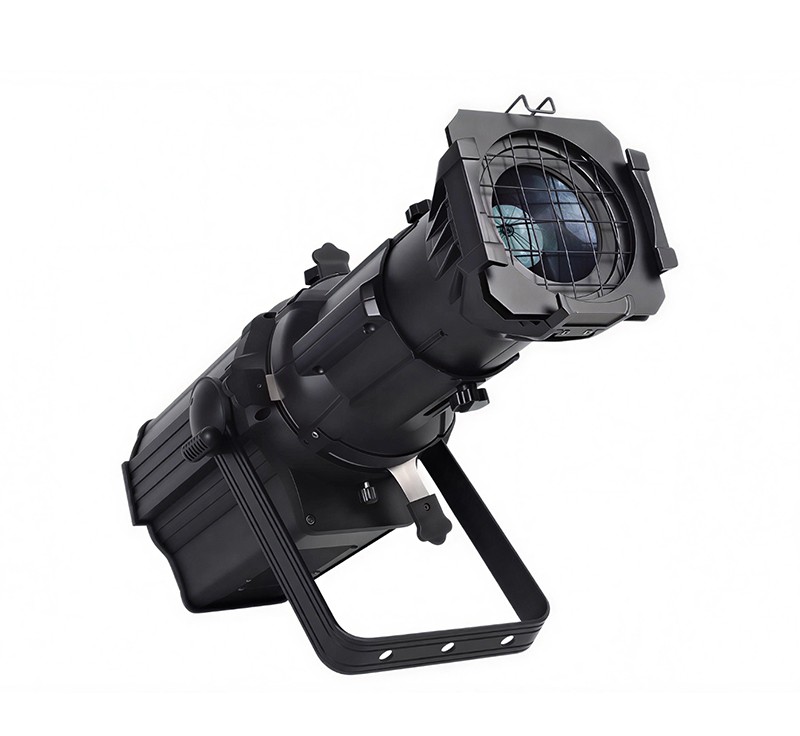

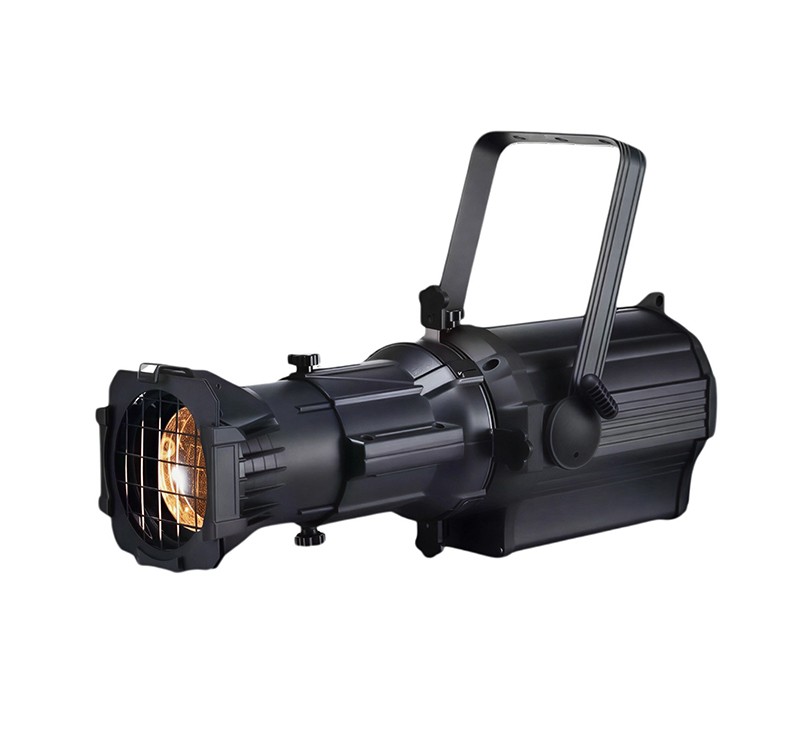

DMON CX200 200W LED Profile Light / LED Ellipsoidal Spotlight
The Dmon CX200 is a 200W LED profile light (ellipsoidal spotlight) delivering up to 25,500 lm with CRI≥90 color accuracy. With selectable beam angles from 19° to 50° and color temperature options including tunable white and RGBW, the CX200 offers precise, high-quality illumination for theatrical, studio, and architectural applications.
- CRI≥90 (up to 97) — accurate color rendering for productions where color fidelity matters
- Selectable beam angles (19°/26°/36°/50°) — precise framing for different throw distances
- Up to 25,500 lm output — high-intensity illumination from a compact fixture
- Flicker-free 16-bit dimming — smooth brightness control for camera and broadcast work
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Standard LED output is fine for most work, but color-critical productions — broadcast, product launches, theatrical performances — need output that renders skin tones and fabric colors accurately. The CX200's CRI≥90 rating gives designers that color fidelity in a fixed-mount fixture.
A single fixed lens limits a profile light to one throw distance and coverage area. The CX200's selectable beam angles (19° to 50°) let operators match the fixture to the specific installation without switching to a different unit.
Application Scenarios
Specification
| Light Source | Imported high-brightness integrated LED | LED Power | 200W |
| LED Lifetime | ≥50,000 hours | Input Voltage | AC 100–240V, 50/60Hz |
| Rated Power | 250W | Luminous Flux | 23,400 lm (3200K) / 25,500 lm (5600K) |
| Luminous Efficacy | 117 lm/W (3200K) / 127 lm/W (5600K) | Color Temperature Options | 3200K / 5600K / Tunable White (3200K+5600K) / RGBW |
| CRI | Ra ≥90 (up to 97) | Driver | Constant current driver |
| Dimming | 0–100% electronic linear dimming, 16-bit flicker-free | Strobe | 1–30 flashes/sec |
| Beam Angle Options | 19° / 26° / 36° / 50° | Control Protocol | DMX512 |
| DMX Channels | 2CH (Dimmer / Strobe) | Operation | LCD display control menu |
| Cooling System | Ultra-quiet forced-air cooling | Fixture Temperature | ≤55°C (surface ≤65°C) |
| Housing Material | Aluminum alloy with black epoxy powder coating | Fixture Size | 620 × 330 × 420 mm |
| Packing Size | 645 × 355 × 350 mm | Net Weight / Gross Weight | 9.8 kg / 11.4 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Can the CX200 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 2 channels for dimmer and strobe control, compatible with any DMX-compliant console on the market.
What does the CRI≥90 rating mean for color accuracy?
CRI≥90 (up to 97) means the CX200 renders colors very close to how they appear under natural light, making it suitable for productions where accurate skin tones and fabric colors matter, such as broadcast or theatrical work.
Can I change the beam angle after installation?
The CX200 is available with 19°, 26°, 36°, or 50° beam angle options — confirm the required lens/angle at the time of order to match your specific throw distance.
Does the LED source need to be replaced like a traditional lamp?
No. The CX200 uses an integrated LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
