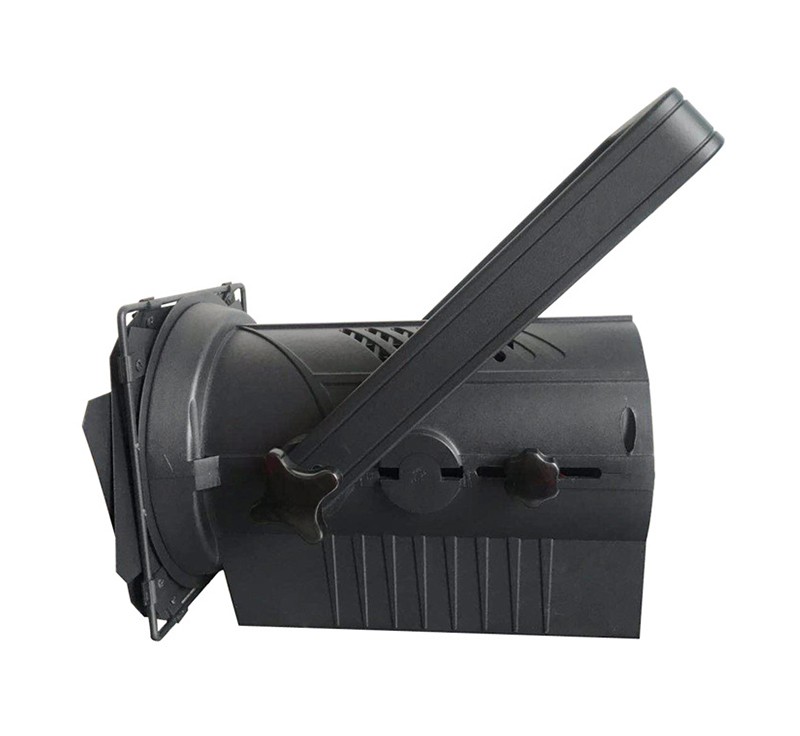

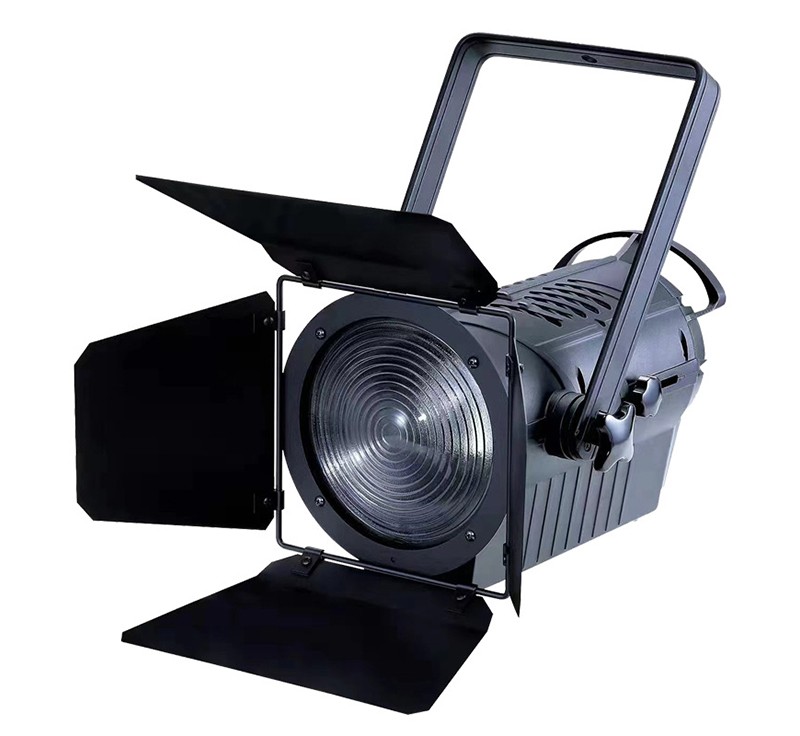

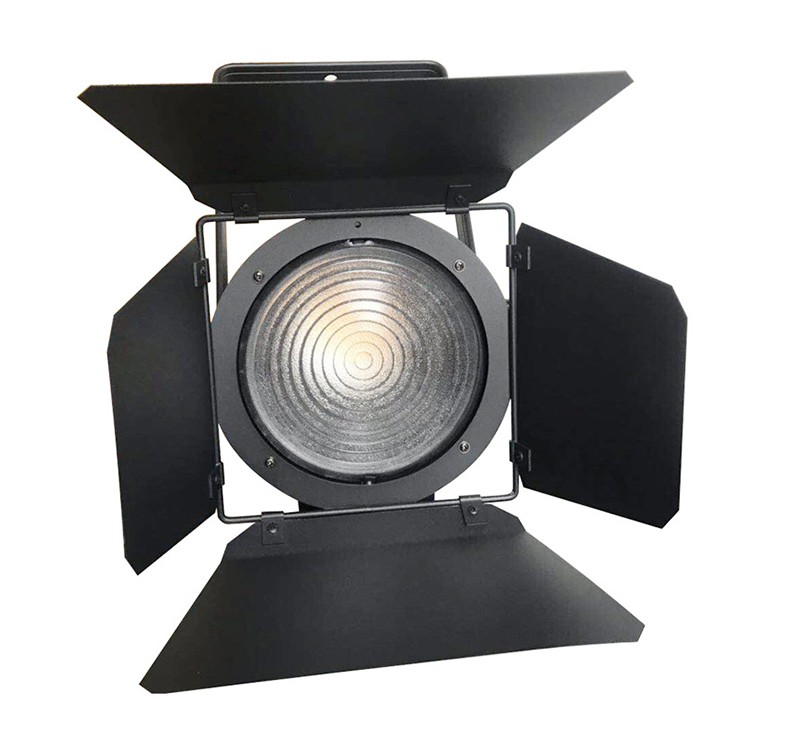

DMON JT200 200W Manual Zoom Fresnel Spotlight

The Dmon JT200 is a 200W manual zoom Fresnel spotlight with a 175mm Fresnel lens delivering CRI≥95 color accuracy. With a 15°–55° beam angle range and multiple strobe effects, the JT200 produces soft-edged, adjustable illumination for theatrical and studio applications.

175mm Fresnel lens — soft-edged beam with smooth falloff, ideal for blending and general area lighting
CRI≥95 — exceptional color accuracy for productions where color fidelity matters
15°–55° manual zoom — wide adjustment range from a single fixture without swapping lenses
Multiple strobe effects (1–20 Hz) — built-in flash programs for dynamic looks

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

A hard-edged beam can create visible seams when multiple fixtures overlap. The JT200's 175mm Fresnel lens produces a soft-edged beam with smooth falloff, making it easier to blend light across a stage or set without visible transitions.

A fixed beam angle limits a fixture to one throw distance and coverage area. The JT200's manual zoom covers a wide 15°–55° range, letting installers adjust the beam on-site without needing to stock multiple lens options.

Application Scenarios

Broadcast & Live Production

Consistent, camera-ready front lighting for live broadcasts and video production.

Concert & Performance Stages

High-output front lighting that keeps performers clearly visible even at the back of a large venue.

Houses of Worship

Even, glare-free lighting that keeps the pulpit and stage clearly lit through long service hours.

Fashion Shows & Museum Exhibits

Accurate, high-CRI illumination that shows true colors and fine details on the runway or in a display case.

Specification

Light Source	200W LED	Lens	175mm Fresnel lens
Input Power	AC 100–240V, 50/60Hz	Rated Power	200W
Luminous Flux	7000–8000 lm	LED Lifetime	≥50,000 hours
Color Temperature	5600K ±250K (Bi-color optional)	CRI	Ra ≥95
Beam Angle	15°–55°	Dimming	0–100% linear dimming
Strobe	Multiple strobe effects, 1–20 Hz	Cooling System	High-efficiency heatsink with silent fan
Display	LCD display	Control Mode	DMX512 / Manual
DMX Channels	2CH	IP Rating	IP20
Working Temperature	-20°C to 45°C	Gross Weight	12 kg

Details & Features

What's in the Box

• Power Cable
• Signal Cable
• Hanging Clamp
• User Manual

Frequently Asked Questions

Can the JT200 be controlled by third-party lighting consoles?

Yes. It runs on standard DMX512 protocol with 2 channels, compatible with any DMX-compliant console on the market.

What makes a Fresnel lens different from a standard profile lens?

A Fresnel lens produces a soft-edged beam with a gradual falloff, making it easier to blend multiple fixtures together without visible hard edges — different from the crisp, hard-edged beam of a standard ellipsoidal profile light.

Is the zoom motorized or manual?

The JT200's zoom is manually adjusted at the fixture, covering a 15°–55° range without needing DMX control for the zoom function itself.

Does the LED source need to be replaced like a traditional lamp?

No. The JT200 uses an LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.

Do you offer OEM/ODM or custom branding?

Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.

What's the warranty and how does after-sales support work?

2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
