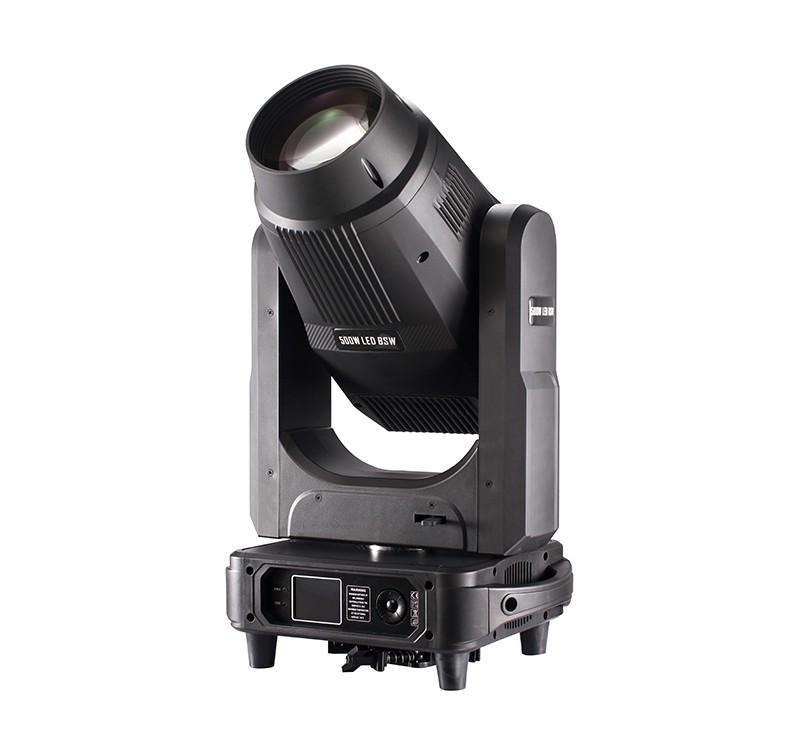

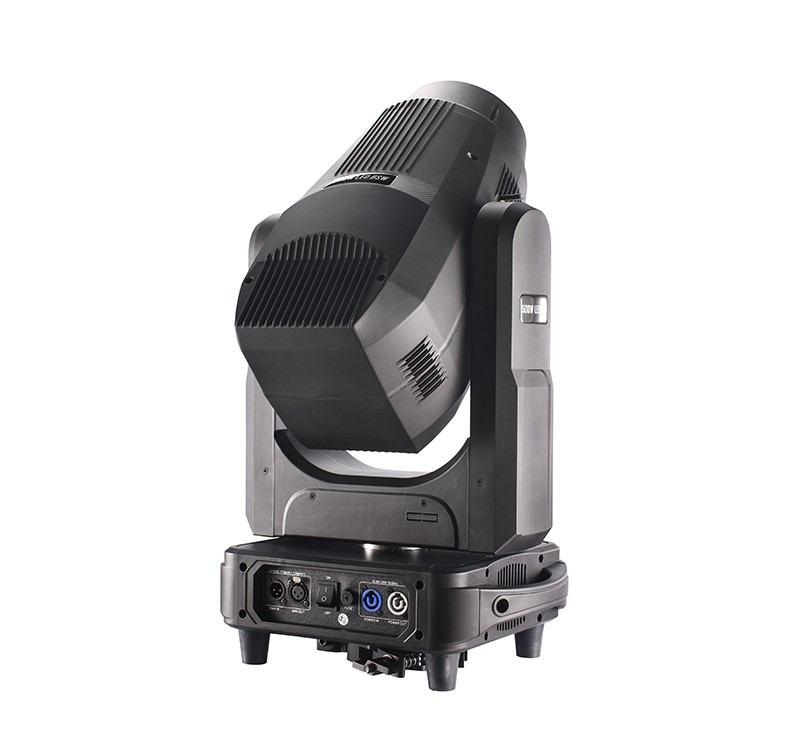

DMON LM500S 500W LED CMY Spot & Beam Hybrid Moving Head Light
The Dmon LM500S is a 500W LED CMY spot & beam hybrid moving head light powered by a 450W high-output LED module. With linear CMY+CTO color mixing, 3.5°–50° zoom, dual gobo wheels, and a combined precision optical lens group, the LM500S delivers versatile projection effects with DMX512/RDM control for remote monitoring and firmware updates.
- 450W high-output LED module — bright, focused output for larger productions
- Linear CMY + CTO color mixing — continuous color and temperature control beyond fixed wheels
- 3.5°–50° zoom + 4m–50m focus range — sharp focus across a wide range of distances
- DMX512 + RDM control — remote addressing and firmware updates from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixture that only stays sharp within a narrow distance range limits where it can be rigged. The LM500S's 4m–50m linear focus range keeps gobo projections crisp whether the fixture sits close to the stage or is positioned at the far end of a large venue.
Updating firmware or checking a fixture's status usually means climbing a truss. With DMX512/RDM support, operators can remotely address fixtures and push firmware updates directly from the console — useful for rigs with multiple units spread across a venue.
Application Scenarios
Specification
| Light Source | 450W High-Output White LED Module | LED Lifetime | Approx. 20,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power Consumption | 600W |
| Zoom Angle | 3.5°–50° | Focus Range | Linear focus from 4m to 50m |
| Dimming | 0–100% linear dimming | Strobe | 0–30 Hz with adjustable speed |
| Color System | Linear CMY color mixing + CTO | Color Wheel | 8 colors + open |
| Static Gobo Wheel | 11 gobos + open | Rotating Gobo Wheel | 7 glass gobos + open, bi-directional rotation |
| Prism System | 8-facet prism + linear prism array, bi-directional rotation | Frost | Independent frost filter |
| Pan / Tilt | 540° / 270° (16-bit resolution with electronic correction) | DMX Channel Mode | 23 CH |
| Control Protocol | DMX512, RDM (remote addressing & firmware upgrade) | Display | 2.8-inch color touchscreen + buttons, bilingual menu, 180° reversible |
| Optical System | Combined precision optical lens group | Control Modes | DMX / Master-Slave / Auto |
| Net Weight | 23.0 kg | Fixture Dimensions | 380 × 270 × 670 mm (L×W×H) |
Details & Features
What's in the Box
- • DMON LM500S Moving Head (450W LED Module)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM500S be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 23 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM500S uses a 450W high-output LED module rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What does RDM support let me do?
RDM enables remote addressing and firmware updates directly from the console, without needing to physically access each fixture — useful for rigs with multiple units.
What's the benefit of the 4m–50m focus range?
The wide focus range keeps gobo projections sharp whether the fixture is rigged close to the stage or positioned further back, without needing to reposition the fixture for a different working distance.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
