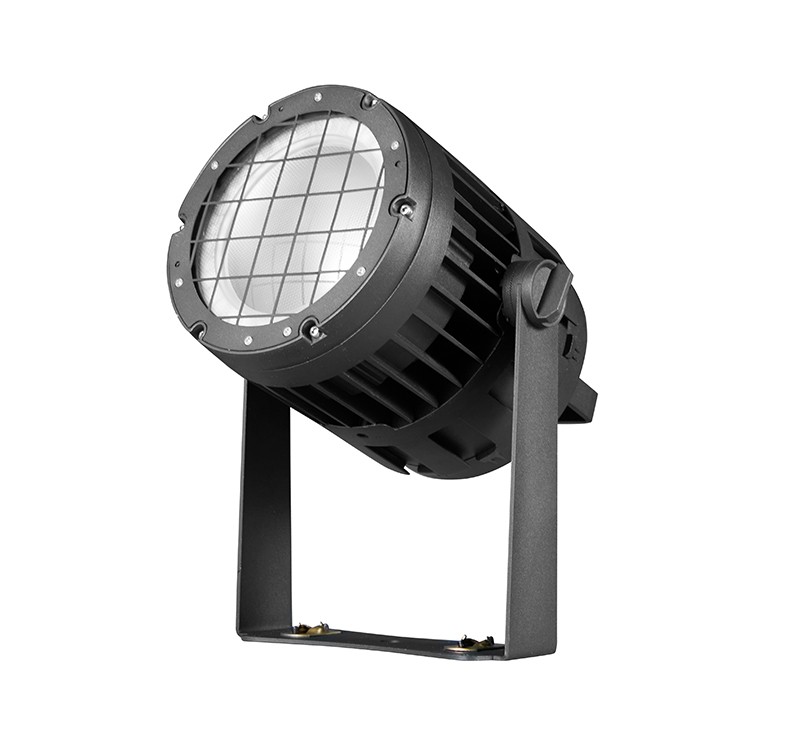

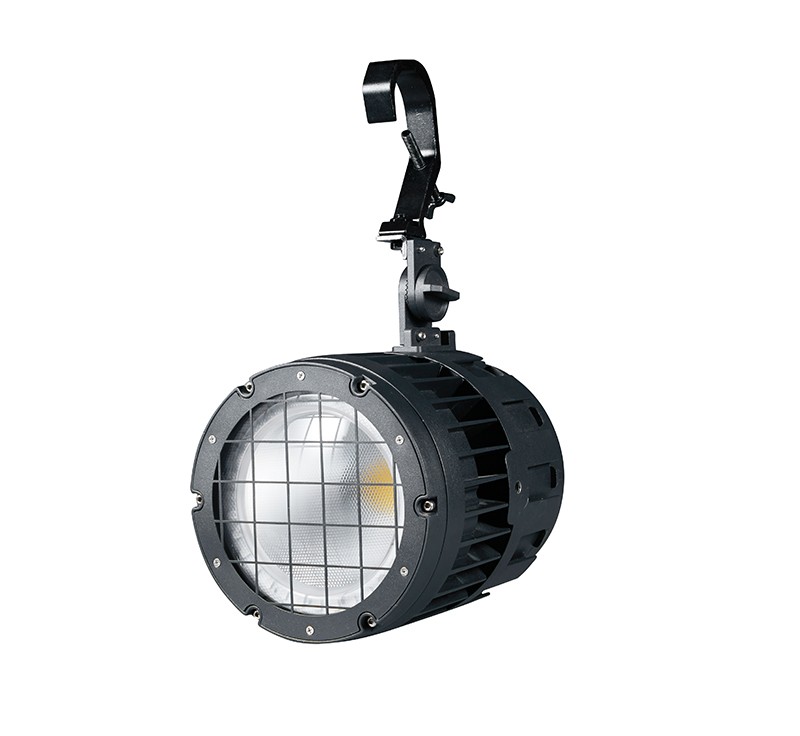

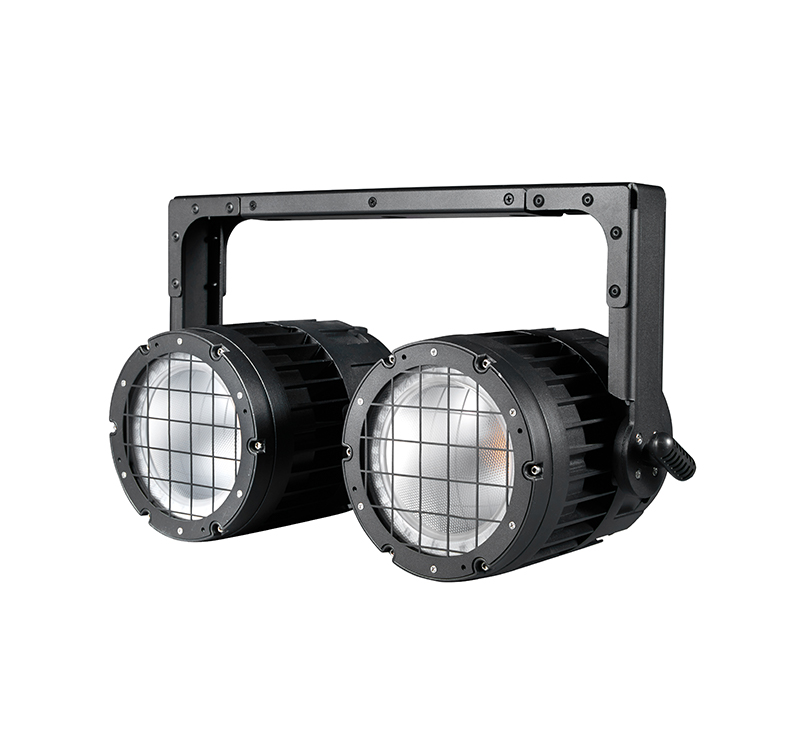

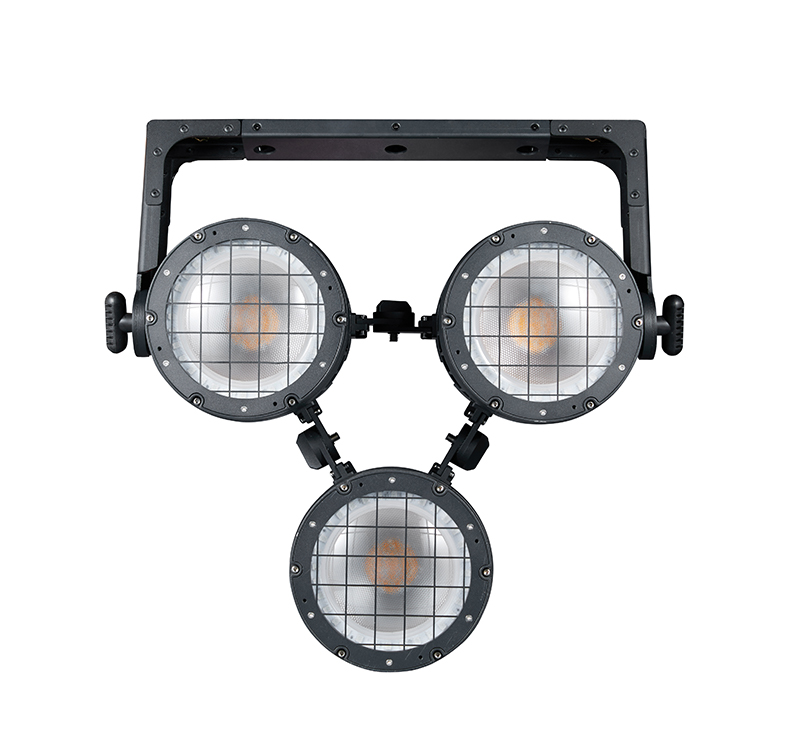

DMON PCF200 Outdoor 200W Waterproof Golden Eye Light
The Dmon PCF200 is an IP65-rated outdoor 200W golden eye light combining an amber COB main source with 32 RGB auxiliary LEDs. With selectable PWM frequencies and built-in strobe macros, the PCF200 delivers the signature warm amber beam effect popular in concert and festival lighting design, paired with a colored auxiliary ring for added visual depth.
- Amber COB main light — the signature warm-tone beam used in concert and festival

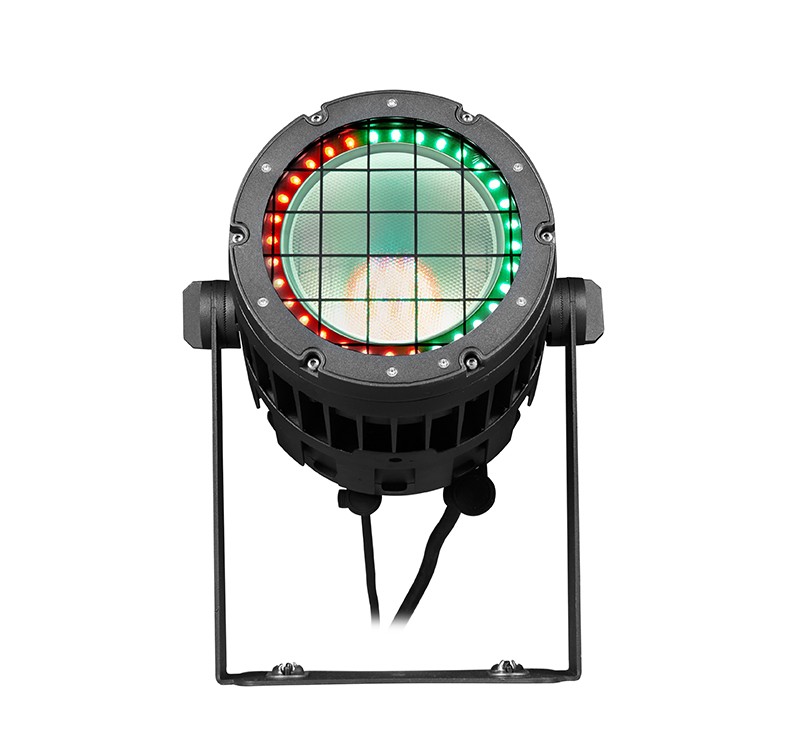

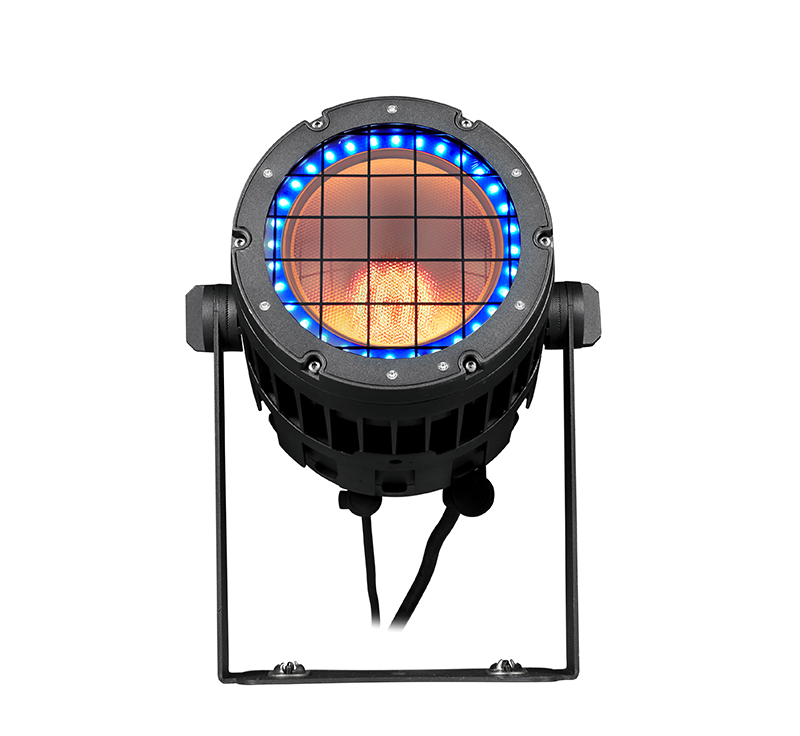

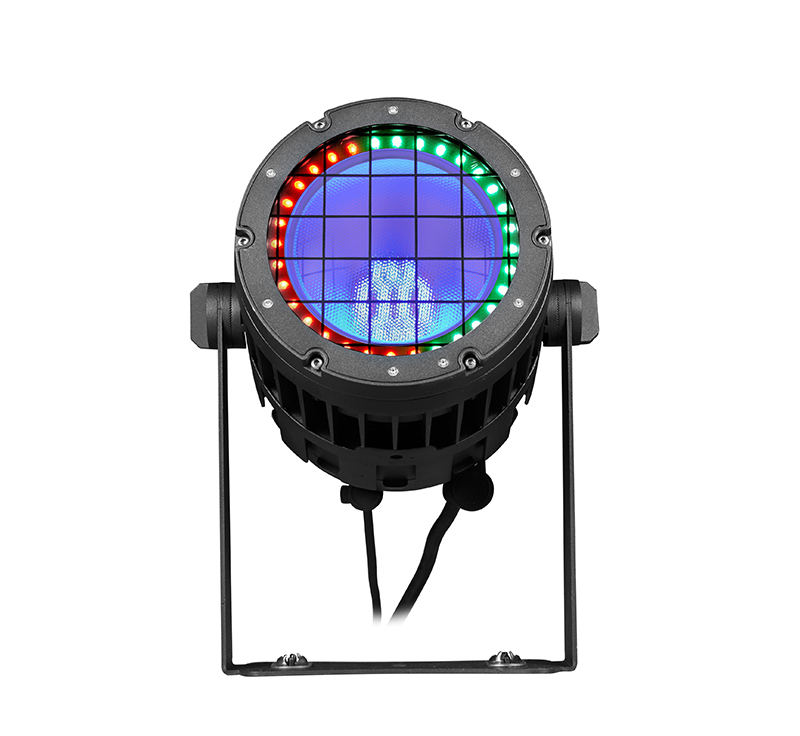

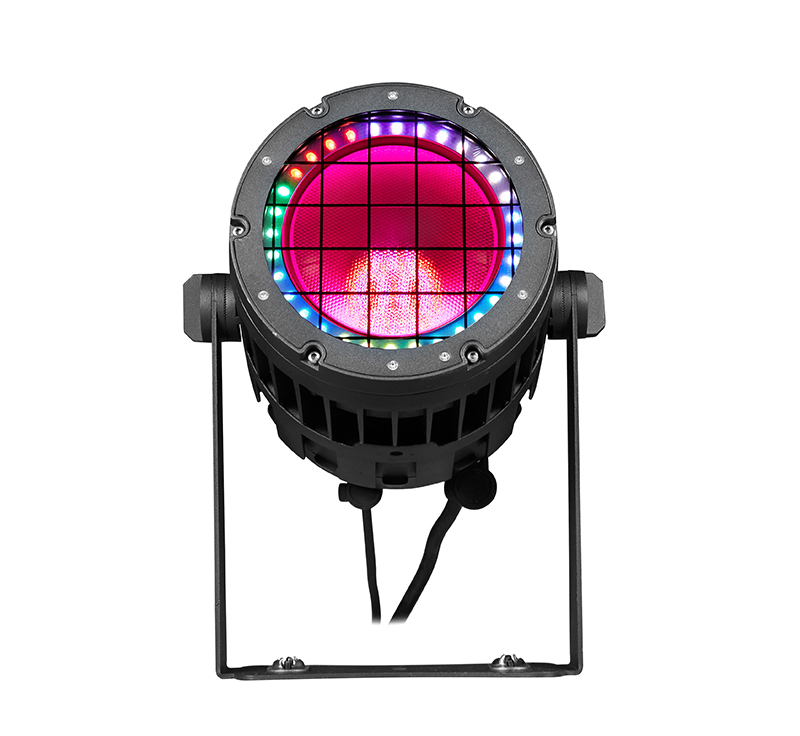

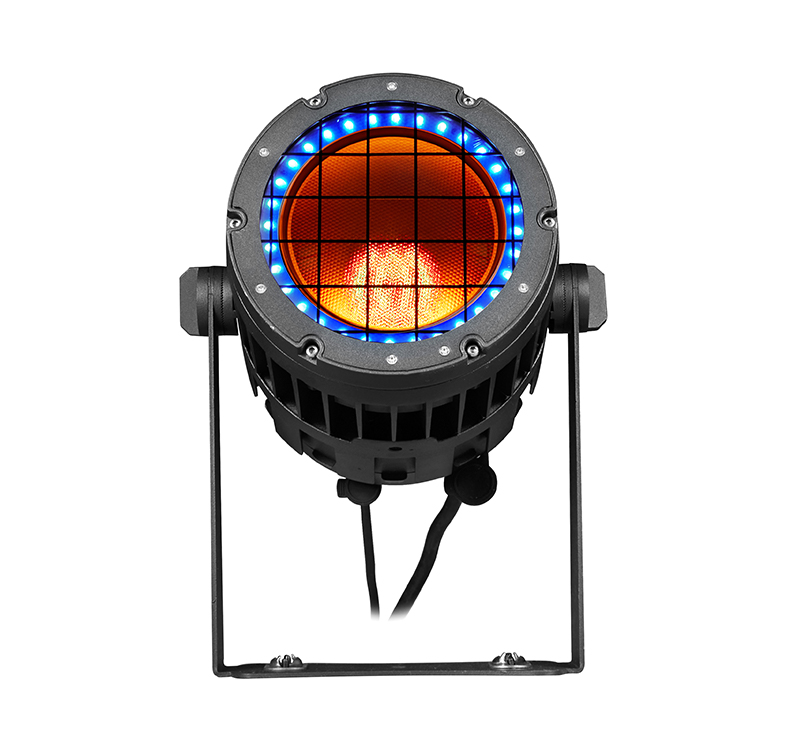

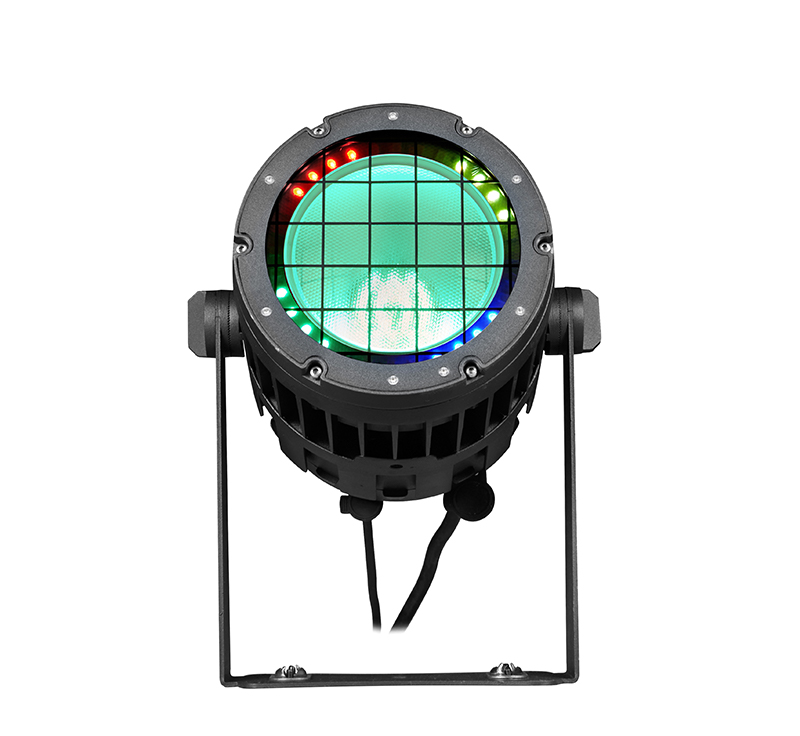

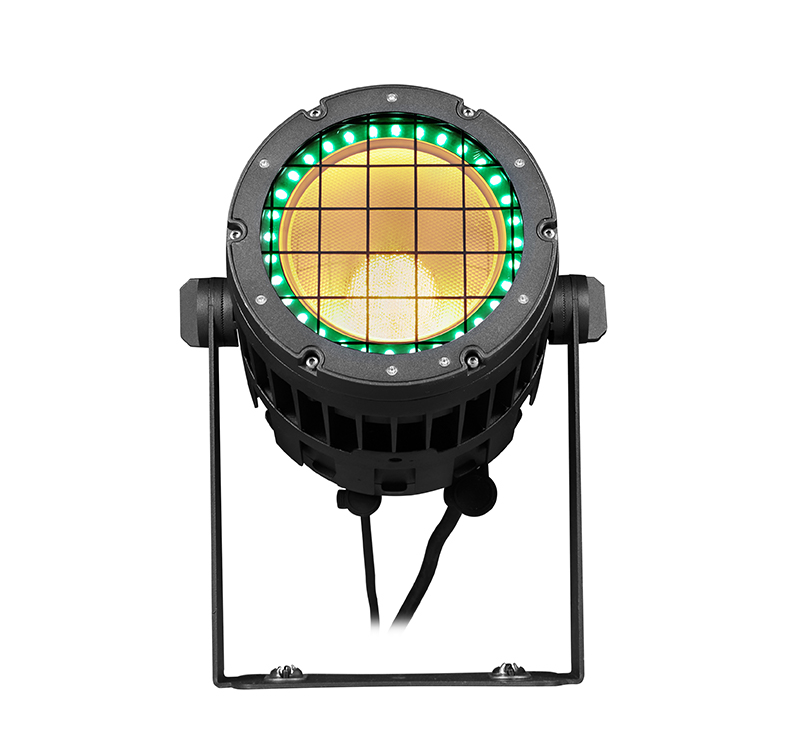

- 32-point RGB auxiliary ring — adds color accents around the main beam without a separate fixture
- Selectable PWM frequency (up to 25,000Hz) — flicker-free output for camera and broadcast use
- IP65 waterproof — reliable operation in outdoor concert and festival conditions
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Warm amber beam effects are usually achieved with gels on a standard fixture, losing intensity in the process. The PCF200's dedicated 200W amber COB delivers that signature warm tone at full output, without a color filter cutting into brightness.
Filming under LED fixtures can introduce visible flicker depending on the camera's frame rate. The PCF200 offers selectable PWM frequencies up to 25,000Hz, letting operators match the setting to camera requirements for flicker-free broadcast footage.

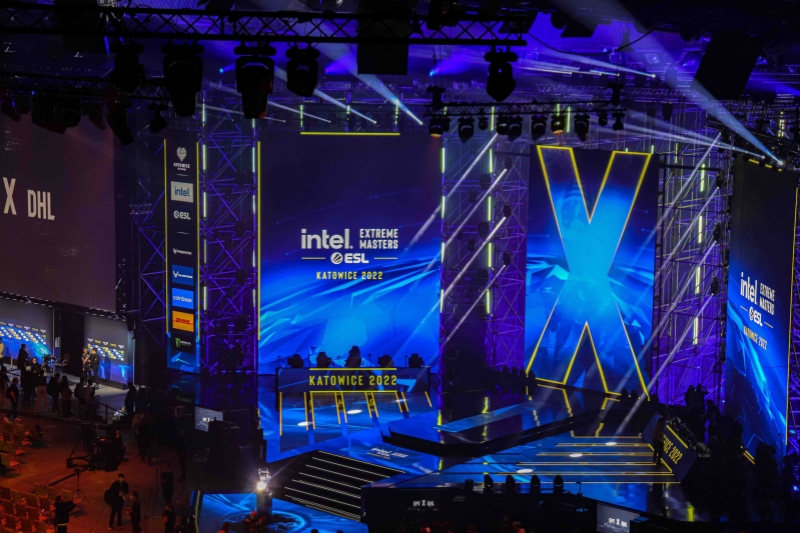

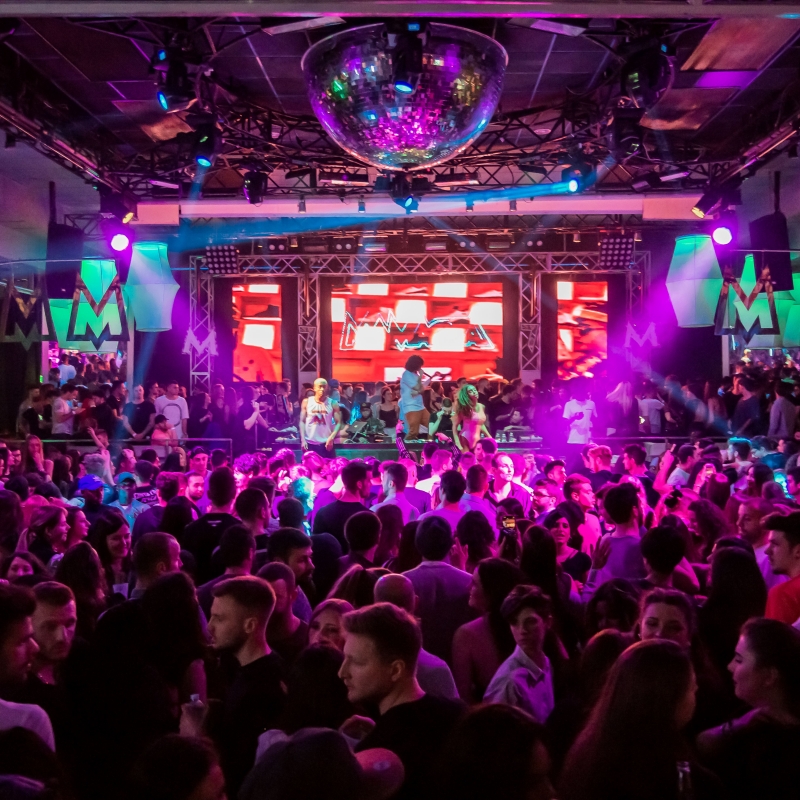

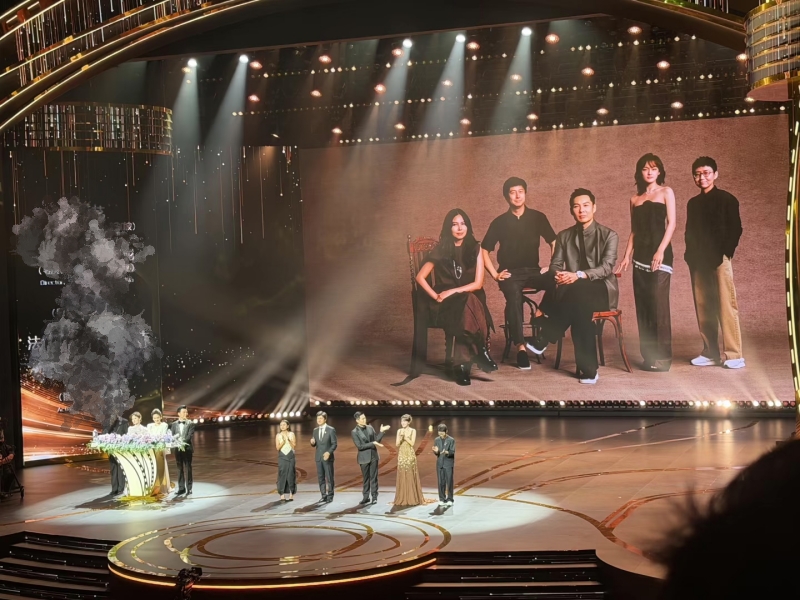

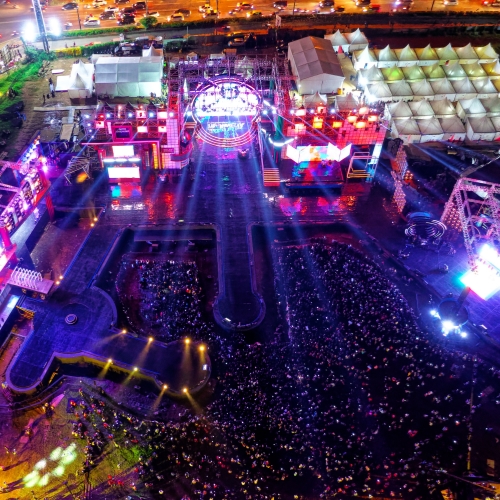

Application Scenarios
Specification
| Light Source | 200W Amber COB LED + 32 × 1W RGB auxiliary LEDs | LED Type | High-brightness imported LEDs |
| Input Voltage | AC 100–240V, 50/60Hz | Max Power Consumption | 300W |
| Drive Current | 2.5A | Beam Angle | 33° |
| Wash Angle | 57° | Brightness | 1000 lux @ 5m |
| Dimming Channels | 2 / 3 / 4 / 5 CH selectable | PWM Frequency | 600Hz / 1200Hz / 2000Hz / 4000Hz / 25,000Hz selectable |
| Strobe | Adjustable speed strobe with built-in strobe macros | Control Modes | DMX512, RDM remote control |
| Cooling System | High-efficiency intelligent cooling system | Protection | Automatic temperature adjustment and thermal protection |
| IP Rating | IP65 (indoor & outdoor use) |

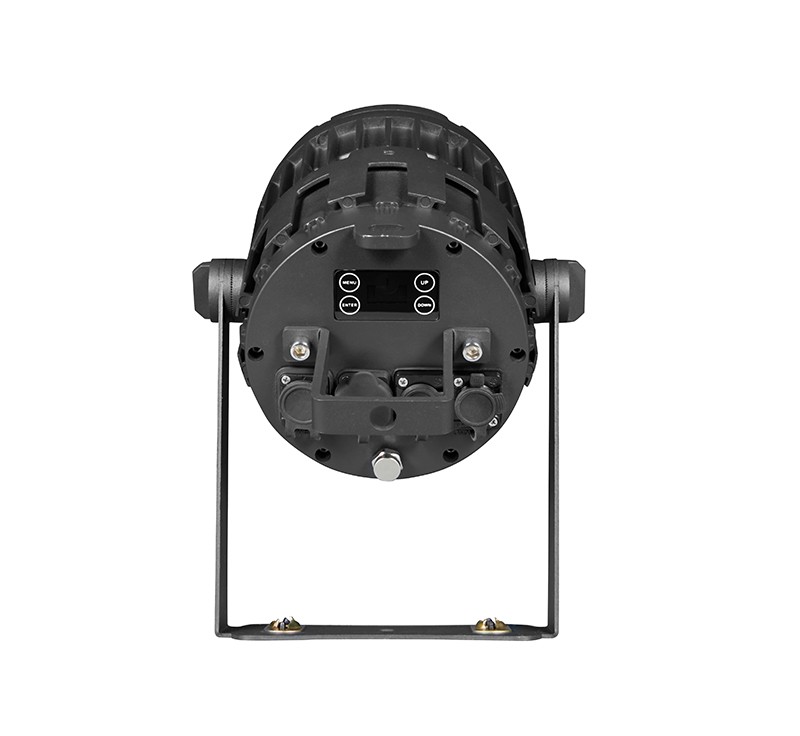

Details & Features
Frequently Asked Questions
Is the PCF200 truly rated for outdoor use?
Yes. The PCF200 is IP65-rated, suitable for both indoor and outdoor use without needing a rain cover.
Can the PCF200 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 2, 3, 4, or 5 channel modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the RGB auxiliary ring add to the fixture?
The 32-point RGB ring runs independently of the main amber COB, allowing colored accents around the beam without needing a separate fixture.
Which PWM frequency should I use for filming?
Higher frequencies (up to 25,000Hz) are generally best for camera work, as they reduce the chance of visible flicker across different frame rates. Lower frequencies are typically fine for live audience viewing.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
