DMON 550BSW CMY Beam Spot Wash Hybrid Moving Head Light
The Dmon 550BSW is a professional 3-in-1 hybrid moving head light combining Beam, Spot, and Wash modes in a single fixture, powered by the OSRAM SIRIUS HRI 482W. With CMY color mixing, dual gobo wheels, and dual prisms, the 550BSW covers the functional range of three separate fixture types — reducing the number of units a rig needs without cutting creative options.
- 3-in-1 Beam / Spot / Wash modes — one fixture replaces three separate fixture types
- OSRAM SIRIUS HRI 482W + CMY color mixing — continuous color control beyond fixed wheels
- Dual gobo wheels + dual prisms (8-facet + 4-facet) — extensive pattern and texture variation
- DMX512 / Master-Slave / Auto / RDM control modes — flexible integration for multi-fixture setups
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Running a beam, a spot, and a wash fixture on the same rig means three different units to transport, rig, and troubleshoot. The 550BSW folds all three into one fixture — switch between Beam, Spot, and Wash modes on the same unit, cutting down on the number of fixtures a show actually needs.
Setting up multiple fixtures to run in sync usually means programming each one individually. The 550BSW's Master-Slave control mode lets one fixture drive the others directly, simplifying setup for shows running several units side by side.

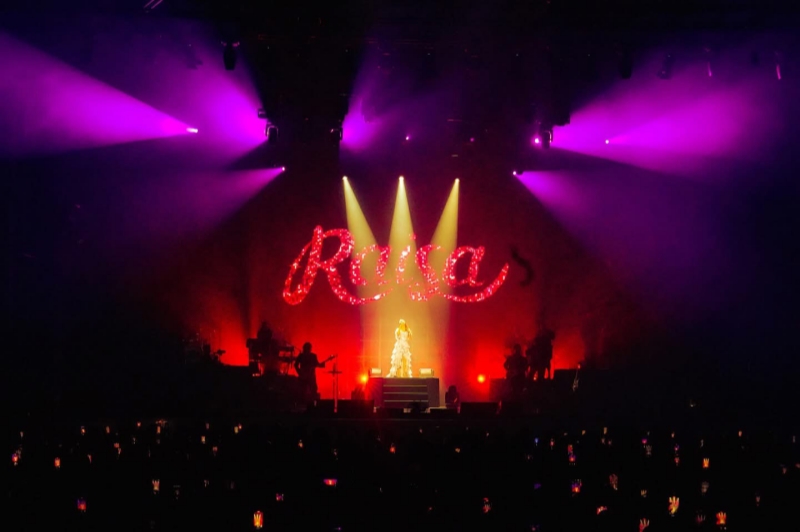

Application Scenarios
Specification
| Light Source | OSRAM SIRIUS HRI 482W | Lamp Lifetime | Average 1,500 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Total Power Consumption | 750W |
| Fuse | T10A / 250V | Ballast | 380V electronic ballast |
| Color Temperature | 6500K ±400K | Outlet Diameter | Φ150mm |
| Beam Angle | Beam mode: 2.1°–29° / Spot mode: 2.2°–41.5° / Wash mode: 2.5°–31.6° | Dimming | 0–100% linear dimming |
| Strobe | 0–12 Hz | Color System | CMY color mixing + 15-color wheel |
| Frost System | Independent 10° frost filter | Fixed Metal Gobo Wheel | Open + 18 gobos |
| Rotating Gobo Wheel | Open + 8 replaceable glass gobos | Dynamic Effect Gobo Wheel | 1 dynamic effect wheel |
| Prism System | 8-facet + 4-facet prism, bi-directional rotation | Pan / Tilt | 540° / 270° |
| Control Modes | DMX512 / Master-Slave / Auto / RDM | DMX Channels | 31 CH |
| Overheat Protection | Yes | Housing Color | Black |
| IP Rating | IP20 | Dimensions | 395 × 293 × 800 mm (L×W×H) |
Details & Features
What's in the Box
- • DMON 550BSW Moving Head (OSRAM SIRIUS HRI 482W)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
How do I switch between Beam, Spot, and Wash modes?
Mode switching is controlled via DMX channel, allowing operators to change between Beam, Spot, and Wash output directly from the console without physical adjustments to the fixture.
What does Master-Slave control mode do?
Master-Slave mode lets one fixture control others directly without a separate DMX console, simplifying setup for shows running multiple 550BSW units together.
Can the 550BSW be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 31 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Is the lamp field-replaceable?
Yes. The OSRAM SIRIUS HRI 482W lamp can be replaced on-site without returning the fixture. Replacement lamps are available from DMON at cost price under our after-sales policy.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
