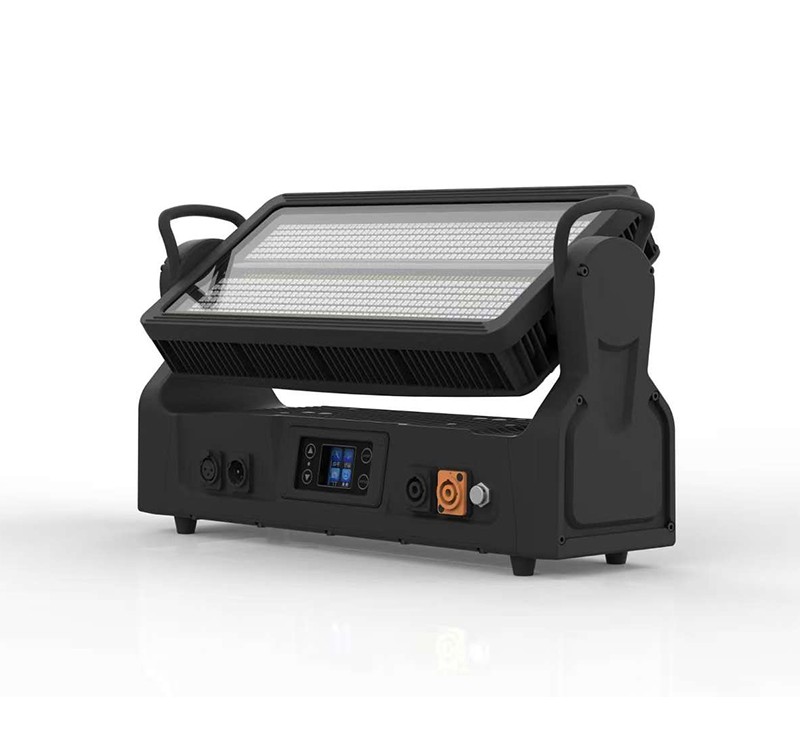

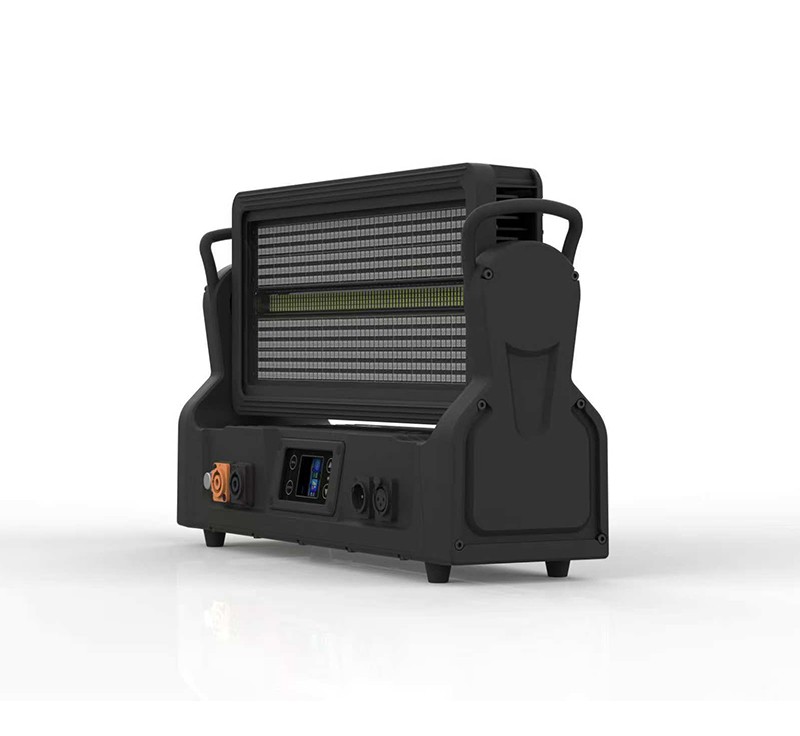

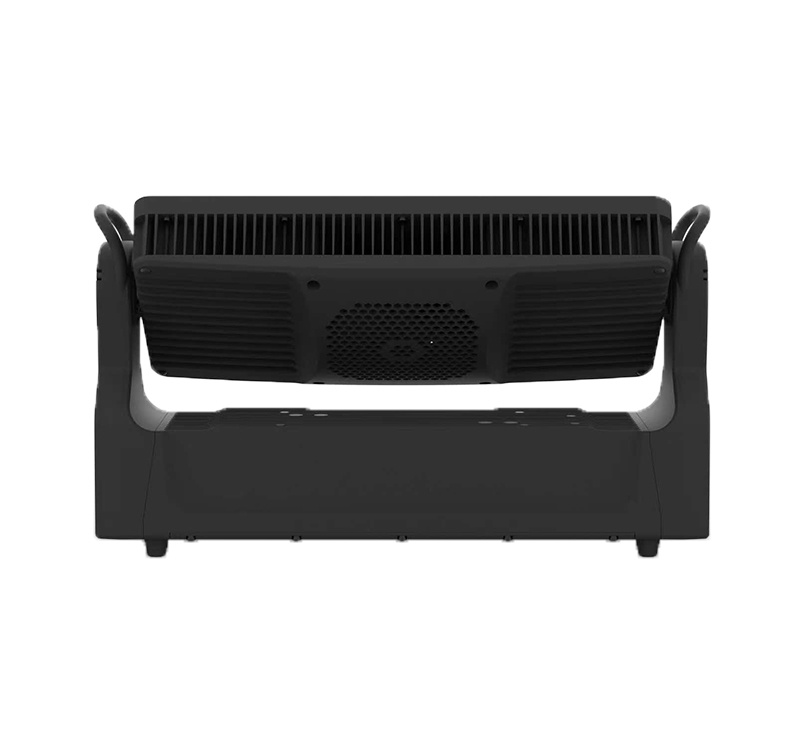

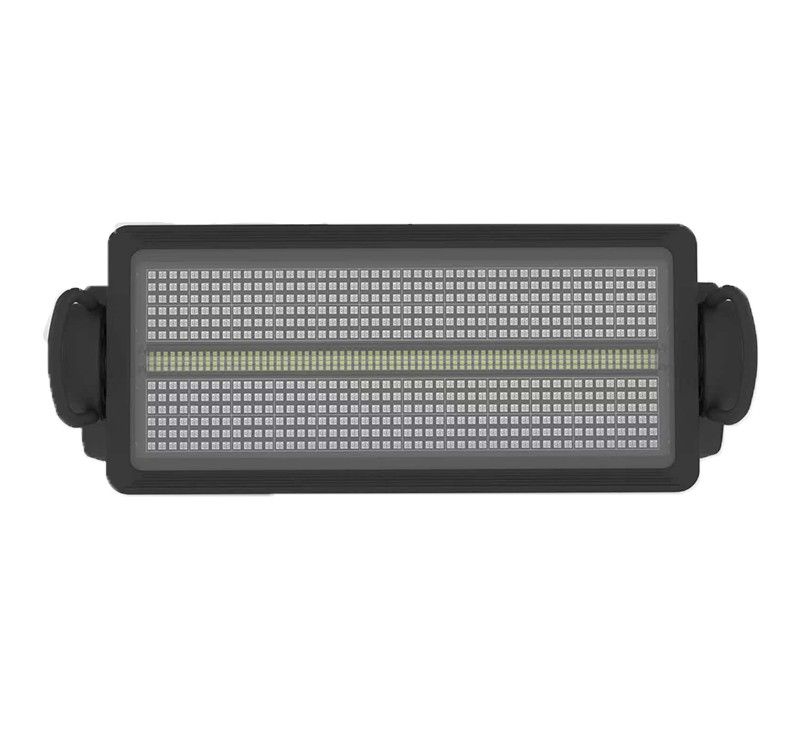

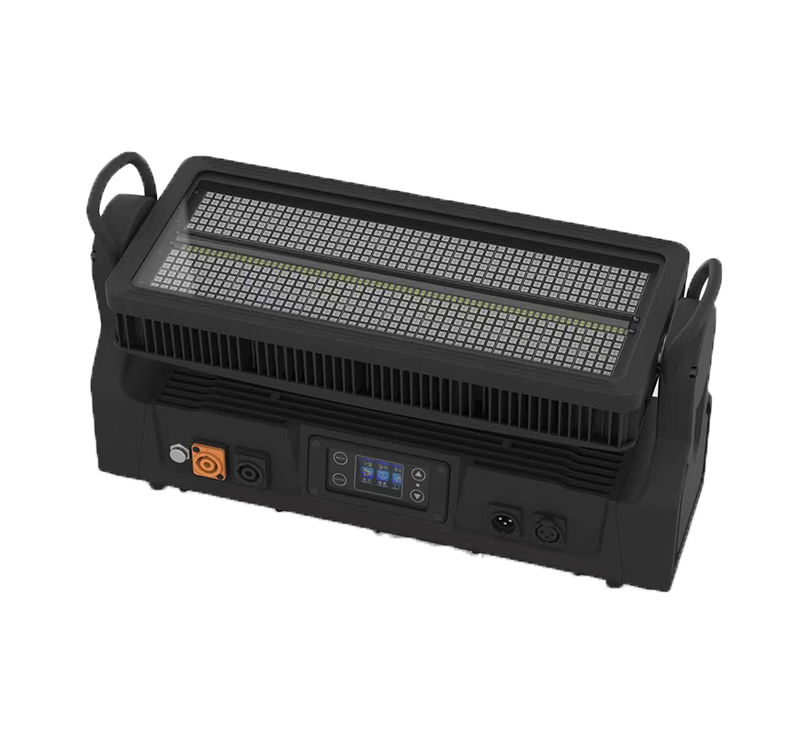

DMON YPF1000 IP67 Moving Head LED Strobe Light (48+12 Segments)
The Dmon YPF1000 is an IP67-rated moving head LED strobe light combining moving head, wash, and strobe functions in one fixture, with 48+12 independently controllable segments across 240 white and 768 RGB LEDs. With DMX512/RDM control and 32-bit ultra-smooth dimming, the YPF1000 delivers precise segment-level effects built for demanding outdoor conditions.
- Three functions in one fixture — moving head, wash, and strobe without switching between separate units
- 48+12 independently controllable segments — precise chase and pattern effects across the matrix
- IP67 waterproof — the highest level of water and dust protection for sustained outdoor exposure
- 32-bit ultra-smooth dimming — precise, flicker-free brightness control
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Running separate moving head, wash, and strobe fixtures means rigging, powering, and programming three different unit types. The YPF1000 combines all three functions in one fixture, cutting down on the number of fixture types a rig needs.
A single-block strobe effect looks flat compared to segmented chase patterns. The YPF1000's 48+12 independently controllable segments let designers run detailed chase and pattern effects across the matrix, not just simple on/off flashes.
Application Scenarios
Specification
| LED Configuration | 240 × 2W White LEDs (SMD 3030); 768 × 0.5W RGB LEDs (SMD 5050) | Functions | Moving head + Wash + Strobe |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 1000W |
| Control Modes | DMX512, Auto, Master-Slave, Sound Active, RDM | DMX Channels | CH08 / CH12 / CH17 / CH19 / CH162 / CH170 |
| Dimming | 32-bit ultra-smooth linear dimming 0–100% | Strobe Frequency | 1–30 Hz |
| Operating Temperature | -30°C to +60°C | Housing | Metal housing, black finish |
| Connection | DMX512 input/output, Power input/output | IP Rating | IP67 waterproof |
Details & Features
Frequently Asked Questions
Is the YPF1000 truly rated for outdoor use?
Yes. The YPF1000 is IP67-rated, offering the highest level of protection against dust and prolonged submersion, suited for demanding outdoor conditions.
Can the YPF1000 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (8 CH up to 170 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the segmented control let me do?
Each of the 48+12 segments can be controlled independently, allowing detailed chase and pattern effects across the fixture rather than a single uniform strobe flash.
Can this fixture run without a DMX console?
Yes. Sound-active mode reacts to music input, useful for setups without a dedicated lighting operator.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
