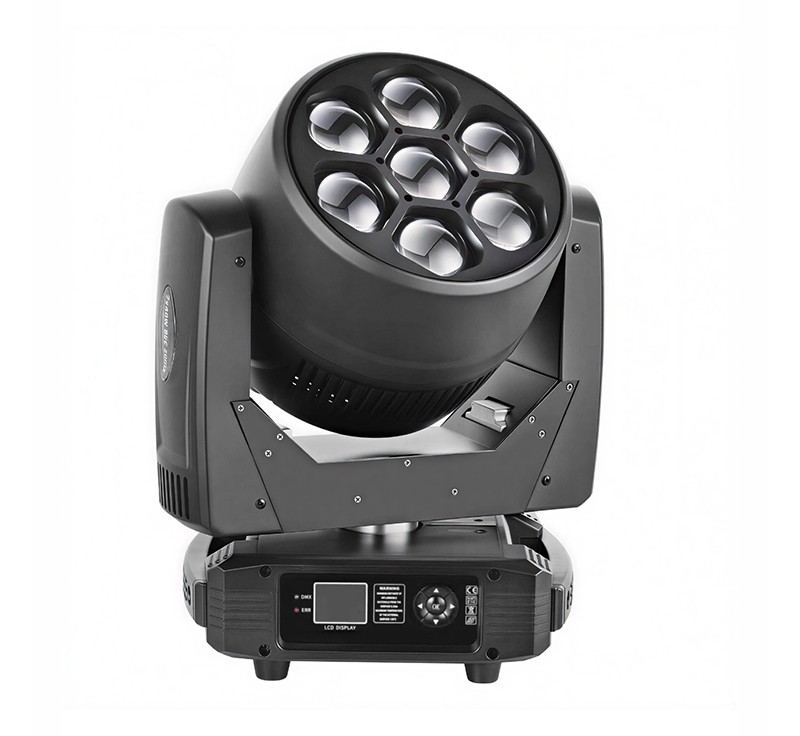

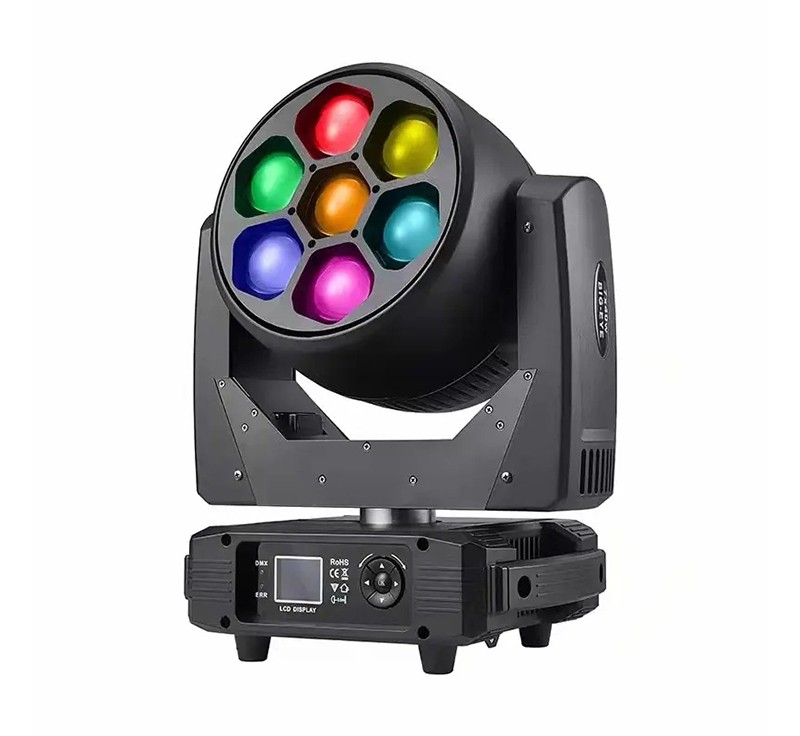

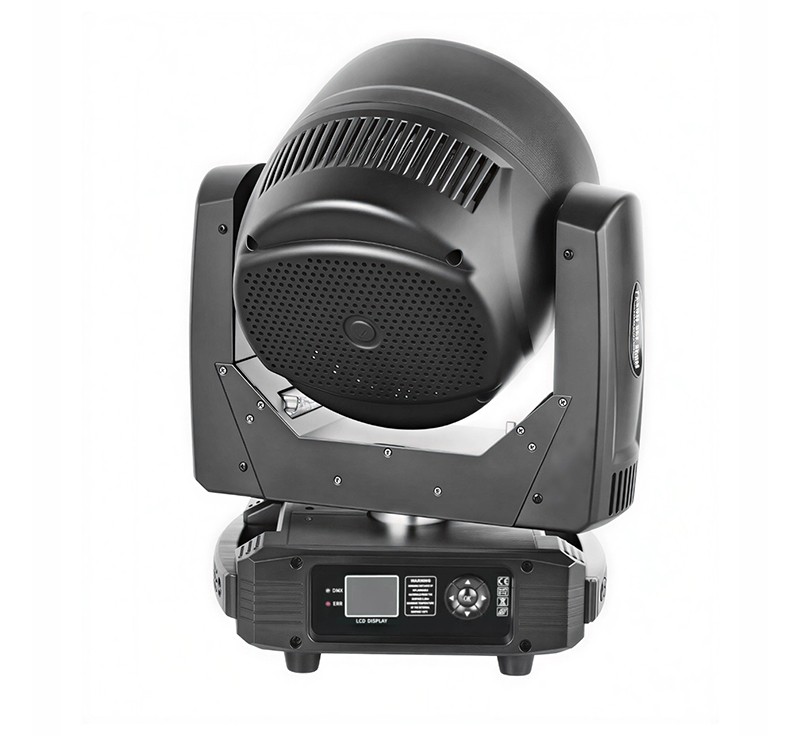

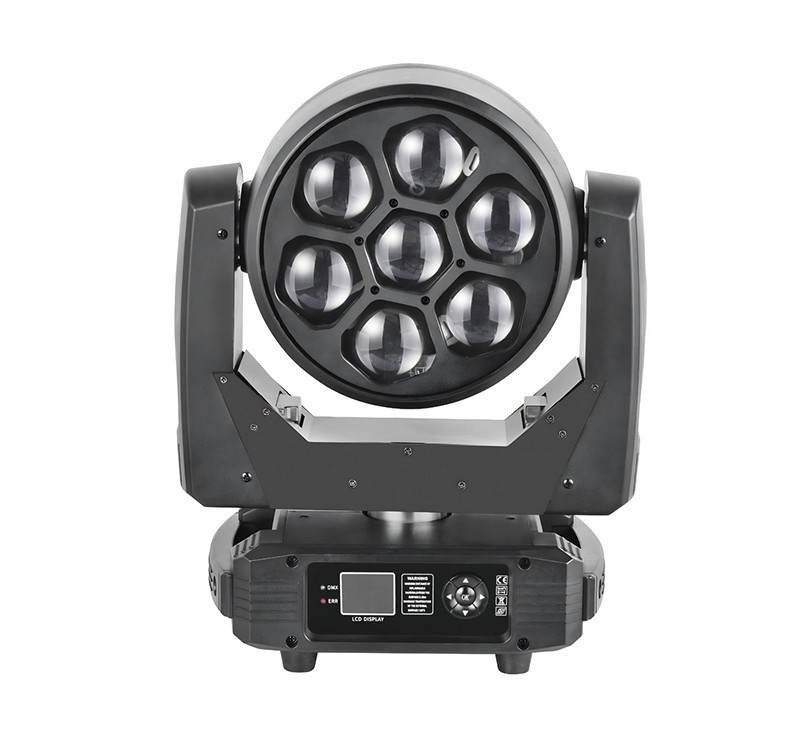

DMON LM740P 7×40W RGBW Rotating Big-Eye Beam & Wash Moving Head
The Dmon LM740P is a compact 7×40W RGBW rotating big-eye beam & wash moving head light with individual pixel control, a seamless rotating front lens array, and built-in effects including vortex, kaleidoscope, beam, and wash modes. At just 10 kg with flicker-free dimming and DMX512/RDM control, the LM740P delivers pixel-mapped visual effects with the added texture of a rotating lens front.
- Rotating front lens array — adds a spinning "big-eye" visual layer beyond standard pixel effects
- Individual RGBW pixel control — built-in vortex, kaleidoscope, and chase effects without external programming
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
- Lightweight at 10 kg — easy to rig and transport compared to full-size beam/wash fixtures
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Standard pixel fixtures show effects through a static front lens. The LM740P adds a rotating front lens array on top of its 7 individually controlled RGBW pixels, giving vortex and kaleidoscope effects an extra spinning layer that a fixed-lens fixture can't produce.
Filming under LED fixtures often means dealing with visible flicker on camera. The LM740P's dimming runs at 1.2–25 kHz, keeping output flicker-free across a wide dimming range — so the fixture stays camera-ready without needing to match frame rates manually.
Application Scenarios
Specification
| Light Source | 7 × 40W RGBW LED (5060 package) | LED Lifetime | Approx. 30,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 350W |
| Color System | RGBW color mixing with linear CTO control | Zoom / Focus | 4.5°–45° DMX linear zoom |
| Dimming | 0–100% electronic dimming, gamma adjustable (1.2kHz–25kHz), flicker-free | Strobe | 0.3–25 Hz, sync / async / random |
| Pan / Tilt | 540° / 270° (16-bit resolution) | Motor System | Silent three-phase motors with Hall sensor positioning and auto-reset |
| DMX Channel Modes | 23 CH (Basic) / 35 CH / 51 CH (Standard) | Control Protocol | DMX512, RDM |

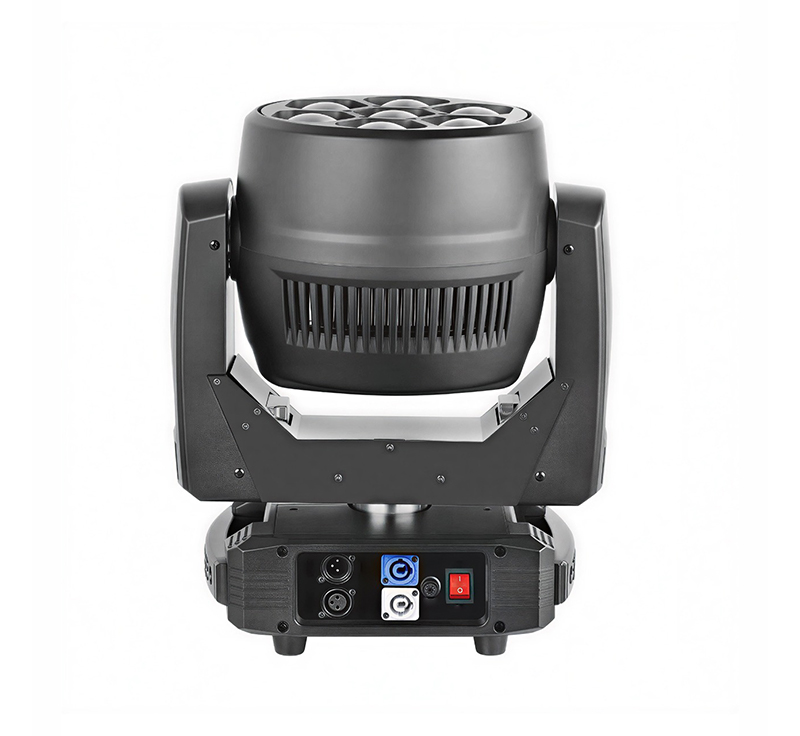

| Control Interfaces | 3-pin DMX (optional 5-pin), power in/out | Display | 1.77-inch LCD display, bilingual menu, auto-rotate |
| Sleep Mode | Auto standby when DMX signal is lost | Cooling System | Lightweight aluminum heatsink with intelligent fan control |
| Protection | Overheat protection and smart noise-temperature balance | IP Rating | IP20 (optional rain cover up to IP44) |
| Fixture Dimensions | 340 × 230 × 410 mm | Net Weight | 10.0 kg |
| Gross Weight | 12.0 kg | Packing Size | 500 × 410 × 305 mm (1 pc) |
| Effects | Vortex, kaleidoscope, beam, wash | Front Optics | Seamless rotating front lens array, aspherical lens design |
| Pixel Control | Individual LED pixel control with built-in chase and strobe programs | Special Features | Auto screen rotation, integrated mainboard, RDM remote addressing & firmware upgrade |
Details & Features
What's in the Box
- • DMON LM740P Moving Head (7 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM740P be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 23 CH, 35 CH, or 51 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the rotating front lens do?
The seamless front lens array physically rotates, adding a spinning visual layer to the fixture's pixel effects — giving vortex and kaleidoscope patterns extra texture beyond what a static-lens fixture can produce.
Does the LED source need to be replaced like a traditional lamp?
No. The LM740P uses 7×40W RGBW LEDs rated for approximately 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
