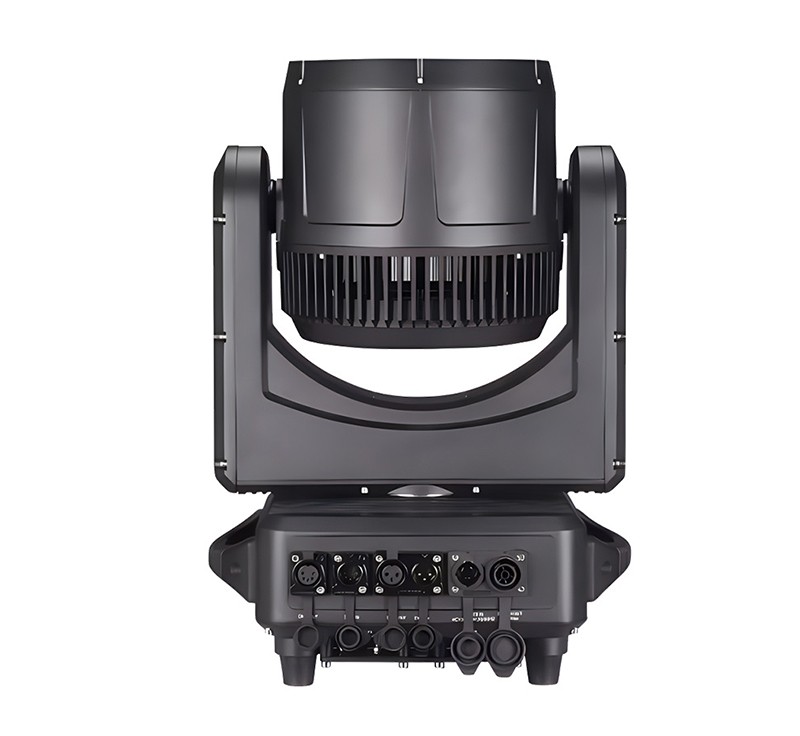

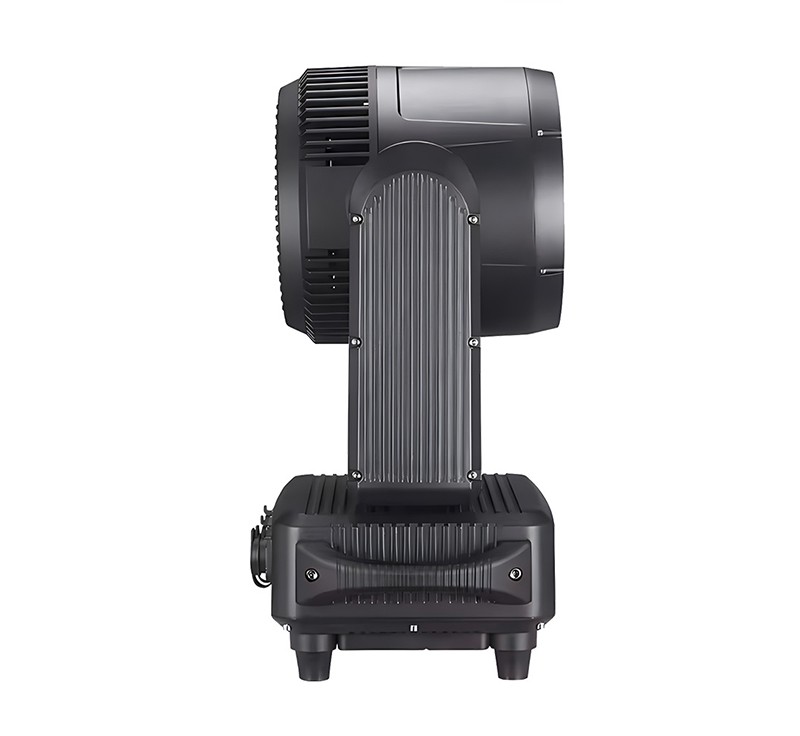

DMON LM760PF Outdoor 7×60W RGBW Waterproof Bee-Eye Moving Head
The Dmon LM760PF is an IP65-rated outdoor waterproof bee-eye moving head light powered by original OSRAM 7×60W RGBW 4-in-1 LEDs. With a rotating bee-eye lens array and built-in vortex, kaleidoscope, beam, and wash effects, the LM760PF brings pixel-mapped visual effects to outdoor rigs without needing a rain cover.
- IP65 rated — true outdoor waterproof protection, no rain cover required
- Original OSRAM RGBW LEDs — consistent color output from a recognized LED brand
- Rotating bee-eye lens array — spinning visual texture for vortex and kaleidoscope effects
- Magnetic encoder positioning — accurate, repeatable movement outdoors
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most pixel and bee-eye fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The LM760PF is IP65 from the factory, built to sit in an exposed outdoor rig through wind and rain without extra weatherproofing or downtime.
Standard positioning motors can drift after repeated outdoor use, especially with temperature swings. The LM760PF uses magnetic encoder positioning with reinforced silent motors, keeping pan/tilt movement accurate even after long-term exposure to the elements.
Application Scenarios
Specification
| Light Source | Original OSRAM 7 × 60W RGBW 4-in-1 LED | LED Lifetime | Approx. 30,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 500W |
| Color System | RGBW color mixing | Zoom | 6°–40° DMX linear zoom |
| Dimming | 0–100% electronic dimming, gamma adjustable (1.2kHz–25kHz), flicker-free | Strobe | 0.3–25 Hz, sync / async / random |
| Pan / Tilt | 540° / 270° (16-bit resolution) | Motor System | Reinforced silent three-phase motors with magnetic encoder positioning |
| DMX Channel Mode | 17 CH | Control Modes | DMX512, RDM, sound, master/slave, auto |
| Control Interfaces | 3-pin DMX (optional 5-pin), power in/out | Display | 1.77-inch LCD display, bilingual menu, auto-rotate |
| Sleep Mode | Auto standby when DMX signal is lost | Cooling System | Lightweight aluminum heatsink with intelligent fan control |
| Protection | Overheat protection and smart noise-temperature balance | IP Rating | IP65 (true outdoor waterproof) |
| Fixture Dimensions | 375 × 319 × 496 mm | Net Weight | 17.0 kg |
| Gross Weight | 20.0 kg | Carton Size | 400 × 350 × 530 mm |
| Effects | Vortex, kaleidoscope, beam, wash | Front Optics | Seamless rotating bee-eye lens array, aspherical lens design |
| Pixel Control | Individual LED pixel control with chase and strobe programs | Special Features | Auto screen rotation, RDM remote addressing & firmware upgrade |
Details & Features
What's in the Box
- • DMON LM760PF Moving Head (7 × 60W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Is the LM760PF truly rated for outdoor use?
Yes. The LM760PF is IP65-rated from the factory, built for direct exposure to rain and outdoor conditions without an additional rain cover.
Can the LM760PF be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 17 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM760PF uses original OSRAM 7×60W RGBW LEDs rated for approximately 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can this fixture run without a DMX console?
Yes. Sound-active mode reacts to music input, and Auto mode cycles through preset looks on its own — useful for setups without a dedicated lighting operator.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
