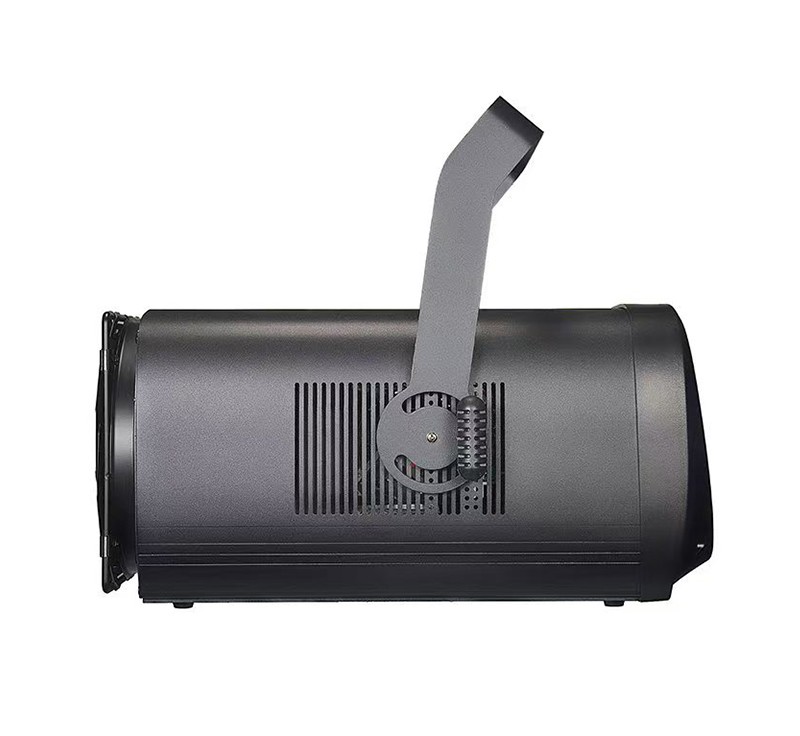

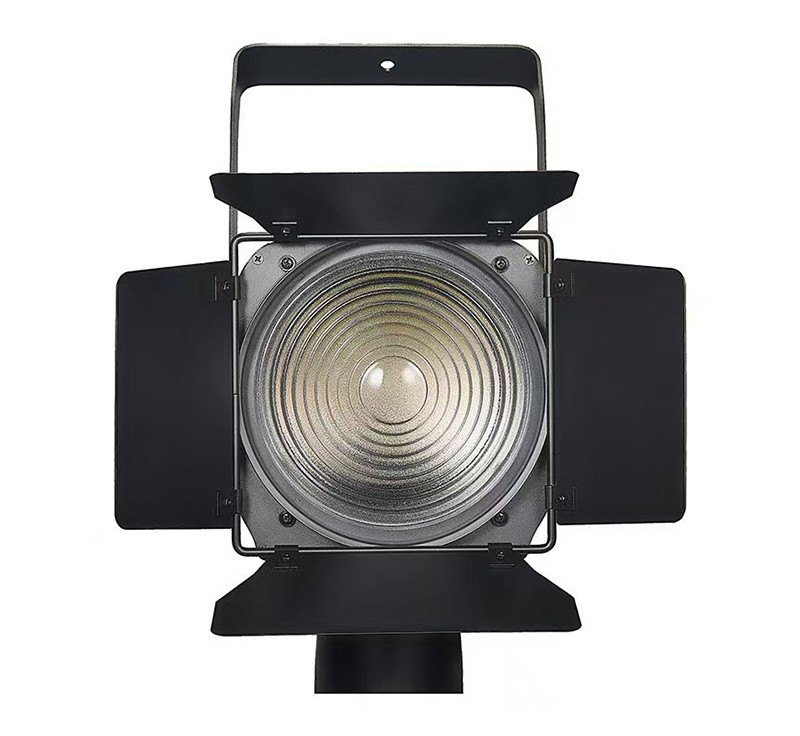

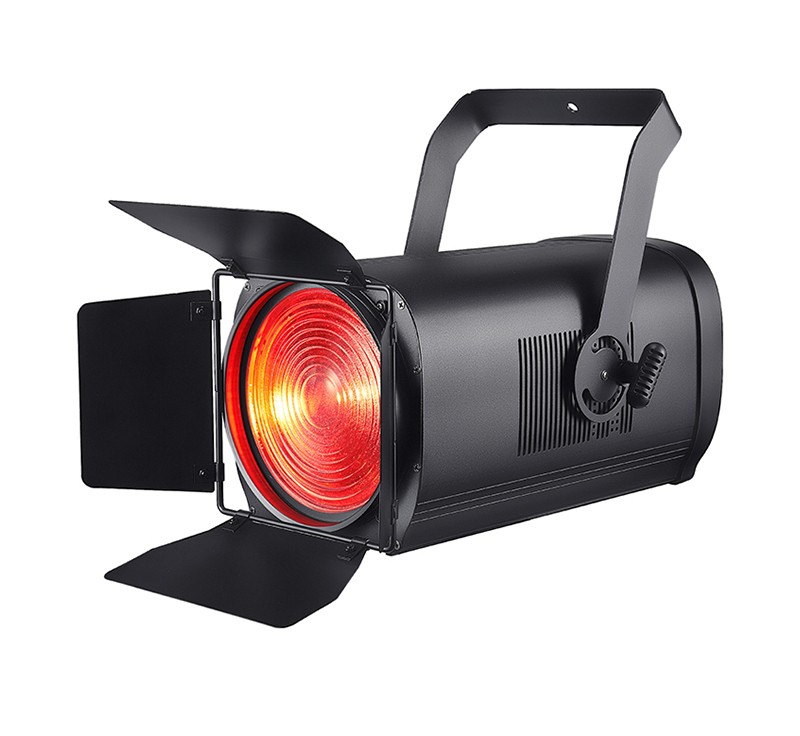

DMON JDT200 LED Motorized Zoom Spotlight
The Dmon JDT200 is a motorized zoom LED spotlight available in 220W and 350W power options, delivering CRI≥95 color accuracy (up to Ra 98 on custom order). With a 15°–55° motorized zoom range and multiple color temperature configurations, the JDT200 offers precise, remotely adjustable illumination for theatrical and studio applications.
- Motorized zoom (15°–55°) — remote beam adjustment from the console without manual fixture access
- CRI≥95, up to Ra 98 on custom order — exceptional color accuracy for the most demanding productions
- Multiple color temperature options (3200K/5600K/Bi-color/Full color) — choose the configuration that matches your project
- Two power options (220W/350W) — select the output level that fits your venue size
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Manually adjusting beam angle means physically accessing each fixture, which isn't always practical for rigged or truss-mounted units. The JDT200's motorized zoom lets operators adjust the beam remotely from the console, covering the full 15°–55° range without needing to reach the fixture.
Different projects call for different color needs — some just need clean white light, others need full color mixing. The JDT200 is available in 3200K, 5600K, bi-color, and full color configurations, letting buyers choose the light source that matches their specific project.
Application Scenarios
Specification
| Light Source | 200W / 300W COB LED | Rated Power | 220W / 350W |
| Input Voltage | AC 100–240V, 50/60Hz | Luminous Flux | 7000–8000 lm |
| LED Lifetime | ≥50,000 hours | Color Temperature | 3200K / 5600K / Bi-color / Full color |
| CRI | Ra ≥95 (custom up to Ra 98) | Beam Angle | 15°–55° motorized zoom |
| Dimming | 0–100% linear dimming | Strobe | 1–20 Hz |
| Display | Digital display | Control Mode | DMX512 / Manual |
| DMX Channels | 8CH | IP Rating | IP20 |
| Working Temperature | -20°C to +45°C | Net Weight | 7.9 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Can the JDT200 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 8 channels, compatible with any DMX-compliant console on the market.
Which power and color temperature option should I choose?
The 220W version pairs with a 200W COB LED and the 350W version with a 300W COB LED. Color options range from fixed 3200K/5600K to bi-color and full color — confirm your preferred configuration at the time of order.
Is the zoom motorized or manual?
The JDT200 uses motorized zoom, allowing operators to adjust the beam angle remotely via DMX rather than at the fixture.
Does the LED source need to be replaced like a traditional lamp?
No. The JDT200 uses a COB LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
