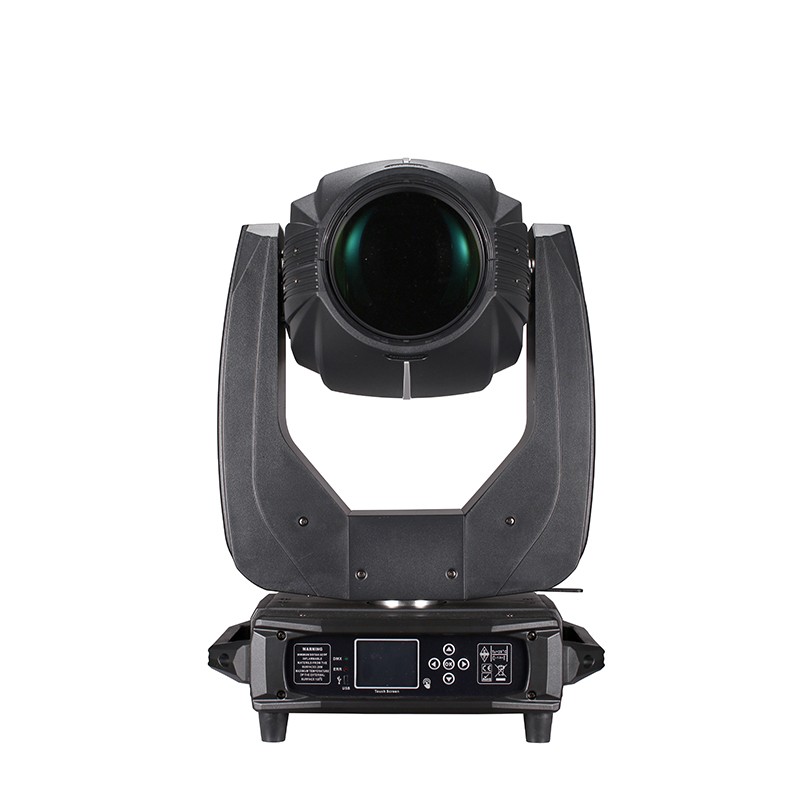

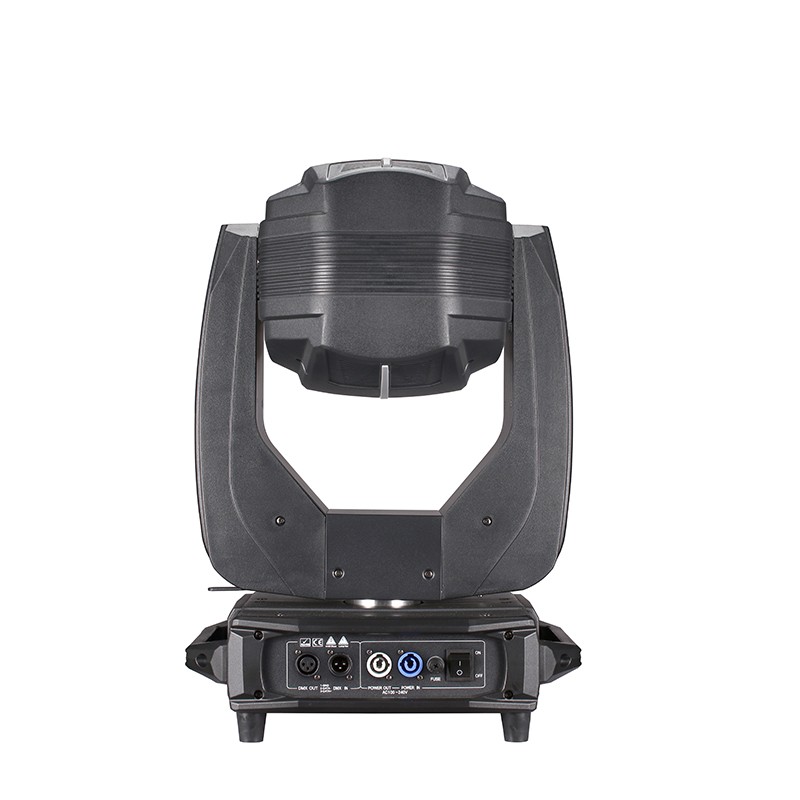

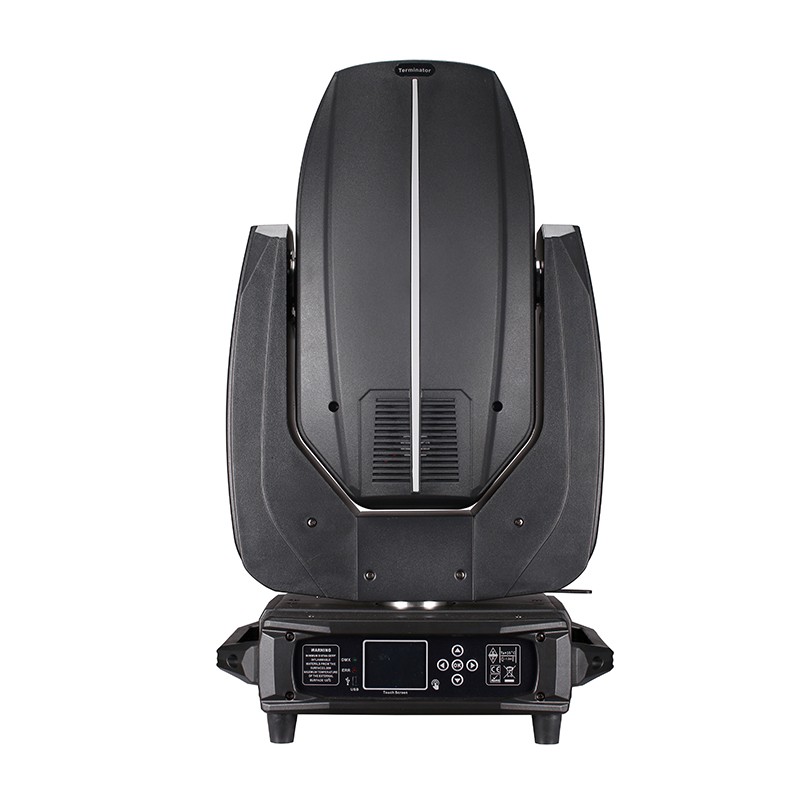

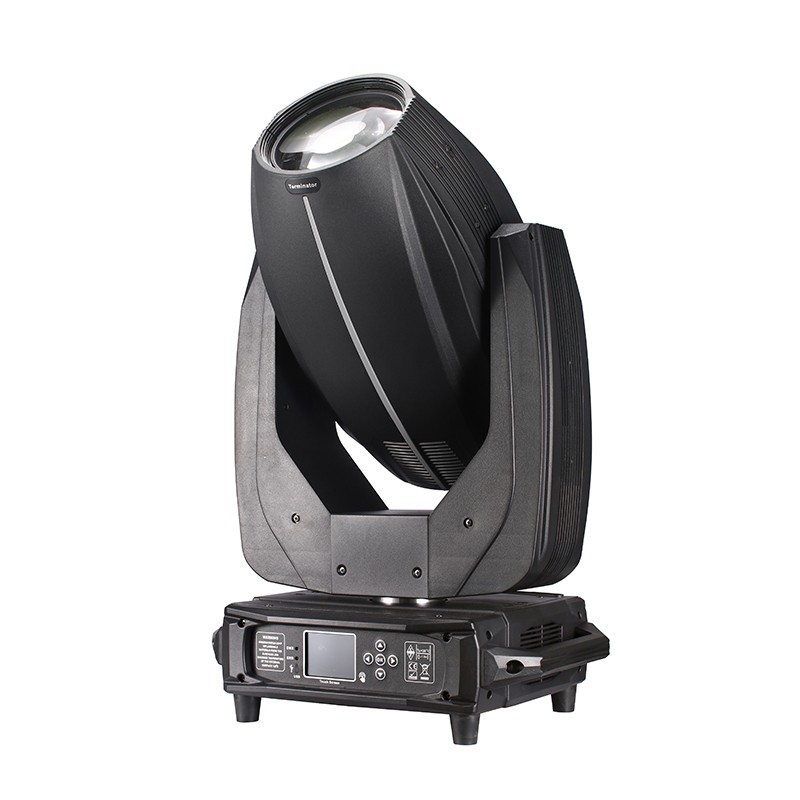

DMON 420BSW 420W CMY+CTO Beam Spot Wash Hybrid Moving Head Light
The Dmon 420BSW is a professional 3-in-1 hybrid moving head light combining Beam, Spot, and Wash modes in a single fixture. With linear CMY+CTO color mixing, dual gobo wheels, and stackable prisms up to 24 facets, the 420BSW covers the functional range of three separate fixture types — reducing the number of units a rig needs without cutting creative options.
- 3-in-1 Beam / Spot / Wash modes — one fixture replaces three separate fixture types
- Linear CMY + CTO color mixing (2700K–7800K) — continuous color and temperature control beyond fixed wheels
- Dual gobo wheels + stackable prisms (up to 24 facets) — extensive pattern and texture variation
- DMX512 + RDM bi-directional control — remote monitoring and status checks
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Running a beam, a spot, and a wash fixture on the same rig means three different units to transport, rig, and troubleshoot. The 420BSW folds all three into one fixture — switch between Beam, Spot, and Wash modes on the same unit, cutting down on the number of fixtures a show actually needs.
A fixed color wheel forces hard jumps between preset colors, and swapping color temperature usually means adding a separate CTO filter. The 420BSW's linear CMY+CTO system handles both in one pass — continuous color mixing plus adjustable color temperature from 2700K to 7800K, without extra accessories.
Application Scenarios
Specification
| Light Source | Philips MSD Silver 420W / 2 LL | Lamp Lifetime | Average 2,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Total Power Consumption | 650W |
| Fuse | 10A | Ballast | 380V electronic ballast |
| Color Temperature | 6800K | Outlet Diameter | Φ144mm |
| Beam Angle | Beam mode: 2°–29° / Spot mode: 2°–49° / Wash mode: 2.5°–50° | Dimming | 0–100% linear dimming |
| CTO | Linear CTO adjustment 2700K–7800K | Color Mixing System | Linear CMY mixing |
| Fixed Color Wheel 1 | Open + 5 colors | Fixed Color Wheel 2 | Open + 5 colors |
| Static Gobo Wheel | 4 open + 8 gobos | Dynamic Effect Wheel | Open + aperture + 3 gobos + 3 arc motion effects |
| Rotating Glass Gobo Wheel | Open + 6 glass gobos | Prism | 8-facet + 16-facet prism, stackable up to 24 facets, bi-directional rotation |
| Frost System | Independent frost filter | Motors | 18 silent motors, three-phase pan/tilt motors |
| Pan / Tilt | 540° / 270° with auto reposition | Control Protocol | DMX512, RDM |
| DMX Channels | 29 CH | Housing | High-temperature resistant nylon plastic, black |
| Protection | Overheat protection | IP Rating | IP20 |
| Dimensions | 395 × 293 × 700 mm (L×W×H) | Net Weight | 20.8 kg |
Details & Features
What's in the Box
- • DMON 420BSW Moving Head (Philips MSD Silver 420W / 2 LL)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
How do I switch between Beam, Spot, and Wash modes?
Mode switching is controlled via DMX channel, allowing operators to change between Beam, Spot, and Wash output directly from the console without physical adjustments to the fixture.
Can the 420BSW be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 29 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Is the lamp field-replaceable?
Yes. The Philips MSD Silver 420W / 2 LL lamp can be replaced on-site without returning the fixture. Replacement lamps are available from DMON at cost price under our after-sales policy.
What can linear CMY+CTO do that fixed color wheels can't?
Linear CMY mixing produces continuous, stepless color transitions instead of jumping between fixed colors, while the built-in CTO adjusts color temperature from 2700K to 7800K without needing a separate CTO filter or gel.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
