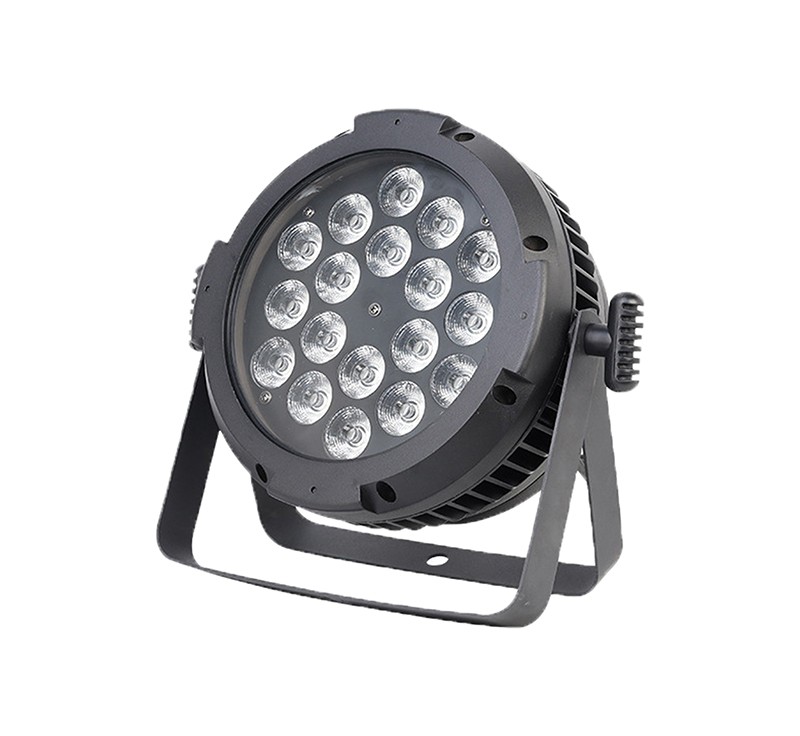

DMON APF1810 Outdoor 18×10W RGBW Waterproof LED Flat PAR Light
The Dmon APF1810 is an IP65-rated outdoor 18×10W RGBW waterproof LED flat PAR light with an ultra-slim die-cast aluminum housing and natural convection cooling. With daisy-chain power/signal connections and dual-yoke mounting for floor or truss installation, the APF1810 delivers reliable color washing built for direct outdoor exposure.
- IP65 rated — true outdoor waterproof protection, no rain cover required
- Ultra-slim die-cast housing — compact profile for tight installation spaces
- Daisy-chain power and DMX connections — simplified cabling across multiple units
- Dual-yoke mounting — flexible floor-standing or truss installation
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Wiring multiple fixtures individually adds setup time and cable clutter. The APF1810's daisy-chain power and DMX connections let units link directly to each other, simplifying cabling across a row of fixtures.
A bulky housing can be hard to fit into tight installation spaces. The APF1810's ultra-slim die-cast aluminum body keeps a low profile, making it easier to place in narrow gaps or flush against a surface.
Application Scenarios
Specification
| Light Source | 18 × 10W High-Power LEDs (RGBW / RGBWY / RGBWY+UV optional) | LED Lifetime | Approx. 50,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 180W |
| Color System | 16.7 million color mixing | Beam Angle | 15° (standard), 30° optional |
| Dimming | Independent electronic linear dimming, 0–100% | Strobe | Independent electronic strobe 1–25Hz, random / pulse / synchronous / asynchronous |
| Control Modes | DMX512, Master-Slave, Auto | DMX Channels | 8 CH |
| Display | Digital LED display | Power & Signal Connection | Power in/out and DMX in/out, daisy-chain installation |
| Housing | Ultra-slim full die-cast aluminum housing | Cooling System | Natural convection cooling with intelligent temperature protection |
| Protection | Over-temperature protection, stable and safe operation | Mounting | Dual-yoke bracket, floor standing or truss mounting |
| IP Rating | IP65 (true outdoor waterproof) | Dimensions | 21 × 32 × 24 cm |
Details & Features
What's in the Box
- • Hanging Clamp
- • Safety Cable
- • User Manual
Frequently Asked Questions
Is the APF1810 truly rated for outdoor use?
Yes. The APF1810 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the APF1810 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 8 channels, compatible with any DMX-compliant console on the market.
Can multiple APF1810 units be linked together?
Yes. The fixture supports daisy-chain power and DMX connections, allowing multiple units to link directly without individual home runs.
Does the LED source need to be replaced like a traditional lamp?
No. The APF1810 uses LEDs rated for approximately 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
