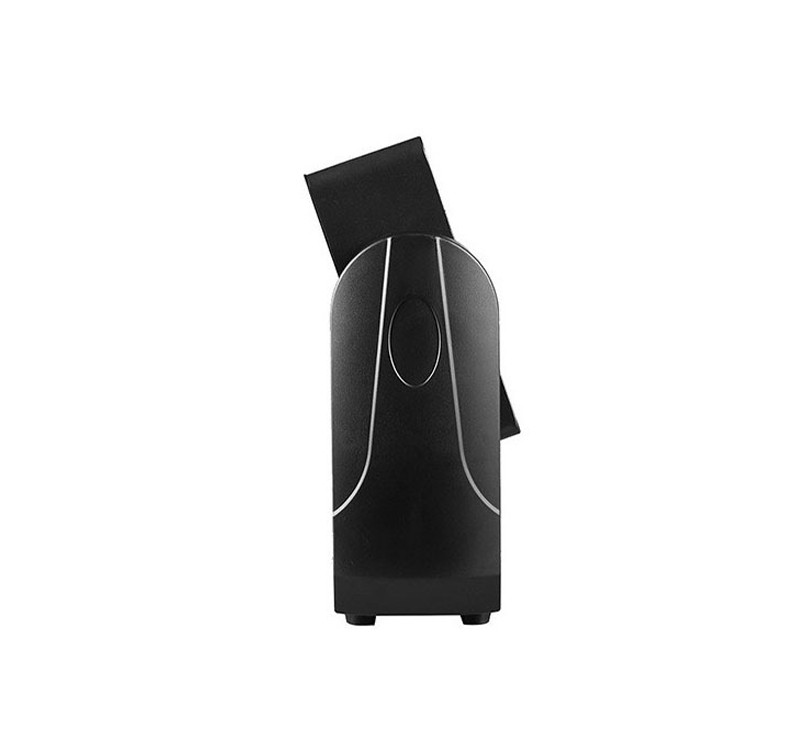

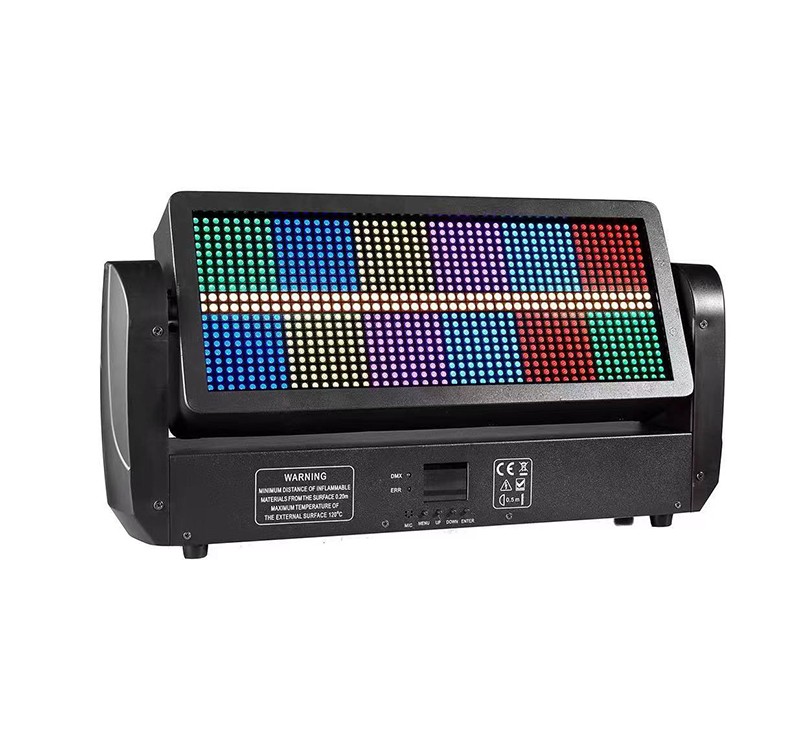

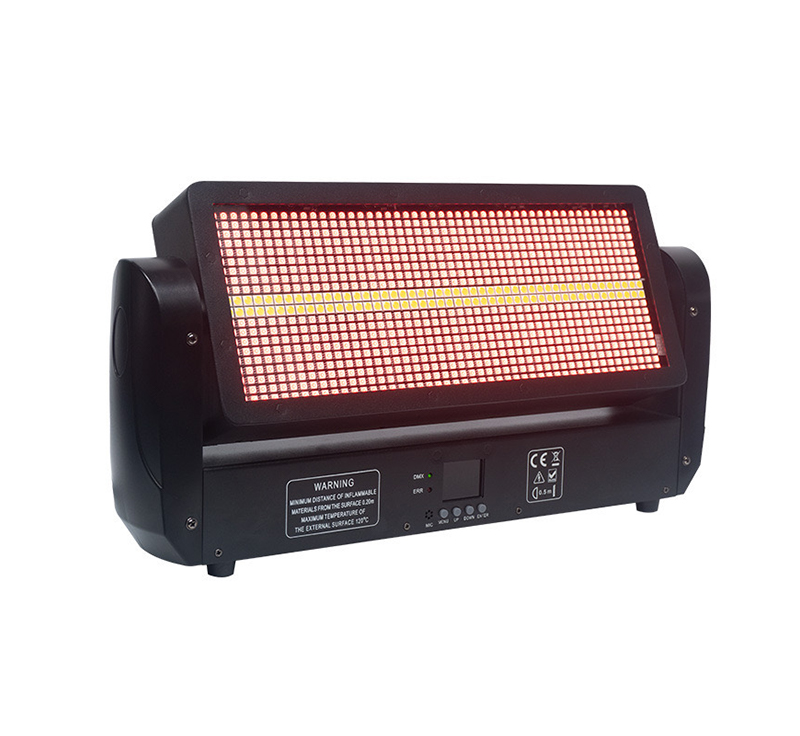

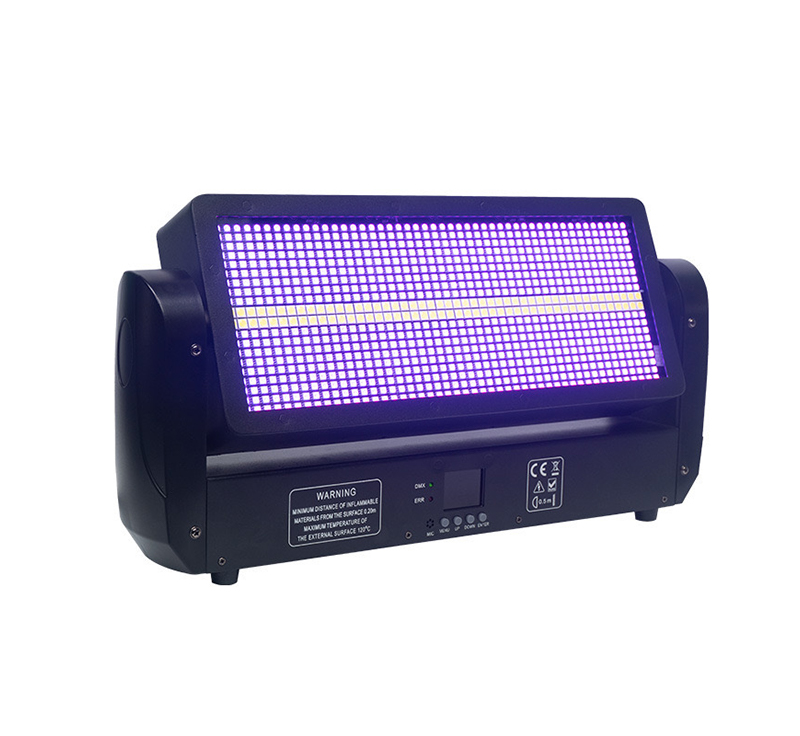

DMON YP960 960-Pixel High-Brightness Moving Head LED Strobe Light (12+12 Segments)

The Dmon YP960 is a 960-pixel high-brightness moving head LED strobe light combining strobe, wash, effect, and moving head functions in one fixture, with 12+12 independently controllable segments across 864 RGB and 96 white LEDs. With DMX512/RDM control and 32-bit ultra-smooth dimming, the YP960 delivers precise segment-level effects for indoor productions.

Four functions in one fixture — strobe, wash, effect, and moving head without switching between separate units
12+12 independently controllable segments — precise chase and pattern effects across the matrix
32-bit ultra-smooth dimming — precise, flicker-free brightness control
RDM support — remote monitoring and status checks from the console

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

Running separate moving head, wash, strobe, and effect fixtures means rigging, powering, and programming multiple unit types. The YP960 combines all four functions in one fixture, cutting down on the number of fixture types a rig needs.

A single-block strobe effect looks flat compared to segmented chase patterns. The YP960's 12+12 independently controllable segments let designers run detailed chase and pattern effects across the matrix, not just simple on/off flashes.

Application Scenarios

Concerts & Festivals

High-output flash built to cut through large crowds and daylight festival conditions.

Club & Nightlife Venues

Fast strobe effects synced to music for venues that run high-energy shows nightly.

Theatrical & Special Effects

Precise strobe timing for productions using flash effects as a storytelling tool, not just a visual accent.

Weddings & Private Parties

A quick burst of energy for the first dance finale or the moment the dance floor opens up.

Specification

LED Configuration	864 × RGB LEDs + 96 × White LEDs	Segment Control	12 + 12 segments
Functions	Strobe + Wash + Effect + Moving Head	Input Voltage	AC 100–240V, 50/60Hz
Power Consumption	400W	Control Modes	DMX512, Auto, Master-Slave, Sound Active, RDM
DMX Channels	CH8 / CH20 / CH52	Dimming	32-bit 0–100% ultra-smooth linear dimming
Strobe Frequency	1–30Hz	Working Temperature	-30°C to +50°C

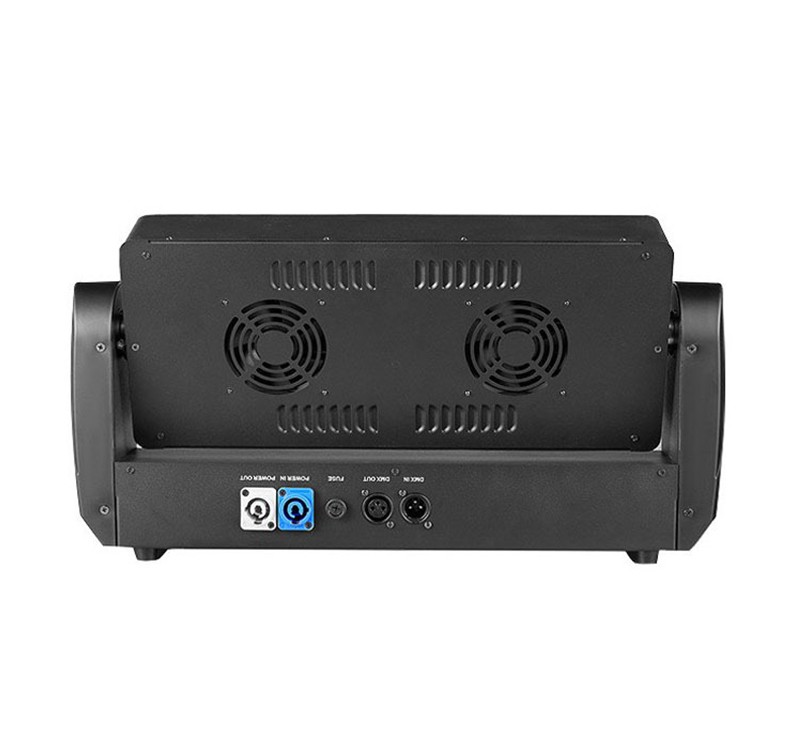

Housing	Metal housing, black finish	Connection	DMX512 input/output, Power input/output
IP Rating	IP20 (Indoor use)

Details & Features

Frequently Asked Questions

Can this fixture be used outdoors?

The YP960 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.

Can the YP960 be controlled by third-party lighting consoles?

Yes. It runs on standard DMX512 protocol with selectable 8 CH, 20 CH, or 52 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.

What does the segmented control let me do?

The 12+12 segments can each be controlled independently, allowing detailed chase and pattern effects across the fixture rather than a single uniform strobe flash.

Can this fixture run without a DMX console?

Yes. Sound-active mode reacts to music input, useful for setups without a dedicated lighting operator.

Do you offer OEM/ODM or custom branding?

Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.

What's the warranty and how does after-sales support work?

2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
