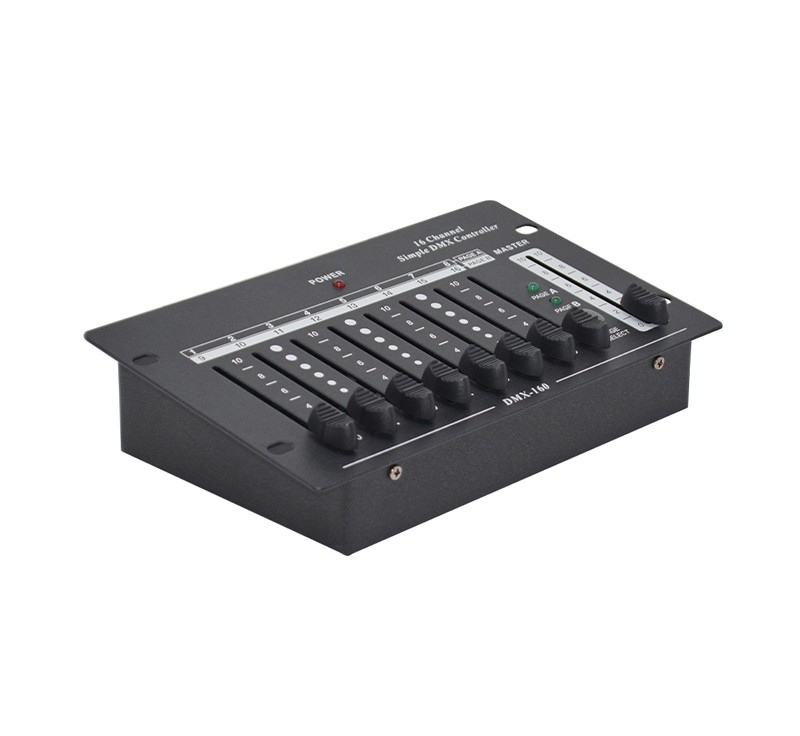

DMON DB16 Portable Battery 16CH DMX Controller
The Dmon DB16 is a portable battery-powered 16-channel DMX controller with 8 faders and Page Up/Down for accessing all 16 channels. With power failure memory and standard DMX512 output, the DB16 gives operators reliable, on-the-go control without needing a full lighting console.
- Battery powered — runs without mains power, ideal for mobile and outdoor setups

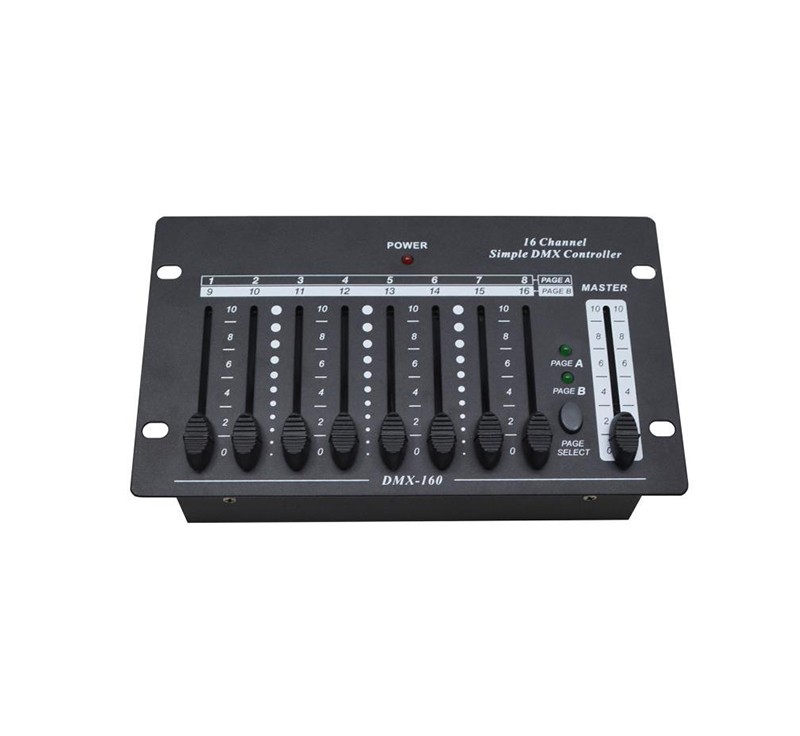

- 8 faders with Page Up/Down — full 16-channel control from a compact control surface
- Power failure memory — retains settings after a power interruption
- Photoelectric auto-reset — accurate positioning maintained through repeated setup and use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Not every job needs a full lighting console — sometimes operators just need quick, reliable control of a handful of fixtures on location. The DB16 runs on a 9V battery or DC adapter, giving basic DMX control without needing a power outlet or a bulky console.
Losing programmed settings after a power cut can mean re-setting a show from scratch. The DB16's power failure memory retains fader positions, so operators don't lose their setup if power is interrupted mid-show.
Specification
| Power Supply | DC 9V adapter / Battery powered | Battery Type | PP3 9V battery |

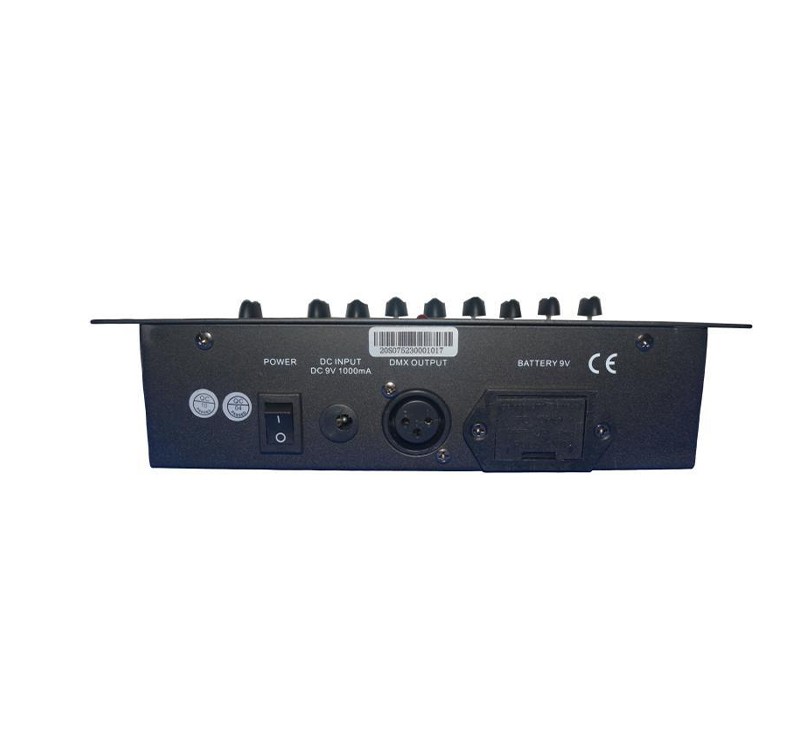

| DMX Output | Standard DMX512 | DMX Connector | 3-pin female XLR |
| Control Channels | 16 channels | Master Slider | Controls overall DMX output (1–16 channels) |
| Faders | 8 faders with Page UP/DOWN (1–16 channels) | Memory Function | Power failure memory |
| Dimensions | 232 × 135 × 55 mm | Net Weight | 0.9 kg |
Frequently Asked Questions
How many fixtures can the DB16 control?
The DB16 outputs standard DMX512 across 16 channels, so the number of fixtures depends on how many DMX channels each fixture uses.
How do the 8 faders access all 16 channels?
The Page Up/Down function switches the 8 physical faders between two banks, giving access to channels 1–8 on one page and channels 9–16 on the other.
What happens if the power is interrupted mid-show?
The DB16's power failure memory retains fader settings, so operators don't need to reset everything after power is restored.
Can this run without a battery?
Yes. The DB16 can run on a 9V battery or a DC adapter, whichever suits the setup.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
