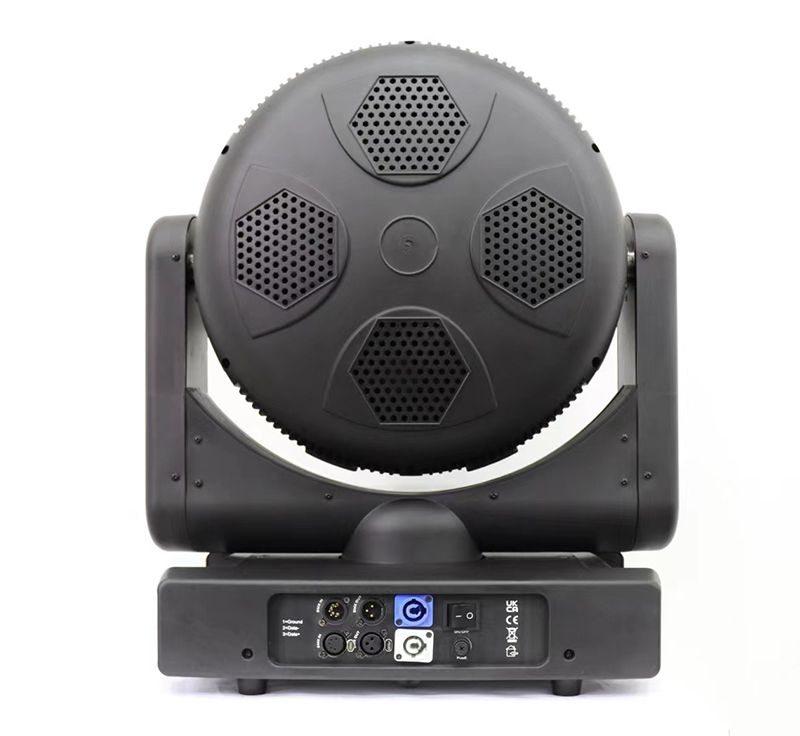

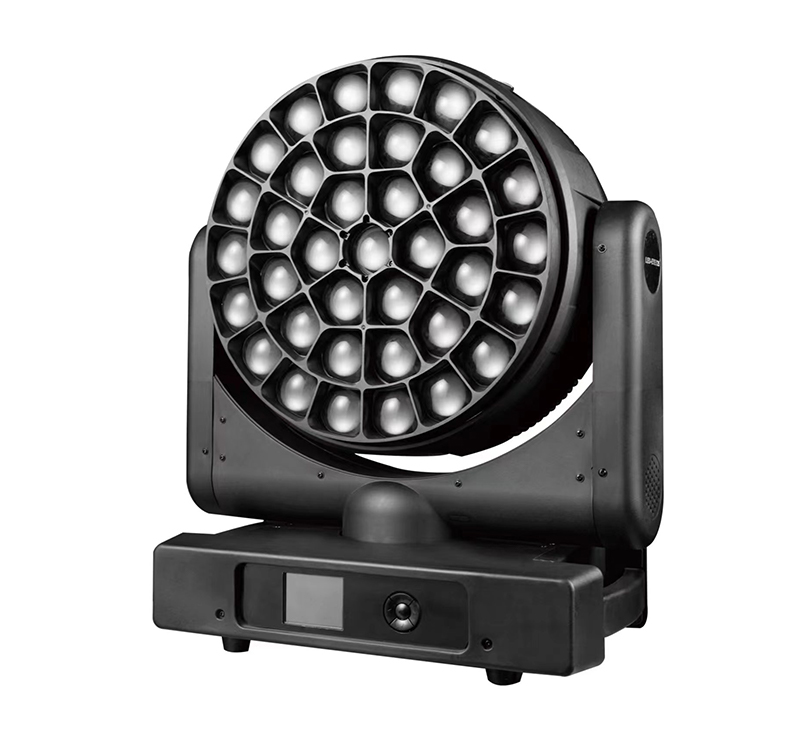

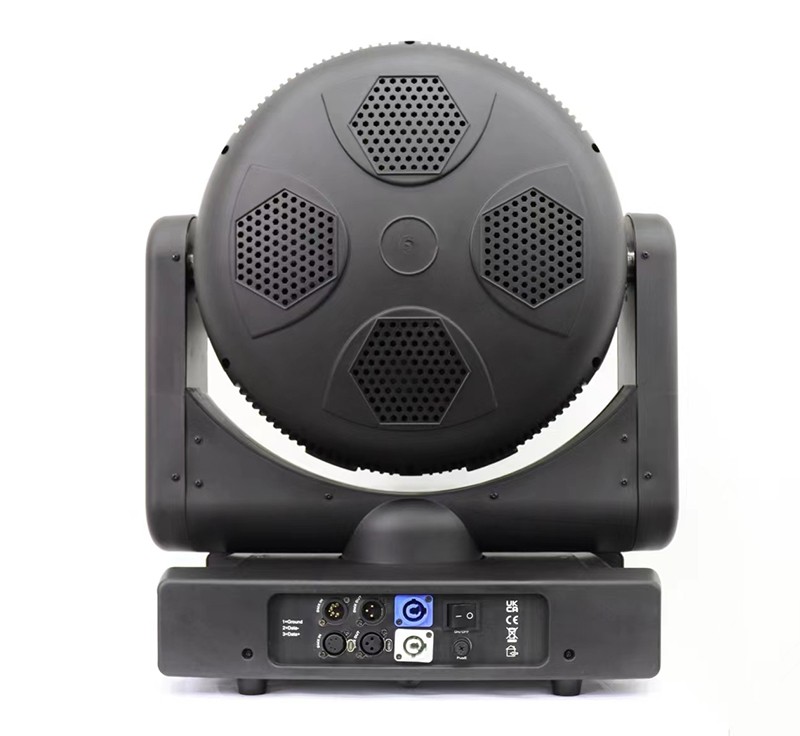

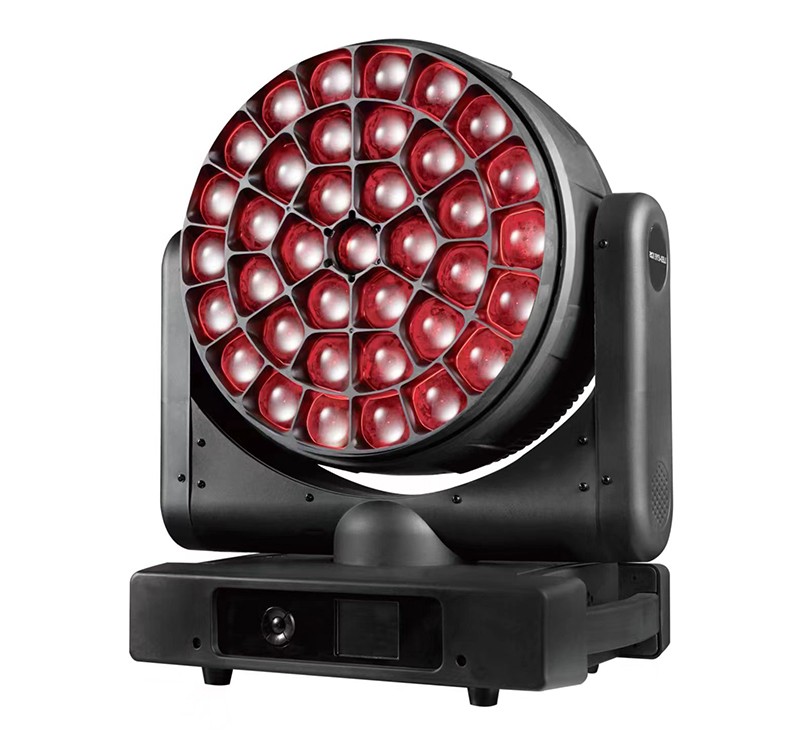

DMON LM3740P 37×40W RGBW Rotating Big Eye Moving Head Light
The Dmon LM3740P is a 37×40W RGBW rotating big eye moving head light with a rotating front lens producing vortex and kaleidoscope effects, individual pixel control, and RGBW+CTO color mixing. With up to 170 DMX channels in Advanced mode, the LM3740P delivers high-output pixel-mapped visual effects with fine-grained control for large-scale productions.
- Rotating front lens array — adds a spinning visual layer for vortex and kaleidoscope effects
- 37×40W RGBW output — high-intensity pixel array for large-scale productions
- Up to 170 DMX channels (Advanced mode) — fine-grained control for complex pixel-mapped shows
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A static front lens limits pixel effects to a flat visual plane. The LM3740P's rotating front lens adds a spinning layer to its vortex and kaleidoscope programs, producing texture that a fixed-lens fixture can't replicate.
Complex pixel-mapped shows need more channel resolution than a basic DMX mode provides. The LM3740P's Advanced mode offers up to 170 channels, giving designers finer control over individual pixels and effects than the 22 CH Basic mode allows.
Application Scenarios
Specification
| Light Source | 37 × 40W RGBW 4-in-1 LEDs (5060 package) | LED Lifetime | ≥30,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 1500W |
| Zoom Range | 2°–60° DMX linear motorized zoom | Color Mixing | RGBW infinite mixing with built-in CTO linear adjustment |
| Dimming | 0–100% linear dimming with adjustable gamma (1.2K–25K), flicker-free for camera use | Strobe | 0.3–25 Hz electronic strobe; sync / async / random modes |
| Pan / Tilt | 540° / 270° (16-bit precision scanning) | Motors | Reinforced silent three-phase motors with magnetic encoder positioning and auto reset |
| Pixel Control | Individual LED control with rotating big-eye front lens for vortex and kaleidoscope effects | Control Protocols | DMX512, RDM |
| DMX Channel Modes | 22CH (Basic) / 36CH / 133CH / 147CH / 170CH (Advanced) | Display | 2.8" touch TFT display, CN/EN menu, auto-rotating screen, temperature & error display |
| Cooling | Copper heat-pipe cooling system with intelligent fan speed control and overheat protection | IP Rating | IP22 |
| Net Weight | 24.7 kg | Carton Packing | 630 × 530 × 645 mm; Gross Weight: 29.9 kg |
| Flight Case (2-in-1) | 780 × 580 × 820 mm (85.1 kg) |
Details & Features
What's in the Box
- • DMON LM3740P Moving Head (37 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory (2-in-1 configuration).
Frequently Asked Questions
What does the rotating front lens do?
The rotating big-eye front lens physically spins, adding a moving visual layer to the fixture's vortex and kaleidoscope effects — giving these patterns extra texture beyond what a static-lens fixture can produce.
Can the LM3740P be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (22 CH up to 170 CH in Advanced mode), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM3740P uses 37×40W RGBW LEDs rated for ≥30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What does the IP22 rating mean for this fixture?
IP22 offers protection against dripping water and larger foreign objects, suitable for indoor use in venues with some exposure to moisture, but the fixture is not rated for outdoor or heavily exposed conditions.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
