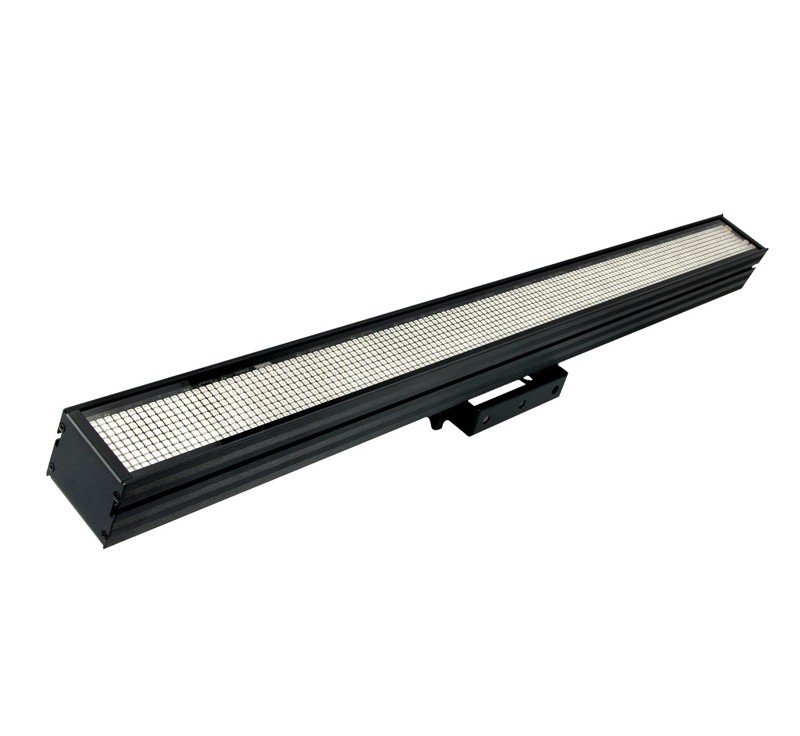

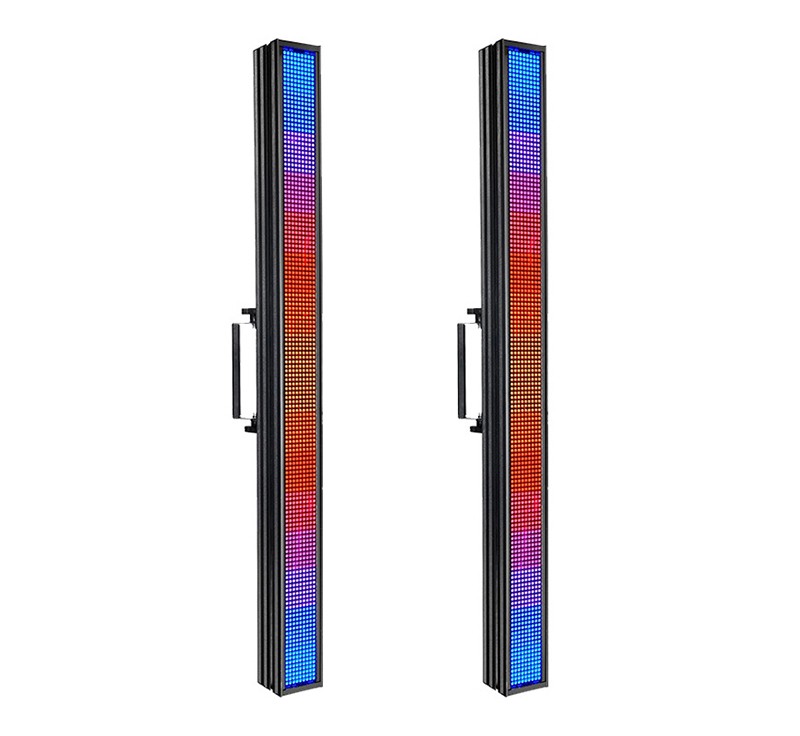

DMON CP300 Linear LED Strobe Light (16 Segments / Optional 216 Segments)
The Dmon CP300 is a linear LED strobe light with selectable 16-segment or 216-segment control across 1296 RGB LEDs, combining chase, wash, and strobe effects in one fixture. With 32-bit ultra-smooth dimming and DMX512/RDM control, the CP300 delivers detailed segmented effects for indoor productions.
- Selectable 16 or 216-segment control — choose the resolution that matches your show's needs
- Three functions in one fixture — chase, wash, and strobe effects without switching between separate units
- 32-bit ultra-smooth dimming — precise, flicker-free brightness control
- RDM support — remote monitoring and status checks from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Different shows call for different levels of pixel control — a simple chase might only need a handful of segments, while a detailed pixel-mapped effect needs many more. The CP300 offers a choice between 16-segment and 216-segment configurations, so operators can match the fixture's resolution to the show without overpaying for control they don't use.
Running separate chase, wash, and strobe fixtures means rigging, powering, and programming multiple unit types. The CP300 combines all three effects in one fixture, cutting down on the number of fixture types a rig needs.
Application Scenarios
Specification
| LED Configuration | 1296 × 0.5W SMD 5050 RGB LEDs | LED Lifetime | ≥50,000 hours |
| Color Temperature (White Mix) | 6500–7500K | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 300W | Control Modes | DMX512, Auto, Master-Slave, Sound Active, RDM |
| DMX Channels | 3 / 8 / 48 / 53 CH | Dimming | 32-bit ultra-smooth linear dimming 0–100% |
| Strobe Frequency | 1–30 Hz | Segment Structure | 16 segments / Optional 216 segments |
| Effect Functions | Chase, wash, strobe effects | Operating Temperature | -30°C to +50°C |

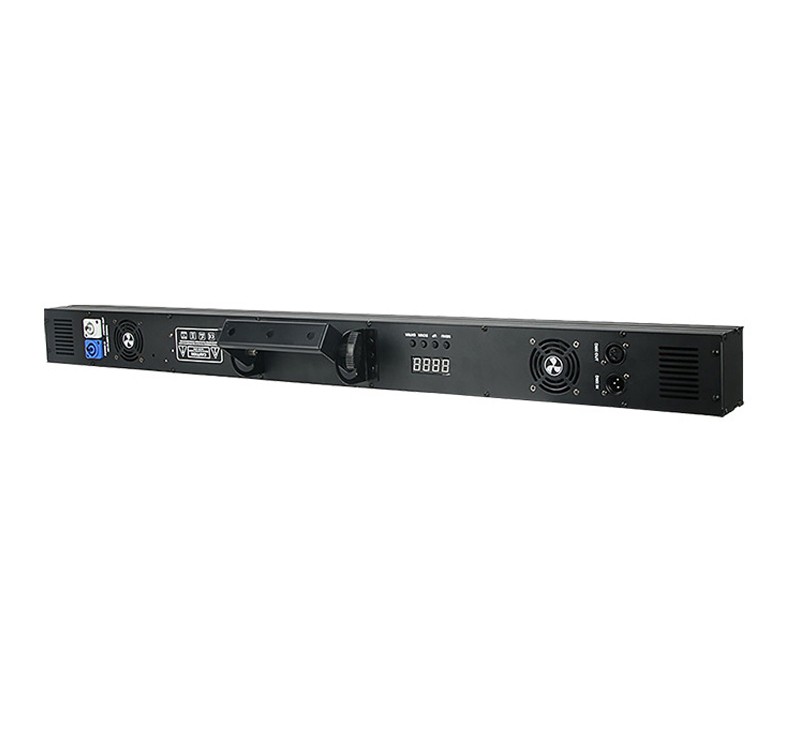

| Housing | Metal housing, black finish | Connection | DMX512 input/output, Power input/output |
| IP Rating | IP20 (indoor use) | Packaging (4 pcs/carton) | 106 × 29 × 34 cm, 17.2 kg |
| Packaging (1 pc/carton) | 104 × 13 × 15 cm, 4.2 kg |
Details & Features
Frequently Asked Questions
Can this fixture be used outdoors?
The CP300 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.
Can the CP300 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (3 CH up to 53 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between the 16-segment and 216-segment configurations?
The 16-segment version offers simpler, broader chase control, while the 216-segment version gives much finer pixel-level control for detailed effects. Confirm your preferred configuration at the time of order.
Does the LED source need to be replaced like a traditional lamp?
No. The CP300 uses LEDs rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
