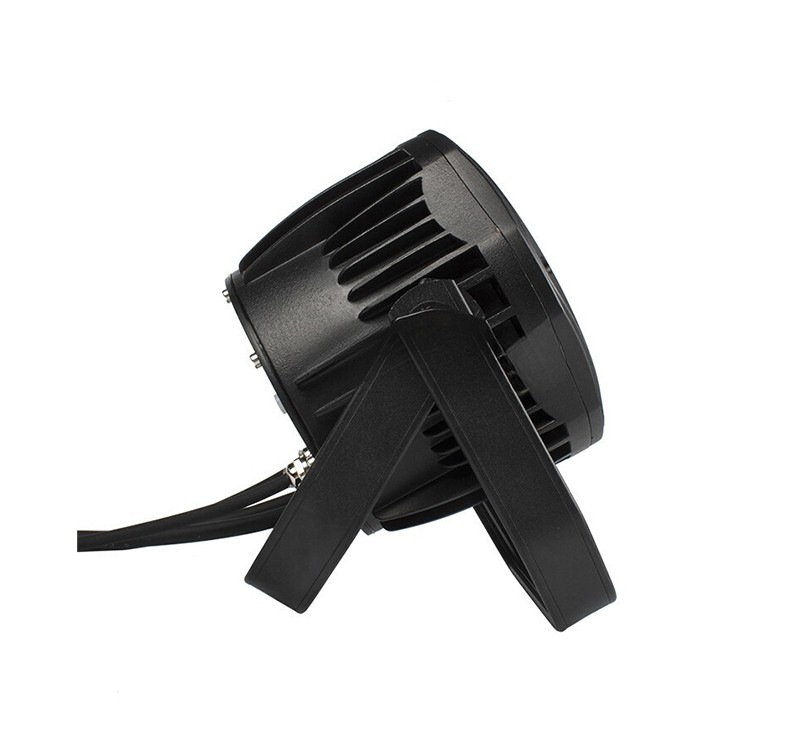

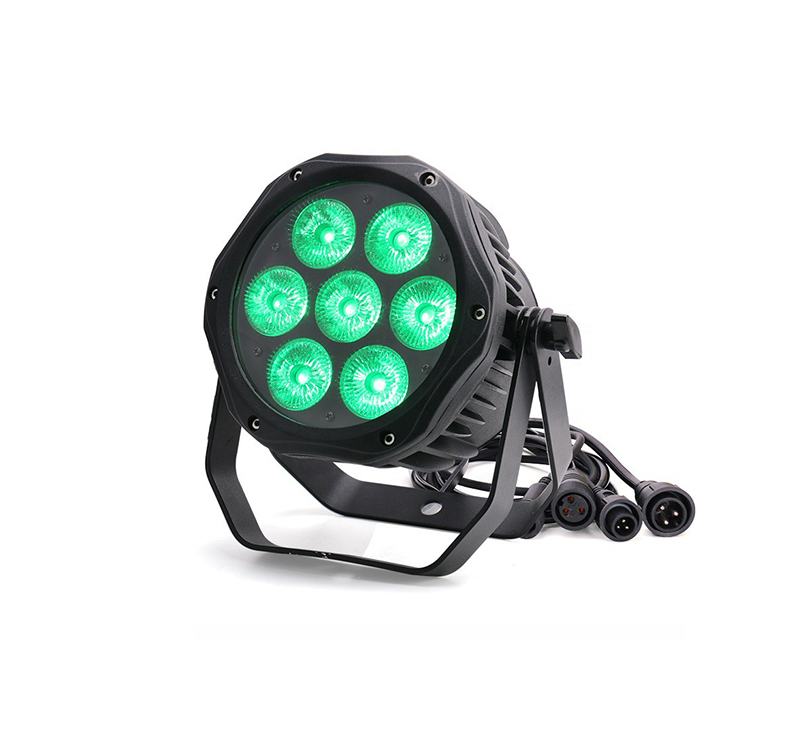

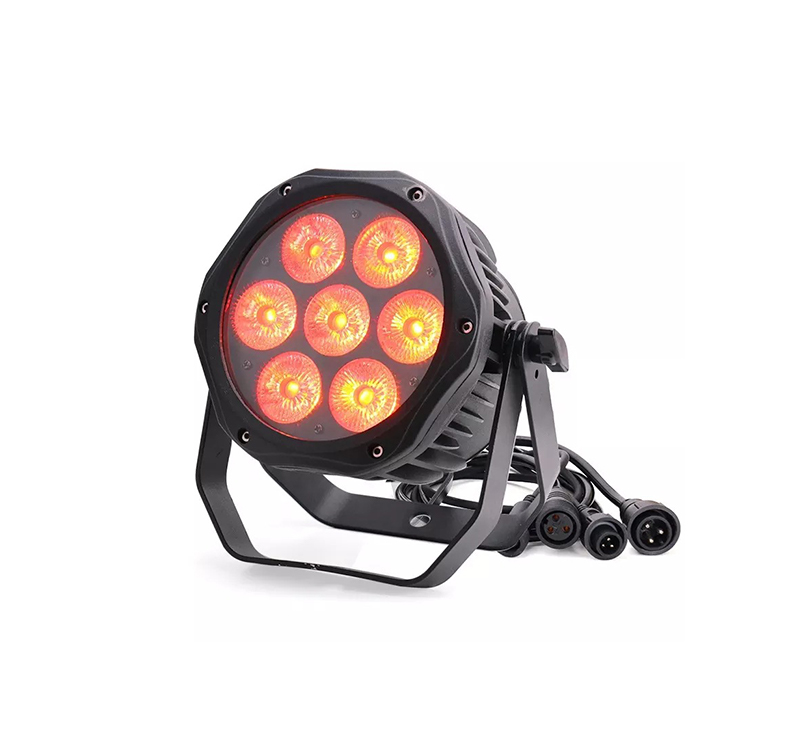

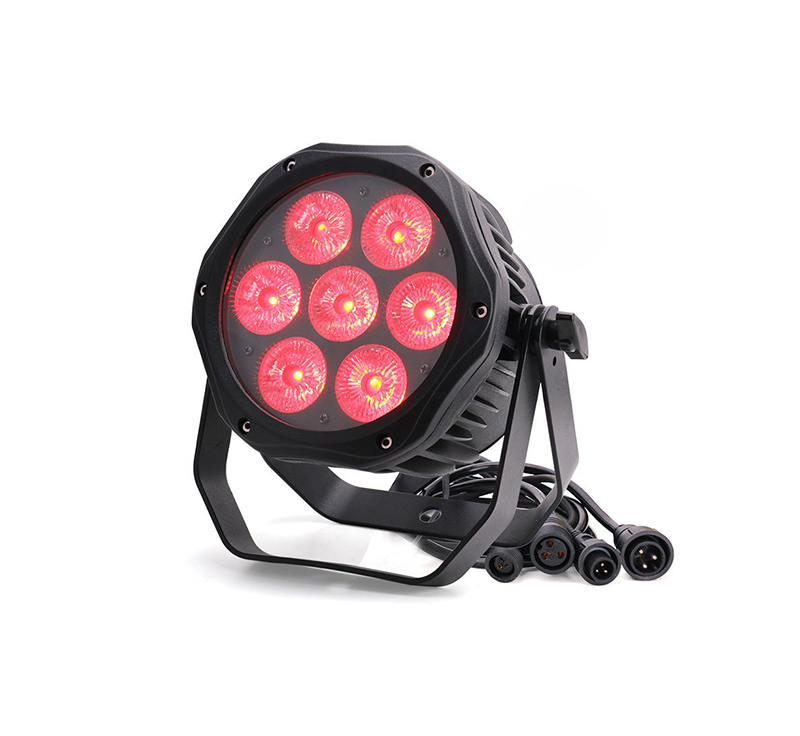

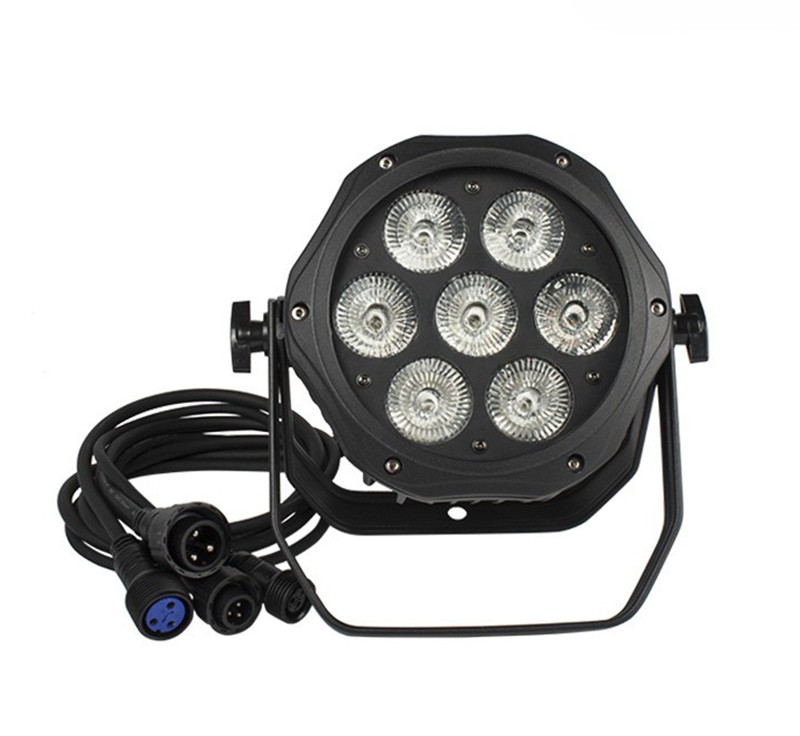

DMON PW718L 7×18W RGBWA+UV LED PAR Light
The Dmon PW718L is a compact 7×18W RGBWA+UV LED PAR light delivering 10,500 lm of output with waterproof power and signal connections throughout. With 16-bit linear dimming and DMX512/Master-Slave/Sound control, the PW718L is built for reliable outdoor color washing.
- Waterproof power and signal connections — built for outdoor rigging without extra weatherproofing
- RGBWA+UV 6-in-1 LEDs — extended color mixing including UV output
- 10,500 lm output — bright, even color coverage
- 16-bit linear dimming — smooth brightness control without visible stepping
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Standard power and signal connectors are a common point of failure in outdoor rigs when moisture gets in. The PW718L uses waterproof connections for both power and signal, closing off that entry point without needing extra weatherproofing accessories.
A basic RGB fixture can't produce true UV or amber tones. The PW718L's RGBWA+UV 6-in-1 LEDs add those extra channels, giving designers more color range than a standard 3-in-1 or 4-in-1 par light.

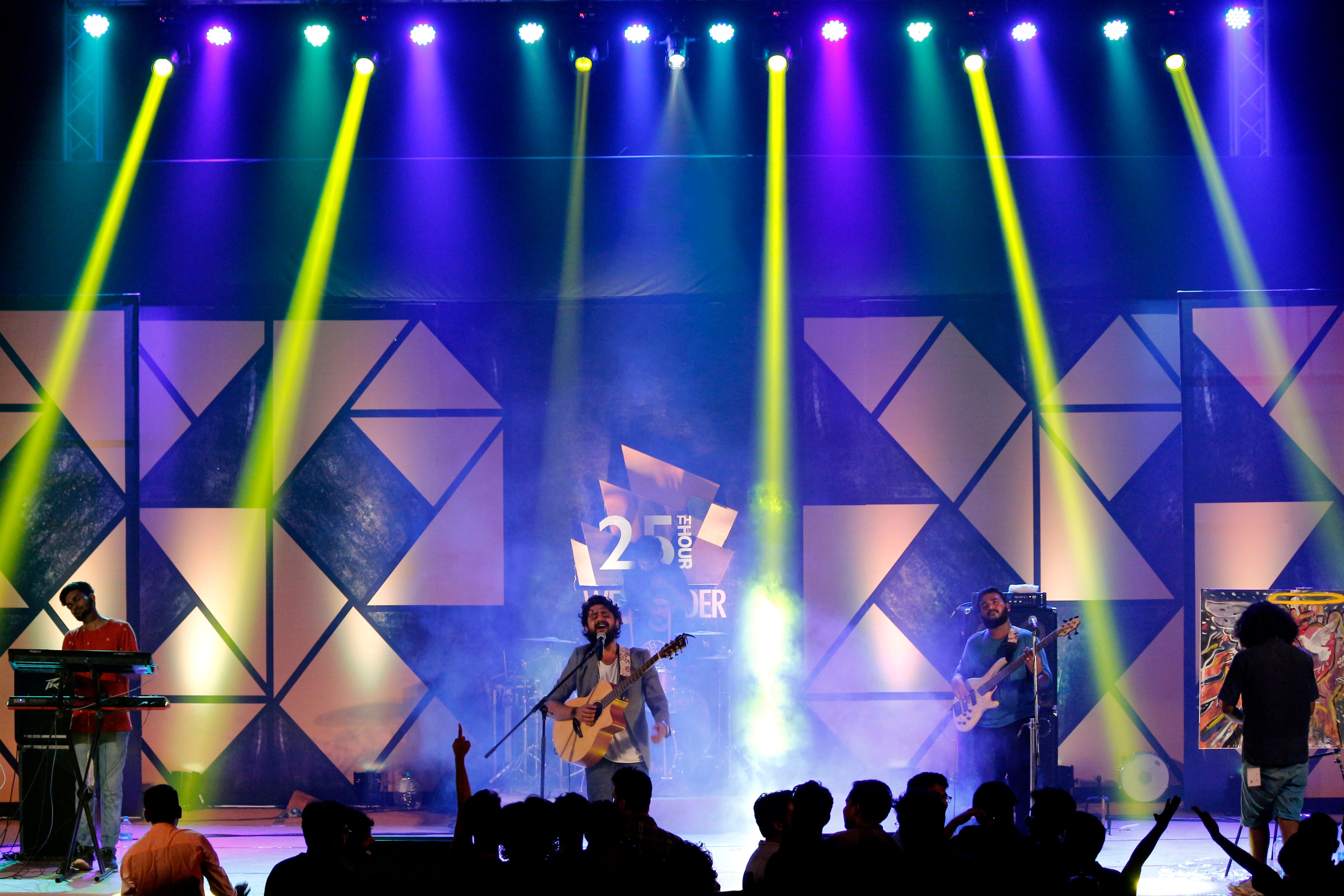

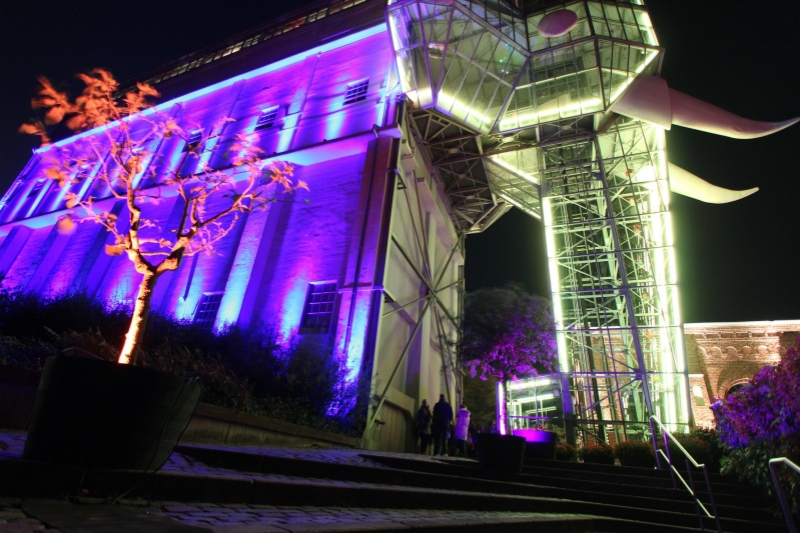

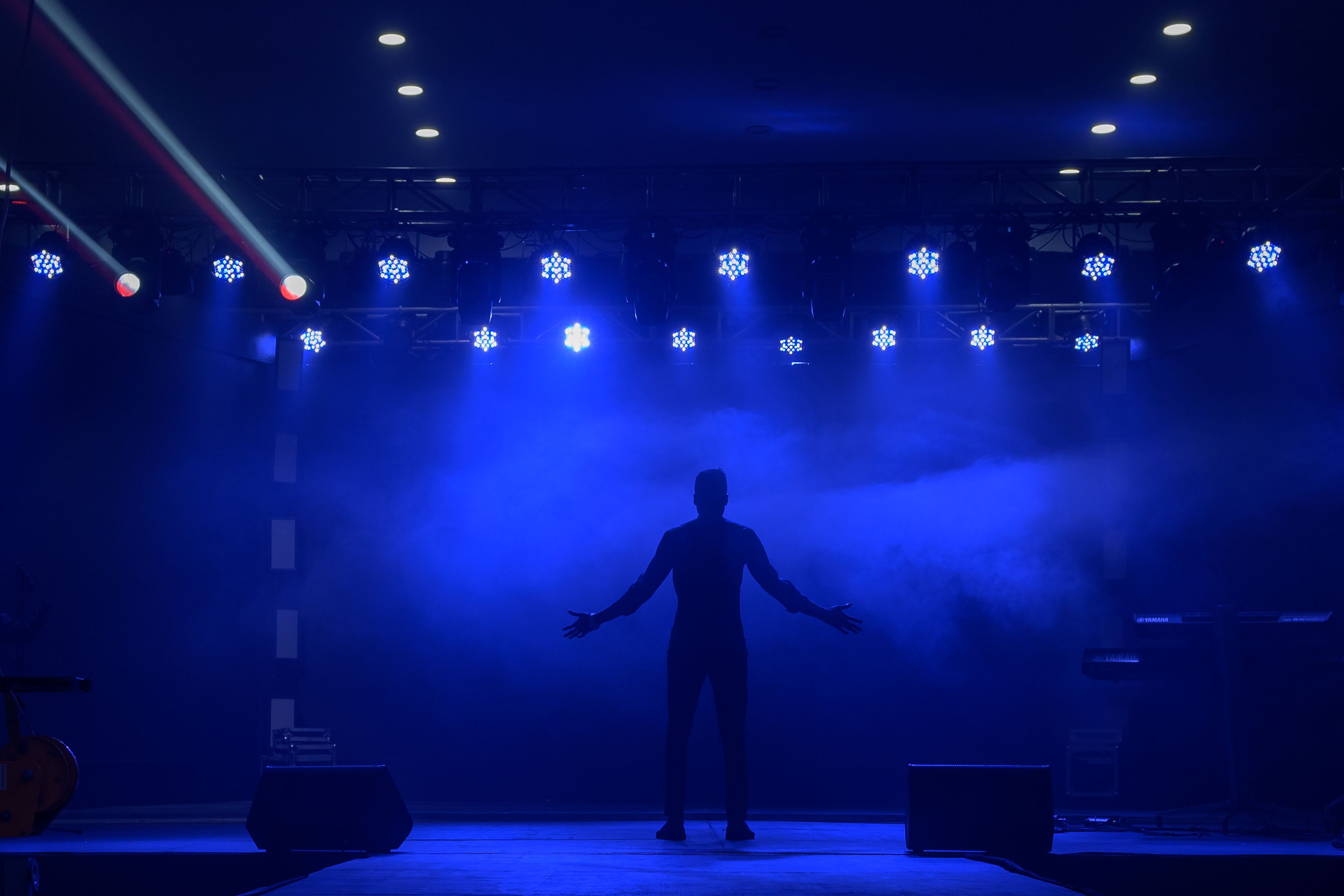

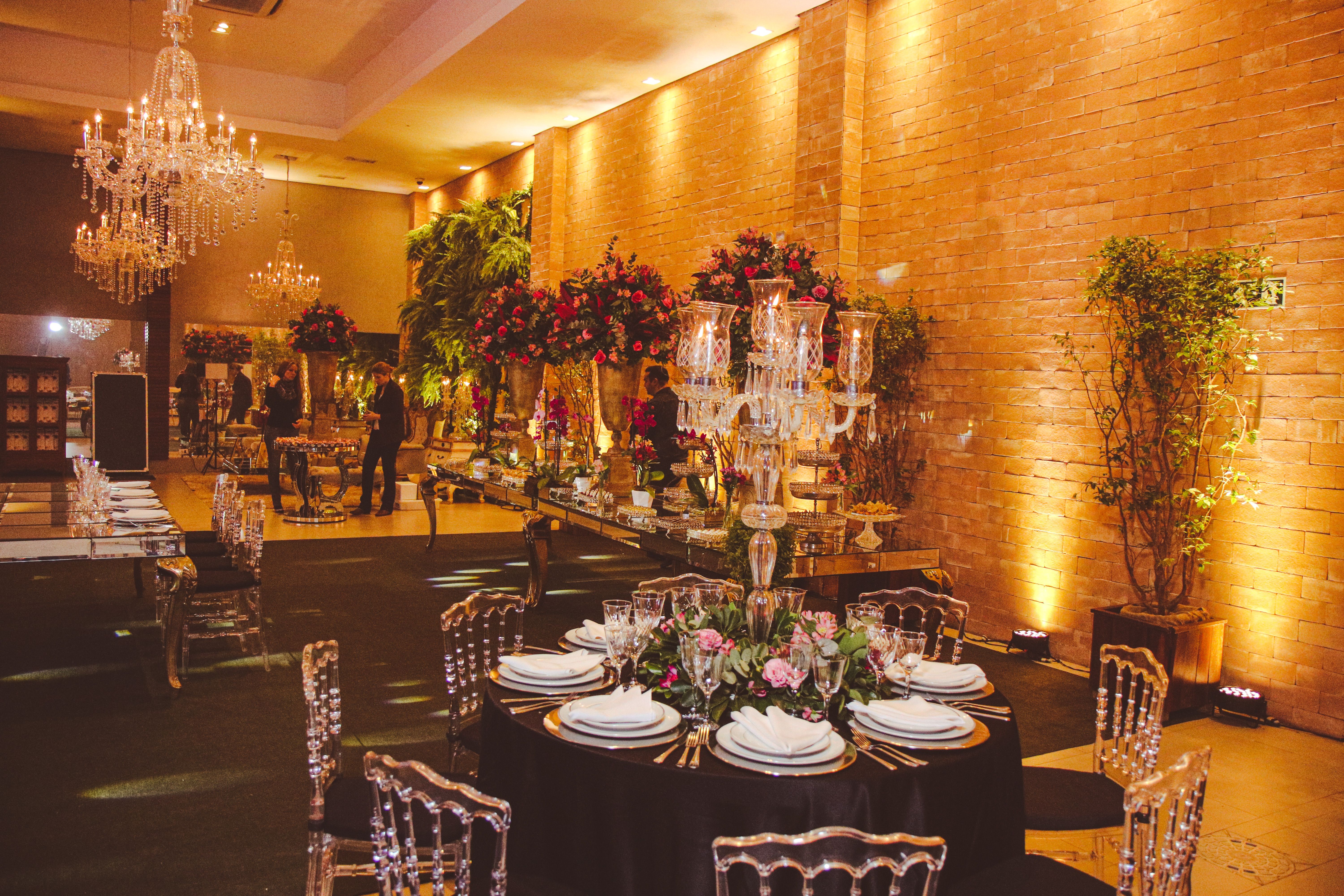

Application Scenarios
Specification
| LEDs | 7 × 18W high-brightness LEDs | LED Color | RGBWA+UV (6-in-1) |
| Beam Angle | 25° | CCT (LED) | 6500K–7500K |
| Luminous Flux | 10,500 lm (1050 × 10 lm) | Input Voltage | AC 90–275V, 50/60Hz |
| Rated Power | 126W | Drive Current | 2A |
| Control Protocol | DMX512 / Master-Slave / Auto / Sound | Channel Modes | 6CH / 10CH |
| Dimming | 0–100% linear, 16-bit | Cooling System | Fan cooling + housing heat conduction |
| Power Cable | Fixed waterproof power input & output | Signal Cable | Waterproof 3-pin signal input & output (rubber cable) |
| Packing Size | 22.5 × 23 × 21 cm | Packing Weight | 3.45 kg |
Details & Features
What's in the Box
- • Hanging Clamp
- • Safety Cable
- • User Manual
Frequently Asked Questions
Can the PW718L be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 6 CH or 10 CH modes, compatible with any DMX-compliant console on the market.
What does the UV channel add to the color mixing?
The 6-in-1 RGBWA+UV LEDs include a dedicated UV channel alongside standard color mixing, allowing effects that a 3-in-1 or 4-in-1 fixture can't produce.
Does the LED source need to be replaced like a traditional lamp?
No. The PW718L uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Are the power and signal connections weatherproof?
Yes. Both the power and signal cables use waterproof connectors, reducing the risk of moisture entering at the most common failure point in outdoor rigs.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
