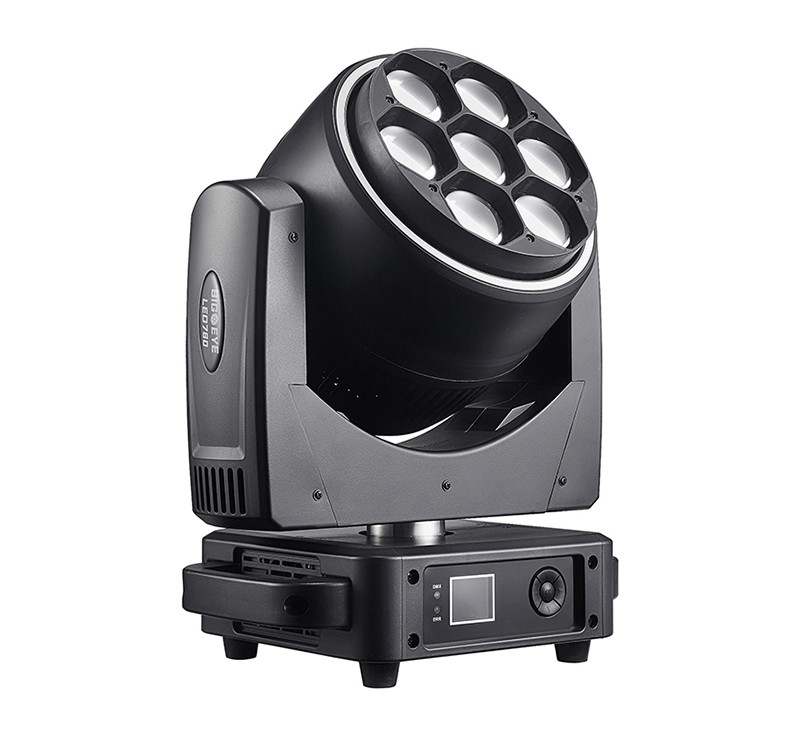

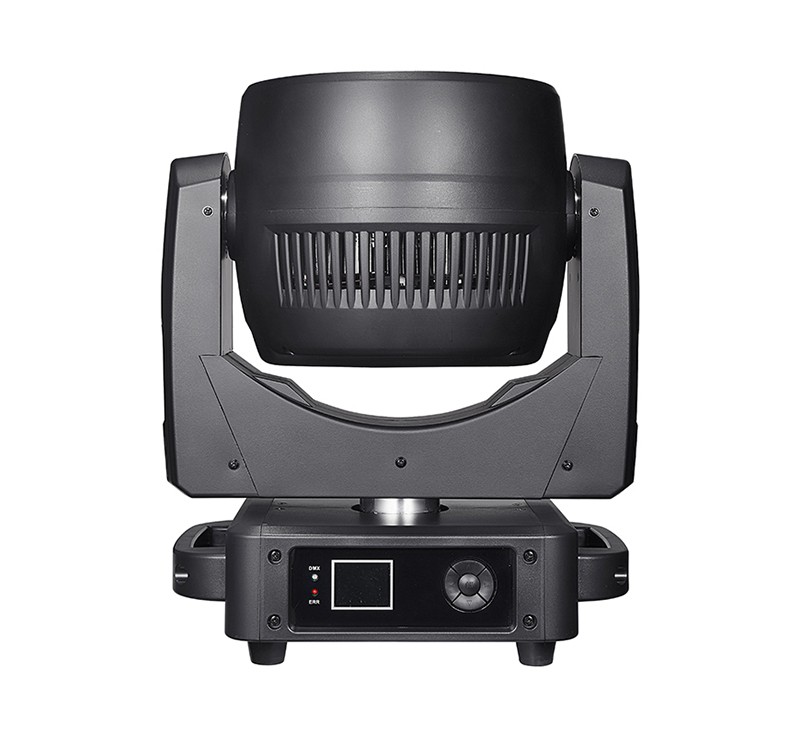

DMON LM760P 7×60W RGBW Rotating Big-Eye Moving Head Light with LED Strip
The Dmon LM760P is a 7×60W RGBW rotating big-eye moving head light with an integrated 67-LED strip ring, individual pixel control, and a seamless rotating front lens array. Built-in effects including vortex, kaleidoscope, beam, and wash modes give the LM760P a distinct outer-ring visual layer beyond its main pixel array, with DMX512/RDM control for remote monitoring.

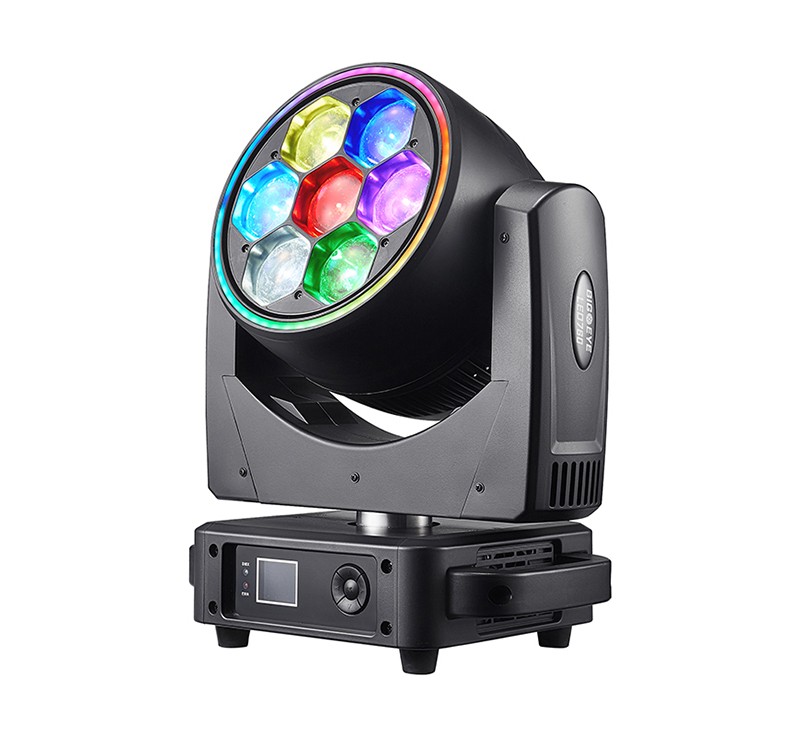

- 67-LED strip ring — adds an outer chase effect layer on top of the main 7-pixel array
- Rotating front lens array — spinning visual texture for vortex and kaleidoscope effects
- Individual pixel control on both main array and strip — independently programmable chase effects
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most pixel fixtures rely on a single array for all their chase and color effects. The LM760P adds a 67-LED strip ring around its main 7-pixel array, giving designers a second, independently controllable layer for chase effects — without needing a separate fixture.
A static front lens limits pixel effects to a flat visual plane. The LM760P's rotating front lens array adds a spinning layer on top of its built-in vortex and kaleidoscope programs, producing texture that a fixed-lens fixture can't replicate.
Application Scenarios
Specification
| Main Light Source | 7 × 60W RGBW LED (6065 package) | Auxiliary Light Source | 67 × 0.5W LED strip |
| LED Lifetime | Approx. 30,000 hours | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 500W | Color System | RGBW color mixing with linear CTO control |
| Zoom / Focus | 4°–60° DMX linear zoom | Dimming | 0–100% electronic dimming, gamma adjustable (1.2kHz–25kHz), flicker-free |
| Strobe | 0.3–25 Hz, sync / async / random | Pan / Tilt | 540° / 270° (16-bit resolution) |
| Motor System | Silent three-phase motors with Hall sensor positioning and auto-reset | DMX Channel Modes | 30 CH (Basic) / 42 CH / 58 CH (Extended) |
| Control Protocol | DMX512, RDM | Control Interfaces | 3-pin DMX (optional 5-pin), power in/out |
| Display | 1.77-inch LCD display, bilingual menu, auto-rotate | Sleep Mode | Auto standby when DMX signal is lost |
| Cooling System | Lightweight aluminum heatsink with intelligent fan control | Protection | Overheat protection and smart noise-temperature balance |
| IP Rating | IP20 (optional rain cover up to IP44) | Fixture Dimensions | 340 × 230 × 410 mm |
| Net Weight | 17.0 kg | Gross Weight | 19.5 kg |
| Packing Size | 470 × 340 × 520 mm (1 pc) | Effects | Vortex, kaleidoscope, beam, wash |
| Front Optics | Seamless rotating front lens array with aspherical lens design | Pixel Control | Individual LED pixel control + LED strip chase effects |
| Special Features | Auto screen rotation, integrated mainboard, RDM remote addressing & firmware upgrade |
Details & Features
What's in the Box
- • DMON LM760P Moving Head (7 × 60W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM760P be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 30 CH, 42 CH, or 58 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the LED strip ring add to the fixture?
The 67-LED strip ring runs independently of the main 7-pixel array, allowing chase effects around the fixture's outer ring while the main array runs a separate effect.
Does the LED source need to be replaced like a traditional lamp?
No. The LM760P uses 7×60W RGBW LEDs rated for approximately 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
