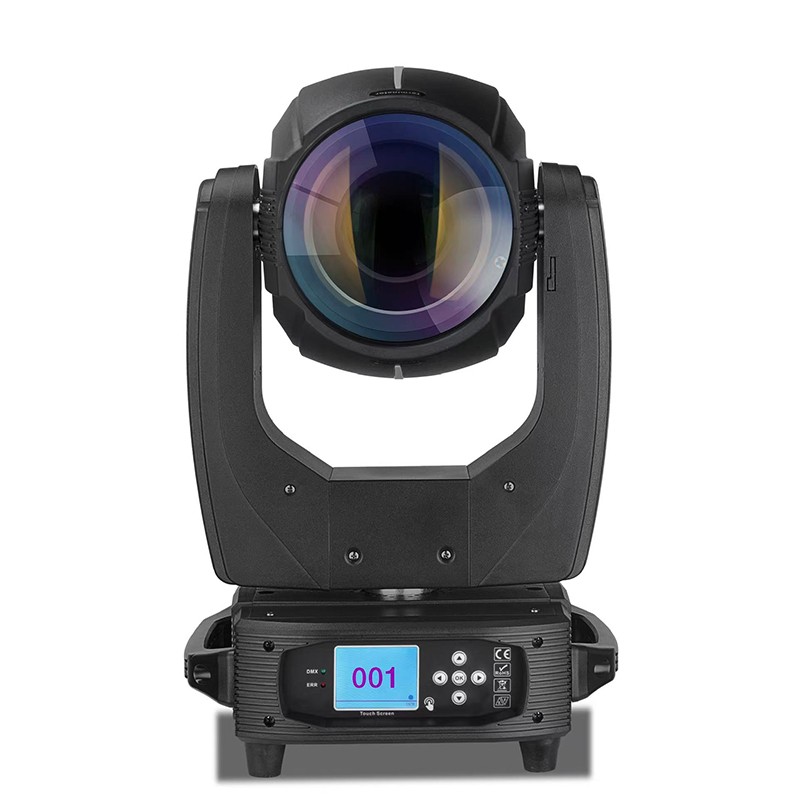

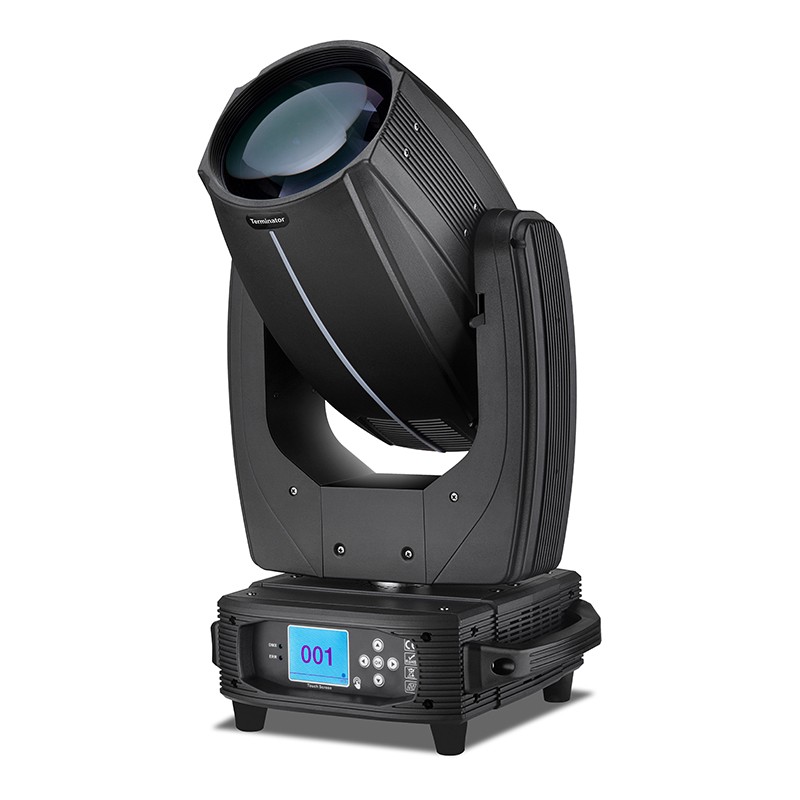

DMON B420 420W Beam Moving Head Light with Philips MSD Silver 420W LL
The Dmon B420 is a professional 420W beam moving head light powered by the Philips MSD Silver 420W LL, delivering sharp beam effects with dual color wheels and dual stackable prisms for rich visual variation. Built with 14 silent motors for smooth, quiet movement — ideal for concerts, touring productions, and large-stage events.
- Philips MSD Silver 420W LL — powerful, high-intensity beam output
- Dual color wheels (13 colors + 6-color wheel) — extended color combinations in one fixture
- Dual stackable prisms — 8-facet + 8+8+8 honeycomb prism for layered beam effects
- 14 silent motors with three-phase X/Y drive — smooth, quiet, precise movement
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most beam lights give you one color wheel and one prism to work with. The B420 doubles both — a primary 13-color wheel plus a secondary 6-color wheel, paired with two stackable prisms (8-facet and 8+8+8 honeycomb), so designers can layer effects without adding extra fixtures to the rig.
Noisy motors are a real problem in quiet venues — houses of worship, theaters, and intimate event spaces can't tolerate a fixture buzzing overhead. The B420 runs on 14 silent motors with three-phase X/Y drive, keeping pan/tilt movement smooth and quiet even during long runs.
Application Scenarios
Specification
| Light Source | Philips MSD Silver 420W LL | Lamp Lifetime | Average 3,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Total Power Consumption | 650W |
| Fuse | 10A | Ballast | Electronic ballast |
| Color Temperature | 6700K | Beam Lens Diameter | Φ165mm |
| Dimming | 0–100% linear dimming | Color Wheel | 13 colors + open (half-color effect) |
| Additional Color Wheel | 6-color wheel for multi-color effects | Gobo Wheel | 7 fixed gobos + 5 variable-size open patterns + open |
| Prism System | 8-facet + 8+8+8 honeycomb prism, dual stackable, bi-directional rotation | Frost | Independent frost filter |
| Motors | 14 silent motors, three-phase X/Y motors | Pan / Tilt | Smooth movement with auto reposition |
| Control Protocol | DMX512 | DMX Channels | 16 CH |
| Housing | High-temperature resistant plastic, black finish | IP Rating | IP20 |
| Dimensions | 320 × 220 × 580 mm (L×W×H) | Net Weight | 18.3 kg |
Details & Features
What's in the Box
- • DMON B420 Moving Head (Philips MSD Silver 420W LL)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the B420 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 16 channels, compatible with any DMX-compliant console on the market.
Is the lamp field-replaceable?
Yes. The Philips MSD Silver 420W LL lamp can be replaced on-site without returning the fixture. Replacement lamps are available from DMON at cost price under our after-sales policy.
Can this fixture be used outdoors?
The B420 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What makes the B420's dual color wheel and dual prism system useful?
The primary 13-color wheel and secondary 6-color wheel can be combined for extended color mixing, while the two stackable prisms (8-facet and honeycomb) let designers layer beam effects — reducing the need for extra fixtures to achieve the same visual variety.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
