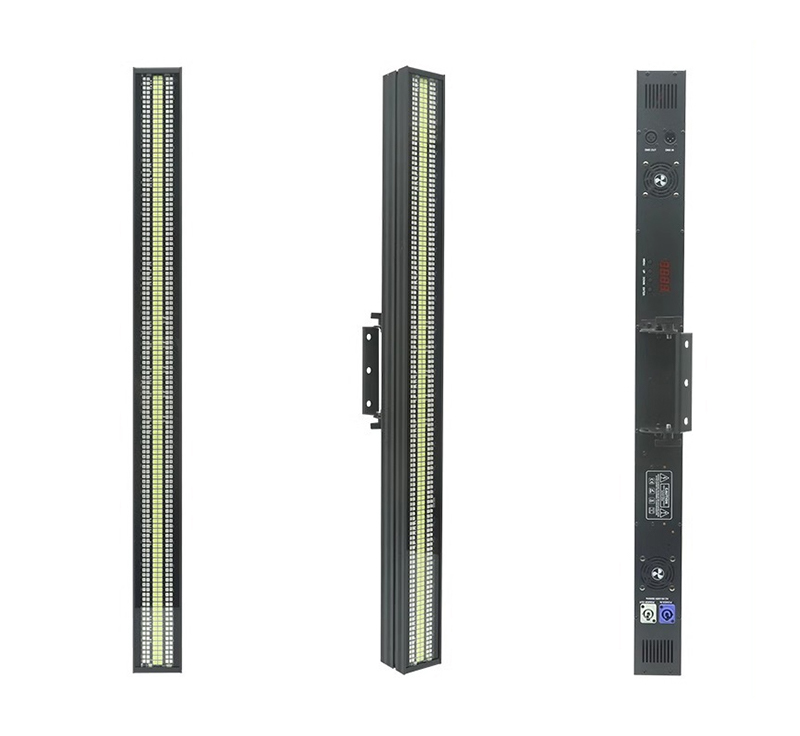

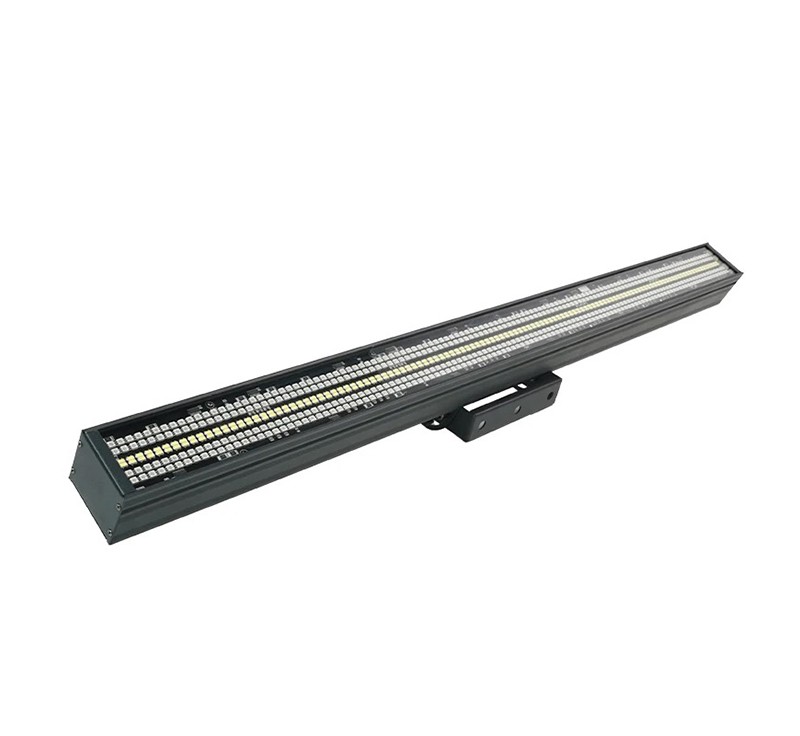

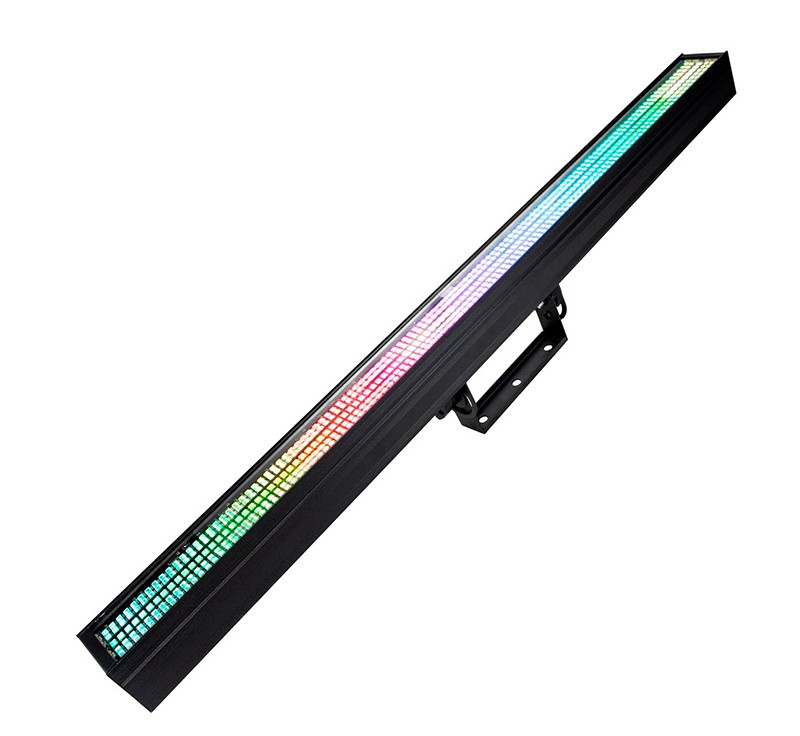

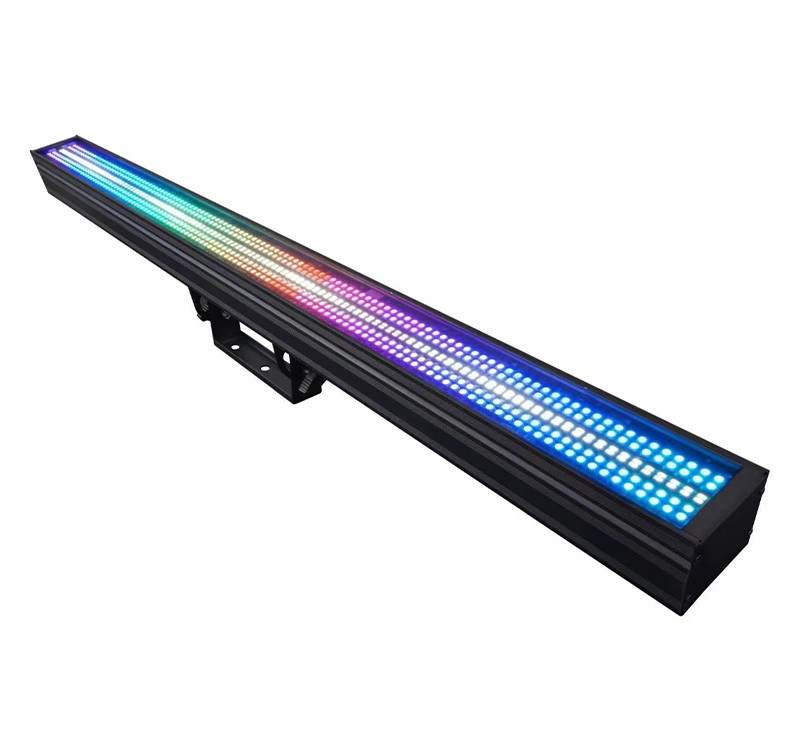

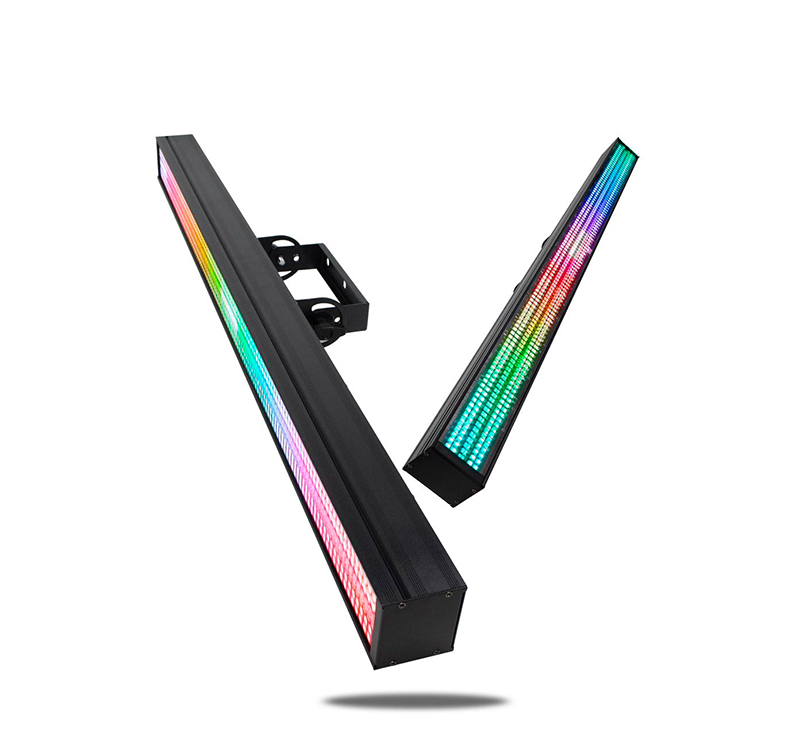

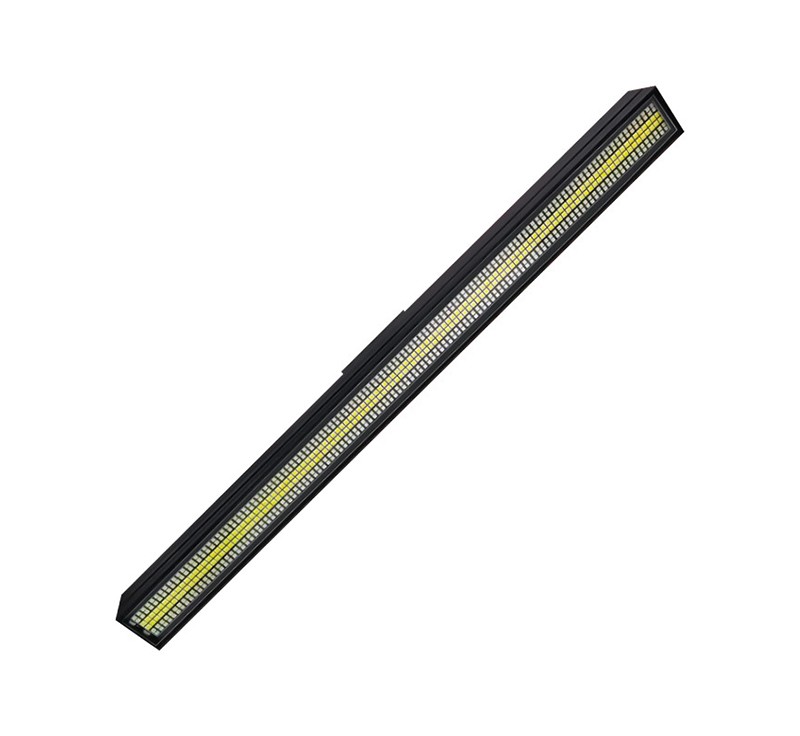

DMON CP720 Linear LED Strobe Light (48+12 Segments)

The Dmon CP720 is a linear LED strobe light combining 48 RGB segments with 12 auxiliary segments, delivering chase, wash, and strobe effects in one fixture. With 16-bit smooth linear dimming and DMX512/RDM control, the CP720 produces detailed segmented effects for indoor productions.

48+12 independently controllable segments — precise chase and pattern effects across the matrix
Three functions in one fixture — chase, wash, and strobe effects without switching between separate units
16-bit smooth linear dimming — precise, flicker-free brightness control
RDM support — remote monitoring and status checks from the console

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

Running separate chase, wash, and strobe fixtures means rigging, powering, and programming multiple unit types. The CP720 combines all three effects in one fixture, cutting down on the number of fixture types a rig needs.

A single-block strobe effect looks flat compared to segmented chase patterns. The CP720's 48+12 independently controllable segments let designers run detailed chase and pattern effects across the matrix, not just simple on/off flashes.

Application Scenarios

Concerts & Festivals

High-output flash built to cut through large crowds and daylight festival conditions.

Club & Nightlife Venues

Fast strobe effects synced to music for venues that run high-energy shows nightly.

Theatrical & Special Effects

Precise strobe timing for productions using flash effects as a storytelling tool, not just a visual accent.

Weddings & Private Parties

A quick burst of energy for the first dance finale or the moment the dance floor opens up.

Specification

LED Configuration	240 × 0.5W SMD 5050 LEDs; 480 × 0.3W RGB LEDs	Input Voltage	AC 100–240V, 50/60Hz
Power Consumption	250W	Control Modes	DMX512, Auto, Master-Slave, Sound Active, RDM
DMX Channels	CH4 / CH16 / CH168	Dimming	16-bit smooth linear dimming 0–100%
Strobe Frequency	1–30 Hz	Segment Structure	48 RGB segments + 12 auxiliary segments
Effect Functions	Chase, wash, strobe effects	Operating Temperature	-30°C to +50°C
Housing	Metal housing, black finish	Connection	DMX512 input/output, Power input/output
IP Rating	IP20 (indoor use)

Details & Features

Frequently Asked Questions

Can this fixture be used outdoors?

The CP720 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.

Can the CP720 be controlled by third-party lighting consoles?

Yes. It runs on standard DMX512 protocol with selectable 4 CH, 16 CH, or 168 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.

What does the segmented control let me do?

The 48+12 segments can each be controlled independently, allowing detailed chase and pattern effects across the fixture rather than a single uniform strobe flash.

Does the LED source need to be replaced like a traditional lamp?

No. The CP720 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.

Do you offer OEM/ODM or custom branding?

Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.

What's the warranty and how does after-sales support work?

2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
