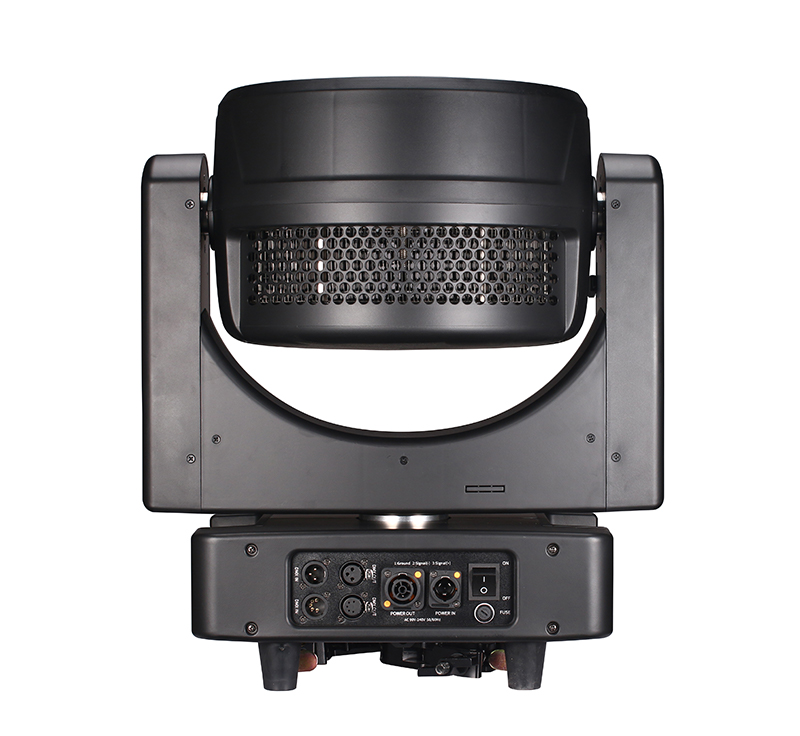

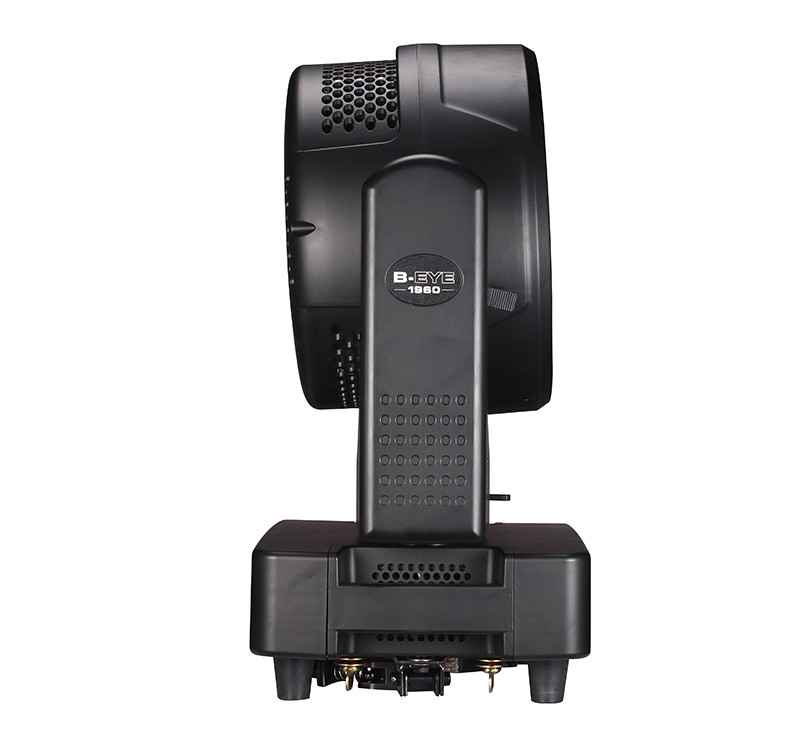

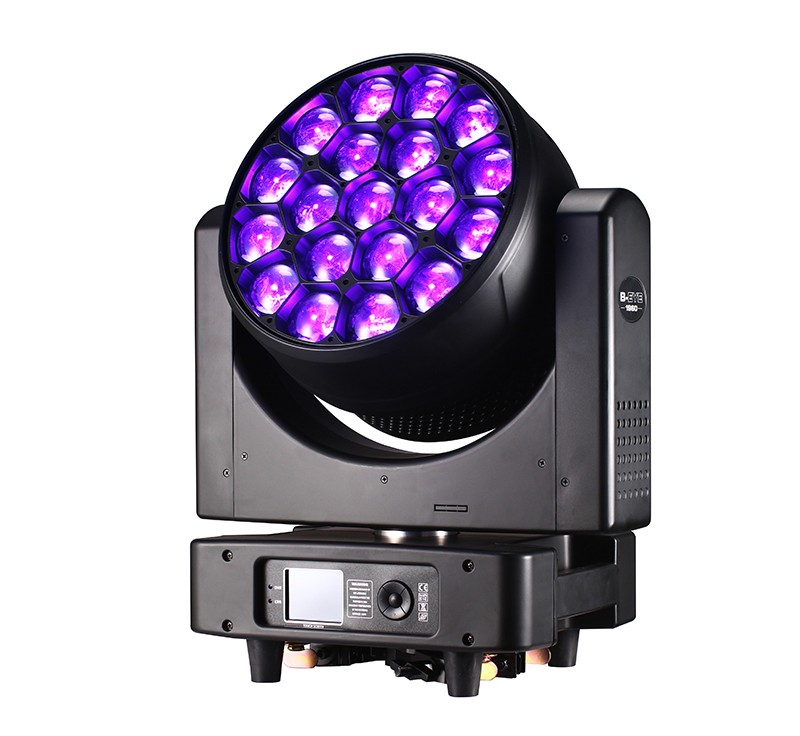

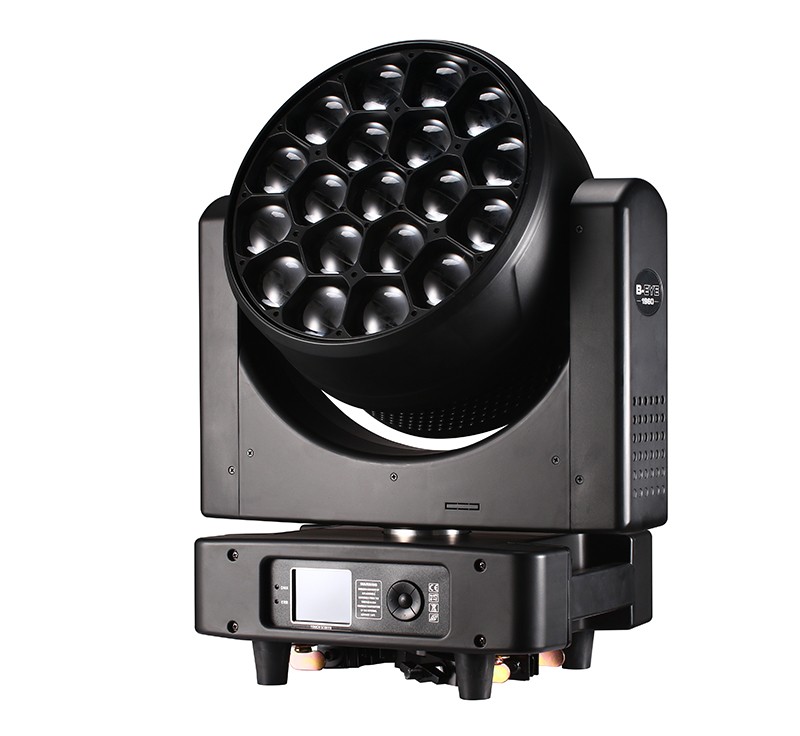

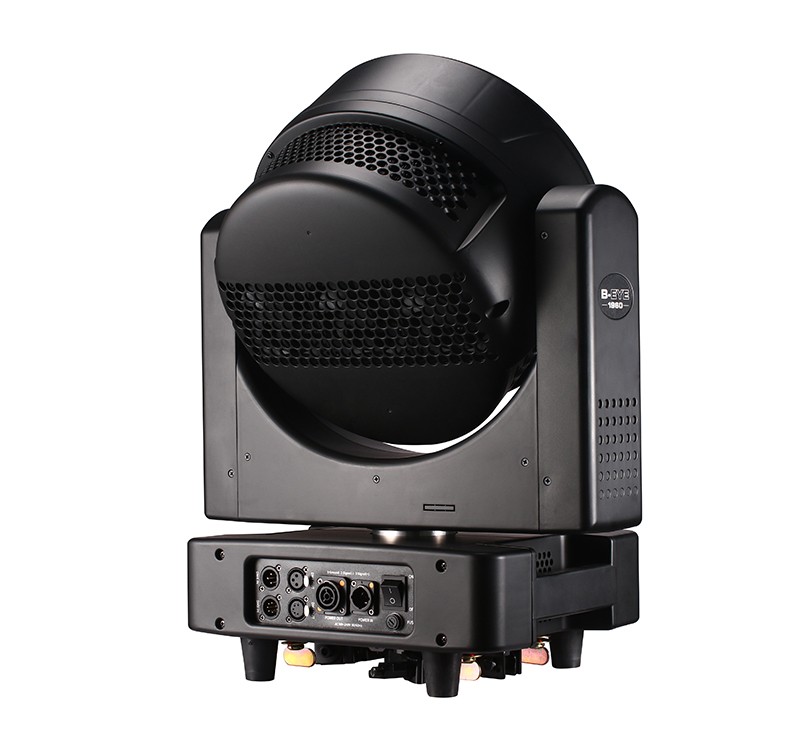

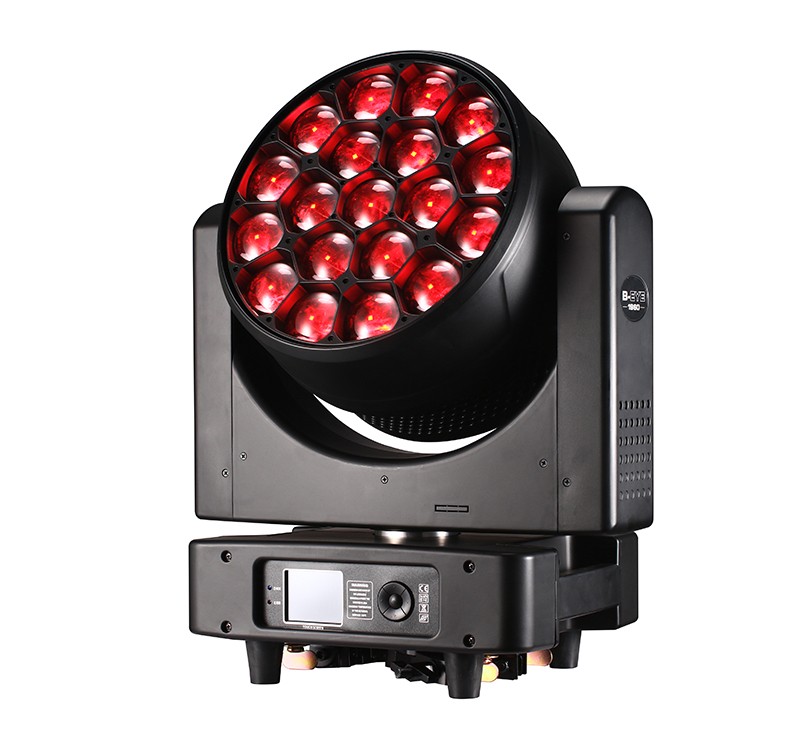

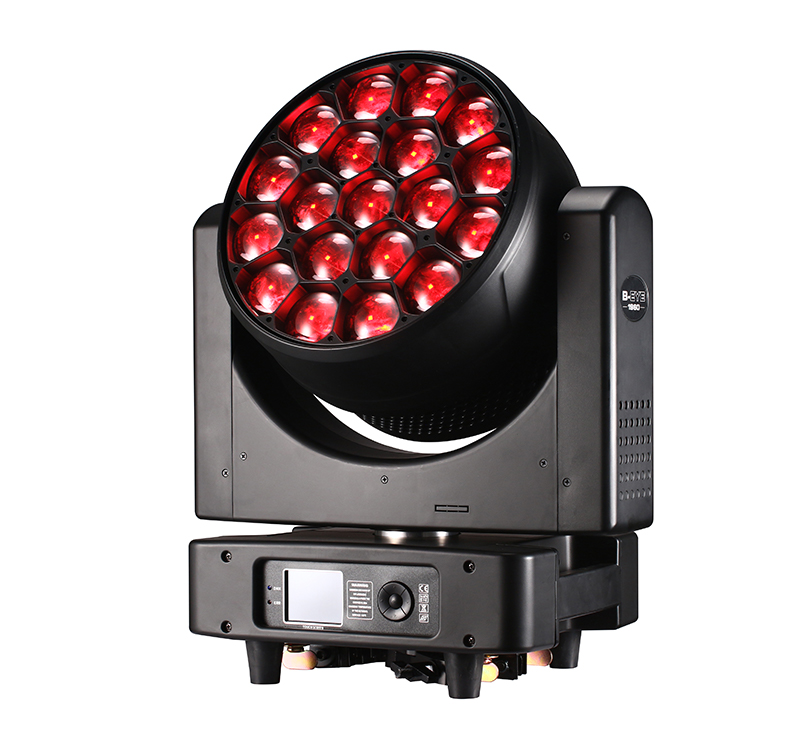

DMON LM1960P 19×60W RGBW Big Bee-Eye Moving Head Light
The Dmon LM1960P is a 19×60W RGBW big bee-eye moving head light with individually controllable pixels and a 3°–45° electronic zoom. Built with intelligent cooling and DMX512/RDM control, the LM1960P delivers high-output pixel-mapped effects for productions that need more visual scale than a compact bee-eye fixture provides.
- 19×60W RGBW output — higher-intensity pixel array for larger productions
- Individually controllable pixels — precise chase and pattern effects across the full array
- 3°–45° electronic zoom — adjusts beam width without swapping fixtures
- Intelligent cooling with automatic fan speed adjustment — stable output during extended use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Smaller bee-eye fixtures run out of visual scale on bigger stages. The LM1960P steps up to 19×60W RGBW LEDs, giving designers a higher-output pixel array for productions where a compact fixture doesn't carry enough presence.
Running a dense pixel array at high output generates heat that can shorten LED life if left unmanaged. The LM1960P's intelligent cooling system automatically adjusts fan speed to match thermal load, keeping output stable through longer shows.
Application Scenarios
Specification
| Light Source | 19 × 60W RGBW 4-in-1 LED | Zoom Range | 3°–45° electronic zoom |
| Max Power Consumption | 1200W | Control Modes | DMX512 / Auto / Sound / RDM |
| DMX Channels | 21 / 23 / 35 / 78 / 92 / 97 / 99 CH | Pan / Tilt | 540° / 270° (16-bit precision scanning) |
| Pixel Control | Each LED individually controllable | Display | Color LCD display, 180° reversible |
| Signal I/O | 3-pin & 5-pin XLR | Power Connector | PowerCon input |
| Housing Material | Flame-retardant high-temperature ABS plastic | Protection Rating | IP20 |
| Thermal Protection | Intelligent cooling system with automatic fan speed adjustment | Packing Size | 550 × 430 × 615 mm |
| Net Weight | 24 kg |
Details & Features
What's in the Box
- • DMON LM1960P Moving Head (19 × 60W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM1960P be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (21 CH to 99 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the benefit of the higher 60W-per-pixel output?
Each of the 19 pixels runs at 60W rather than a lower wattage, giving the fixture more visual scale and presence for larger stages compared to a compact bee-eye light.
Can this fixture be used outdoors?
The LM1960P is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.
Does the LED source need to be replaced like a traditional lamp?
No. The LM1960P uses individually controllable RGBW LEDs with no scheduled lamp replacement cycle required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
