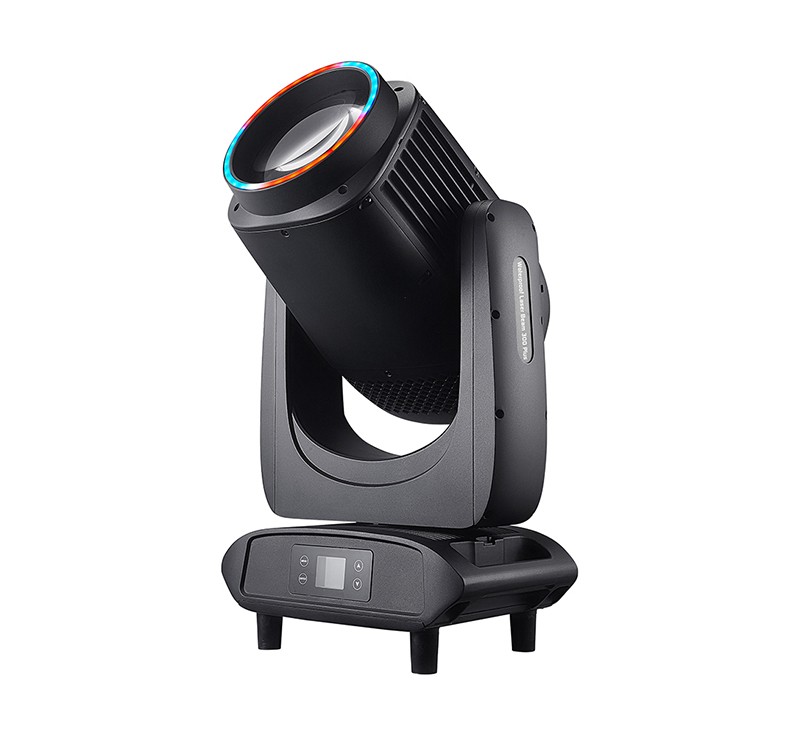

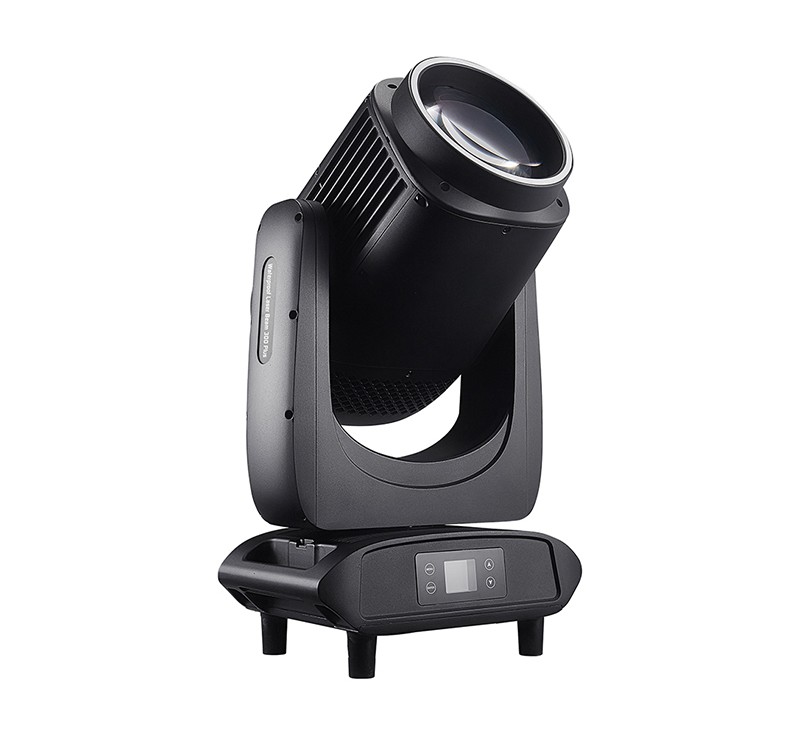

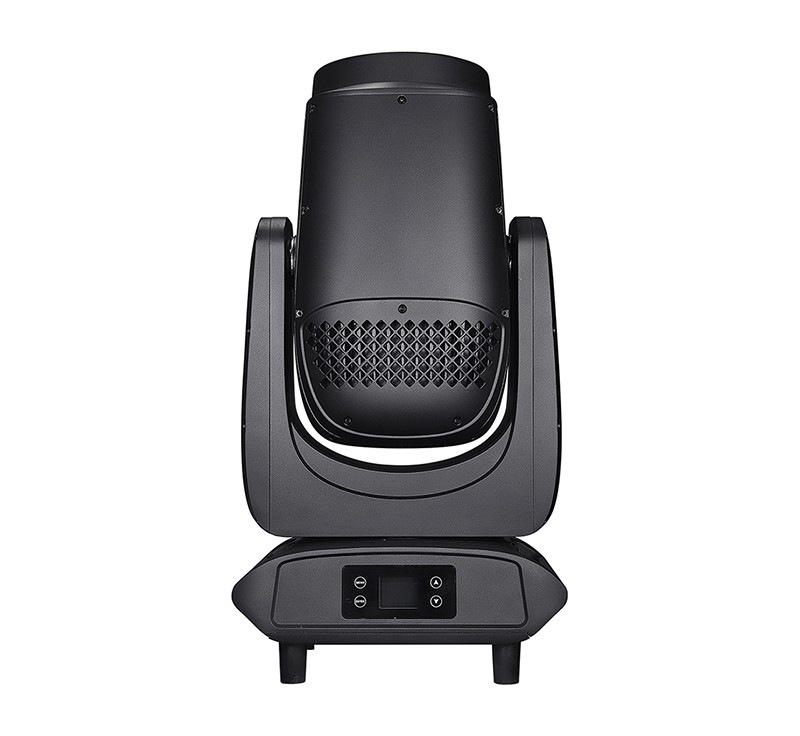

DMON YJ120 120W Outdoor Waterproof Laser Beam Moving Head Light
The Dmon YJ120 is an IP66-rated outdoor waterproof laser beam moving head light with an ultra-narrow 0°–1.8° beam angle, 13-color and 13-gobo wheels, and 8/8+16-facet rotating prisms. With 540° pan and 270° tilt on fast three-phase motors, the YJ120 produces sharp, far-reaching beam effects built for demanding outdoor conditions.
- Ultra-narrow 0°–1.8° beam — sharp, far-reaching beam effects that stay visible over long distances
- IP66 waterproof — reliable operation in outdoor concert and festival conditions
- 13 colors + 13 gobos with dual rotating prisms — extensive effect combinations from one fixture
- Photoelectric auto-reset — accurate positioning maintained through repeated setup and use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A wide beam loses intensity and definition over long throw distances, especially outdoors. The YJ120's ultra-narrow 0°–1.8° beam angle stays sharp and visible even across large venues or open sky, where a standard beam angle would look diffuse.
Most outdoor moving heads are built for rain exposure but not sustained heavy weather. The YJ120's IP66 rating and full die-cast aluminum housing keep it running reliably through demanding outdoor conditions without a rain cover.

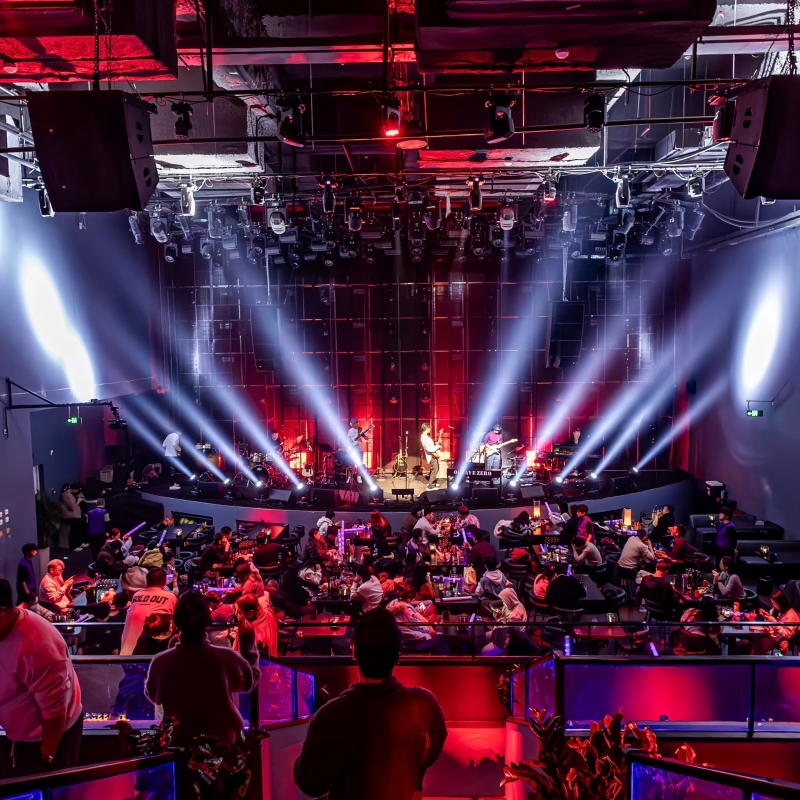

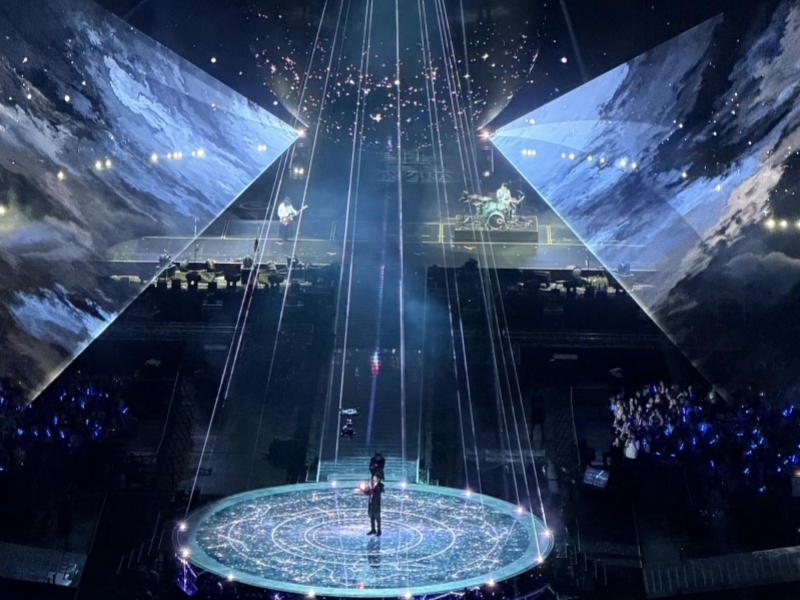

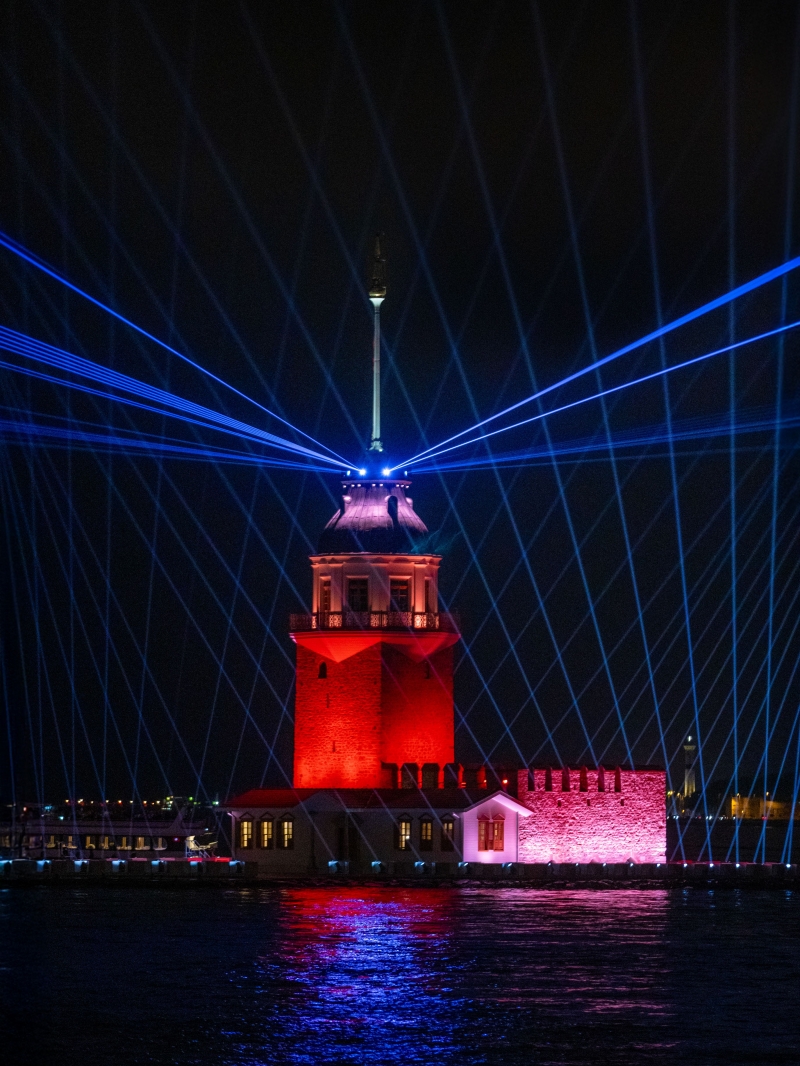

Application Scenarios
Specification
| Light Source Type | Laser light source | Input Voltage | Wide voltage AC110–240V, 50/60Hz |
| Power Consumption | 300W | Beam Angle | 0°–1.8° ultra-narrow beam |
| Color Wheel | 13 colors + white, rainbow flow effect, frost function | Gobo Wheel | 13 fixed gobos + white |
| Focus | Electronic linear motorized focus with high-density glass optics | Dimming | 0–100% smooth linear dimming |
| DMX Channels | 24CH (DMX512 standard) | Lens Diameter | 165 mm |
| Pan/Tilt Motors | Three-phase motors for fast, stable and silent movement | Prism | 8-facet prism / 8+16 facet prisms with rotation and macro effects |
| Display | LCD display adaptable to different mounting orientations | Pan/Tilt Range | 540° pan / 270° tilt |
| Reset System | Intelligent photoelectric auto-reset and position correction | Housing Material | Full die-cast aluminum |
| Control Modes | DMX512, RDM, Auto, Master-Slave | IP Rating | IP66 waterproof |
| Fixture Size | 328 × 220 × 603 mm | Net Weight | 19.5 kg |
| Packing Size | 645 × 490 × 420 mm | Gross Weight | 24 kg |
| Flight Case (2 units) | 770 × 370 × 800 mm |

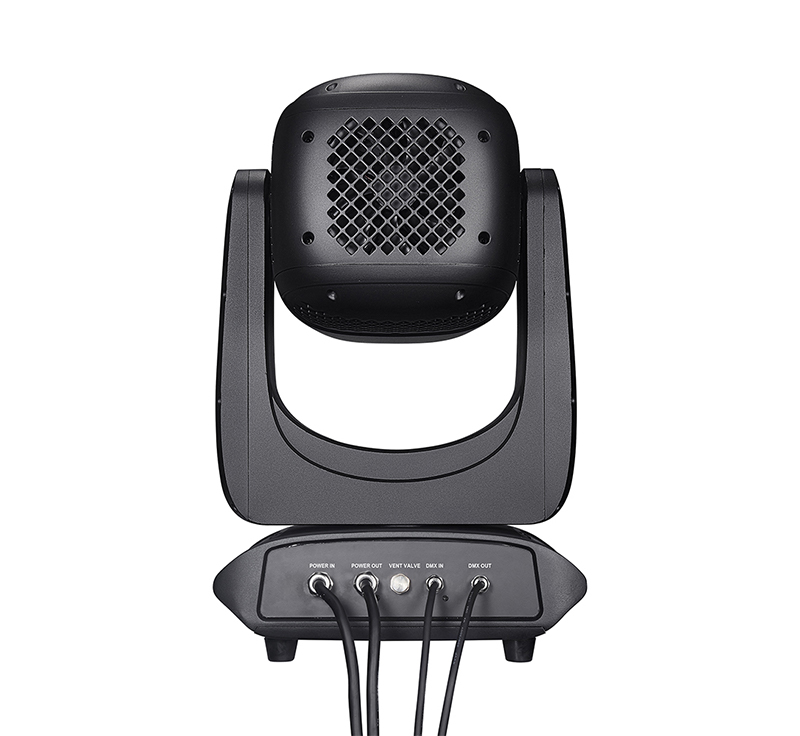

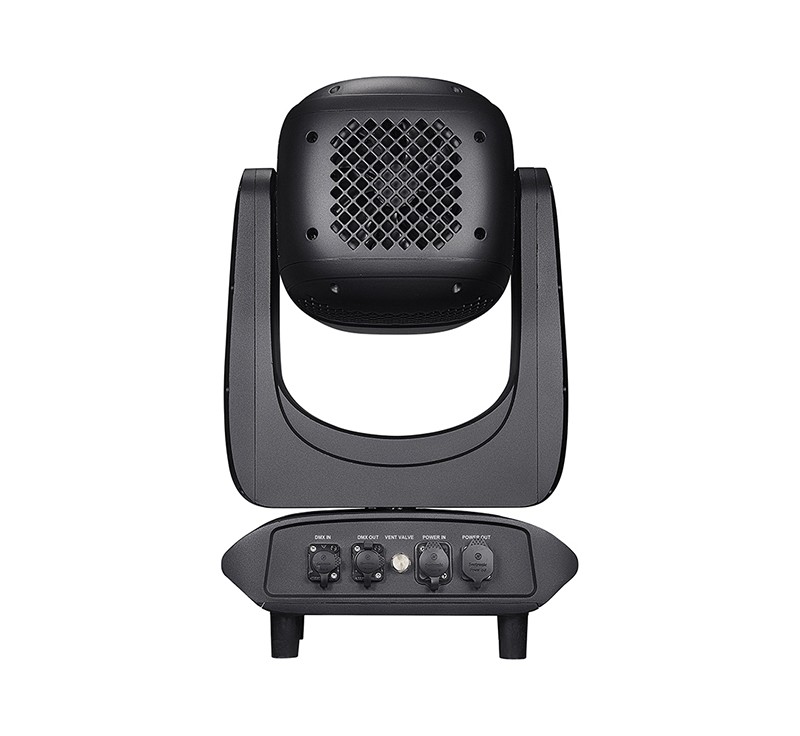

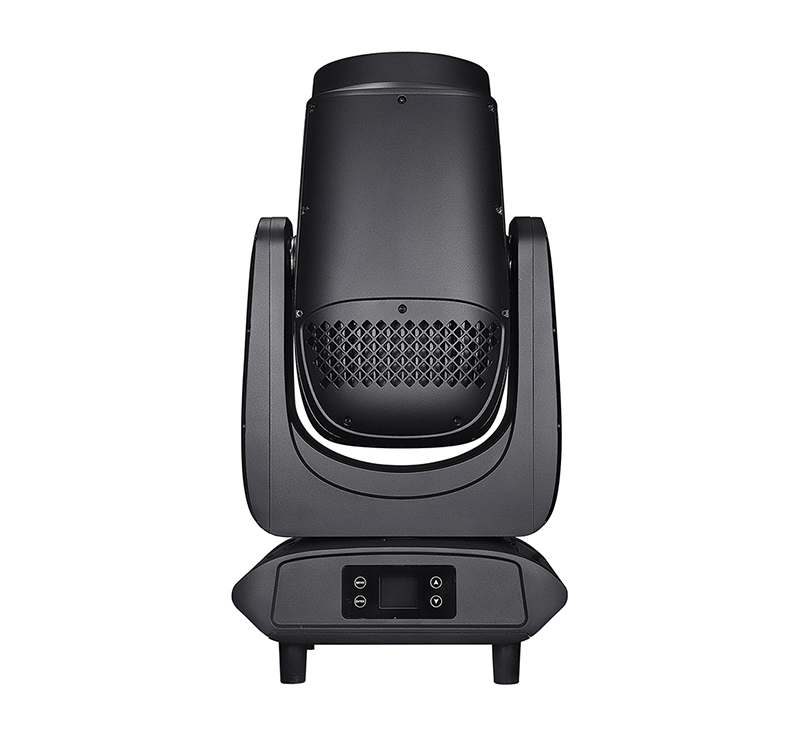

Details & Features
Frequently Asked Questions
Is the YJ120 truly rated for outdoor use?
Yes. The YJ120 is IP66-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the YJ120 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 24 channels, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the ultra-narrow beam angle mean in practice?
A beam angle of 0°–1.8° keeps the beam tightly focused over long distances, producing the sharp, laser-like effect commonly used in sky beam and large-venue productions, rather than a broader diffused beam.
What's the difference between the two prism options?
The 8-facet prism produces a moderate multiplication effect, while the 8+16 facet combination creates denser, more complex beam multiplication and macro patterns.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
