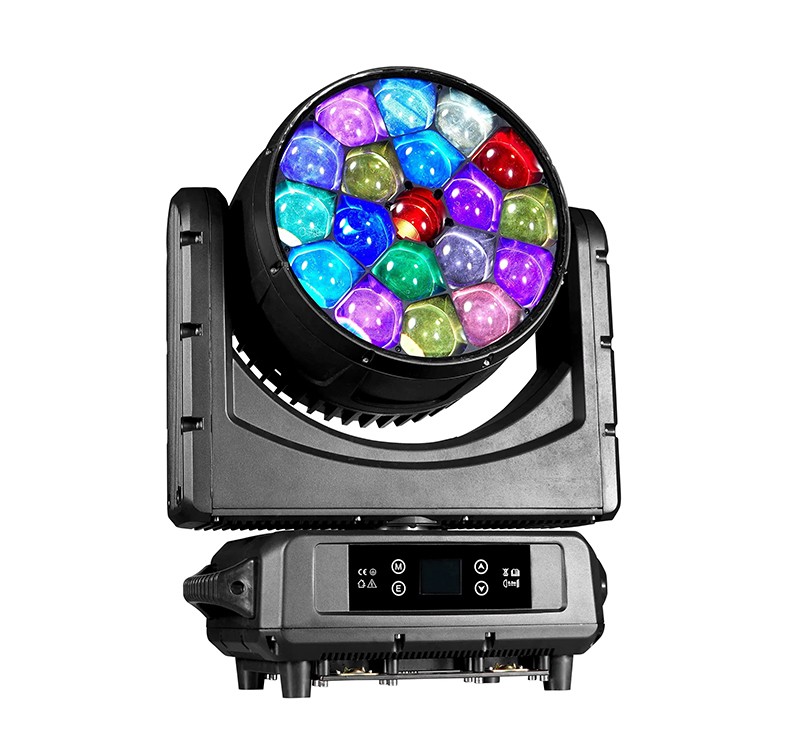

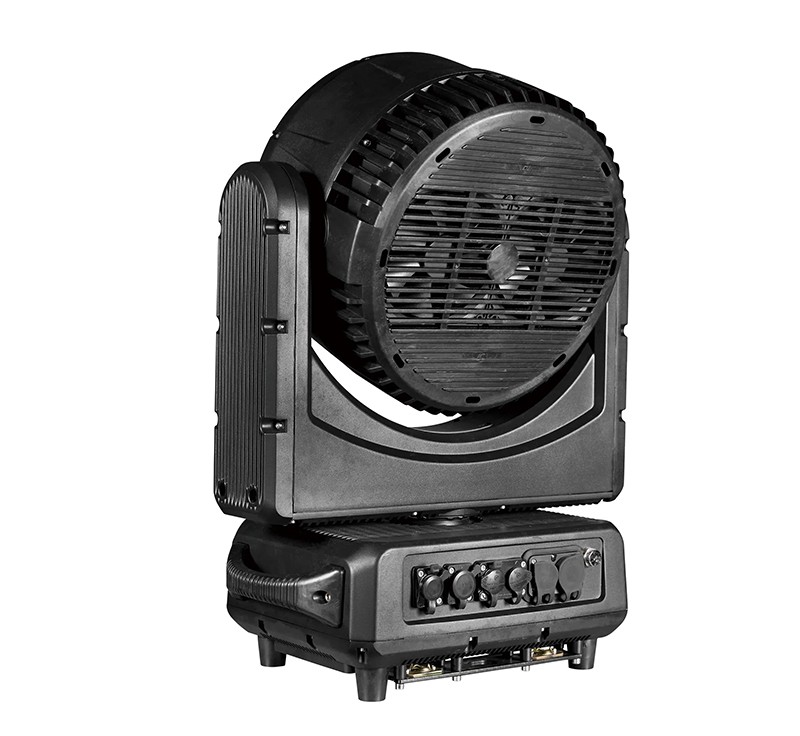

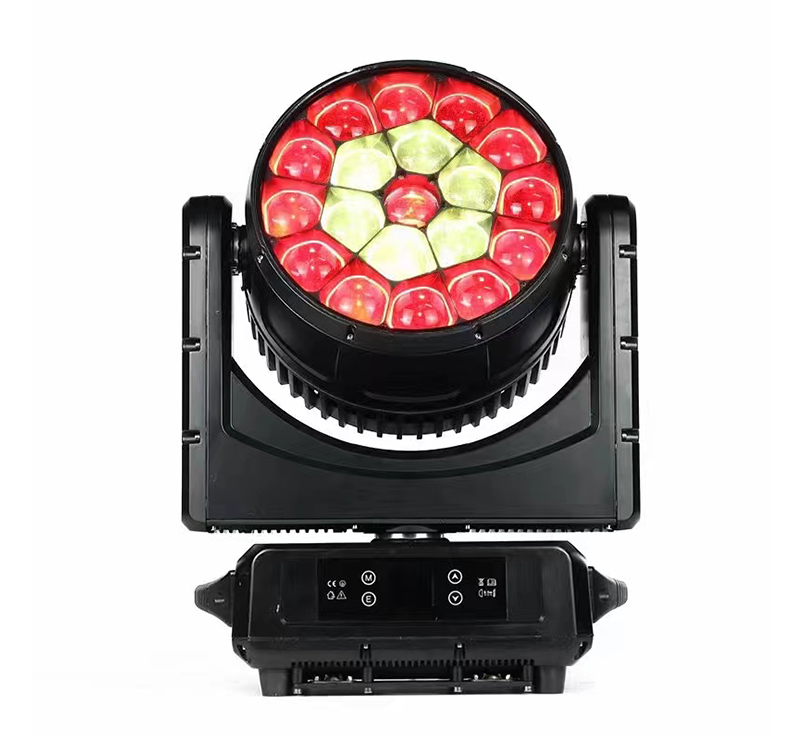

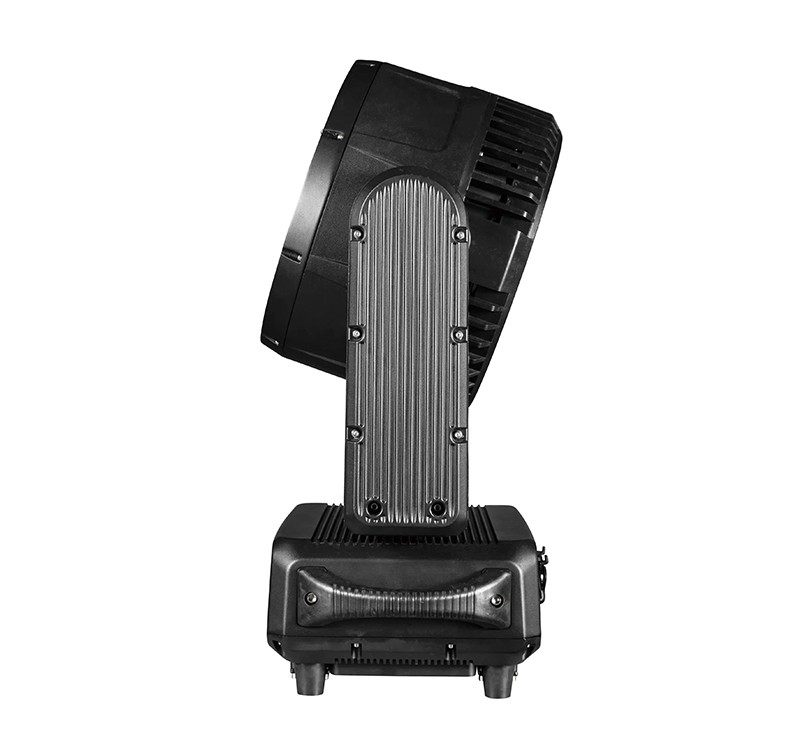

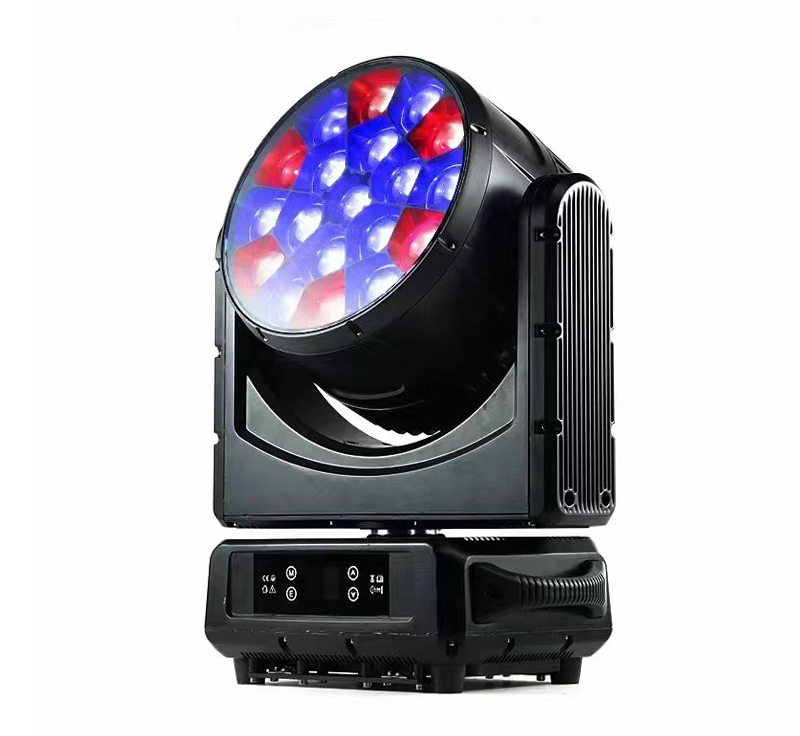

DMON LM1940PF Outdoor 19×40W RGBW Waterproof Bee-Eye Moving Head Light
The Dmon LM1940PF is an IP65-rated outdoor waterproof bee-eye moving head light powered by 19×40W RGBW LEDs. With a rotating bee-eye lens array and built-in vortex, kaleidoscope, beam, and wash effects, the LM1940PF brings high-output pixel-mapped visual effects to outdoor rigs without needing a rain cover.
- IP65 rated — true outdoor waterproof protection, no rain cover required
- 19×40W RGBW output — high-intensity pixel array for large-scale outdoor productions
- Rotating bee-eye lens array — spinning visual texture for vortex and kaleidoscope effects
- Magnetic encoder positioning — accurate, repeatable movement outdoors
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most pixel and bee-eye fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The LM1940PF is IP65 from the factory, built to sit in an exposed outdoor rig through wind and rain without extra weatherproofing or downtime.
Standard positioning motors can drift after repeated outdoor use, especially with temperature swings. The LM1940PF uses magnetic encoder positioning with reinforced silent motors, keeping pan/tilt movement accurate even after long-term exposure to the elements.
Application Scenarios
Specification
| Light Source | 19 × 40W RGBW LED (5060 package) | LED Lifetime | Approx. 30,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 1000W |
| Color System | RGBW color mixing with linear CTO control | Zoom | 2°–60° DMX linear zoom |
| Dimming | 0–100% electronic dimming, gamma adjustable (1.2kHz–25kHz), flicker-free | Strobe | 0.3–25 Hz, sync / async / random |
| Pan / Tilt | 540° / 270° (16-bit resolution) | Motor System | Reinforced silent three-phase motors with magnetic encoder positioning |
| DMX Channel Modes | 22 CH (Basic), 22CH+RGB, 22CH+RGBW, 36CH, 36CH+RGB, 36CH+RGBW | Control Protocol | DMX512, RDM |

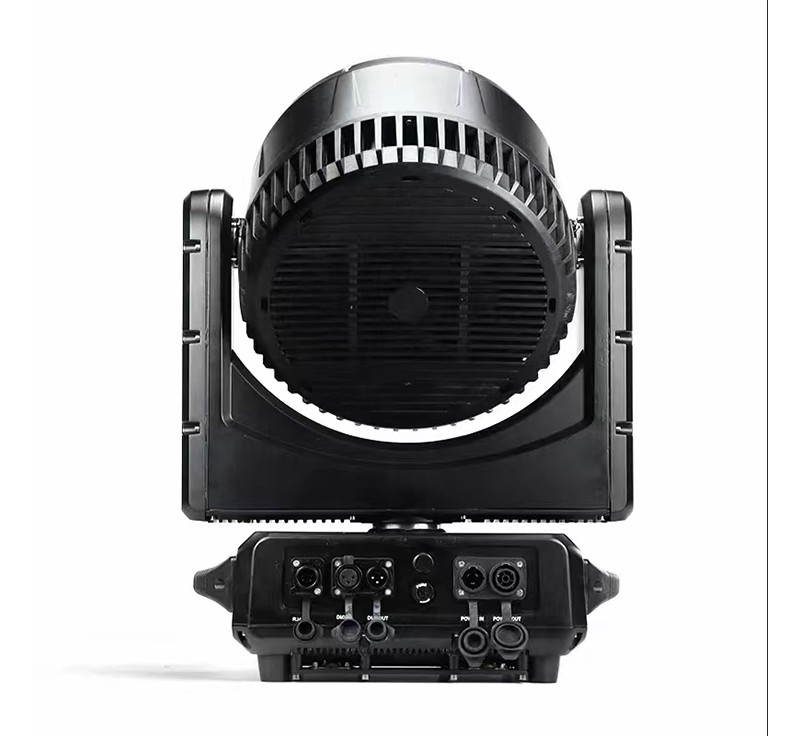

| Control Interfaces | 3-pin DMX (optional 5-pin), power in/out | Display | 1.77-inch touch LCD display, bilingual menu, auto-rotate |
| Sleep Mode | Auto standby when DMX signal is lost | Cooling System | Copper heat-pipe heatsink with intelligent fan control |
| Protection | Overheat protection and smart noise-temperature balance | IP Rating | IP65 (true outdoor waterproof) |
| Fixture Dimensions | 432 × 333 × 485 mm | Net Weight | 23.5 kg |
| Gross Weight (Carton) | 26.9 kg | Carton Size | 550 × 430 × 615 mm |
| Flight Case (2 pcs) | 870 × 460 × 800 mm, G.W. 75 kg | Effects | Vortex, kaleidoscope, beam, wash |

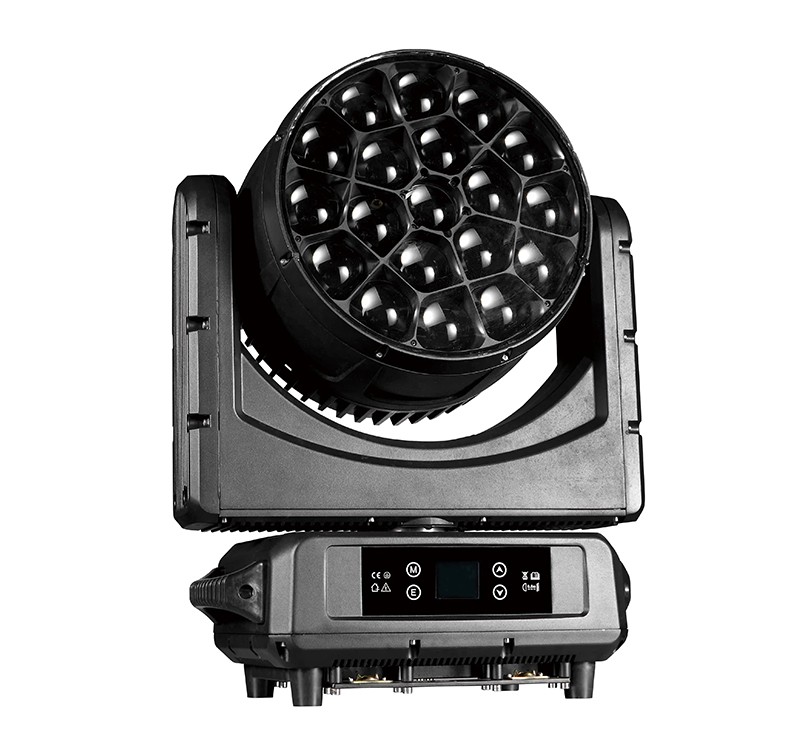

| Front Optics | Seamless rotating bee-eye lens array with aspherical lens design | Pixel Control | Individual LED pixel control with chase and strobe programs |
| Special Features | Auto screen rotation |
Details & Features
What's in the Box
- • DMON LM1940PF Moving Head (19 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory (2 pcs configuration).
Frequently Asked Questions
Is the LM1940PF truly rated for outdoor use?
Yes. The LM1940PF is IP65-rated from the factory, built for direct exposure to rain and outdoor conditions without an additional rain cover.
Can the LM1940PF be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (22 CH to 36 CH, with RGB/RGBW variants), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM1940PF uses 19×40W RGBW LEDs rated for approximately 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What's the difference between the various DMX channel modes?
The 22 CH and 36 CH base modes offer standard control, while the RGB and RGBW variants add simplified color-only channel layouts — useful for integrating with different console templates without needing full-featured control.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
