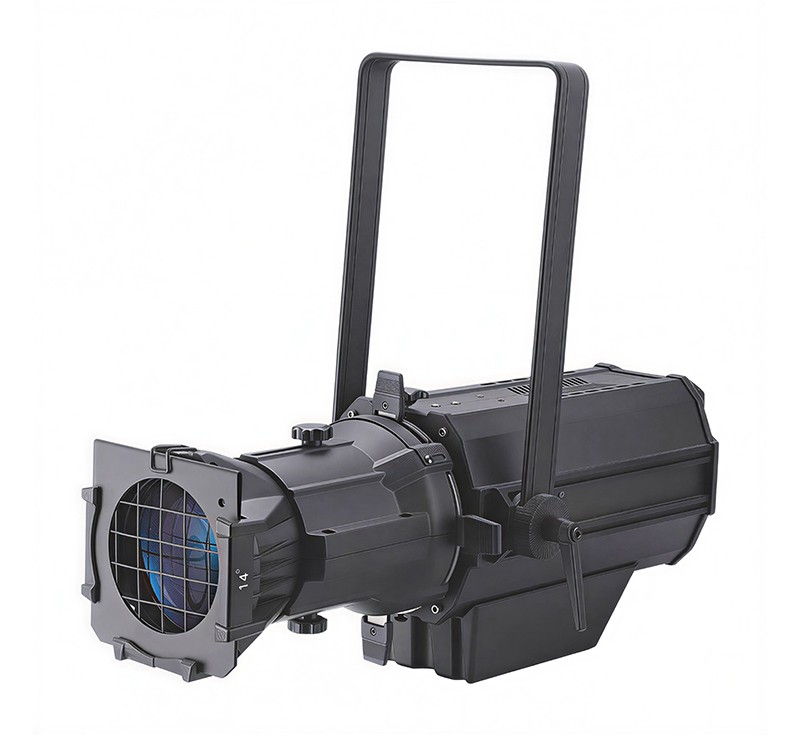

DMON CX300 300W/400W LED Profile Light / LED Ellipsoidal Spotlight 简介:
The Dmon CX300 is a 300W/400W LED profile light (ellipsoidal spotlight) powered by a CITIZEN COB LED source with CRI>92 color accuracy. With selectable beam angles from 14° to 50° and multiple dimming curve options, the CX300 delivers precise, high-quality illumination for theatrical, studio, and architectural applications.
- CITIZEN COB LED source — a recognized brand known for consistent, reliable output
- CRI>92 — accurate color rendering for productions where color fidelity matters
- Selectable beam angles (14°/19°/26°/36°/50°) — precise framing for different throw distances
- Multiple dimming curves (Linear/S-curve/Square/Inverse Square) — matches dimming behavior to different console setups
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Standard LED output is fine for most work, but color-critical productions — broadcast, theatrical performances, product launches — need output that renders skin tones and fabric colors accurately. The CX300's CITIZEN COB LED source delivers CRI>92, giving designers that color fidelity in a fixed-mount fixture.
Different consoles handle dimming curves differently, and a mismatched curve can make fades look uneven. The CX300 offers four selectable dimming curves — Linear, S-curve, Square, and Inverse Square — so operators can match the fixture's response to their console's programming.
Application Scenarios
Specification
| Light Source | CITIZEN 300W/400W COB LED | LED Lifetime | ≥50,000 hours |
| Input Voltage | AC 90–240V ±10%, 50/60Hz | Power Consumption | 350W/450W |
| Color Temperature | 3200K ±200K / 5600K ±150K | CRI | >92 |
| Beam Angle Options | 14°/19° / 26° / 36° / 50° | DMX Channels | 2CH / 5CH |
| Control Protocol | DMX512 | Control Modes | DMX512, Master-Slave, Auto |
| Dimming System | 0–100% smooth linear dimming with curve options (Linear / S-curve / Square / Inverse Square) | Strobe | Electronic strobe up to 25 flashes/sec with adjustable speed and random pulse |
| Signal Connection | 3-pin XLR input/output | Power Connection | PowerCON input/output |
| Cooling System | Natural airflow with silent fan | Housing Material | Aluminum alloy, black finish |
| Operating Temperature | -30°C to +40°C | IP Rating | IP20 (indoor use) |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Can the CX300 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 2 CH or 5 CH modes, compatible with any DMX-compliant console on the market.
What does the CRI>92 rating mean for color accuracy?
CRI>92 means the CX300 renders colors very close to how they appear under natural light, making it suitable for productions where accurate skin tones and fabric colors matter, such as broadcast or theatrical work.
Which dimming curve should I use?
Linear dimming provides a straightforward, even fade, while S-curve, Square, and Inverse Square options adjust how brightness changes across the dimming range — choose the curve that best matches your console's programming or desired fade behavior.
Does the LED source need to be replaced like a traditional lamp?
No. The CX300 uses a CITIZEN COB LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
