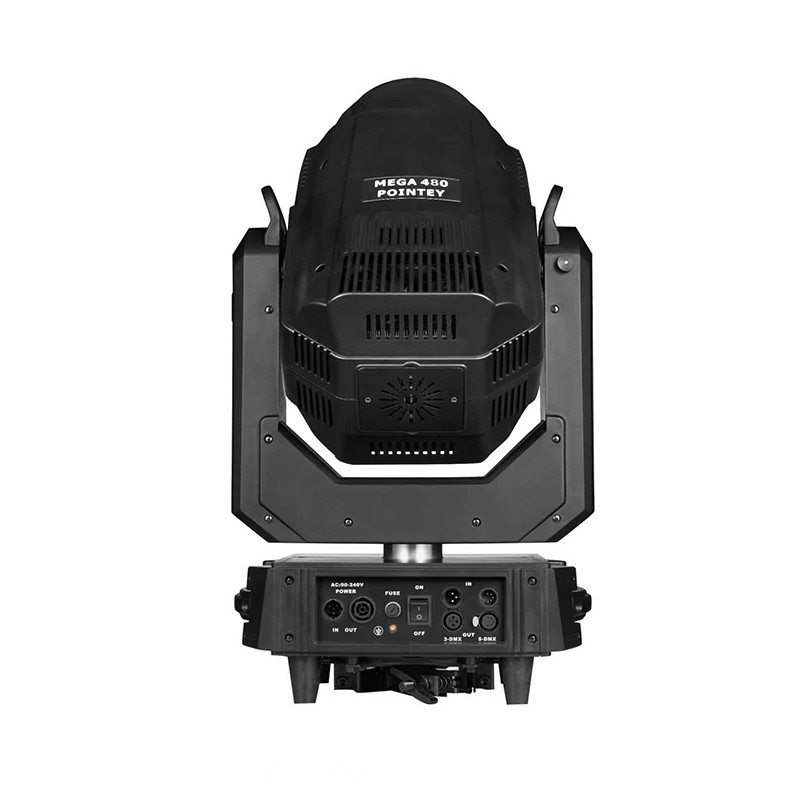

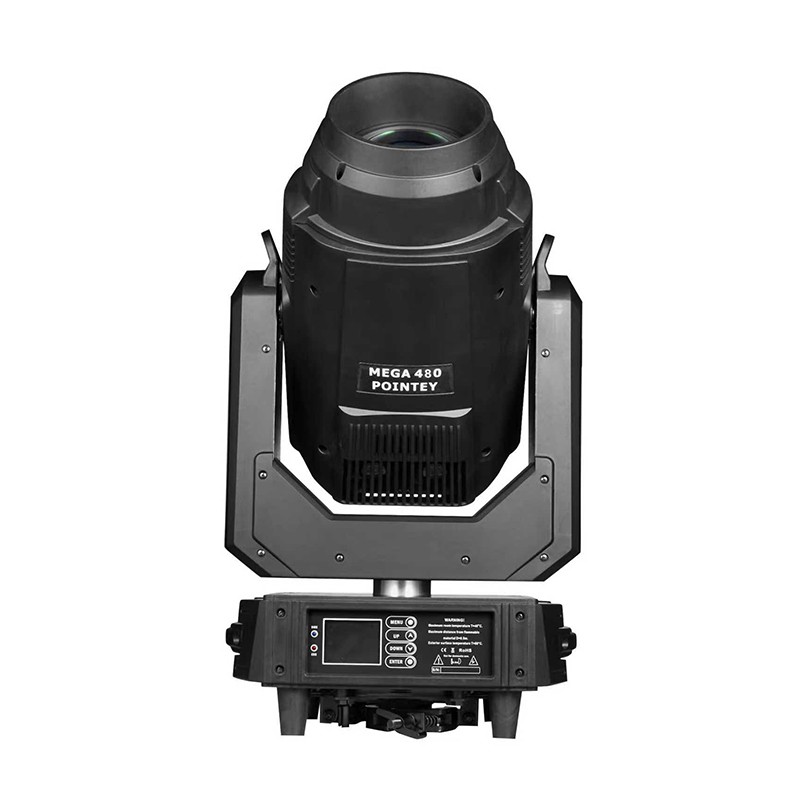

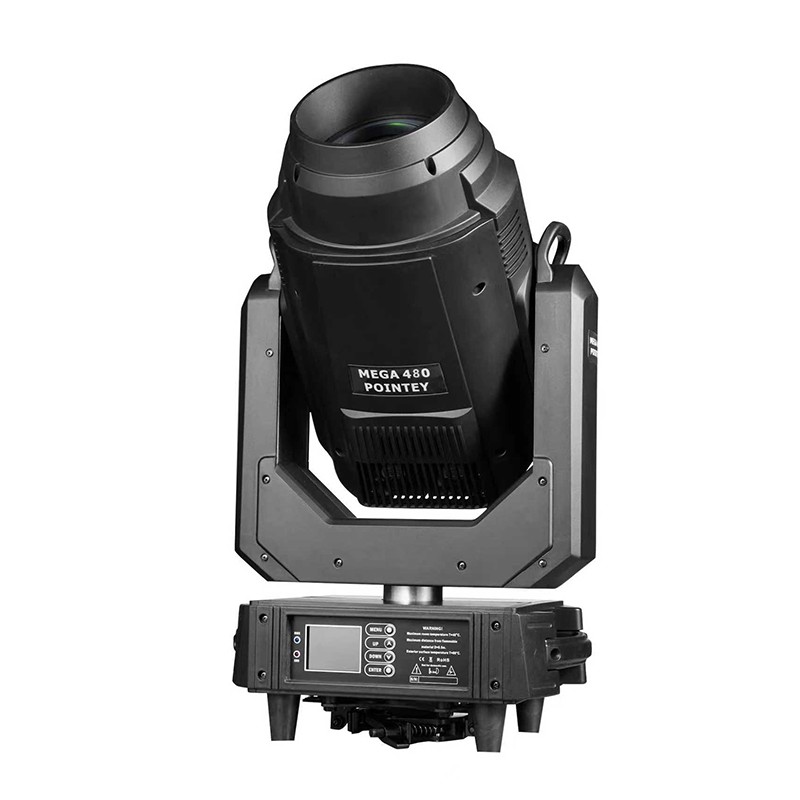

DMON B480 480W Spot Moving Head Light with Zoom & Linear CMY
The Dmon B480 is a professional 480W spot moving head light featuring linear CMY color mixing, zoom function, and precise electronic focus for sharp gobo projection. With dual gobo wheels and a dynamic effect wheel, the B480 delivers the framing precision and pattern variety productions need for theatrical, broadcast, and architectural gobo work.
- Linear CMY color mixing — smooth, continuous color transitions beyond a fixed color wheel
- Zoom + electronic focus — sharp, adjustable framing for precise gobo projection
- Dual gobo wheels (9 rotating + 10 fixed) + dynamic effect wheel — extensive pattern variation in one fixture
- 34/39 CH selectable DMX modes — flexible integration with different console setups
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed color wheel limits you to preset colors and hard transitions between them. The B480's linear CMY mixing system solves that — designers can dial in smooth, continuous color shifts on the fly, without being boxed into a set palette.
Sharp gobo projection depends on precise focus and framing, not just a good pattern wheel. The B480 pairs zoom and electronic focus with dual gobo wheels — 9 rotating and 10 fixed — so patterns stay crisp and well-defined whether you're projecting a logo on a building facade or framing a scene on stage.
Application Scenarios
Specification
| Light Source | Philips 480W Lamp | Lamp Lifetime | Approx. 2,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power Consumption | 580W |
| Color Temperature | 8000K | Beam Lens Diameter | Φ148mm |
| DMX Channel Modes | 34 CH / 39 CH selectable | Pan / Tilt | 540° / 270° with auto reposition |
| Color Wheel | Open + 13 colors, half-color and rainbow effects, linear CMY function | Rotating Gobo Wheel | Open + 9 rotating gobos |
| Fixed Gobo Wheel | Open + 10 fixed gobos + 4 small open holes | Dynamic Effect Wheel | 1 rotating effect wheel |
| Prism System | 6-facet prism, bi-directional rotation | Zoom | Linear zoom adjustment |
| Focus | Linear electronic focus | Dimming | Electronic shutter, linear dimming |
| Strobe | Synchronous, asynchronous and random strobe modes | Display | Full-color touch screen with Chinese & English menu |
| DMX Monitor | Real-time DMX channel value display | Screen Orientation | Auto flip based on hanging position |
| Error Detection | Automatic error reporting | Packing Size | 500 × 345 × 835 mm (L×W×H) |
| Net Weight | 24.25 kg | Gross Weight (Carton) | 29.5 kg |

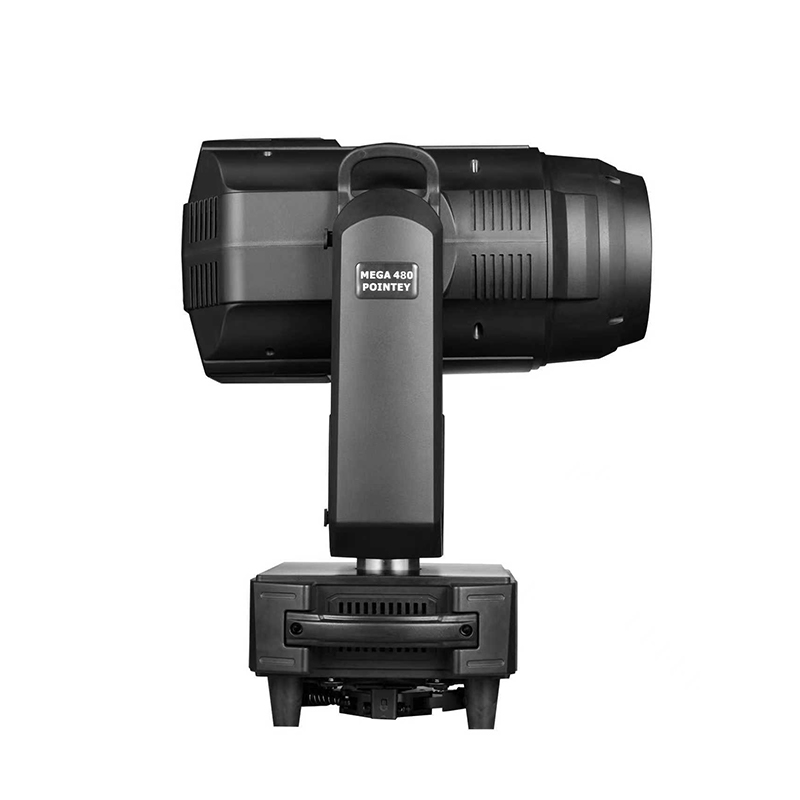

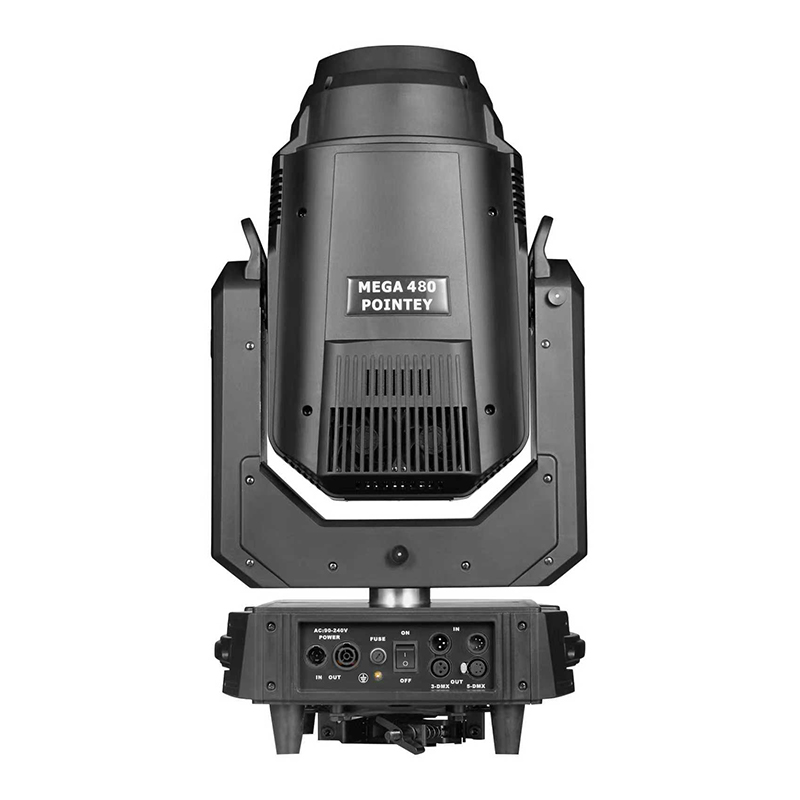

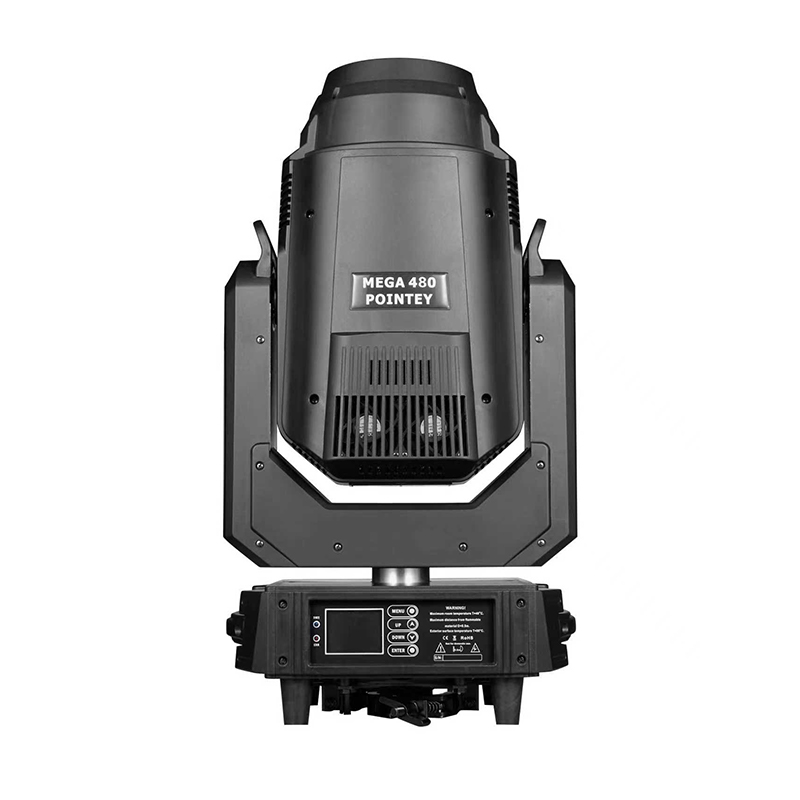

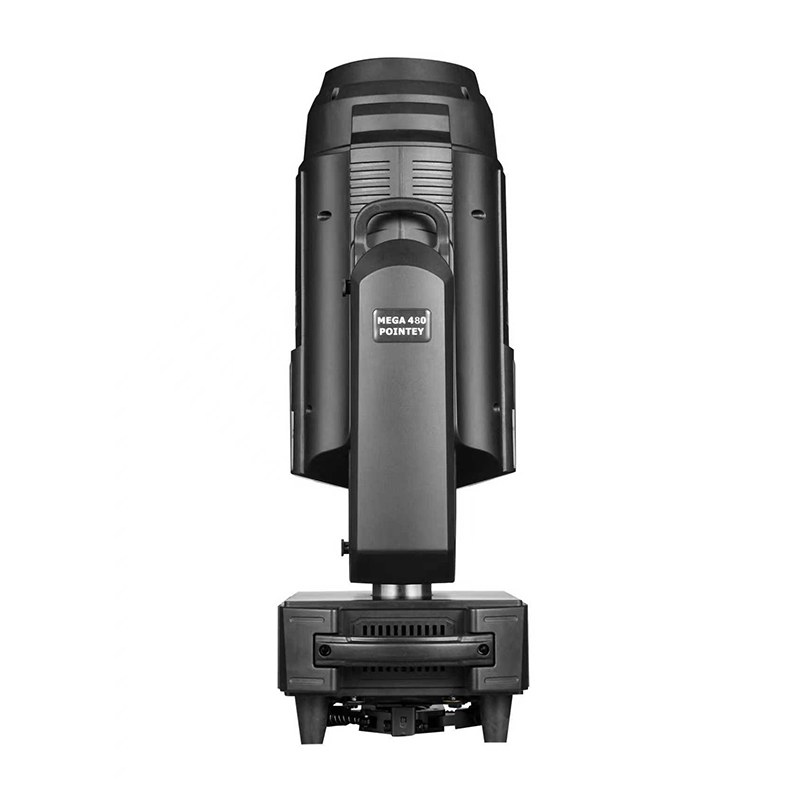

Details & Features
What's in the Box
- • DMON B480 Moving Head (Philips 480W Lamp)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the B480 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 34 CH or 39 CH modes, compatible with any DMX-compliant console on the market.
Is the lamp field-replaceable?
Yes. The Philips 480W lamp can be replaced on-site without returning the fixture. Replacement lamps are available from DMON at cost price under our after-sales policy.
What's the difference between the 34 CH and 39 CH modes?
The two modes give operators a choice between a simplified channel layout for quick setup and an expanded layout with finer control over individual functions — useful when integrating with different console templates.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What can the linear CMY and zoom function do that a standard color wheel can't?
Linear CMY allows continuous, stepless color mixing instead of switching between fixed colors, and the zoom function lets you adjust beam width and framing on the fly — from a tight spot to a wider gobo projection — without changing lenses or fixtures.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
