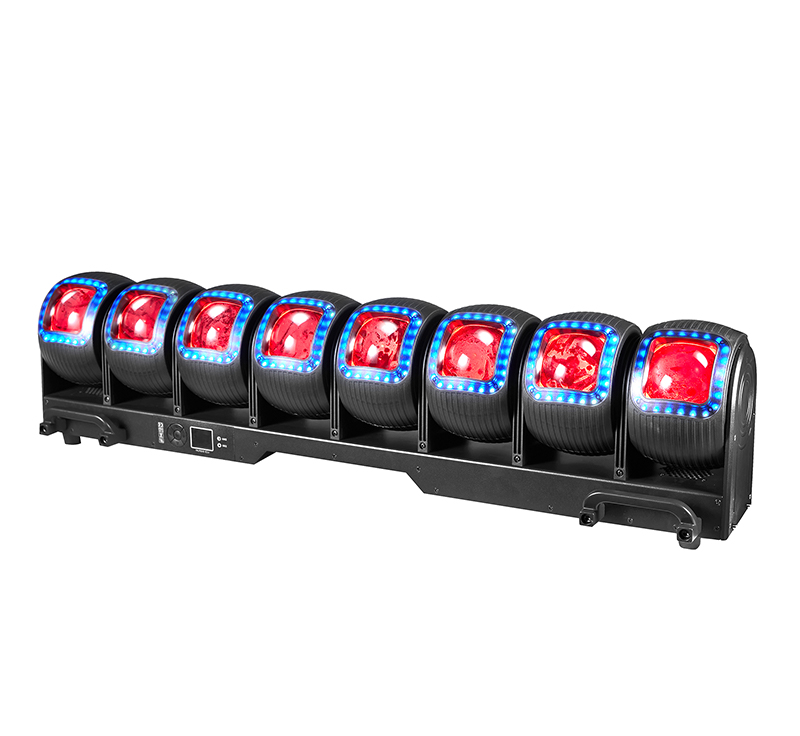

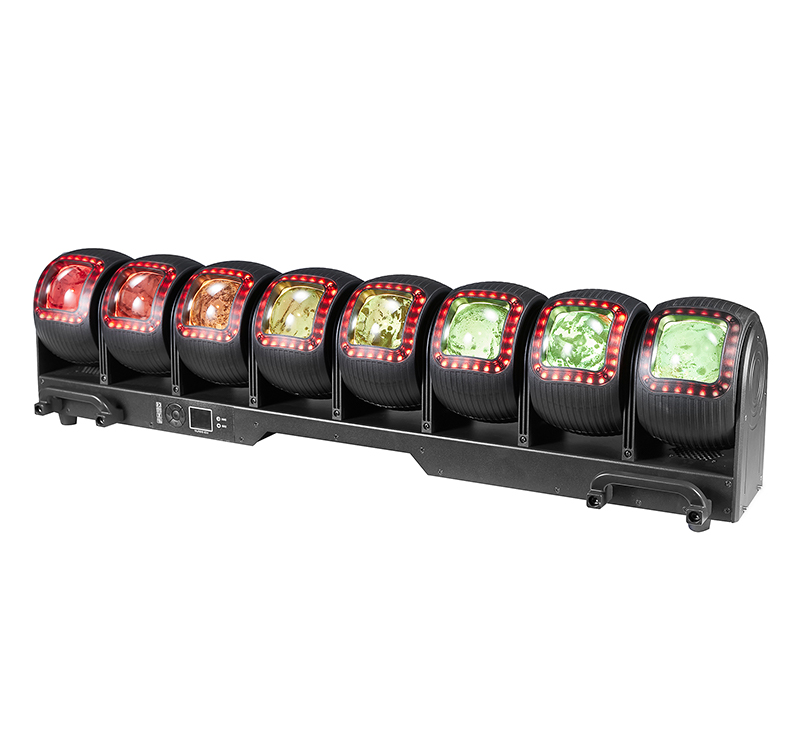

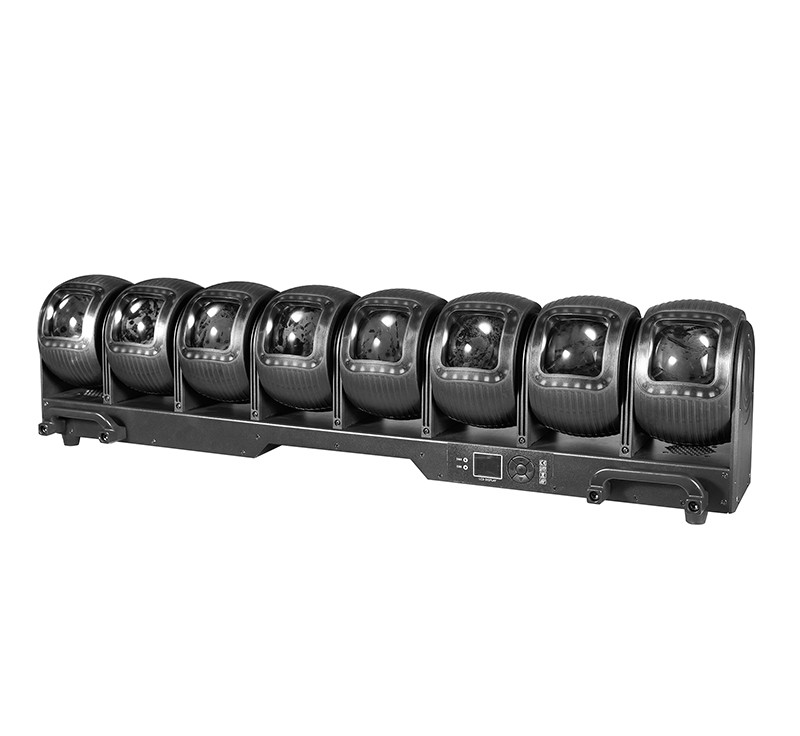

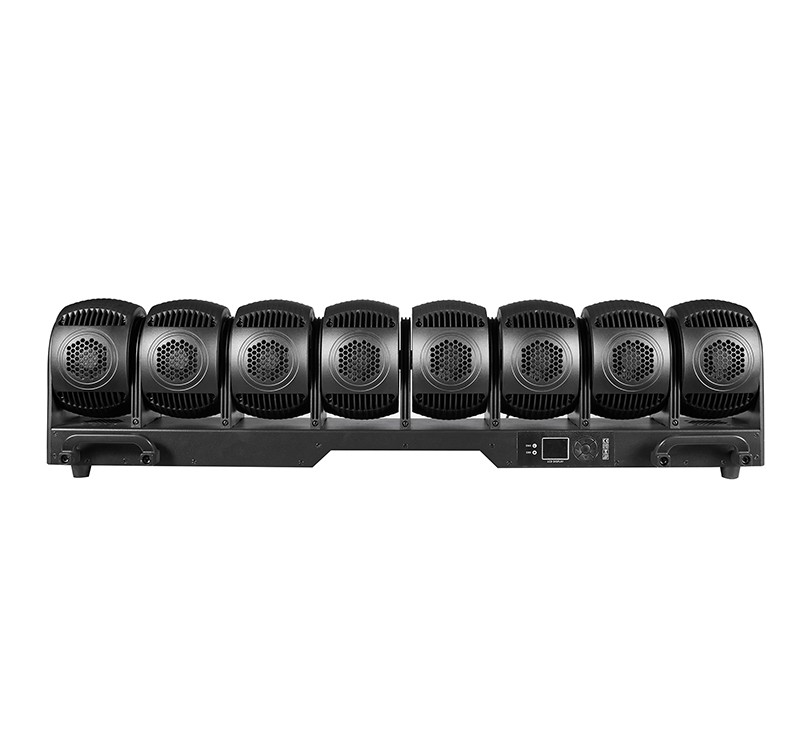

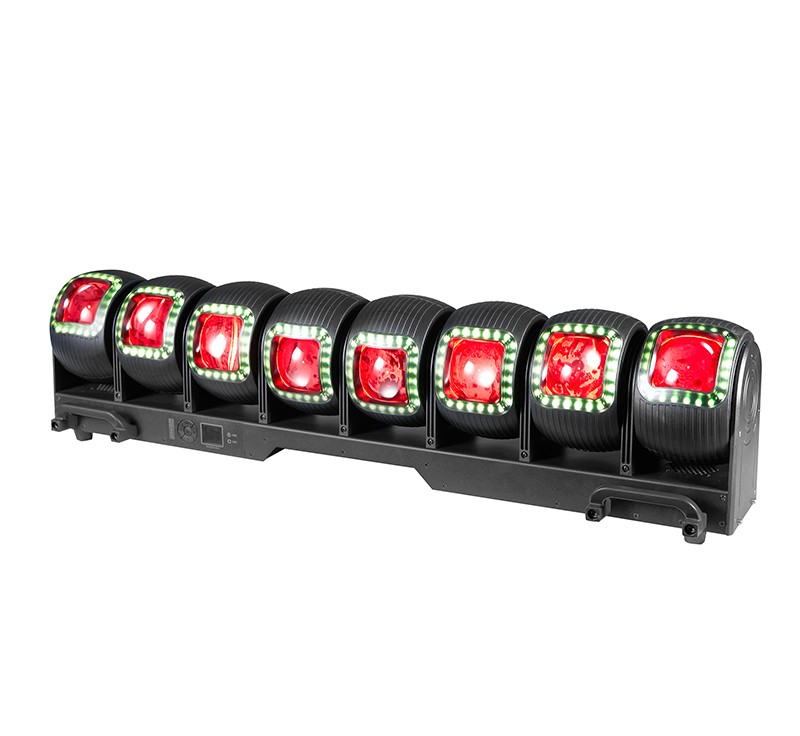

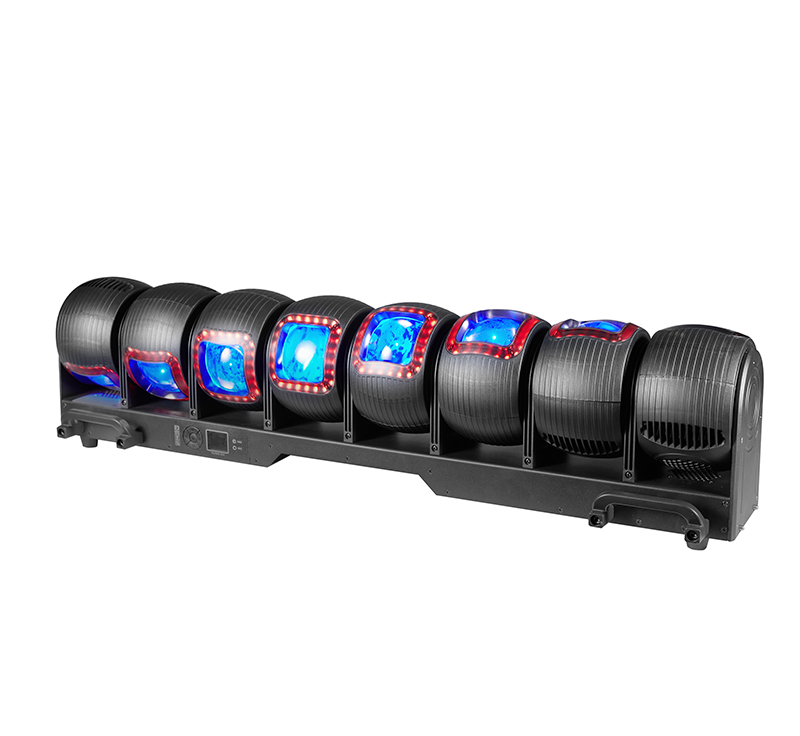

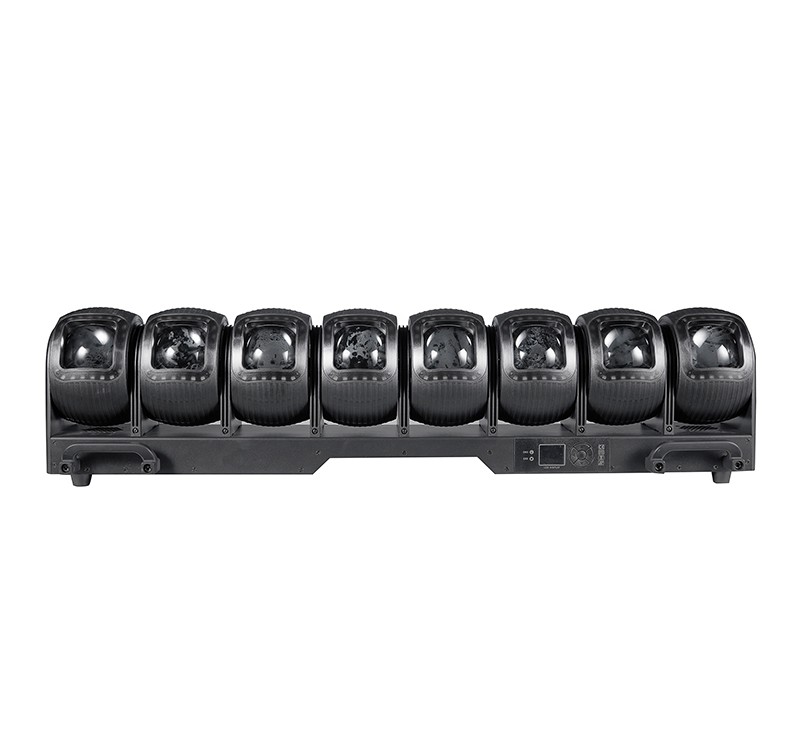

DMON LP880 Multi-Head Infinite Rotation Effect Light (8×80W RGBW)
The Dmon LP880 is an 8×80W RGBW multi-head infinite rotation effect light with continuous 360° tilt movement and built-in CTO adjustment from 2800K to 8000K. With 192 auxiliary RGB pixel LEDs and up to 154 DMX channels, the LP880 produces continuous rotation effects that a limited-range fixture can't replicate.
- 360° continuous infinite rotation — unlimited tilt movement without a mechanical stop point
- Built-in CTO 2800K–8000K adjustment — warm to cool color temperature without gels
- 192 auxiliary RGB pixel LEDs — layered visual effects beyond the main 8-head array
- Built-in dynamic movement and color macro effects — programmed looks available directly from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most moving fixtures have a mechanical limit on tilt travel, forcing a reset snap when they reach the end of their range. The LP880's 360° continuous infinite rotation removes that limit entirely, letting the heads spin without ever needing to reset mid-effect.
Switching between warm and cool lighting usually means swapping gels or fixtures. The LP880's built-in CTO adjusts from 2800K to 8000K directly, so operators can match the room's lighting needs without extra accessories.
Application Scenarios
Specification
| Main Light Source | 8 × 80W RGBW 4-in-1 LEDs | Auxiliary Light Source | (8 × 24) × 0.5W RGB 3-in-1 SMD LEDs |
| LED Lifetime | 50,000 hours | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 700W | Movement | 360° continuous infinite rotation (tilt) |
| Dimming | 0–100% smooth linear LED dimming | Strobe | 1–25Hz adjustable high-speed LED strobe |
| DMX Channel Modes | 27 / 41 / 97 / 127 / 154 CH | Color Mixing | RGBW full-range color mixing, uniform output |
| CTO | 2800K–8000K color temperature adjustment | Built-in Effects | Static color effects; dynamic movement effects (speed adjustable); dynamic color macro effects |
| Auxiliary Pixel Effects | Individual control per head; RGB color mixing with static and dynamic effects | Display | 1.8-inch TFT LCD display |
| Control System | DMX512 / Master-Slave / Sound / Auto / RDM | Operating Temperature | -25°C to 45°C |
| IP Rating | IP20 | Fixture Size | 1040 × 230 × 250 mm |
| Net Weight | 22.5 kg |
Details & Features
What's in the Box
- • DMON LP880 Moving Effect Light (8 × 80W RGBW LED)
- • Signal Cable
- • Power Cable
- • Hanging Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
What does 360° infinite rotation mean?
Unlike fixtures with a mechanical tilt limit, the LP880's heads rotate continuously without needing to reset or snap back — allowing uninterrupted spinning effects throughout a show.
Can the LP880 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (27 CH up to 154 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between the main array and the auxiliary pixel LEDs?
The 8-head main array handles the primary RGBW output, while the auxiliary SMD LEDs run as a separate, individually controlled layer for additional chase effects around each head.
Does the LED source need to be replaced like a traditional lamp?
No. The LP880 uses LEDs rated for 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
