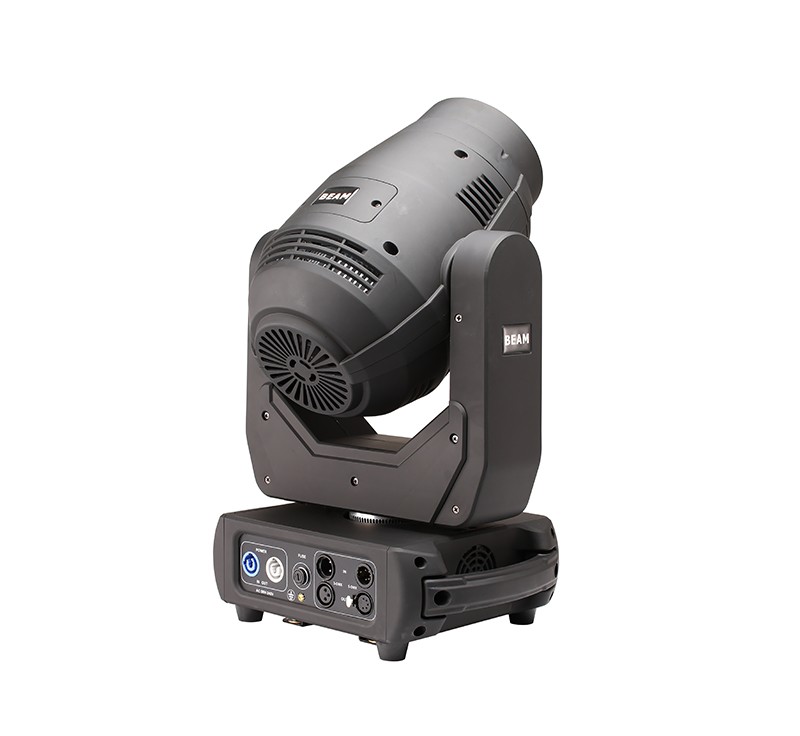

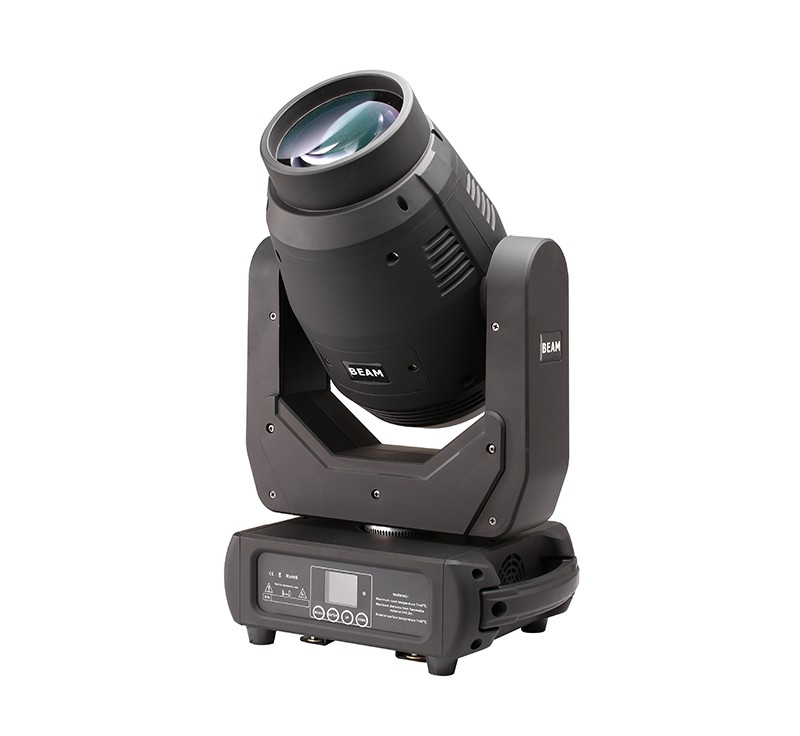

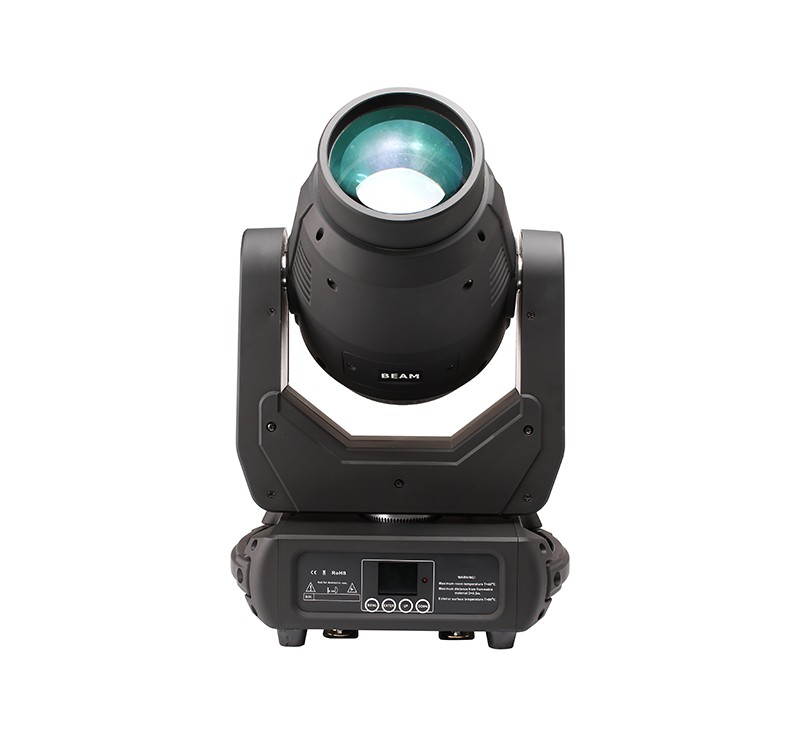

DMON LM250B 250W LED Beam Moving Head Light
The Dmon LM250B is a compact 250W LED beam moving head light with a sharp 3° beam angle, dual gobo wheels, and dual prisms (16-facet + honeycomb) for extensive pattern variation. Powered by a 20,000-hour LED engine and ultra-quiet three-phase motors, the LM250B offers a lightweight, easy-to-rig option for small to mid-size venues and touring setups.
- 250W LED engine (≈20,000 hours) — no lamp replacement cycle to manage
- 3° narrow beam angle — sharp, focused beam for compact and mid-size setups
- Dual gobo wheels (7 rotating + 8 static) + dual prisms — extensive pattern and texture variation
- Ultra-quiet three-phase motors — near-silent operation suited to close-proximity venues
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most compact beam fixtures give you one gobo wheel to work with. The LM250B pairs a rotating wheel with 7 replaceable gobos and a static wheel with 8 fixed gobos, plus dual prisms, so designers get more pattern variety without moving up to a larger, heavier fixture.
Close-proximity venues can't tolerate a fixture buzzing overhead. The LM250B runs on ultra-quiet three-phase motors, keeping pan/tilt movement near-silent even in smaller rooms where the audience sits close to the rig.

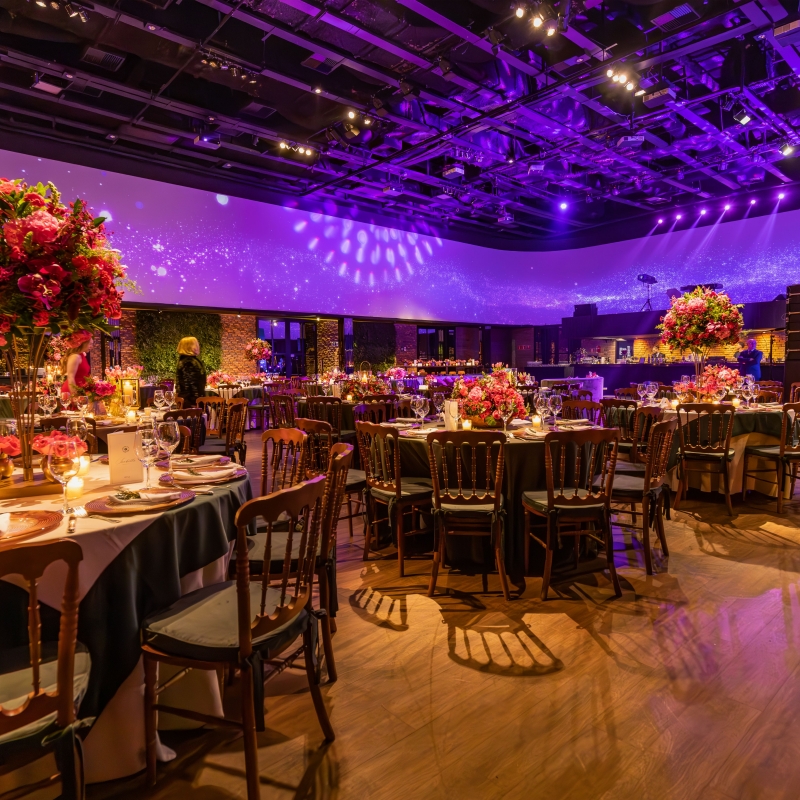

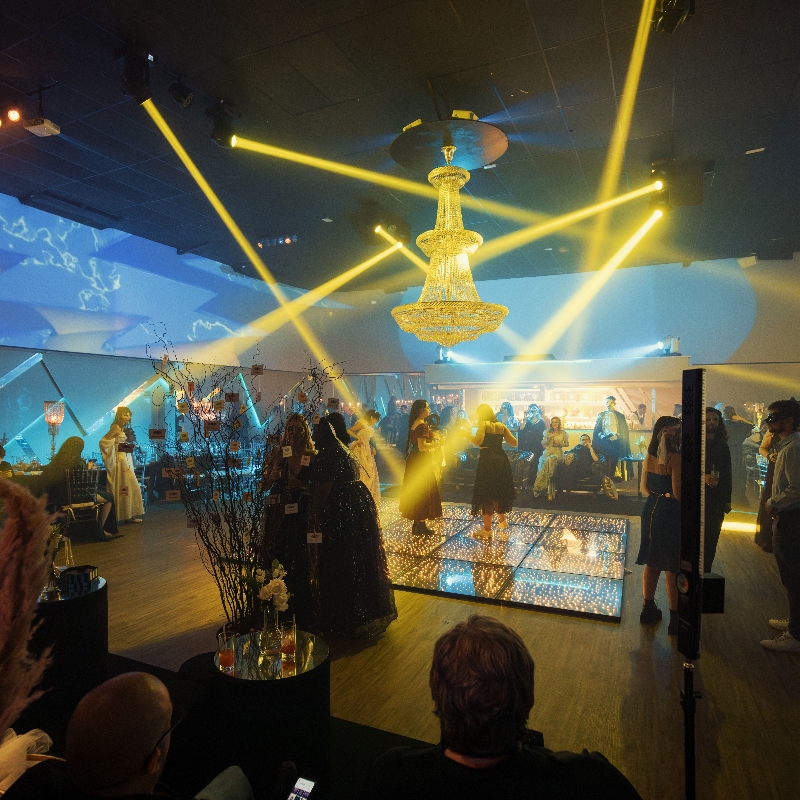

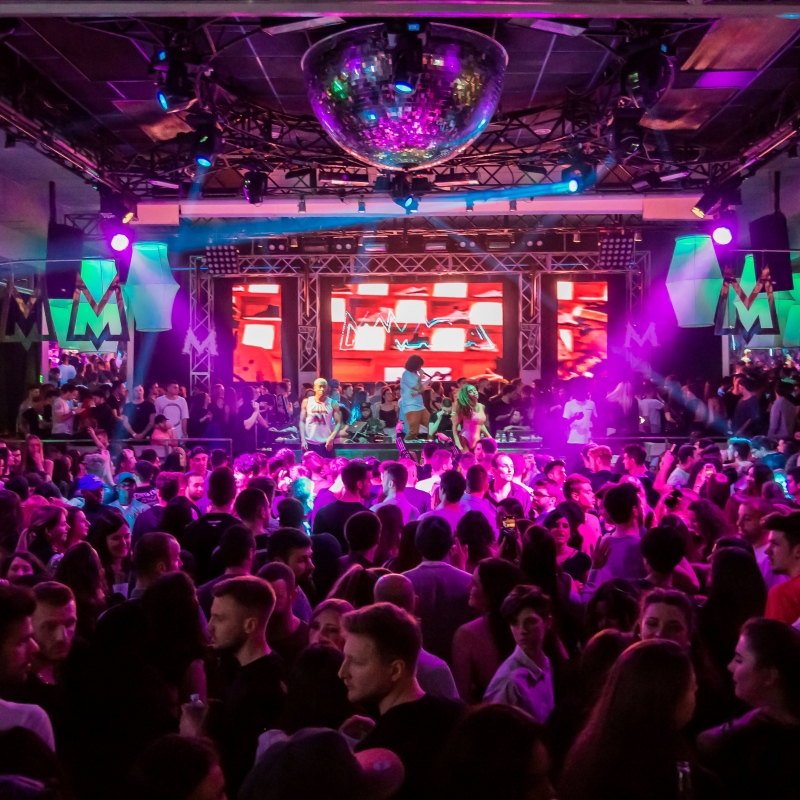

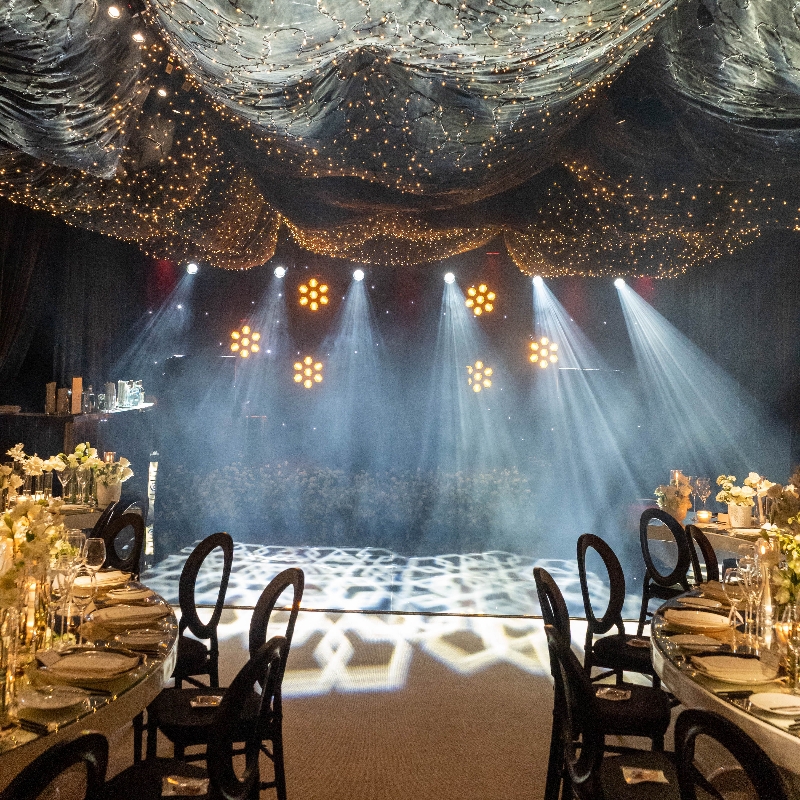

Application Scenarios
Specification
| Light Source | 1 × 250W White LED | LED Lifetime | Approx. 20,000 hours |
| Input Voltage | AC 110–240V, 50–60Hz | Total Power Consumption | 315W |
| Beam Angle | 3° | Dimming | 0–100% linear dimming |
| Strobe | 0–20 Hz | Color Wheel | 1 wheel with 7 colors + open |
| Rotating Gobo Wheel | 7 replaceable gobos + open | Static Gobo Wheel | 8 fixed gobos + open |
| Prism System | 16-facet prism + honeycomb prism, bi-directional rotation | Frost | Independent frost filter |
| Focus | Electronic focus for precise image adjustment | Motor System | Three-phase motors with ultra-quiet operation |
| Thermal Protection | Fan activates at 40°C, output reduces at 70°C | Control Protocol | DMX512 |
| DMX Channels | 16 / 18 CH | Fixture Dimensions | 330 × 230 × 520 mm (L×W×H) |
| Net Weight | 13.5 kg | Gross Weight | 16.5 kg |

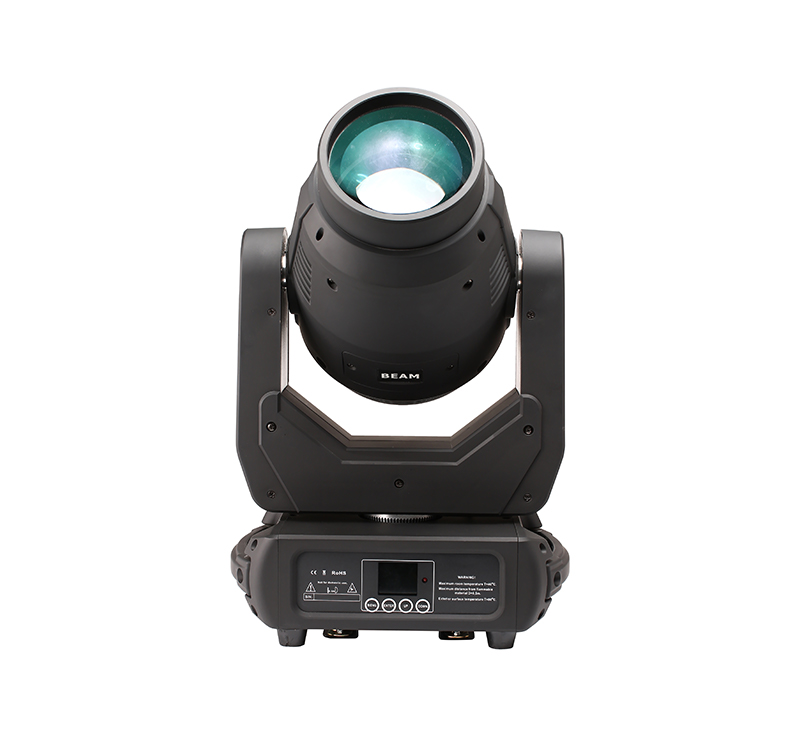

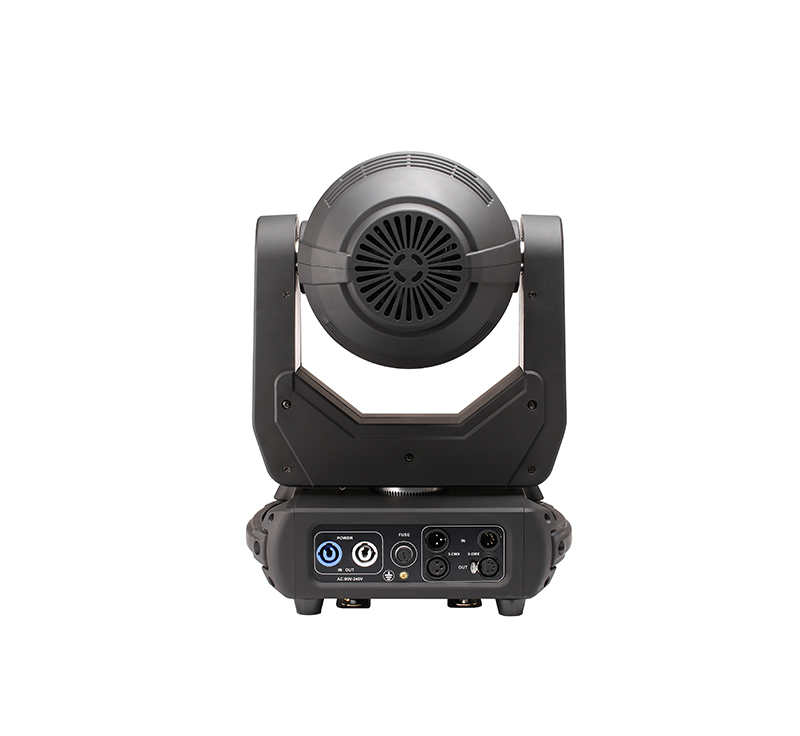

Details & Features
What's in the Box
- • DMON LM250B Moving Head (250W LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Frequently Asked Questions
Can the LM250B be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 16 CH or 18 CH modes, compatible with any DMX-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM250B uses a 250W LED engine rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What's the benefit of having two gobo wheels?
The rotating wheel (7 gobos) and static wheel (8 gobos) can be combined for more pattern variation than a single wheel allows — useful for productions that need more variety without adding extra fixtures.
What happens if the fixture overheats?
The cooling fan activates automatically at 40°C. If internal temperature continues to rise to 70°C, output is automatically reduced to protect the fixture.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
