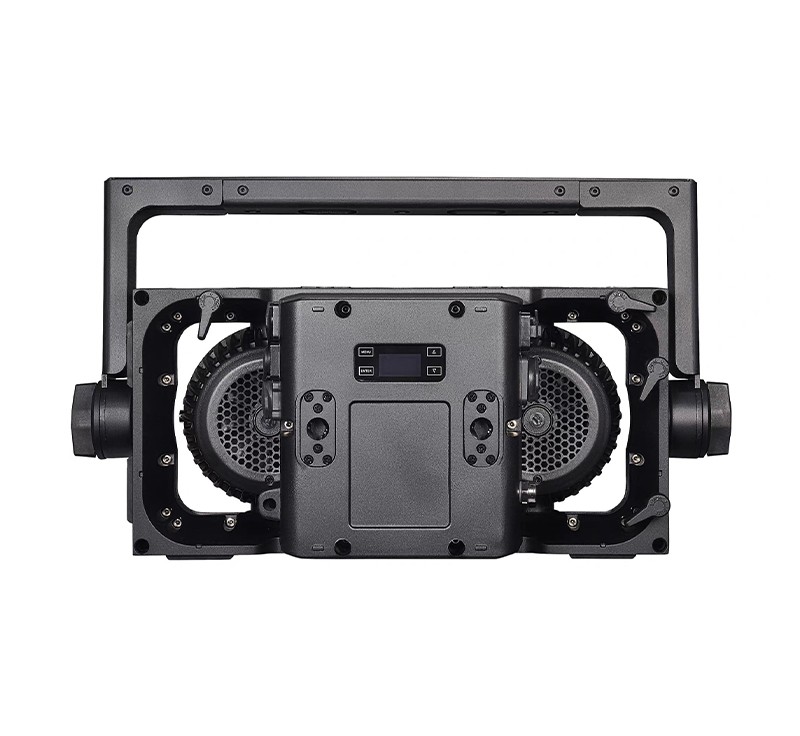

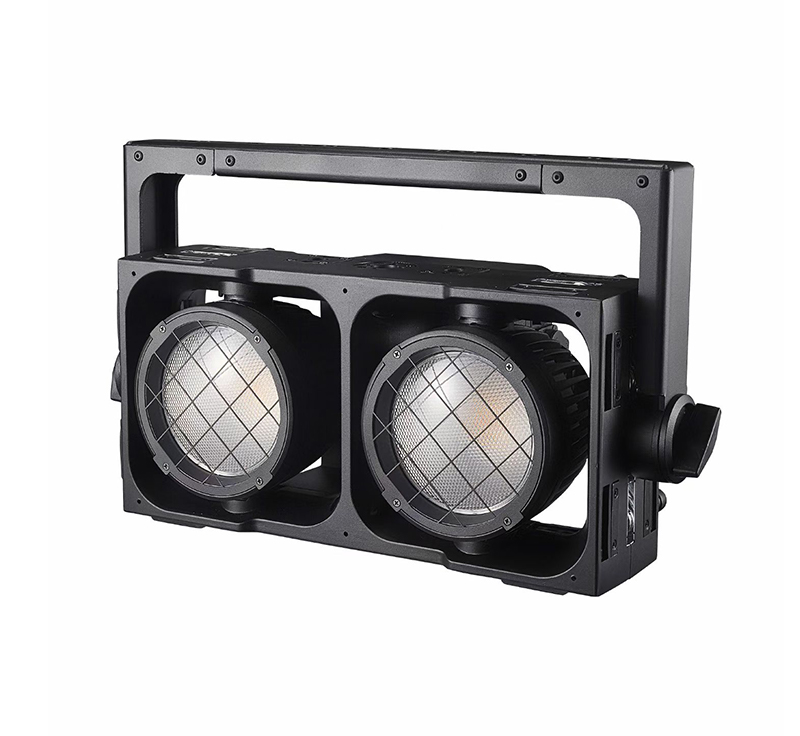

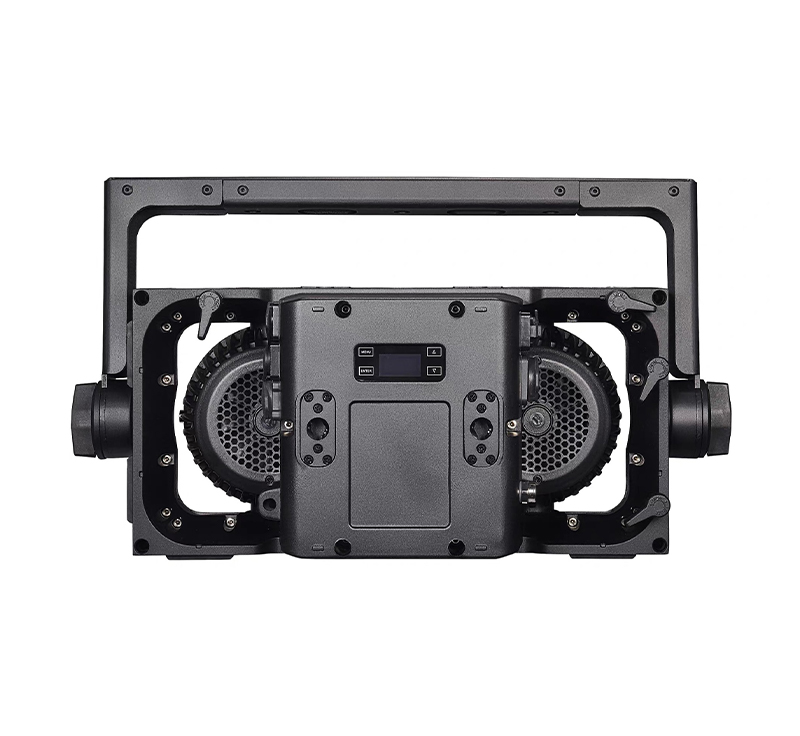

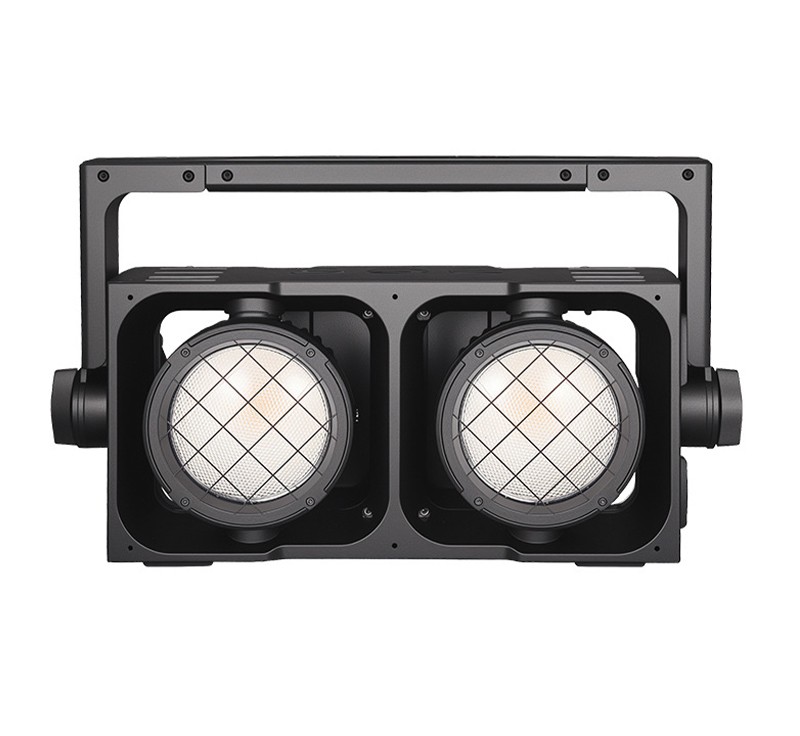

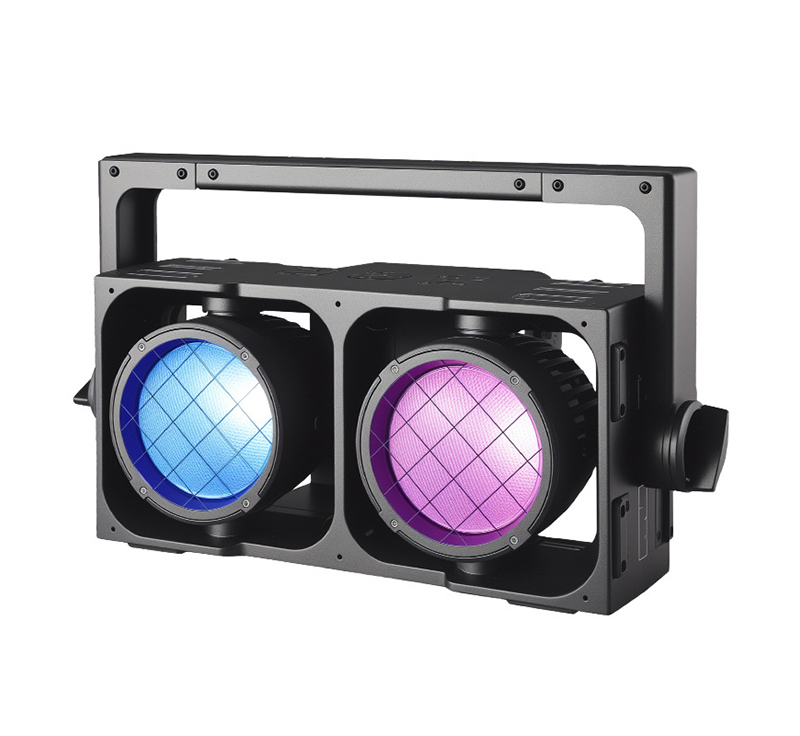

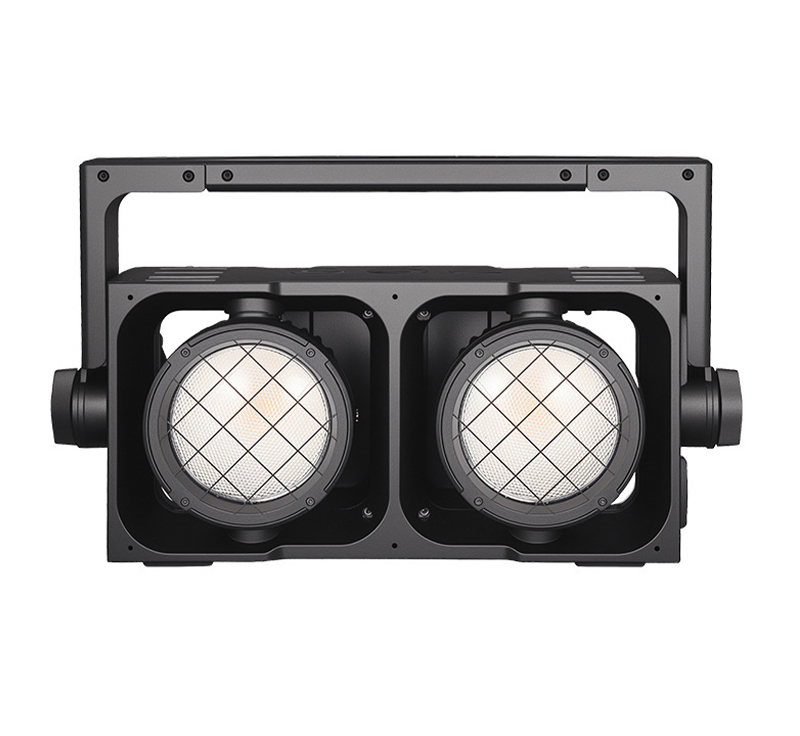

DMON BTF2 Outdoor Dual-Eye Waterproof RGBWL COB Audience Blinder Light
The Dmon BTF2 is an IP65-rated outdoor dual-eye audience blinder light combining 2×400W COB LEDs with full RGBWL color mixing and variable white tones from 1800K to 10000K. With 18-bit ultra-smooth dimming and DMX512/RDM control, the BTF2 delivers a high-output, full-color blinder effect built for outdoor concert and festival conditions.
- 2×400W dual-eye output — high-intensity blinder effect for large outdoor crowds
- Full RGBWL color mixing (1800K–10000K) — from warm amber to full color, in one fixture
- 18-bit ultra-smooth dimming — precise brightness control across 5 dimming modes
- Modular splicable mounting — links directly with additional units for wider array installations
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed-color blinder limits the effect to one look throughout a show. The BTF2's RGBWL mixing system covers everything from warm 1800K amber to full RGB color and cool 10000K white, giving designers a much wider creative range from a single fixture.

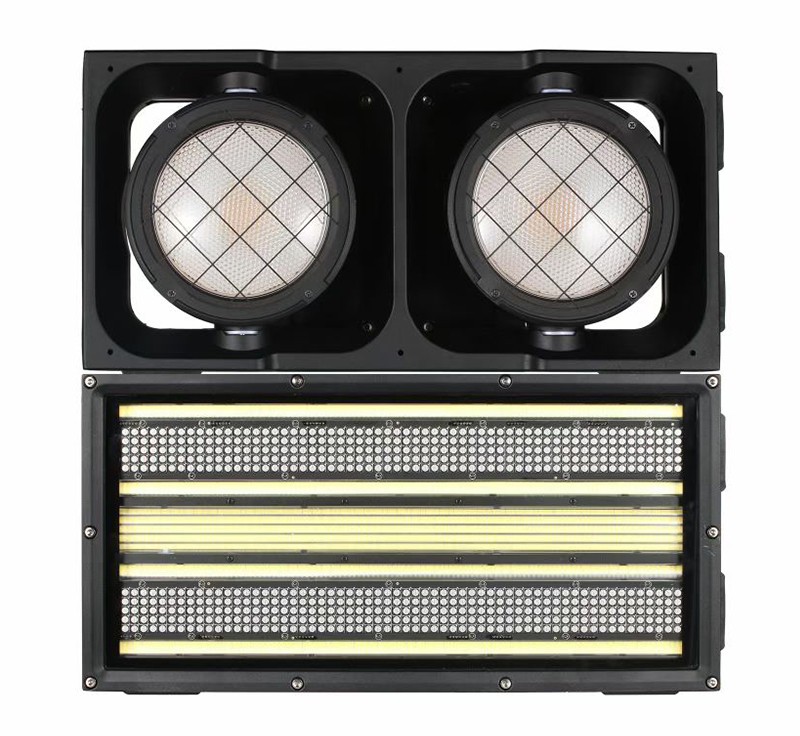

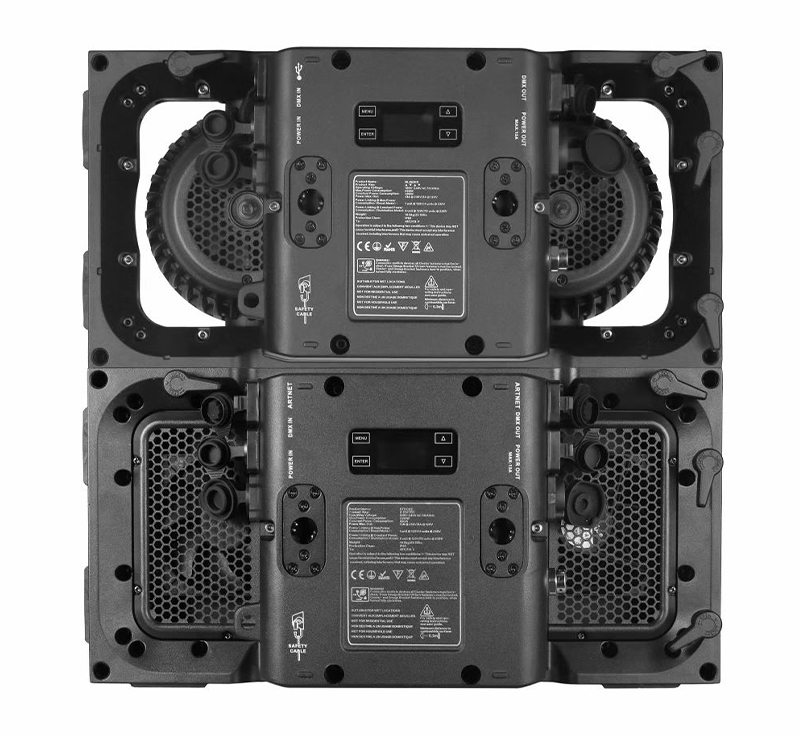

Rigging a wide array of blinder units usually means separate mounting hardware for each fixture. The BTF2's splicable mounting design lets units link directly to each other, simplifying setup for large blinder walls.
Application Scenarios
Specification
| Light Source Configuration | 2 × 400W Dual-Eye COB; 2 × 400W RGBWL LEDs (CCT range 1800K–10000K) | LED Lifetime | Approx. 20,000 hours |
| Input Voltage | AC 110–240V, 50/60Hz | Beam Angle | 65° |
| Field Angle | 97° | Color System | Full color RGBWL with variable white tones |
| Strobe | Fast electronic strobe 1–20 Hz | Dimming | 18-bit ultra-smooth dimming curves, 5 dimming modes |
| Built-in Programs | 8 selectable presets | Control Protocols | DMX512, RDM |
| Data Connection | Waterproof 3-pin XLR input/output | Installation | Modular linking system, splicable mounting design |
| IP Rating | IP65 (all-weather outdoor use) | Operating Temperature | -40°C to +45°C |
| Startup Temperature | -20°C to +45°C | Fixture Dimensions | 502 × 288 × 195 mm |
| Net Weight | 9.0 kg |
Details & Features
Frequently Asked Questions
Is the BTF2 truly rated for outdoor use?
Yes. The BTF2 is IP65-rated for all-weather outdoor use, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the BTF2 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Can multiple BTF2 units be linked together?
Yes. The fixture uses a modular, splicable mounting design, allowing units to link directly for wider blinder array installations.
What does the RGBWL color range let me do?
The RGBWL system covers warm 1800K amber through full RGB color to cool 10000K white, giving the blinder effect much more range than a fixed-color fixture.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
