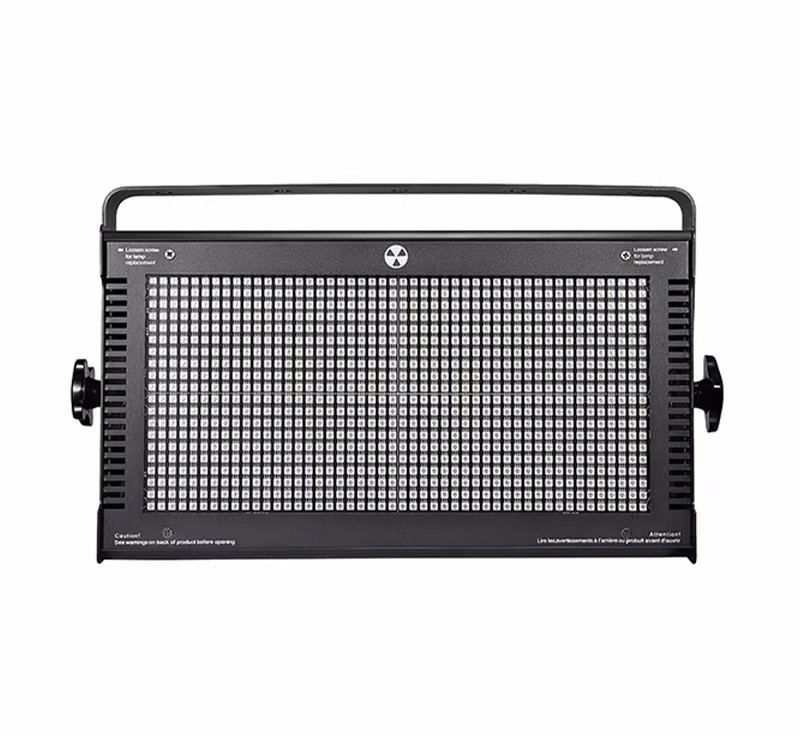

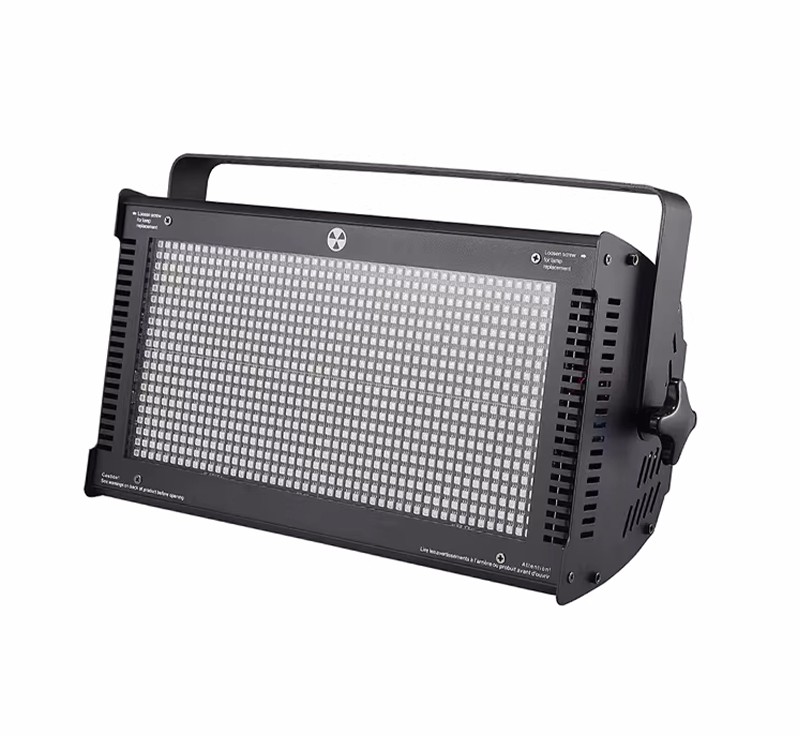

DMON 8P1000 960-Pixel 8/80-Segment RGB Strobe Light
The Dmon 8P1000 is a 960-pixel RGB strobe light with selectable 8 or 80-segment control, combining chase, wash, and strobe effects in one fixture. With 32-bit ultra-smooth dimming and DMX512/RDM control, the 8P1000 delivers detailed segmented effects for high-energy productions.
- Selectable 8 or 80-segment control — choose the resolution that matches your show's needs
- Three functions in one fixture — chase, wash, and strobe effects without switching between separate units
- 32-bit ultra-smooth dimming — precise, flicker-free brightness control
- RDM support — remote monitoring and status checks from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Different shows call for different levels of pixel control — a simple chase might only need a handful of segments, while a detailed pixel-mapped effect needs many more. The 8P1000 offers a choice between 8-segment and 80-segment configurations, so operators can match the fixture's resolution to the show without overpaying for control they don't use.
Running separate chase, wash, and strobe fixtures means rigging, powering, and programming multiple unit types. The 8P1000 combines all three effects in one fixture, cutting down on the number of fixture types a rig needs.
Application Scenarios
Specification
| LED Quantity | 960 × 0.3W RGB LEDs | LED Type | SMD 5050 RGB |
| Color Output | RGB | Color Temperature (White Mix) | 6500–7500K |
| LED Lifetime | ≥50,000 hours | Input Voltage | AC 110–220V ±10%, 50/60Hz |
| Power Consumption | 300W | Housing | Full aluminum housing |
| Dimming | 32-bit ultra-smooth linear dimming 0–100% | Strobe Modes | Normal strobe, random strobe, pulse strobe |
| Strobe Speed | 1–30 flashes/sec | Control Modes | DMX512, Auto, Master-Slave, Sound Active, RDM |
| DMX Channels | C003 / C010 / C240 / C247 | Segment Options | 8 segments or 80 segments (optional) |
| Effect Functions | Chase, wash, strobe effects | Data Connection | 3-pin & 5-pin XLR input/output |
| Packaging | Carton or flight case | Fixture Dimensions | 500 × 275 × 140 mm |
| Carton Dimensions | 540 × 320 × 205 mm | Net Weight | 6.5 kg |
| Gross Weight | 7.0 kg |
Details & Features
Frequently Asked Questions
Can the 8P1000 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between the 8-segment and 80-segment options?
The 8-segment version offers simpler, broader chase control, while the 80-segment version gives much finer pixel-level control for detailed effects. Confirm your preferred configuration at the time of order.
Can this fixture run without a DMX console?
Yes. Sound-active mode reacts to music input, useful for setups without a dedicated lighting operator.
Does the LED source need to be replaced like a traditional lamp?
No. The 8P1000 uses LEDs rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
