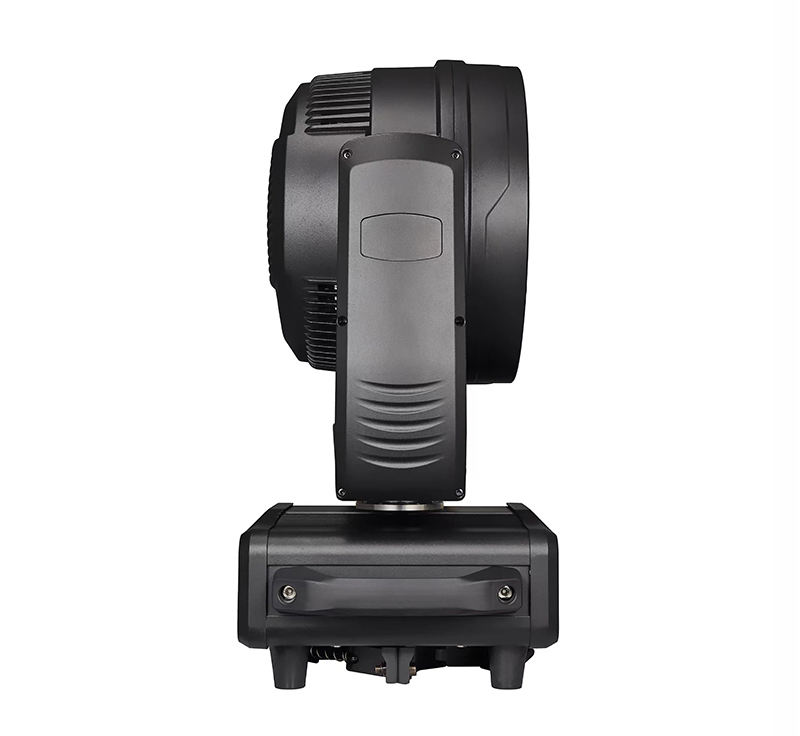

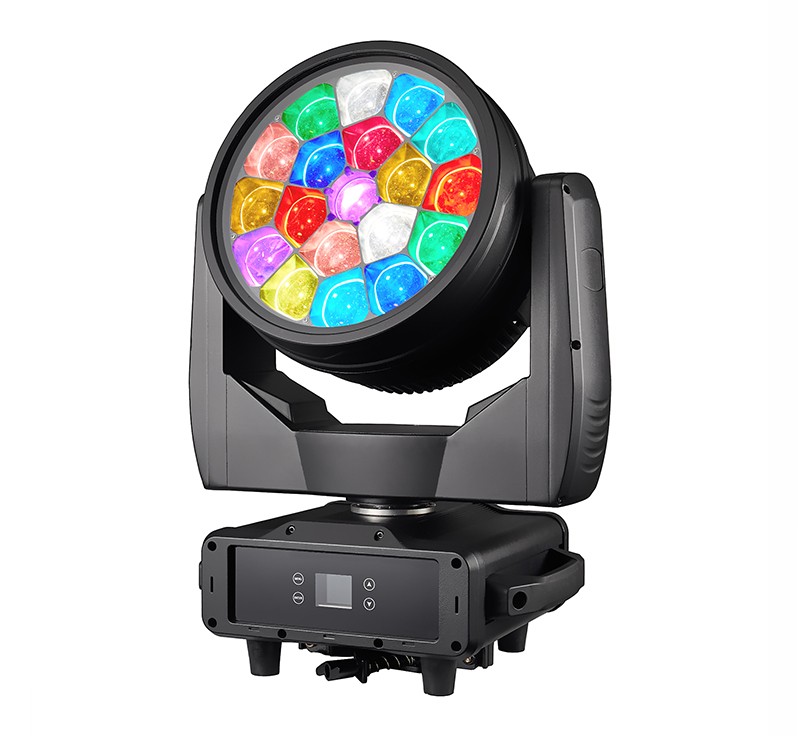

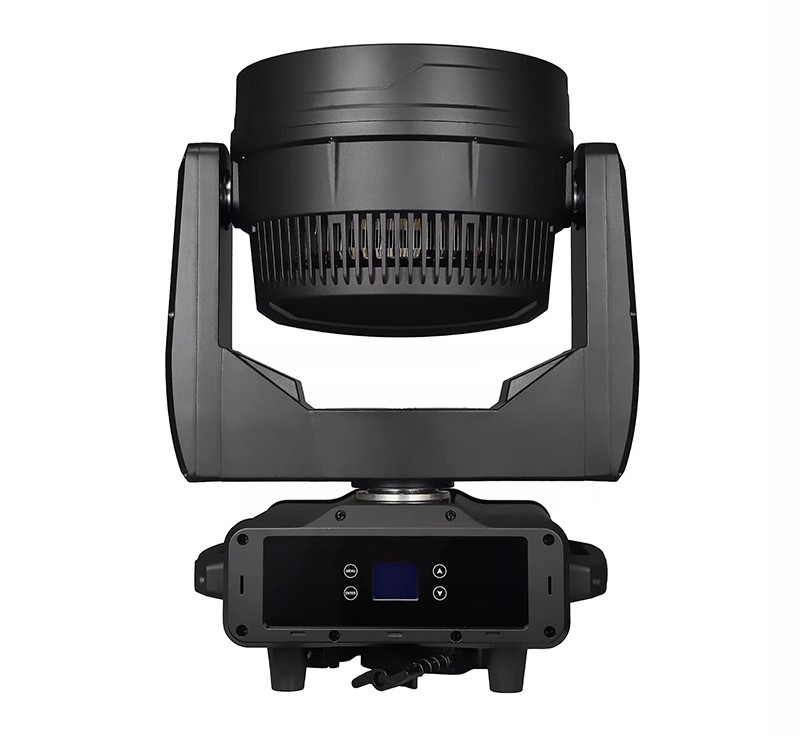

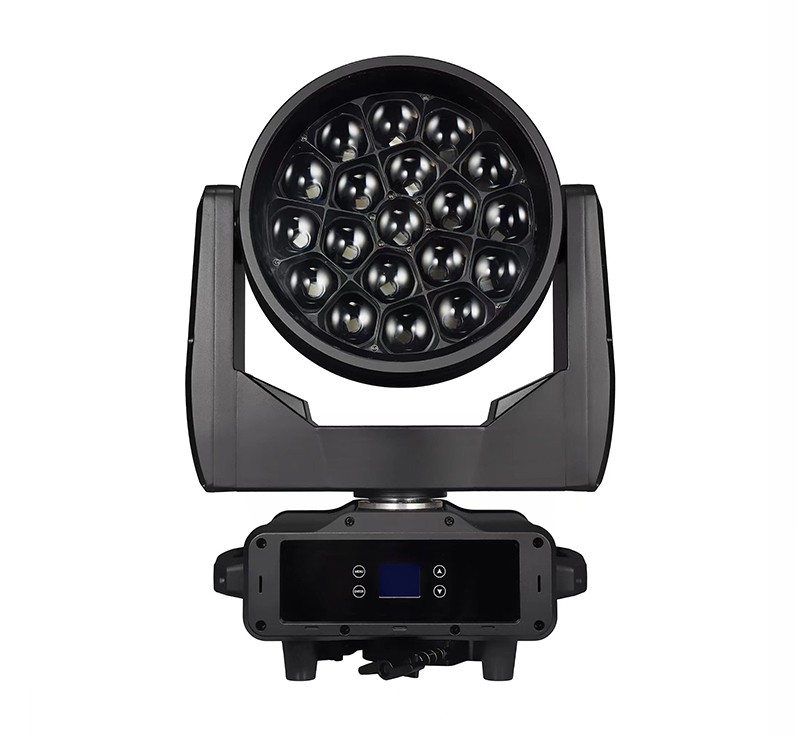

DMON MM1940 Outdoor 19×40W RGBW Waterproof Bee-Eye Moving Head Light
The Dmon MM1940 is an IP65-rated outdoor waterproof bee-eye moving head light powered by 19×40W RGBW LEDs, with waterproof PowerCon and 3-pin XLR connectors throughout. Individual pixel control with zoomed bee-eye patterns, wash, beam, and effect modes gives the MM1940 versatile visual output built for direct outdoor exposure.
- IP65 rated with waterproof connectors — true outdoor protection, no rain cover required
- 19×40W RGBW output — high-intensity pixel array for large-scale outdoor productions
- Individual pixel control with zoomed bee-eye patterns — versatile beam, wash, and effect modes in one fixture
- Die-cast aluminum housing — durable construction for long-term outdoor installations
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most outdoor fixtures fail at the connector, not the housing — water gets in through standard power and signal jacks long before it reaches the electronics. The MM1940 uses waterproof PowerCon and 3-pin XLR connectors throughout, closing off the most common point of failure in outdoor rigs.
A single fixed pattern limits a bee-eye light to one look. The MM1940's individual pixel control produces zoomed bee-eye patterns alongside separate wash, beam, and effect modes, giving designers more than one visual option from the same outdoor-rated unit.
Application Scenarios
Specification
| Light Source | 19 × 40W RGBW 4-in-1 LED | LED Lifetime | ≥50,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 810W |
| Color System | RGBW color mixing | Zoom | 3.5°–50° motorized zoom |
| Pan / Tilt | 540° / 270° (16-bit precision scanning) | DMX Channel Modes | 21 / 23 / 35 / 78 / 92 / 97 / 99 CH |
| Control Modes | DMX512 / Auto / Sound / RDM | Display | 1.8-inch TFT color display, 180° rotatable, bilingual menu |

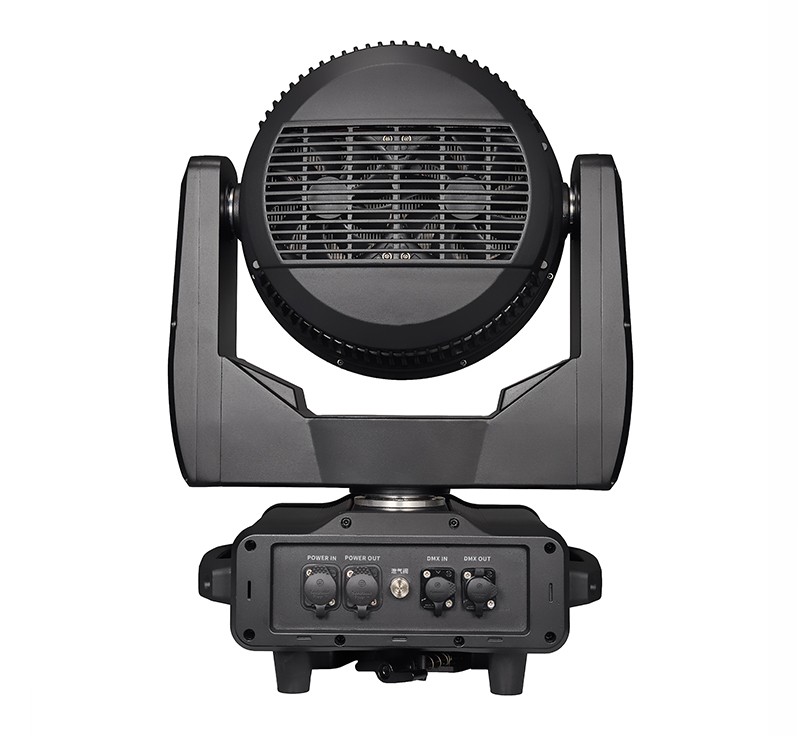

| Power Connectors | Waterproof PowerCon input & output | Signal Connectors | Waterproof 3-pin XLR in & out |
| Housing Material | Die-cast aluminum | IP Rating | IP65 waterproof |
| Maximum Linking | 220V ≤ 4 units (2.5mm² cable); 110V ≤ 2 units (2.5mm² cable) | Fixture Dimensions | 435 × 278 × 528 mm |
| Net Weight | 22 kg | Carton Size | 560 × 420 × 640 mm, G.W. 26 kg |
| Flight Case | 800 × 495 × 720 mm (2 pcs), G.W. 74 kg | Effects | Individual pixel control with zoomed bee-eye patterns, wash, beam and effect modes |
| Cooling System | Intelligent fan with temperature monitoring and overheat protection |
Details & Features
What's in the Box
- • DMON MM1940 Moving Head (19 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory (2 pcs configuration).
Frequently Asked Questions
Is the MM1940 truly rated for outdoor use?
Yes. The MM1940 is IP65-rated with waterproof PowerCon power connectors and waterproof 3-pin XLR signal connectors throughout, built for direct exposure to rain and outdoor conditions.
Can the MM1940 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (21 CH to 99 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Can multiple MM1940 units be linked on one power line?
Yes, within limits. Using 2.5mm² cable, up to 4 units can be linked at 220V, or up to 2 units at 110V, before requiring a separate power run.
Does the LED source need to be replaced like a traditional lamp?
No. The MM1940 uses 19×40W RGBW LEDs rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
