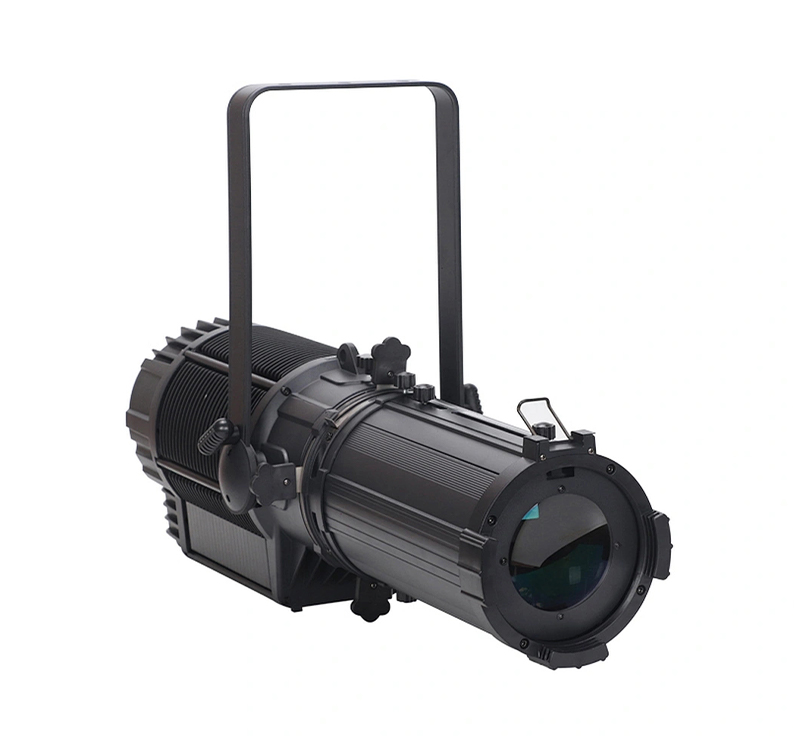

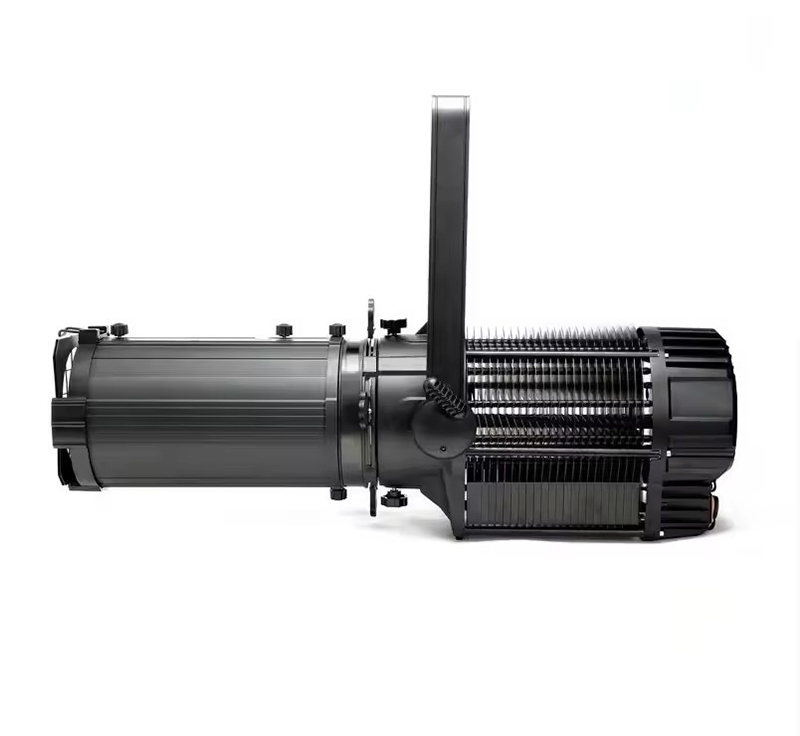

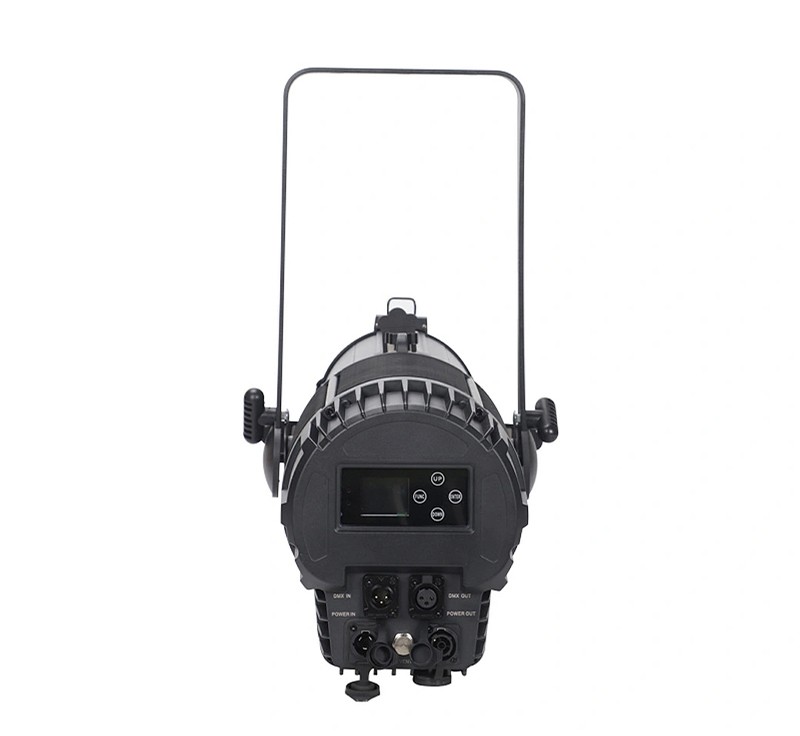

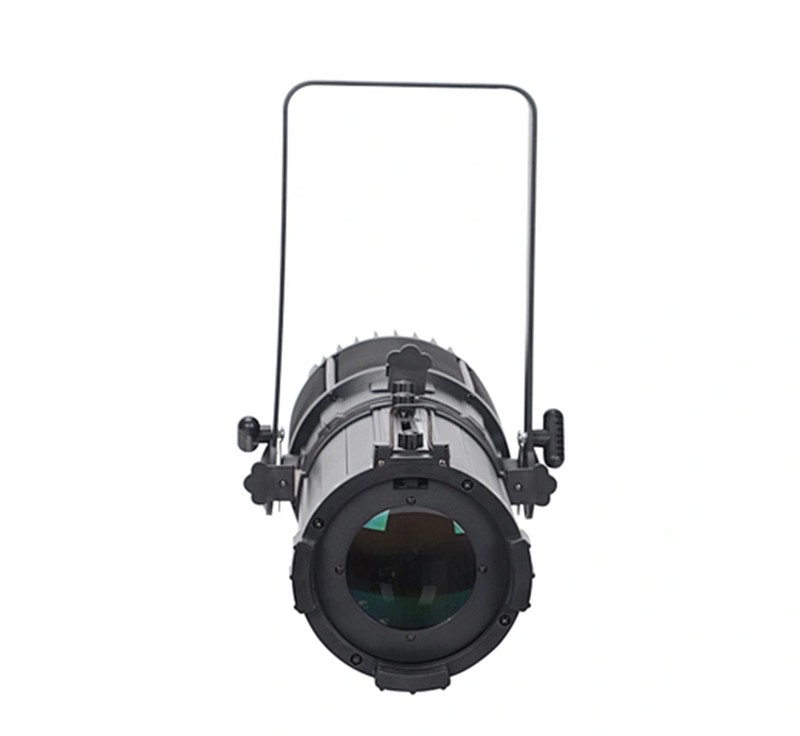

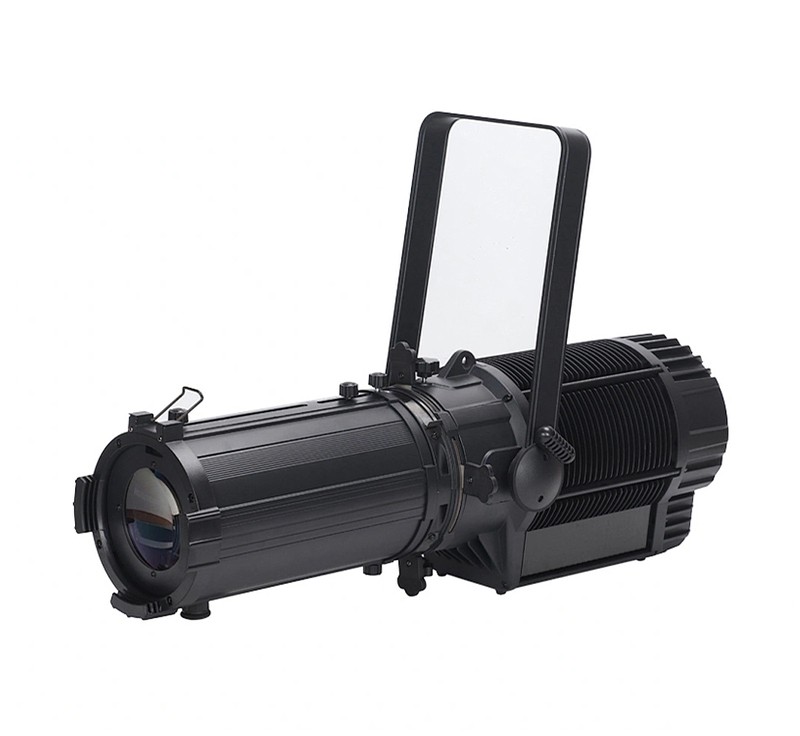

DMON CFT300 IP65 Waterproof Manual Zoom LED Profile Light
The Dmon CFT300 is an IP65-rated waterproof manual zoom LED profile light with a 300W LED source delivering CRI≥95 color accuracy. With a 15°–50° manual zoom range and fanless natural convection cooling, the CFT300 delivers precise, high-quality illumination built for outdoor conditions.
- 15°–50° manual zoom — wide adjustment range from a single fixture without swapping lenses
- IP65 waterproof — reliable operation in outdoor conditions without a rain cover
- CRI≥95 — exceptional color accuracy for productions where color fidelity matters
- Fanless natural convection cooling — silent operation with no moving parts to fail
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed beam angle limits a fixture to one throw distance and coverage area. The CFT300's manual zoom covers a wide 15°–50° range, letting installers adjust the beam on-site without needing to stock multiple lens options.
Fan-cooled fixtures can introduce audible noise in quiet venues, and moving parts eventually wear out. The CFT300 uses fanless natural convection cooling, keeping operation silent and reducing one more component that could fail over time.
Application Scenarios
Specification
| Light Source | 300W LED | Rated Power | 300W |
| LED Lifetime | ≥50,000 hours | Input Voltage | AC 110–240V, 50/60Hz |
| Color Temperature Options | 3200K or 5600K (single CCT version) | CRI | ≥95 |
| Beam Angle | 15°–50° manual zoom | Control Protocol | DMX512 |
| DMX Channels | 4CH | Dimming | 0–100% smooth linear dimming |
| Control Panel | LED LCD display | Cooling System | Fanless natural convection cooling |
| Housing Material | Die-cast aluminum | Operating Temperature | -30°C to +40°C |
| IP Rating | IP65 waterproof | Fixture Size | 660 × 370 × 350 mm |
| Net Weight / Gross Weight | 16.7 kg / 20 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Is the CFT300 truly rated for outdoor use?
Yes. The CFT300 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the CFT300 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 4 channels, compatible with any DMX-compliant console on the market.
Is the zoom motorized or manual?
The CFT300's zoom is manually adjusted at the fixture, covering a 15°–50° range without needing DMX control for the zoom function itself.
Does the LED source need to be replaced like a traditional lamp?
No. The CFT300 uses an LED source rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
