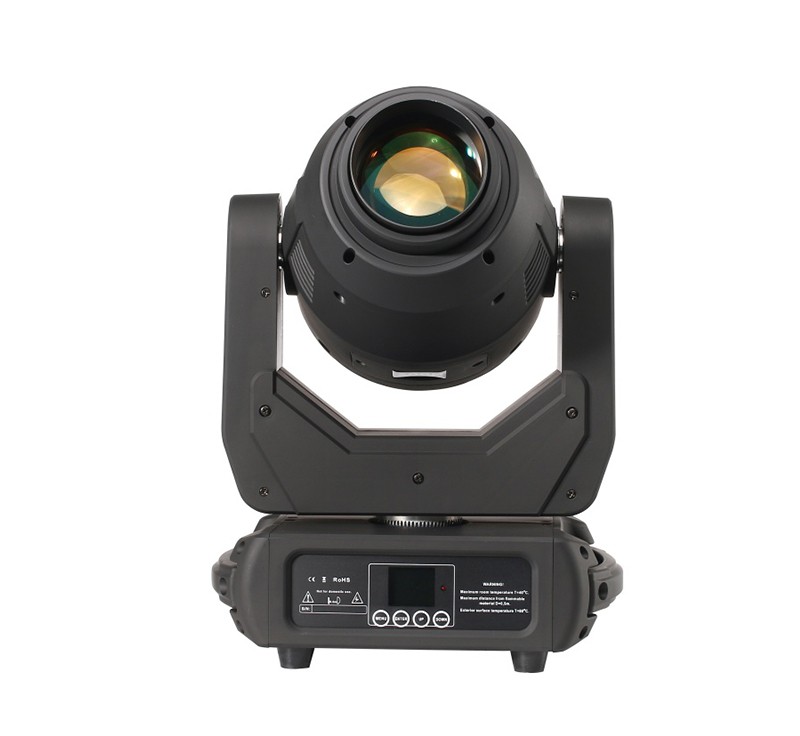

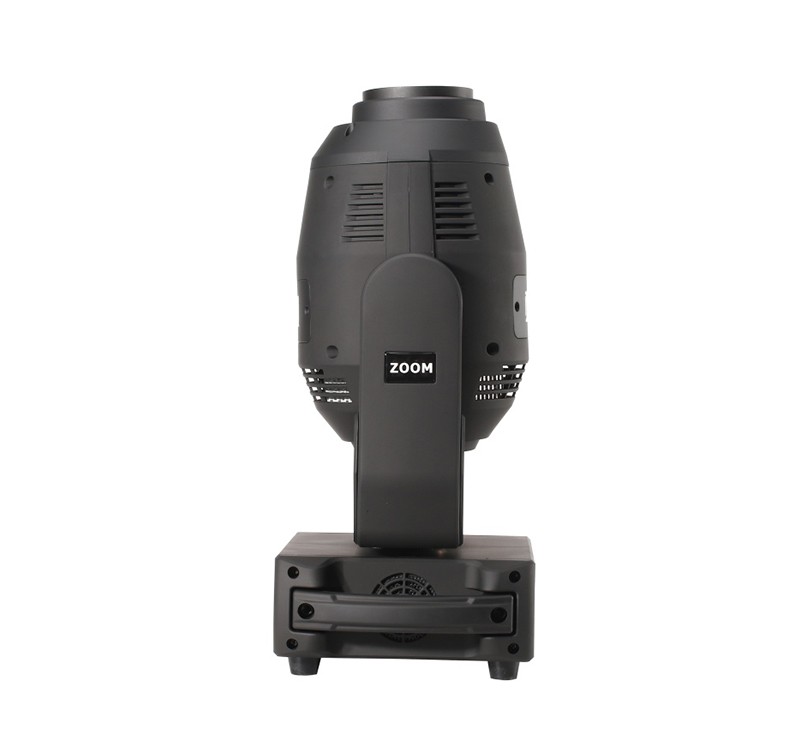

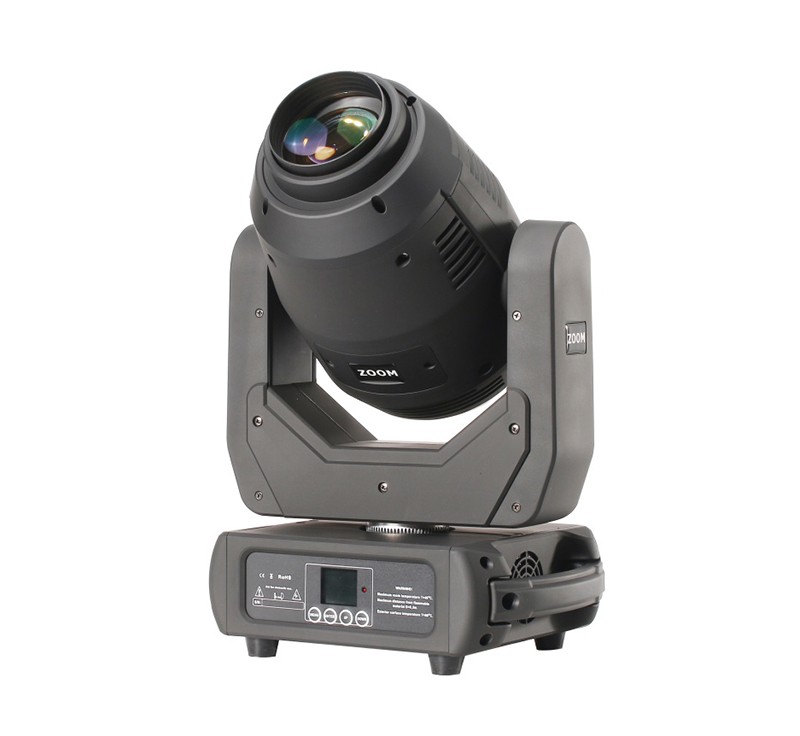

DMON LM250S 250W LED Spot & Gobo Moving Head Light
The Dmon LM250S is a compact 250W LED spot & gobo moving head light with a 5.5°–30° zoom range, dual gobo wheels, and a rotating 8-facet prism for versatile projection effects. Powered by a 20,000-hour LED engine and ultra-quiet three-phase motors, the LM250S offers a lightweight, easy-to-rig option for small to mid-size venues and touring setups.
- 250W LED engine (≈20,000 hours) — no lamp replacement cycle to manage
- 5.5°–30° zoom range — adjusts from tight spot to wider projection in one fixture
- Dual gobo wheels (7 rotating + 8 static) + 8-facet prism — extensive pattern variation
- Ultra-quiet three-phase motors — near-silent operation suited to close-proximity venues
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description

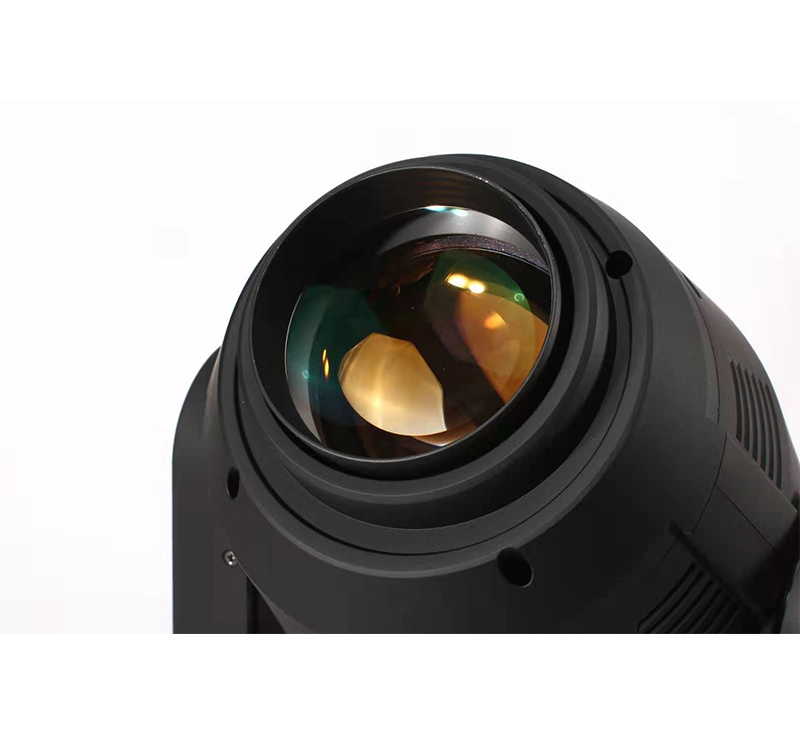

A fixed beam angle limits a fixture to one look. The LM250S's 5.5°–30° zoom lets operators adjust from a tight spot to a wider projection on the same fixture — useful in smaller venues where swapping fixtures for different looks isn't practical.
Close-proximity venues can't tolerate a fixture buzzing overhead. The LM250S runs on ultra-quiet three-phase motors, keeping pan/tilt movement near-silent even in smaller rooms where the audience sits close to the rig.

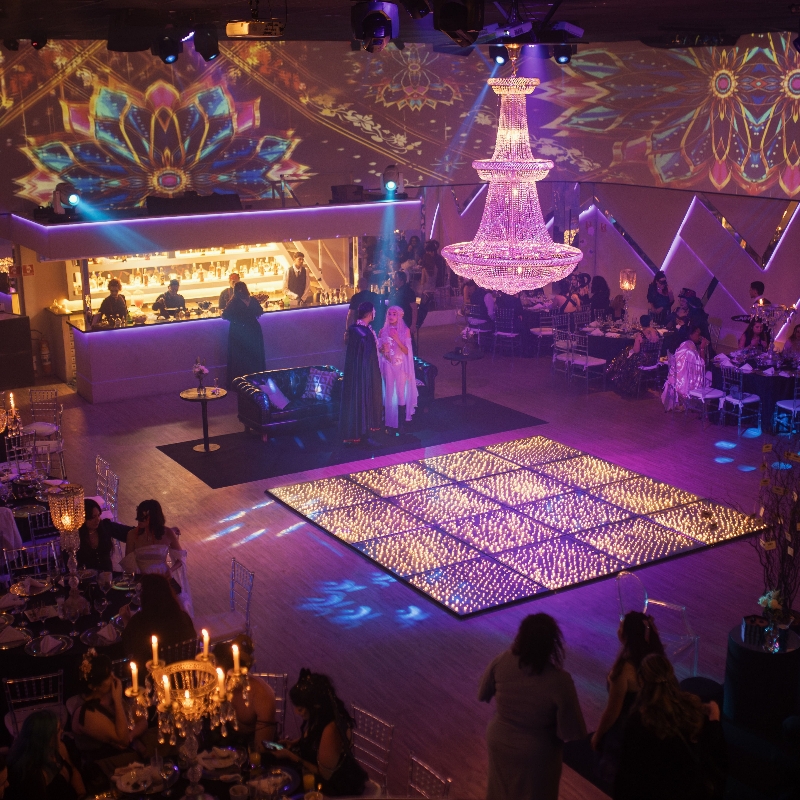

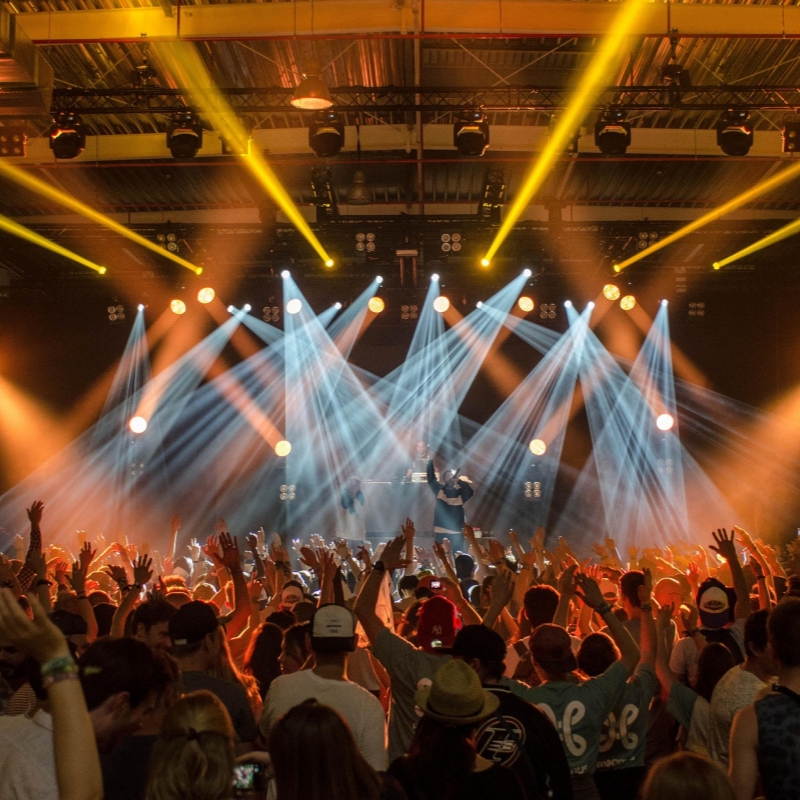

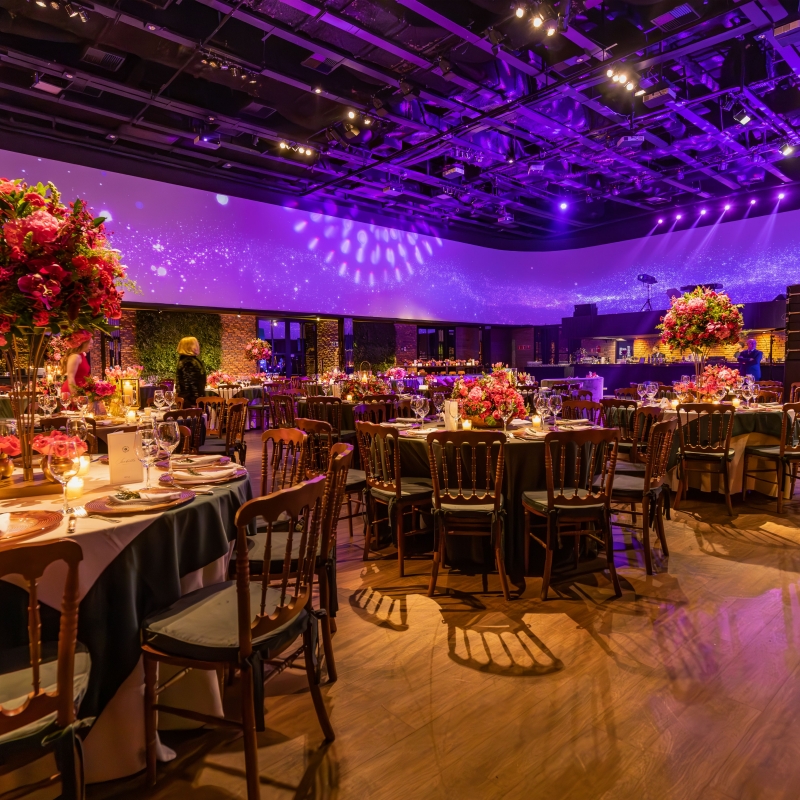

Application Scenarios
Specification
| Light Source | 1 × 250W White LED | LED Lifetime | Approx. 20,000 hours |
| Input Voltage | AC 110–240V, 50–60Hz | Total Power Consumption | 315W |
| Zoom Angle | 5.5°–30° | Dimming | 0–100% linear dimming |
| Strobe | 0–20 Hz | Color Wheel | 1 wheel with 7 colors + open |
| Rotating Gobo Wheel | 7 replaceable gobos + open | Static Gobo Wheel | 8 fixed gobos + open |
| Prism | 1 × 8-facet prism, bi-directional rotation | Frost | Independent frost filter |
| Focus | Electronic focus for precise image adjustment | Motor System | Three-phase motors with ultra-quiet operation |
| Thermal Protection | Fan activates at 40°C, output reduces at 70°C | Control Protocol | DMX512 |
| DMX Channels | 16 / 18 CH | Fixture Dimensions | 330 × 230 × 520 mm (L×W×H) |
| Net Weight | 13.5 kg | Gross Weight | 16.5 kg |
Details & Features
What's in the Box
- • DMON LM250S Moving Head (250W LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Frequently Asked Questions
Can the LM250S be controlled by third-party lighting consoles?

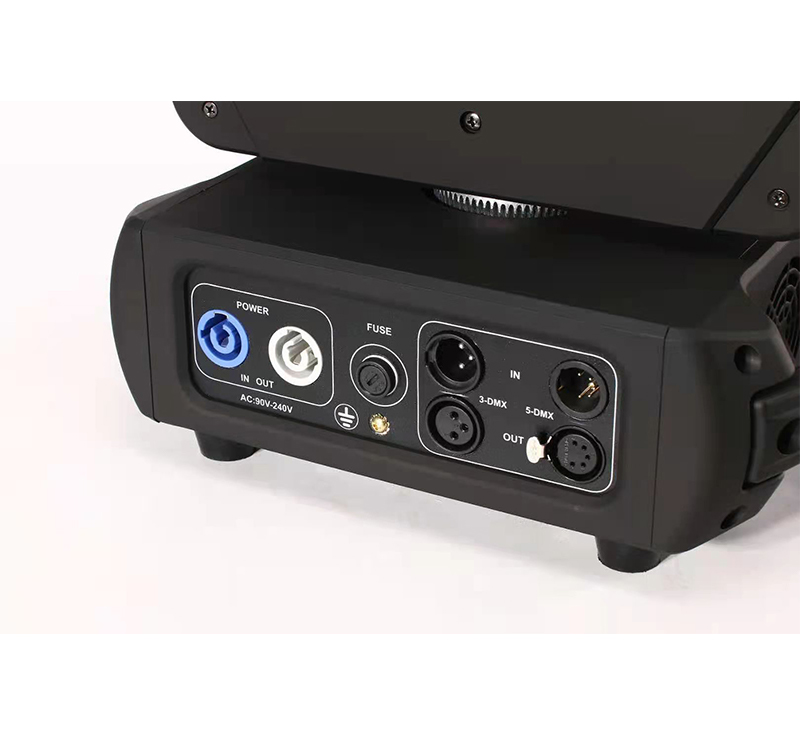

Yes. It runs on standard DMX512 protocol with selectable 16 CH or 18 CH modes, compatible with any DMX-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM250S uses a 250W LED engine rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
What can the zoom function do?
The 5.5°–30° zoom range lets operators adjust beam width on the fly — from a tight spot to a wider projection — without changing lenses or switching fixtures.
What happens if the fixture overheats?
The cooling fan activates automatically at 40°C. If internal temperature continues to rise to 70°C, output is automatically reduced to protect the fixture.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
