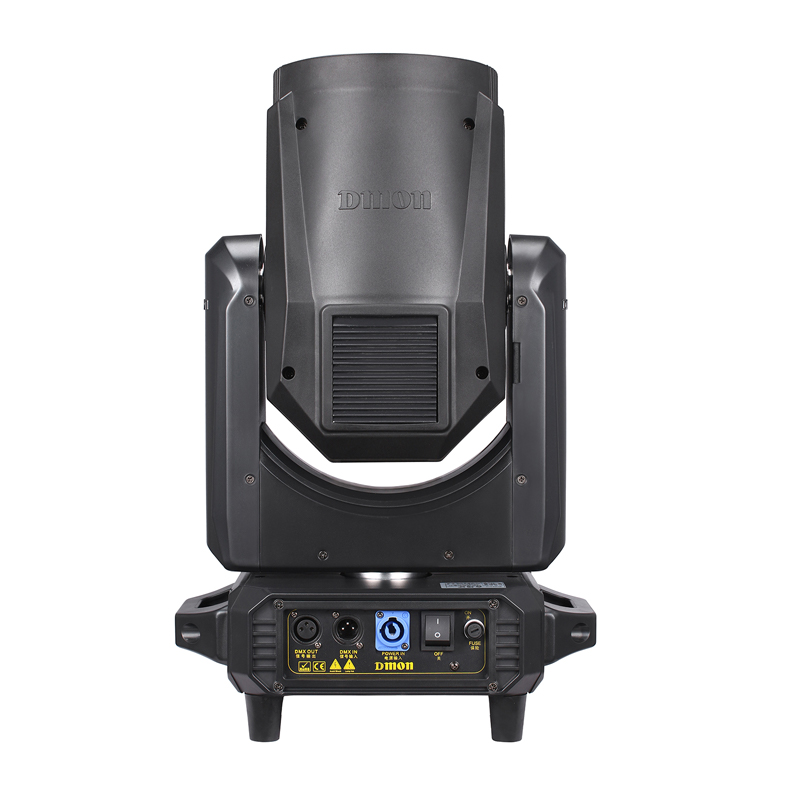

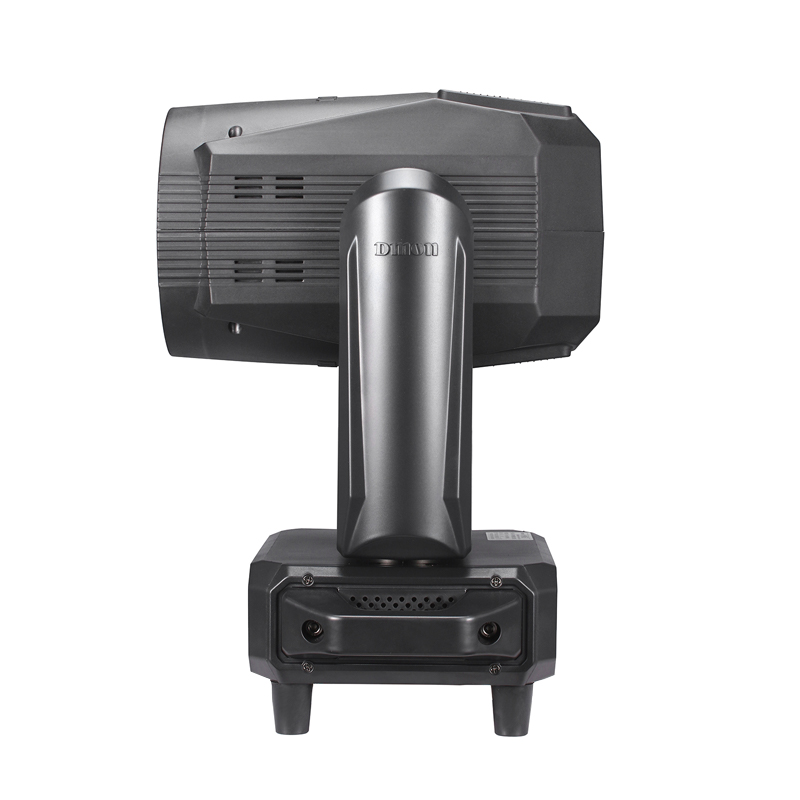

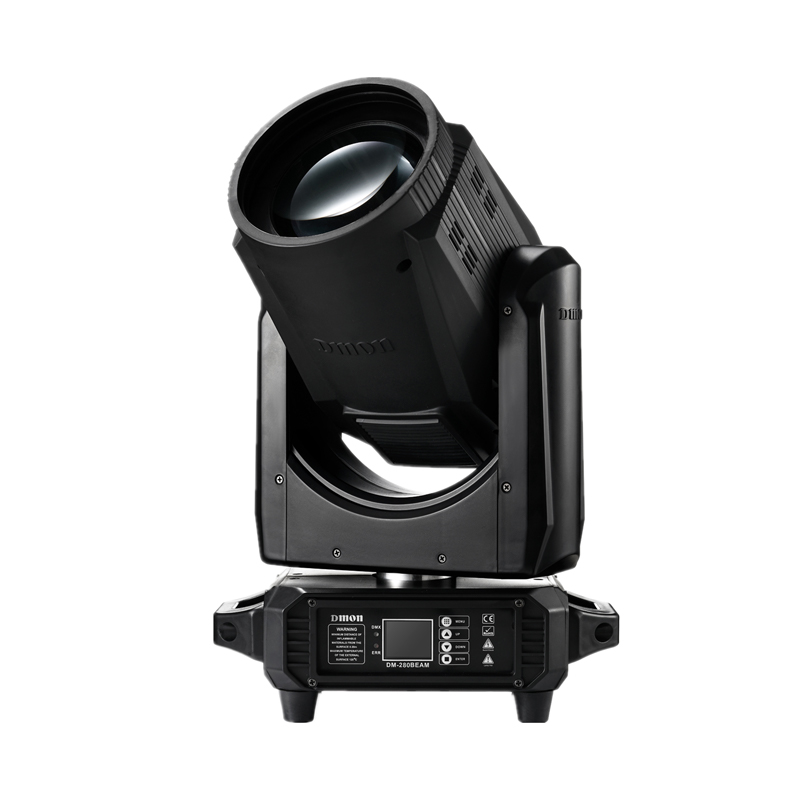

DMON 300BEAM 300W Beam Moving Head Light — Philips MSD Platinum 300LL
The Dmon 300BEAM is a professional 300W beam moving head light powered by the Philips MSD Platinum 300LL, delivering a razor-sharp parallel beam that cuts through haze and fills large venues. Built for concerts, touring productions, and large-stage events. CE & RoHS certified — OEM available.
- Philips MSD Platinum 300LL — up to 5,000 hrs lamp life, fewer replacements
- 0°–3.8° ultra-narrow beam — reads clearly at the back of any large venue
- 14 colors · 13 gobos · dual prisms — full show variation in one fixture
- CE & RoHS certified, factory direct, OEM available
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Touring rigs lose power more often than anyone likes to admit. When that happens, most moving heads need to be manually recalibrated before the show can go on. The 300BEAM's auto-reposition function skips that step entirely — it comes back to its exact position on its own, so your crew can focus on the show instead of resetting fixtures.
For fixed installations, the fixture goes into sleep mode automatically whenever it loses DMX signal — instead of sitting idle at full lamp output. Over months of continuous use in a venue, that difference adds up to real lamp life saved, without anyone needing to remember to power it down manually.
Application Scenarios
Specification
| Light Source | Philips MSD Platinum 300LL, 300W | Lamp Lifetime | Up to 5,000 hours |
| Input Voltage | AC 200–240V, 50/60Hz | Color Temperature | 8500K / 4500K / 3200K |
| Beam Angle | 0°–3.8° adjustable | Dimming | Mechanical linear 0–100%, 16-bit |
| Strobe | 0.5–9 Hz, pulse / sync / async | Color Wheel | 14 colors + open, bi-directional rainbow |
| Gobo Wheel | 13 static gobos + open, shake & positioning | Prism | 8-facet rotating + honeycomb prism |
| Focus | Electronic linear HD focus | Frost | Independent frost filter |
| Pan / Tilt | 540° / 270°, 16-bit, auto reposition | Control Protocol | DMX512 |
| DMX Channels | 16 CH | Display | Full-color TFT touch, 180° reversible |
| IP Rating | IP20 (optional rain cover IP44) | Certifications | CE, RoHS |
| Net Weight | 14.4 kg | Gross Weight | 17.7 kg |
| Carton Size | 41 × 38 × 53 cm (1 pc) | Flight Case | 22 kg / 64 × 40 × 73 cm (2 pcs) |
Details & Features
What's in the Box
- • DMON 300BEAM Moving Head (Philips MSD Platinum 300LL)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the 300BEAM be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 16 channels, compatible with any DMX-compliant console on the market.
Is the lamp field-replaceable?
Yes. The Philips MSD Platinum 300LL lamp can be replaced on-site without returning the fixture. Replacement lamps are available from DMON at cost price under our after-sales policy.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What happens if the fixture loses signal or power during a show?
The 300BEAM automatically enters sleep mode on DMX signal loss to protect the lamp. Pan/tilt uses 16-bit auto-repositioning, so the fixture recovers accurate positioning after a power interruption without manual recalibration.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
