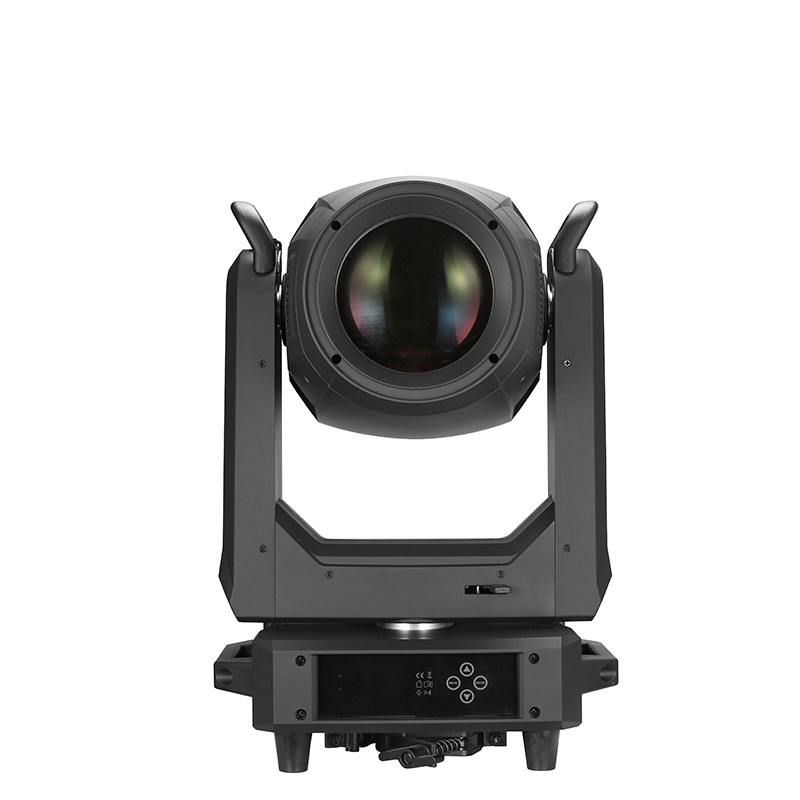

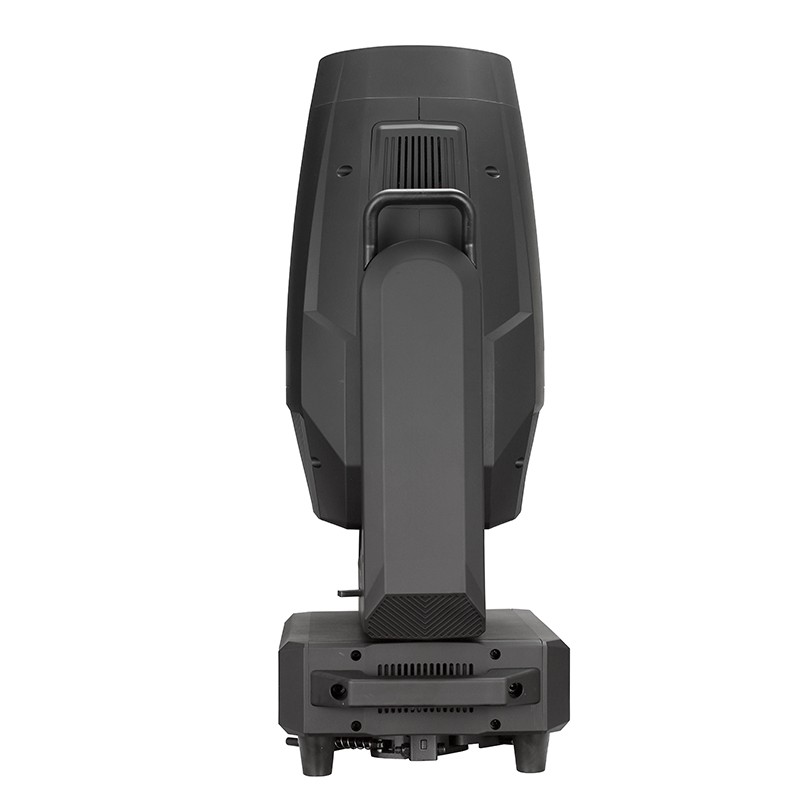

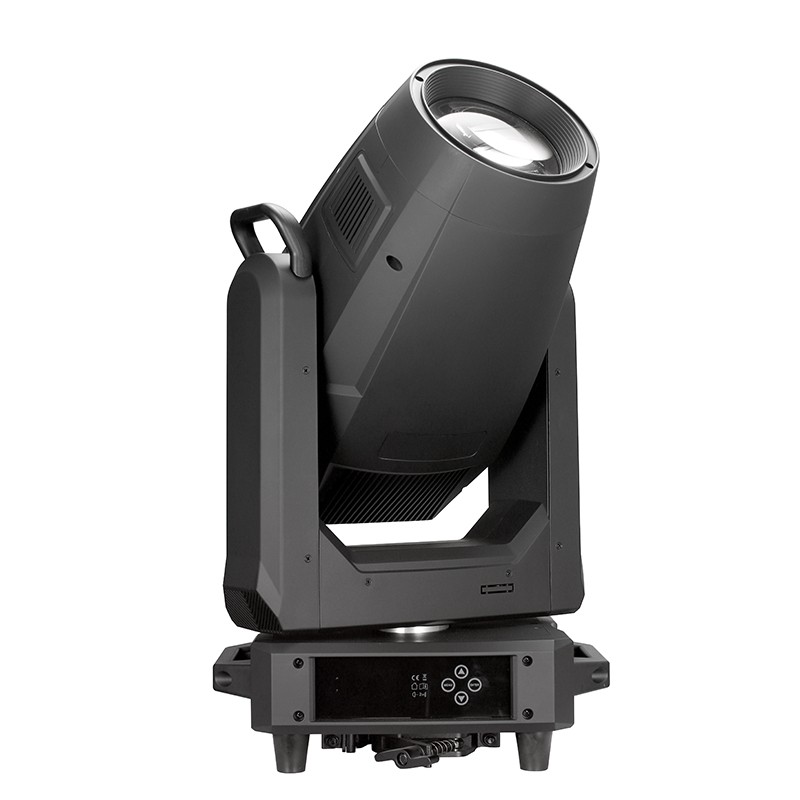

DMON LM800X 800W LED Framing Moving Head Light
The Dmon LM800X is a professional 800W LED framing moving head light featuring a 4-blade framing system and motorized iris for precise edge control, alongside linear CMY+CTO color mixing and a high CRI mode (Ra≥90). Delivering 22,500 lx at 5m from a 20,000-hour LED engine, the LM800X handles the output demands of larger venues without the maintenance cycle of a traditional lamp.
- 22,500 lx at 5m — high-output LED performance for larger venues and longer throws
- 4-blade framing system + motorized iris — precise edge shaping and beam masking on demand
- 20,000-hour LED engine — no lamp replacement cycle to manage
- High CRI mode (Ra≥90) — accurate color rendering for productions where color fidelity matters
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Larger venues need more than just a sharp beam — they need the raw output to carry that beam across distance. The LM800X delivers 22,500 lx at 5m, giving designers the headroom to light bigger stages and longer throws without the beam washing out before it reaches its target.
Lighting a stage set or a building facade often means keeping light off certain edges — a doorway, a sign, a piece of scenery. The LM800X's 4-blade framing system rotates 120° and shapes the beam on the fly, so designers can mask exactly what needs to stay dark without gels or external shutters.
Application Scenarios
Specification
| Light Source | 800W LED | LED Lifetime | 20,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power | 1000W @ 220V |
| Illuminance | 22,500 lx @ 5m | Beam Angle | 4°–40° |
| CRI | Standard mode Ra≥70 / High CRI mode Ra≥90 | Pan / Tilt | 540° / 270° with auto-reset |
| Strobe | 0–25Hz | Dimming | 0–100% linear dimming |
| Color System | Color wheel: 5 colors + open; Linear CTO; Linear CMY | Static Gobo Wheel | 6 fixed gobos + open, flow effect |
| Rotating Gobo Wheel | 7 rotating glass gobos, bi-directional rotation | Prism System | 3 prisms |
| Focus | DMX linear focus | Frost | Independent frost filter |
| Framing System | 4-blade framing system, 120° rotation | Iris | Motorized linear iris |
| Control Protocol | DMX512, RDM | Channel Mode | 35 CH |
| Macros | Reset, Auto, Master-Slave | IP Rating | IP20 |
| Housing Material | High-temperature flame-retardant plastic | Power Connection | powerCON input / output |

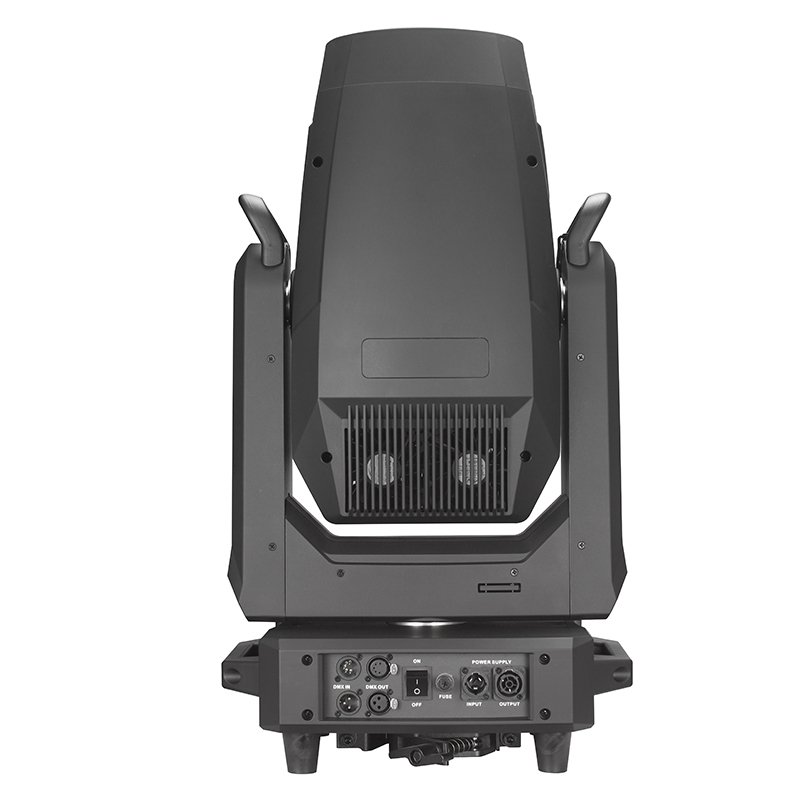

| Signal Connection | 3-pin & 5-pin DMX input / output | Working Temperature | -20°C to +40°C |
| Fixture Size | 383 × 274 × 670 mm | Net Weight | 31 kg |
| Packing Size | 750 × 360 × 470 mm |
Details & Features
What's in the Box
- • DMON LM800X Moving Head (800W LED)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
-
Frequently Asked Questions
How does the framing system work?
The LM800X uses a 4-blade framing system that rotates 120°, letting operators mask specific edges of the beam — useful for keeping light off a doorway, sign, or piece of scenery without gels or external shutters.
Does the LED source need to be replaced like a traditional lamp?
No. The LM800X uses an 800W LED engine rated for 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can the LM800X be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 35 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between standard and high CRI mode?
Standard mode runs at Ra≥70, suitable for general stage use. High CRI mode switches to Ra≥90 for productions where accurate color rendering matters, such as broadcast or product launches.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
